15 inch Wall-mounted industrial monitor SCD-A150SG

15 inch Wall-mounted industrial monitor SCD-A150SG - Image 2

15 inch Wall-mounted industrial monitor SCD-A150SG - Image 3

15 inch Wall-mounted industrial monitor SCD-A150SG - Image 4

15 inch Wall-mounted industrial monitor SCD-A150SG - Image 5

15 inch Wall-mounted industrial monitor SCD-A150SG - Image 6

-17%Feature

Video 360

15 inch Wall-mounted industrial monitor SCD-A150SG

0 Reviews Write a review

Product codeSCD-A150SG

Availability In Stock

Estimated delivery dates: Apr 26, 2025 - Apr 30, 2025

You save

-16%

● 15″ LED industrial backlight screen, resolution 1024×768, optional capacitive touch screen or resistive touch screen, in line with IP65 waterproof rating
● Aluminum alloy front panel and metal box structure, sturdy, dustproof and anti-interference, optional anti-vibration buffer waterproof rubber strip to better prevent moisture from penetrating into the box
● Wide temperature (-10 ~ 60°C) stable operation, voltage input DC 12V and 2PIN phoenix terminal, support grounding wire
● The display input can be VGA+HDMI or VGA+DVI+HDMI, the touch is a USB interface, and the audio port can be added with a built-in speaker
● OSD button menu supports brightness, contrast, color temperature, multi-Chinese languages such as Chinese/English and other functions
● Support embedded, VESA standard (100×100mm) bracket or support arm flexible installation

Buy 1 - 9 pieces

~~$525.00~~

$441.00

Total:

~~$525.00~~

$441.00

Buy 10 - 49 pieces

~~$525.00~~

$420.00

Total:

~~$525.00~~

$441.00

Buy 50 - 99 pieces

~~$525.00~~

$404.25

Total:

~~$525.00~~

$441.00

Buy 100+ pieces

~~$525.00~~

$388.50

Total:

~~$525.00~~

$441.00

1 × 15 inch Wall-mounted industrial monitor SCD-A150SG - VGA+HDMI

~~$525.00~~ $441.00

Total：

$441.00

Display interfaceVGA+HDMI

VGA+HDMI

VGA+HDMI+DVI

Clear

~~$525.00~~ $441.00
You save $84.00

Ask about product

TagsIndustrial Display

Overview

SCD-A150SR/SZ/SG Resistive Touch Screen Industrial Display Adopts 15-inch 4:3 LED LCD screen, resolution 1024×768, optional full-plane capacitive touch screen or resistive touch screen, with IP65 protection level, aluminum alloy front panel is beautiful and fashionable, sturdy, dustproof and anti-interference, can be used in harsh environments, wide temperature (-10 ~ 60°C) stable operation.

Resistance Touch screen Industrial display Provide rich display input interfaces: VGA+HDMI or VGA+DVI+HDMI, voltage input supports DC 12V and 2PIN phoenix terminals, provides safe grounding components to effectively protect the equipment, optional anti-vibration buffer waterproof adhesive strip to prevent moisture from penetrating into the box, supports embedded and VESA standard installation methods, and can quickly use a variety of universal brackets or support arms for convenient and flexible installation.

It can be applied to industrial control, power communication, medical education, visual logistics, smart city, self-service terminal and other fields.

Specs

Screen		Structure
Screen size	15＂	Front panel	Aluminum alloy: 4mm to thickness, 2mm to thin
Screen ratio	4:3 positive screen	Protection Level	The front panel is IP65 waterproof and dustproof
Resolution	1024×768 @60Hz	Box Material	Sheet metal panel with grounding terminal
Panel type	TFT-LED industrial backlight screen	Heat dissipation	Fanless silent
Response time	5ms	Audio speakers	None (optional built-in dual speakers)
Degree of contrast	1000:1	Installation Method	Embedded, VESA bracket type (100×100mm)

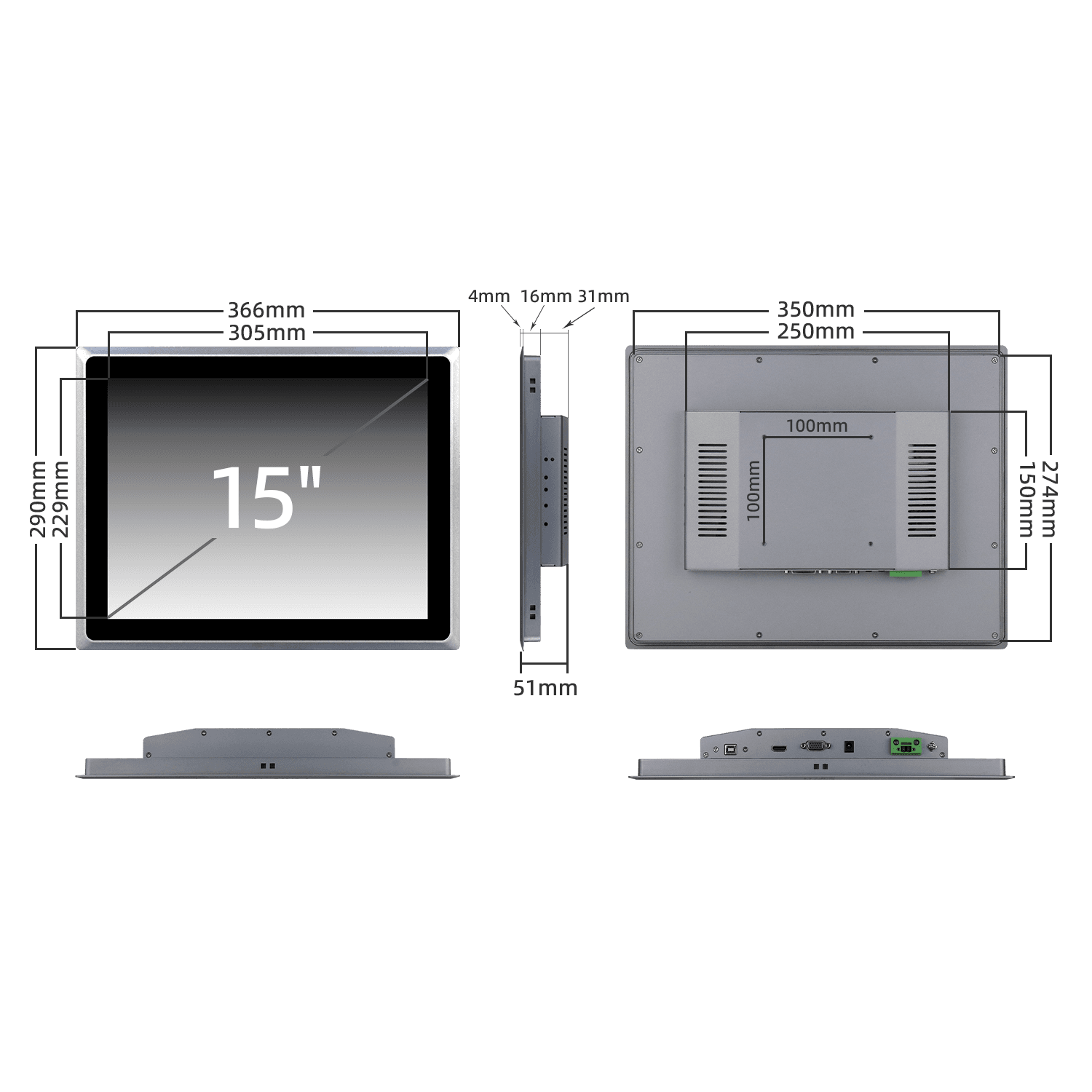

Pixel spacing	0.297mm	Product Dimensions	366×290×51mm
Brightness	300~500cd/㎡	Hole Size	350×274mm
Viewing angle	Horizontal 160° / Vertical 150°	Package size	435×415×140mm
Viewable area	305×229mm	Product color	Silver (grayish)
Display colors	16.7M	Product Weight	Net weight 2.9kg, gross weight 4.2kg
Touch
Touch the screen	Full flat capacitive touch screen, 10 point touch	Resistive touch screen, 1 point touch	No touch screen
Glass hardness	Tempered glass, Mohs hardness≧7H	Ordinary glass, Mohs hardness ≧ 4H	Tempered glass, Mohs hardness≧7H
Light transmittance	＞87%	＞79%	＞90%
The number of touches	> 50million times	> 35 million times	NO
Controls	USB Port	USB Port	NO
Driver support	Direct touch without driver, finger or stylus	Requires driver, finger or stylus touches	NO
Interface		Environment
Power supply characteristics	AC 220V input, DC 12V power adapter	Interference resistance	EMI/EMC interference detection standards
Compatible systems	Support Windows, Linux, andArdroid	ESD static electricity	The contact discharge ± 8KV, the air discharge ± 15KV
OSD button	Power / + / - / Menu / Auto	Vibration resistance	5~500Hz, 2Grms random vibration
Menu function	Support brightness, contrast, color temperature, language and other functions to adjust	Shock resistant	Working Status: 10G@11ms, Non-Working Status: 20G@11ms
Menu Language	Chinese/English/Spanish/French/German/Italian/Portuguese/Korean	Working environment	-10°C to 60°C

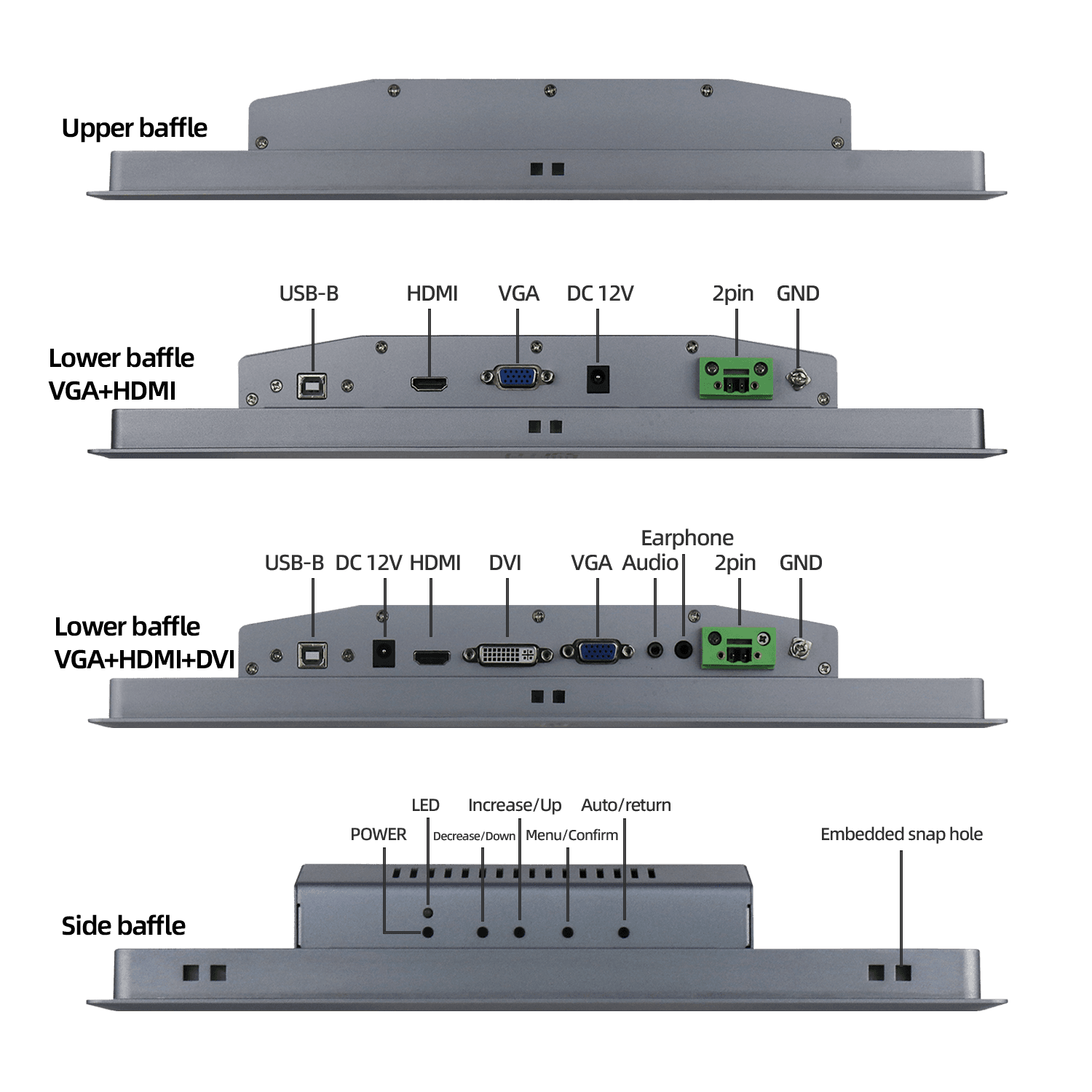

Input/Output Interface	(VH) 1×VGA、1×HDMI、1×DC、1×2pin、1×GND	Storage environment	-20°C to 70°C
Input/Output Interface	(VHD) 1×VGA、1×HDMI、1×DVI、1×DC、1×2pin、1×GND	relative humidity	5%~85% (no condensation).
