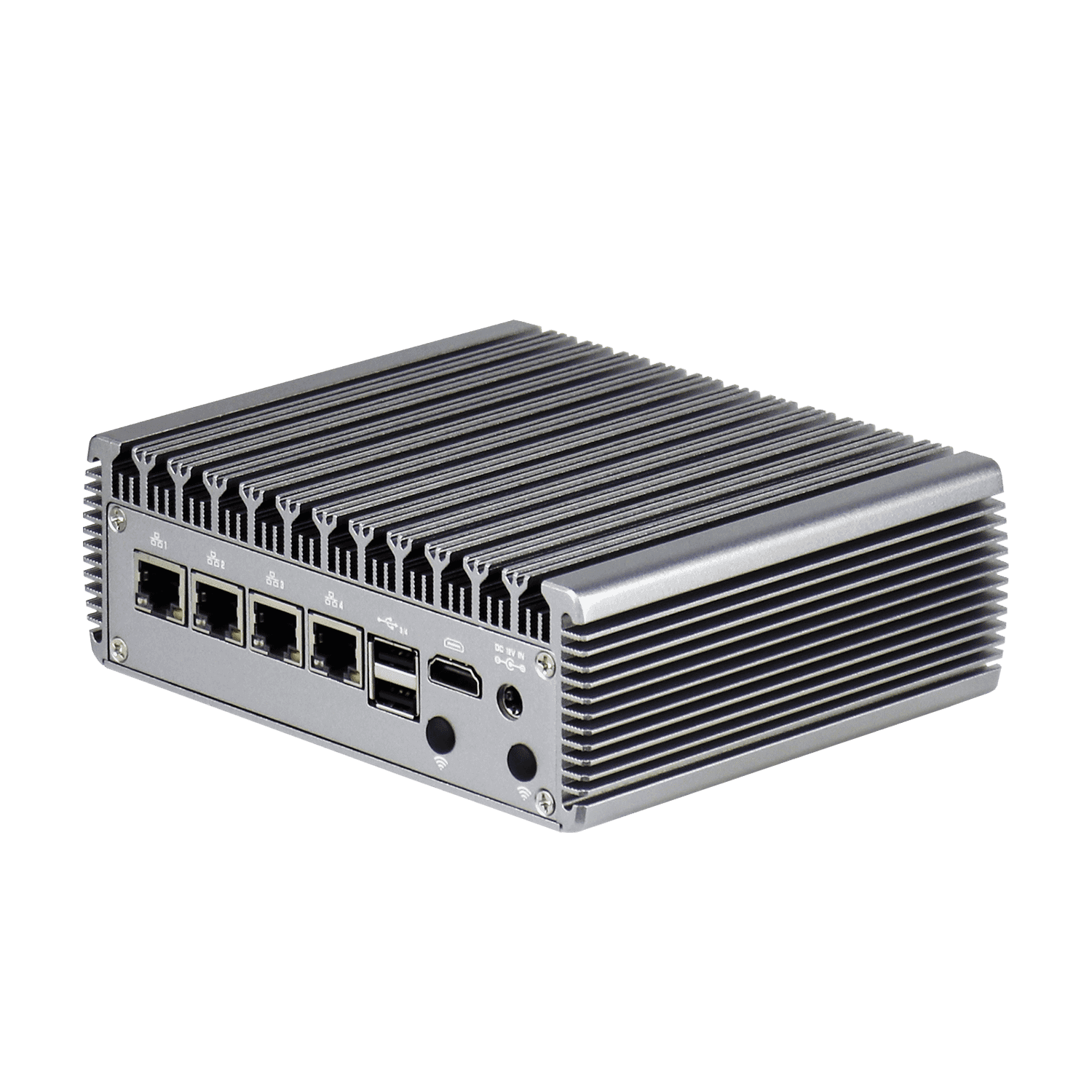

2.5G LAN compact Mini PC Fanless
$199.00 – $295.00
● Support intel Celeron processor, integrated intel core GRAPHICS card
● Support 1 SO-DIMM DDR4 memory slot, 2.5-inch SATA hard drive, mSATA solid state drive

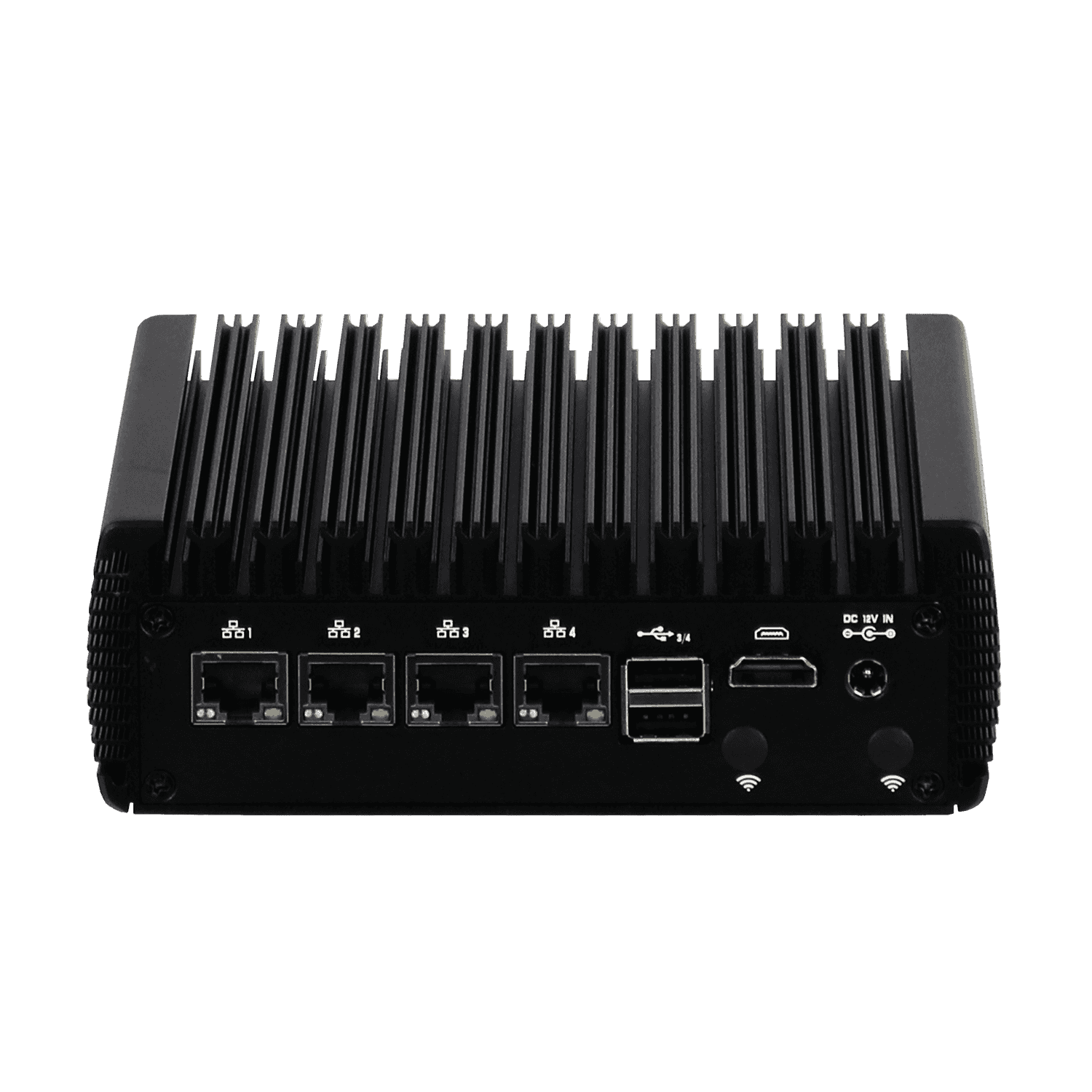

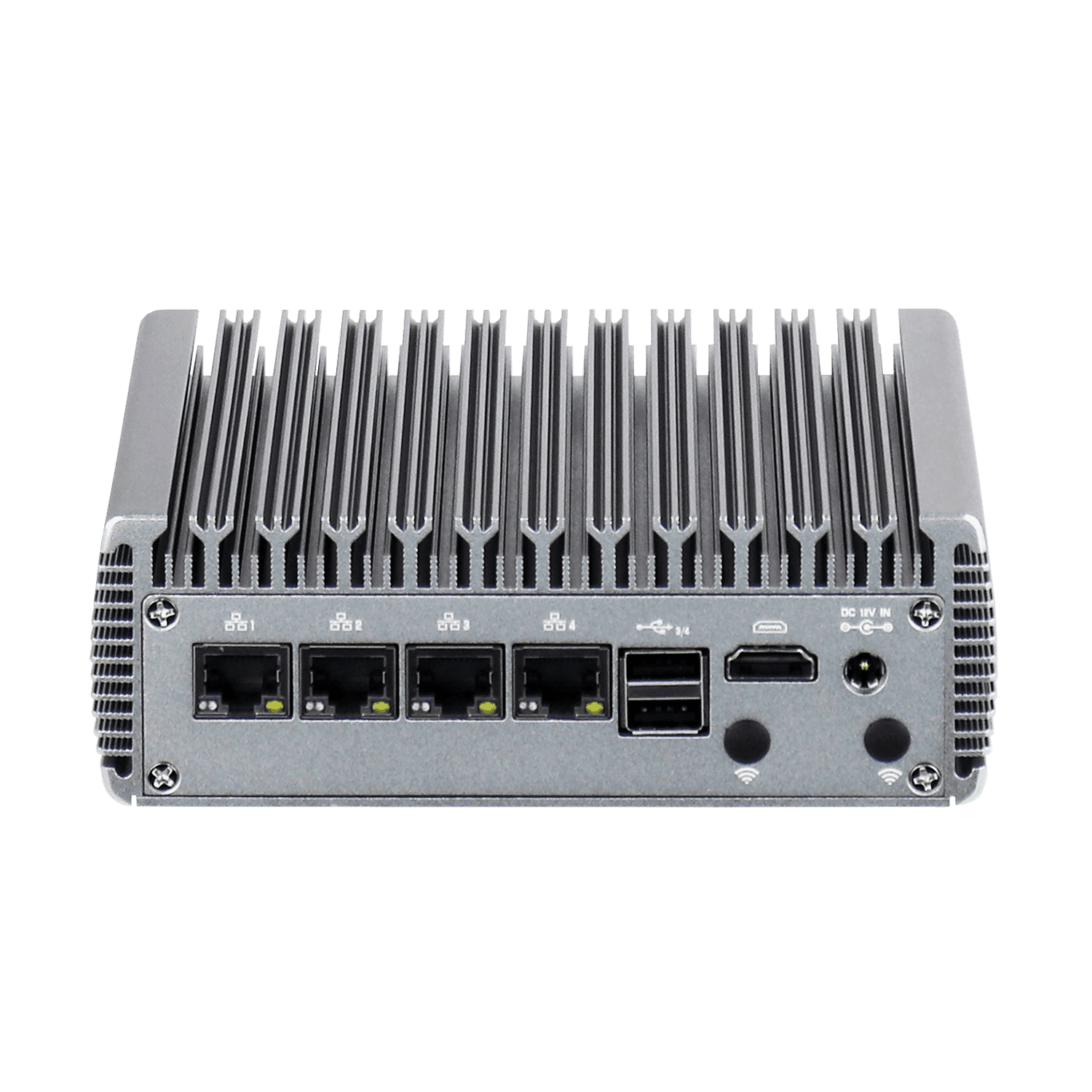

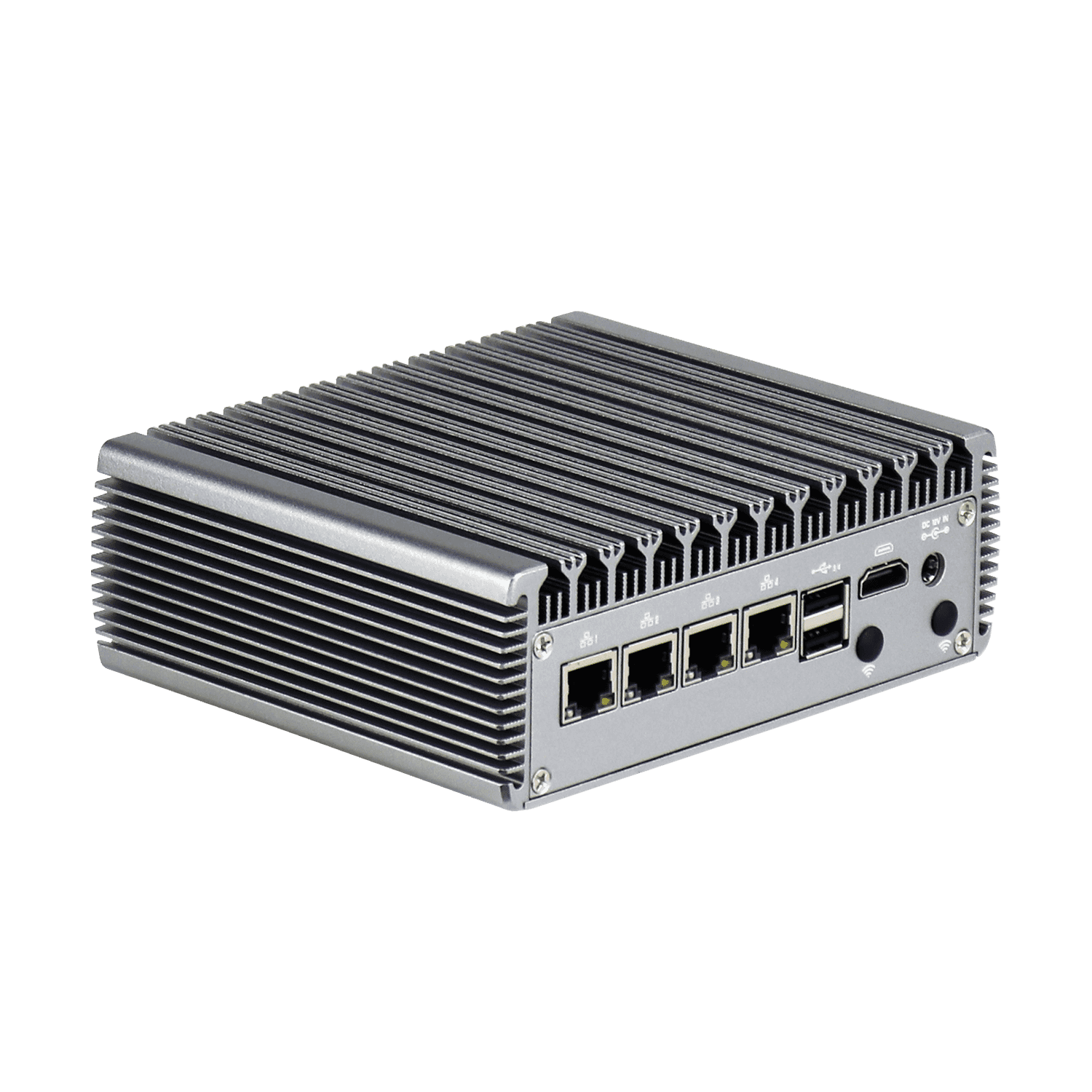

● 4 2.5G network ports, support wake-on-network, diskless startup, SIM built-in card slot, optional WIFI/Bluetooth/4G module

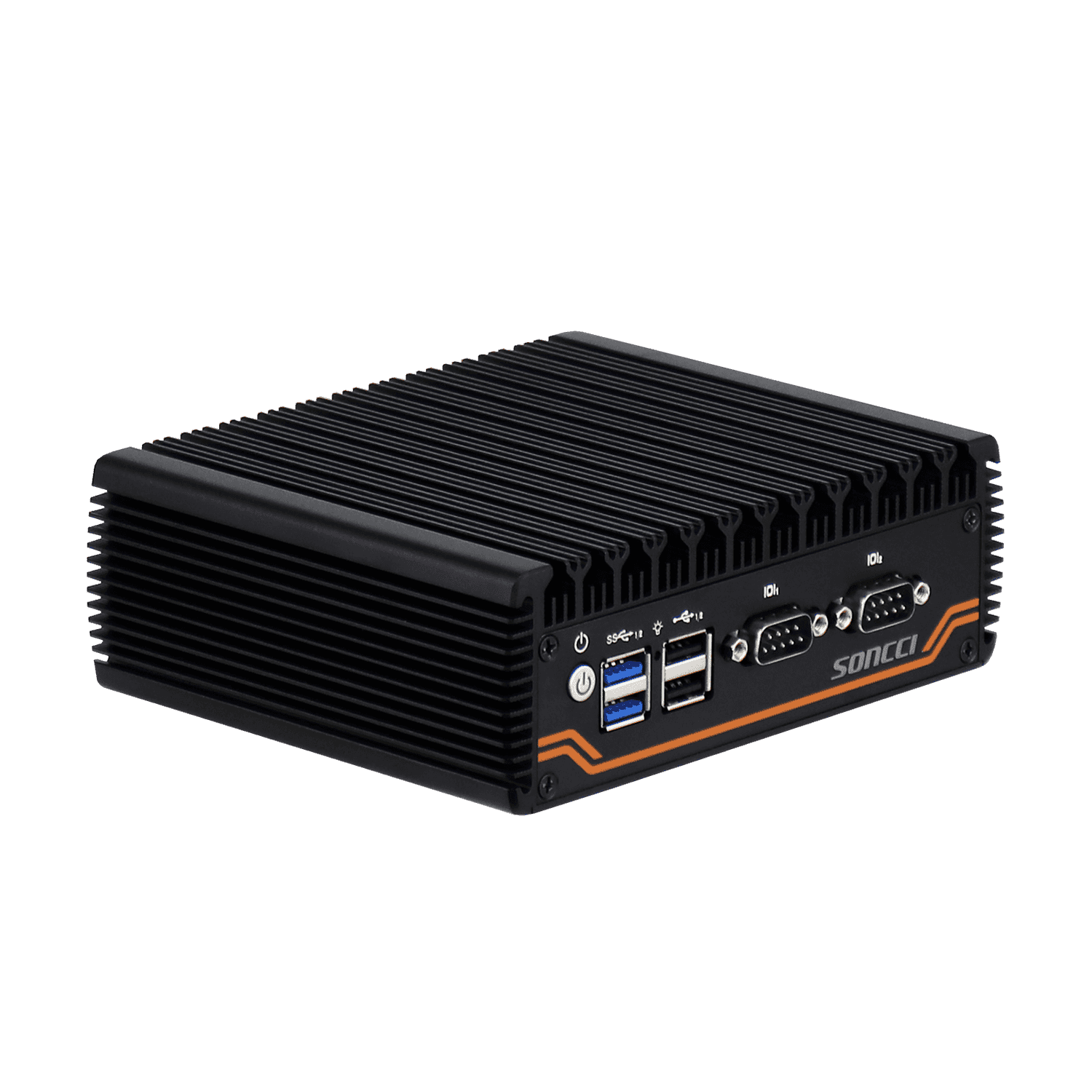

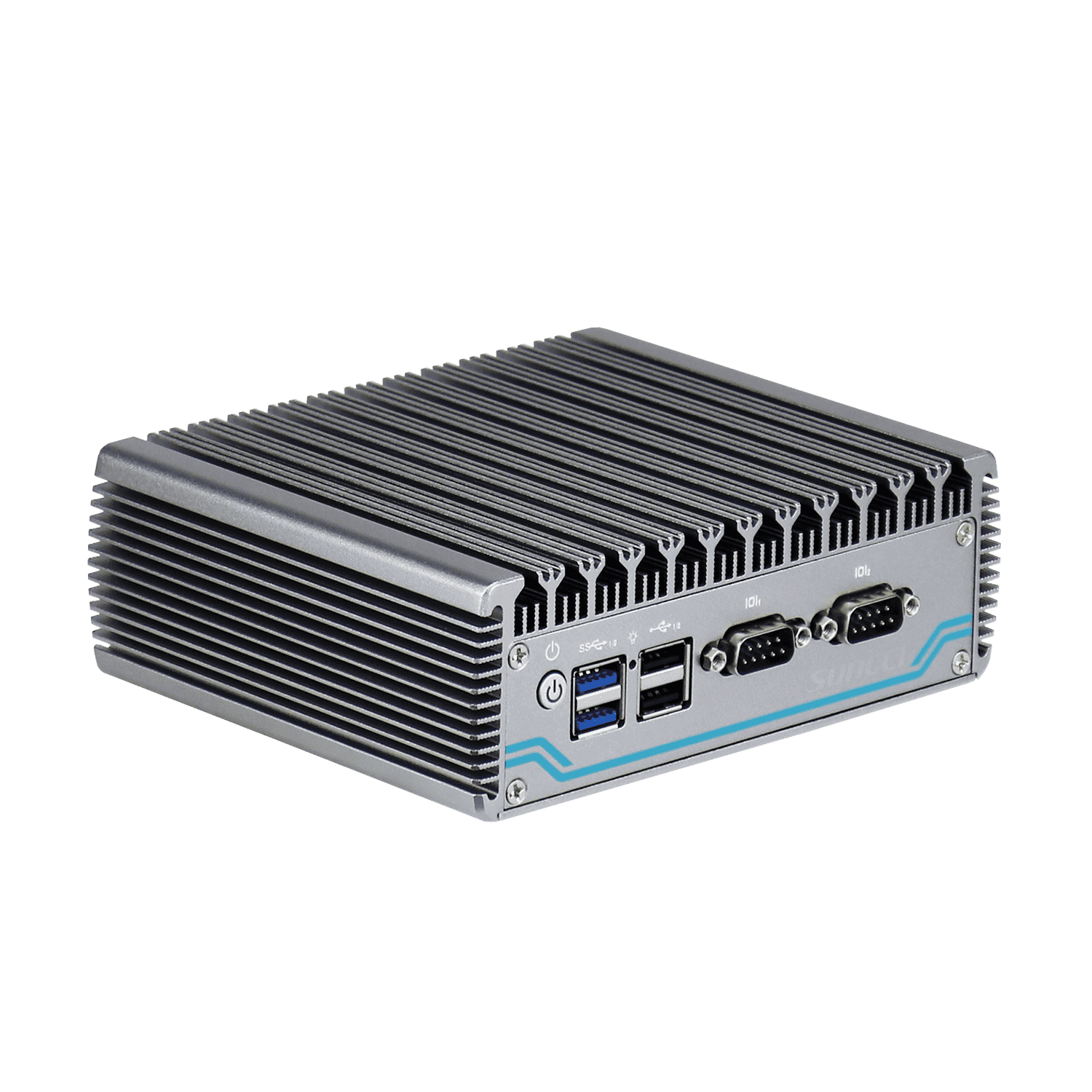

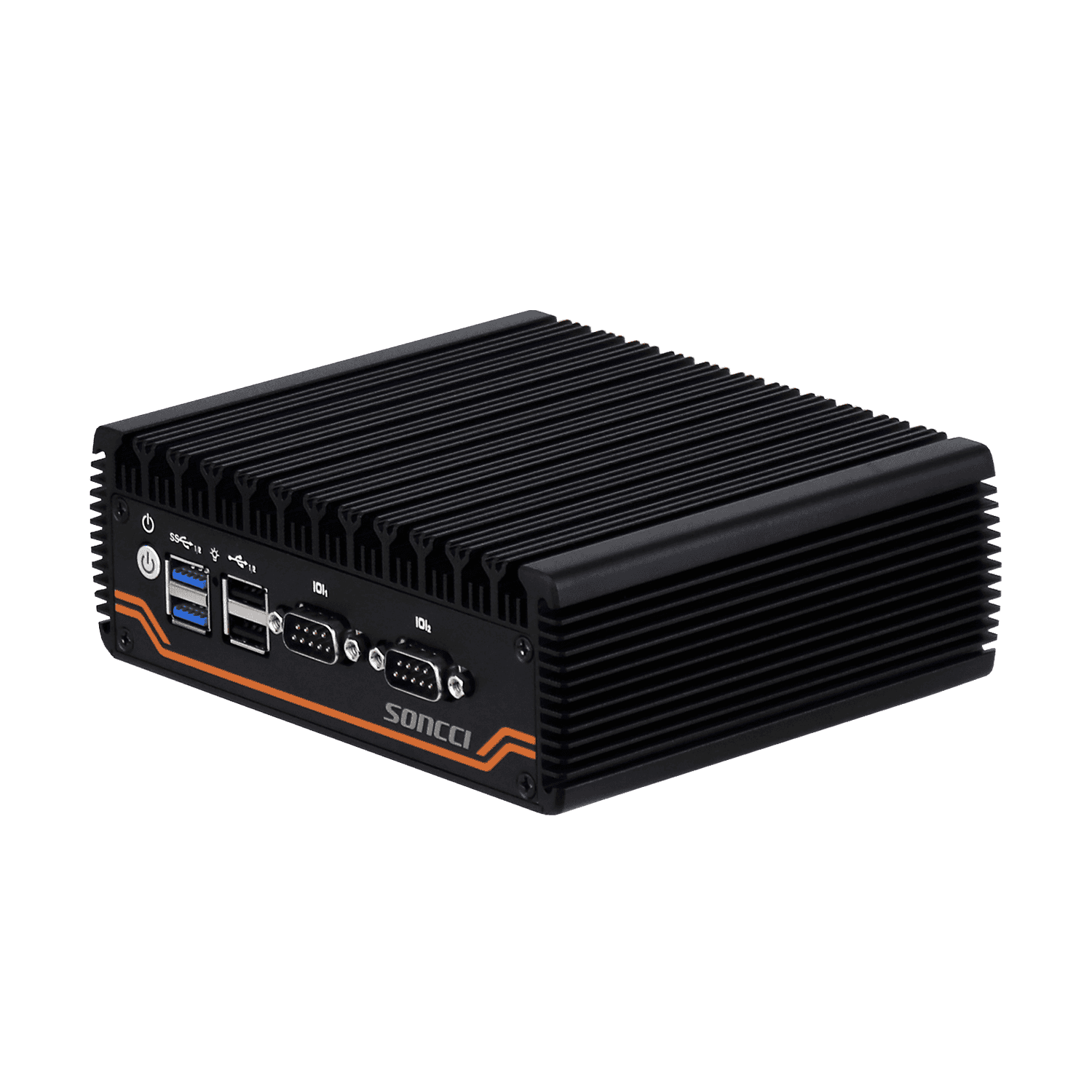

● 2 RS232 DB9 COM serial interfaces, customizable to support RS485, HDMI high-definition display output
● The BIOS supports Watchdog hardware reset, power-on and boot function
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fins fanless cooling structure, stable operation at wide temperature (-10~60℃)

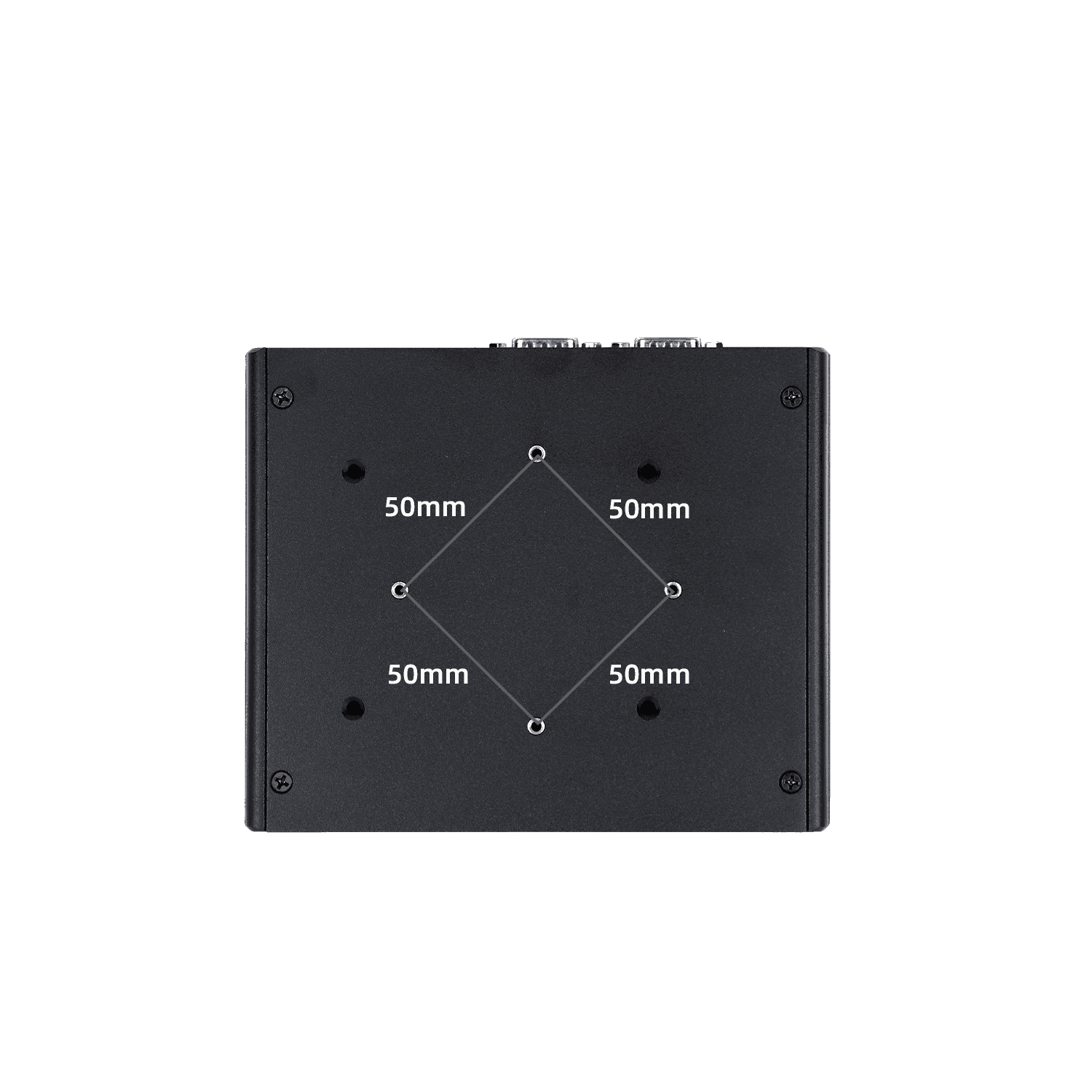

● Mini and compact, only the size of the palm of your hand, the host is available in black/silver, and supports embedded, wall-mounted, and desktop installation.
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description
SCI-S4060 2.5G LAN compact Mini PC with Intel Celeron processor, supports DDR4 memory, and provides various options for 2.5-inch SATA, mSATA storage. It is equipped with a rich set of interfaces, including 2.5G LAN, COM RS232/485, USB, HDMI, and can be expanded with WIFI/Bluetooth/4G modules, supporting Windows and Linux systems.
2.5G LAN compact Mini PC whole aluminum alloy shell has strong rigidity, and the aluminum fin design quickly dissipates the heat of the main unit. The internal structure without cables, fans, and fully enclosed design effectively prevents dust from entering, ensuring stable operation of the main unit in a wide temperature environment (-10 ~ 60℃). The embedded, wall-mounted, and desktop installation methods allow for quick and flexible installation and can be applied to fields such as industrial control, soft router security, cloud terminal, machine vision, mini server, and smart city.
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 205 × 175 × 120 mm |
| Model | SCI-S4060 |
| Processor | Intel Celeron J4125, Intel Celeron J6412, Intel N100 |
| Memory | 4G, 8G, 16G |
| Hard disk | 128G SSD, 256G SSD, 512G SSD |
| Network chips | Intel i225 or i226 2.5G |
| Audio chips | integration |
| Power supply | Input AC 220V, DC 12V power adapter |
| Wireless communications | 1xMINI-PCIE (optional expansion WIFI/Bluetooth/4G module) |
| Operating System | Linux, Windows |
| BIOS | It supports power-on, timed boot, network wake-up, and diskless boot |
| Watchdog | Watchdog supports hardware reset (256 levels, 0~255 seconds) |

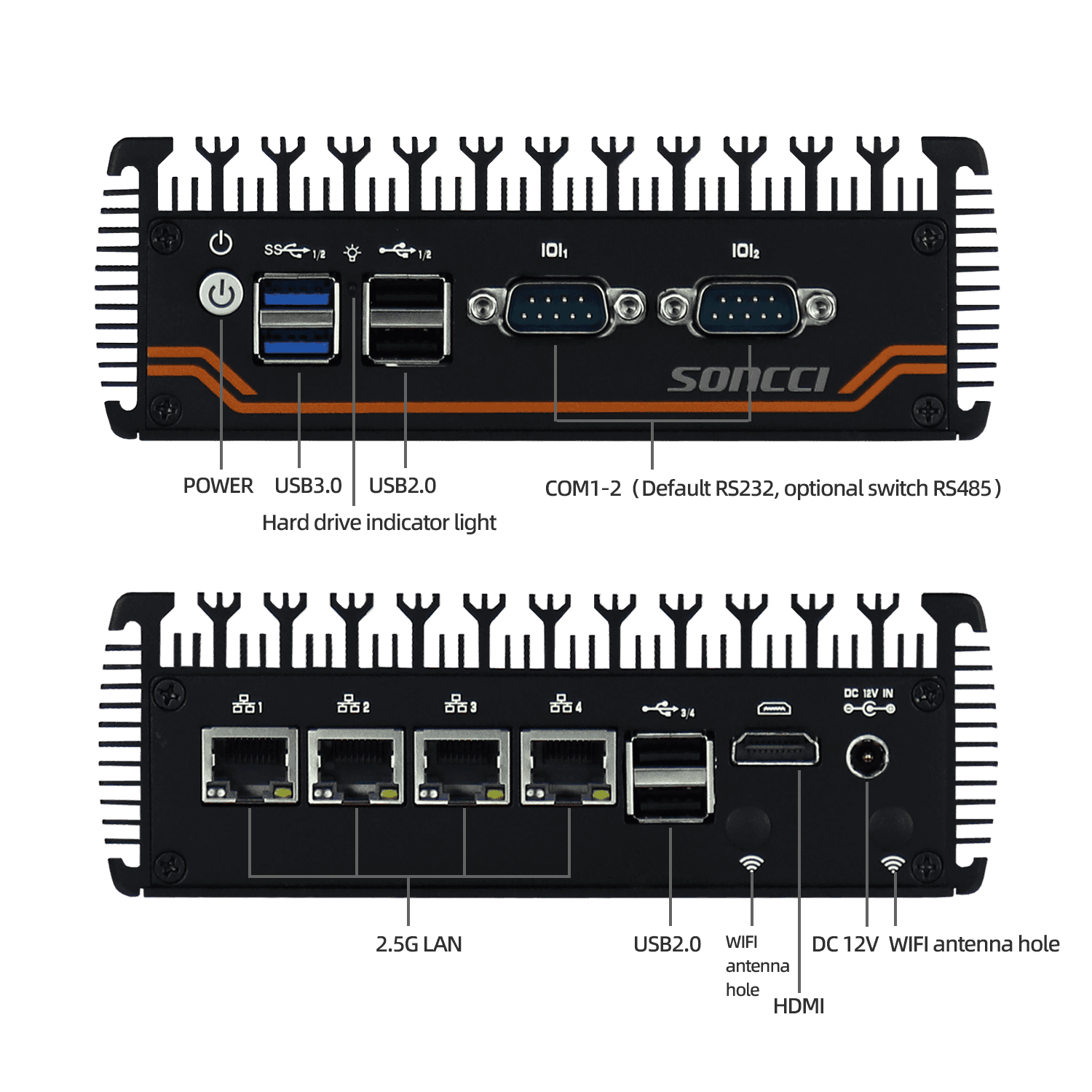

| Interface | 1 x DC, 1 x HDD LED, 1 x HDMI, 1 x Power, 2 x COM, 4 x 2.5G LAN, 6 x USB |
| Extended interfaces | 1xMini-PCIE, 1xSIM internal card slot |
| Installation | Desktop, Embedded, Wall-mounted |

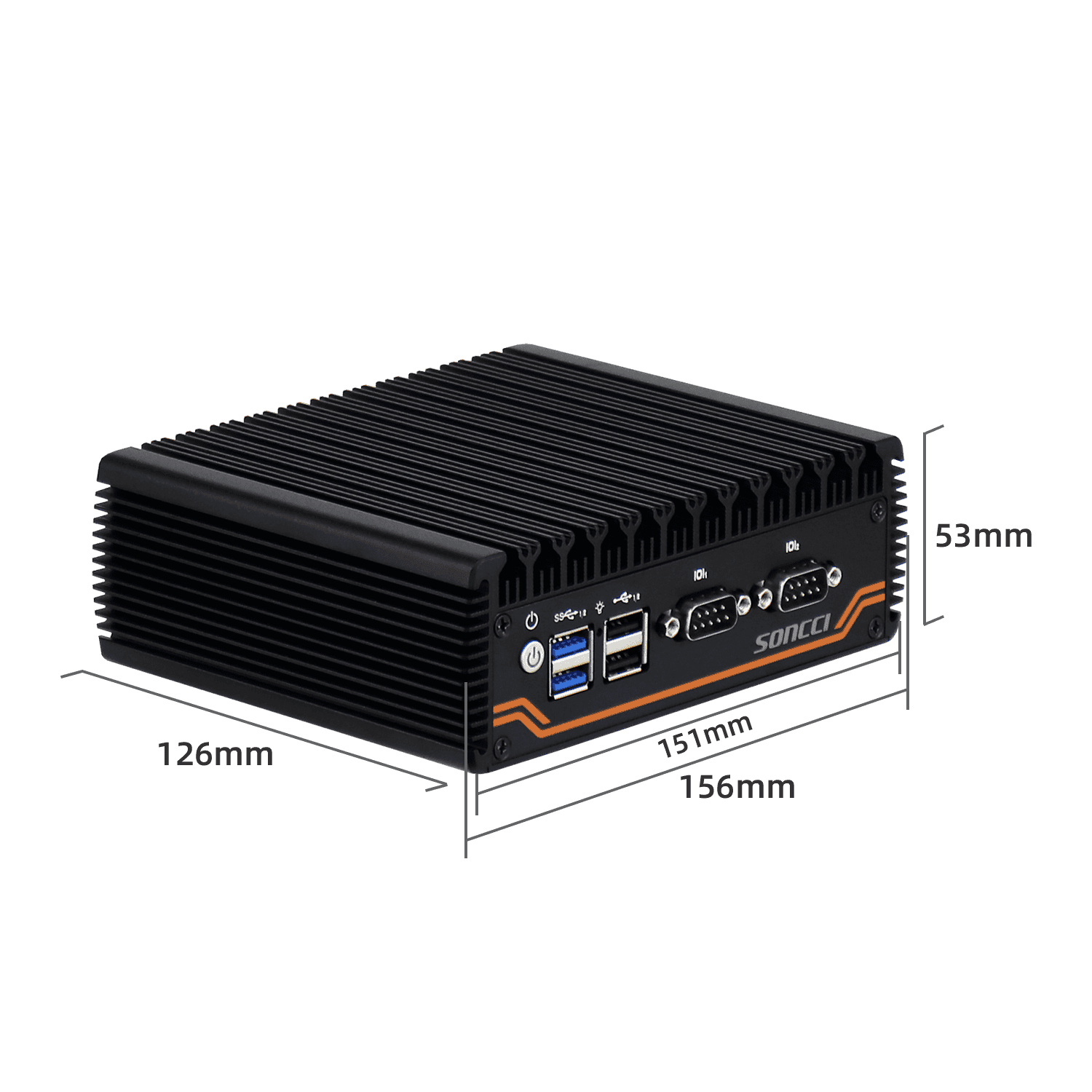

| Product size | 156 x 126 x 53mm |
| Product Weight | 0.9KG |
| Shell material | Aluminum alloy |
| Heat dissipation | Aluminum fin fanless |
| Color | Silver, Black |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -10°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 5%~95% (no condensation) |
