15.6 inch capacitive industrial panel PC D156WR

0 Reviews Write a review

Product codeSCP-D156WR

Availability In Stock

Estimated delivery dates: Jul 27, 2025 - Jul 31, 2025

$741.20 – $884.00
You save

● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M. 2. 2.5-inch SATA hard drive
● Screen 15.6″ resolution 1920×1080, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support power-on and power-on, built-in dual speakers, uninterrupted operation and stable resistance to high and low temperatures (-10 to 50°C), support grounding wire
● 6 DB9 RS232 COM ports, optional RS422/485 switching, support HDMI or VGA extended display, optional anti-vibration buffer waterproof tape
● 1 Gigabit network port (optional dual network port), 1 MINI-PCIE slot (optional WIFI bluetooth or 4G module)
● Sturdy chassis, with fan or no fan for efficient heat dissipation, supports embedded/VESA bracket installation methods

Buy 1 - 9 pieces

~~$872.00~~

$741.20

Total:

$872.00

Buy 10 - 49 pieces

~~$872.00~~

$697.60

Total:

Buy 50 - 99 pieces

~~$872.00~~

$671.44

Total:

Buy 100+ pieces

~~$872.00~~

$645.28

Total:

Total：

ProcessorIntel Celeron J1900

Memory4G

Hard disk64G SSD

Clear

Ask about product

TagsIndustrial Panel PC

Overview

SCP-D156WR/WZ aluminum alloy industrial panel PC is equipped with intel Celeron/Core processor, data storage supports mSATA, M.2, 2.5-inch SATA, rich COM (RS232/422/485), USB, LAN and other interfaces, and expandable WIFIBluetooth or 4G module, optional anti-vibration buffer waterproof adhesive strip to better prevent moisture from penetrating into the cabinet, has been widely used in industrial fields and embedded devices, and is also equipped with HDMI or VGA video output for extended display, supporting Windows and Linux systems.

It supports a wide temperature range (-10 to 50°C) and its streamlined design ensures efficient heat dissipation and strong shock resistance, making it a reliable industrial platform with safe grounding components to protect equipment more effectively. The screen adopts a 15.6-inch LED backlit industrial screen, the aluminum alloy front panel meets the IP65 waterproof standard, and the all-plane capacitive touch screen or resistive touch screen can be selected.

The embedded and VESA mounting methods can be quickly and flexibly installed in various environments, and can be applied to industrial automation, power communication, medical education, transportation, logistics and warehousing, smart cities and other fields.

Specs

system		Structure
C P U	intel Celeron J1900/J4125/J6412、Core i3/i5/i7	Front panel	Aluminum alloy: 4mm to thickness, 2mm to thin
Display the core	intel HD Graphics	Ingress protection	The front panel is IP65 waterproof and dustproof
Memory support	DDR3/4 SO-DIMM	Chassis material	Galvanized steel SECC with grounding terminals
Hard disk support	mSATA/M.2/2.5 inch SATA	Heat dissipation	Fanned or fanless cooling
Network chips	Gigabit Ethernet	Installation	Embedded, VESA mount type (100×100mm)
Audio chips	Integrated audio chip (built-in dual speakers).	Product dimensions	412×256×56mm
Wireless communications	1× MINI-PCIE (OPTIONAL EXPANSION WIFI/BLUETOOTH/4G MODULE)..	Recessed cut-outs	397×241mm
Power supply characteristics	Input AC 220V, DC 12V power adapter	Package size	490×350×155mm
Power on and on	Yes (Disabled by default, need to be enabled in BIOS)	Product color	Silver (grayish tint)
operating system	SupportWi ndows/Linux	Product weight	Net weight 35kg, gross weight 4.8kg
Display		Environment
Screen type	15.6" LED, 169 widescreen, 1920×1080 @60Hz	Interference resistance	EMI/EMC interference detection standards
Color contrast	16.7M，1000:1	ESD static electricity	The contact discharge ± 8KV, the air discharge ± 15KV
Screen brightness	300~500cd/㎡	Vibration resistance	5~500Hz, 2Grms random vibration
Viewing angle	Horizontal 160° / Vertical 150°	Shock resistant	Working Status: 10G@11ms, Non-Working Status: 20G@11ms
Viewable area	345×195mm	Working environment	-10℃～50℃
Touch the screen	Optional full-plane capacitive touch screen or resistive touch screen	Storage environment	-20℃～60℃
Surface hardness	Hardness≧ 7H or ≧4H	relative humidity	10%~90% (no condensation)

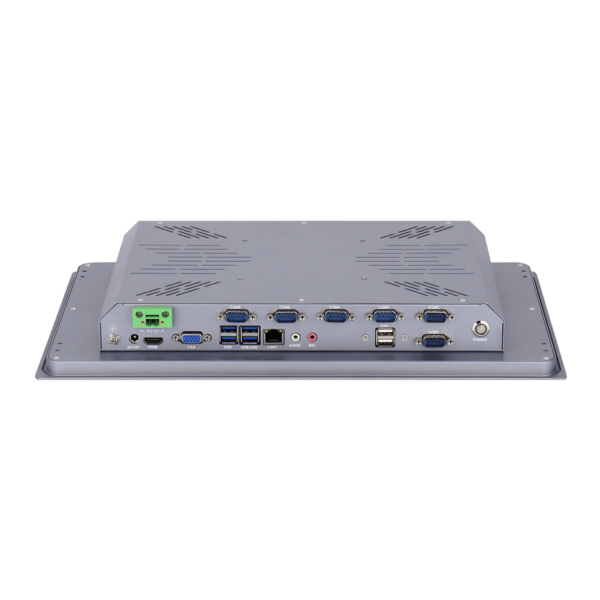

I/O interface
6×USB、1×VGA、1×HDMI、1×LAN、1×Audio、1×Mic、6×COM、1×Power、1×DC 12V、1×2pin、1×GND
