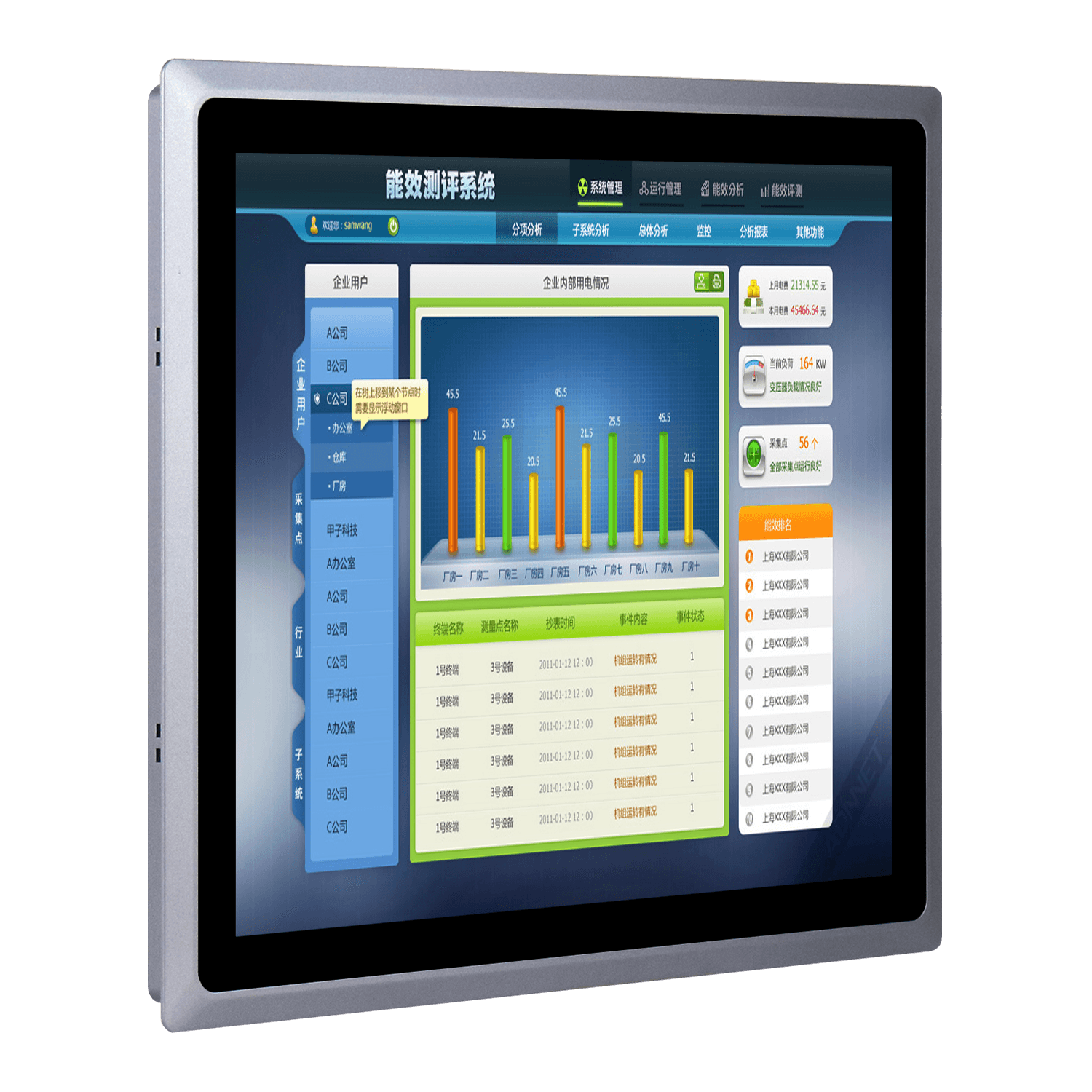

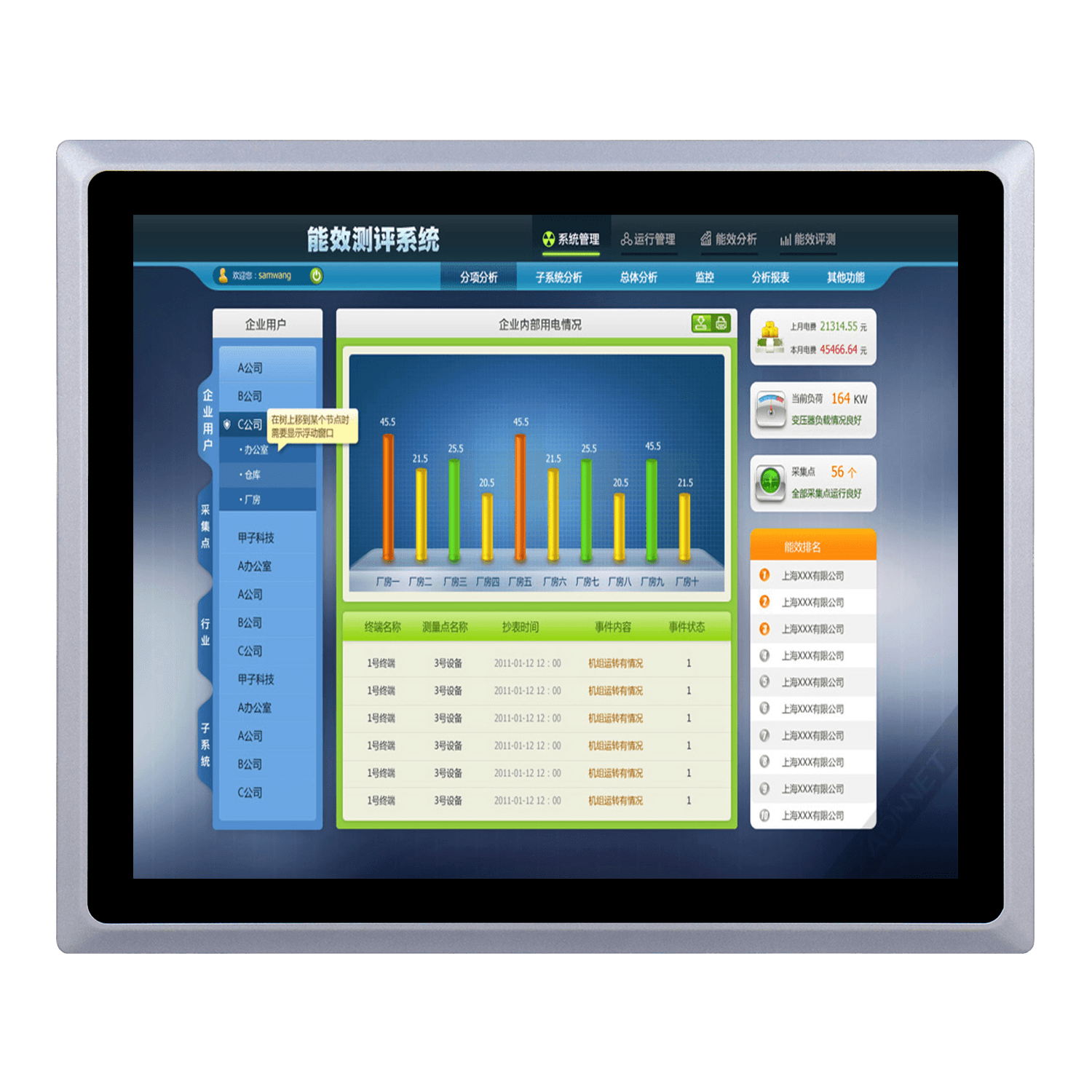

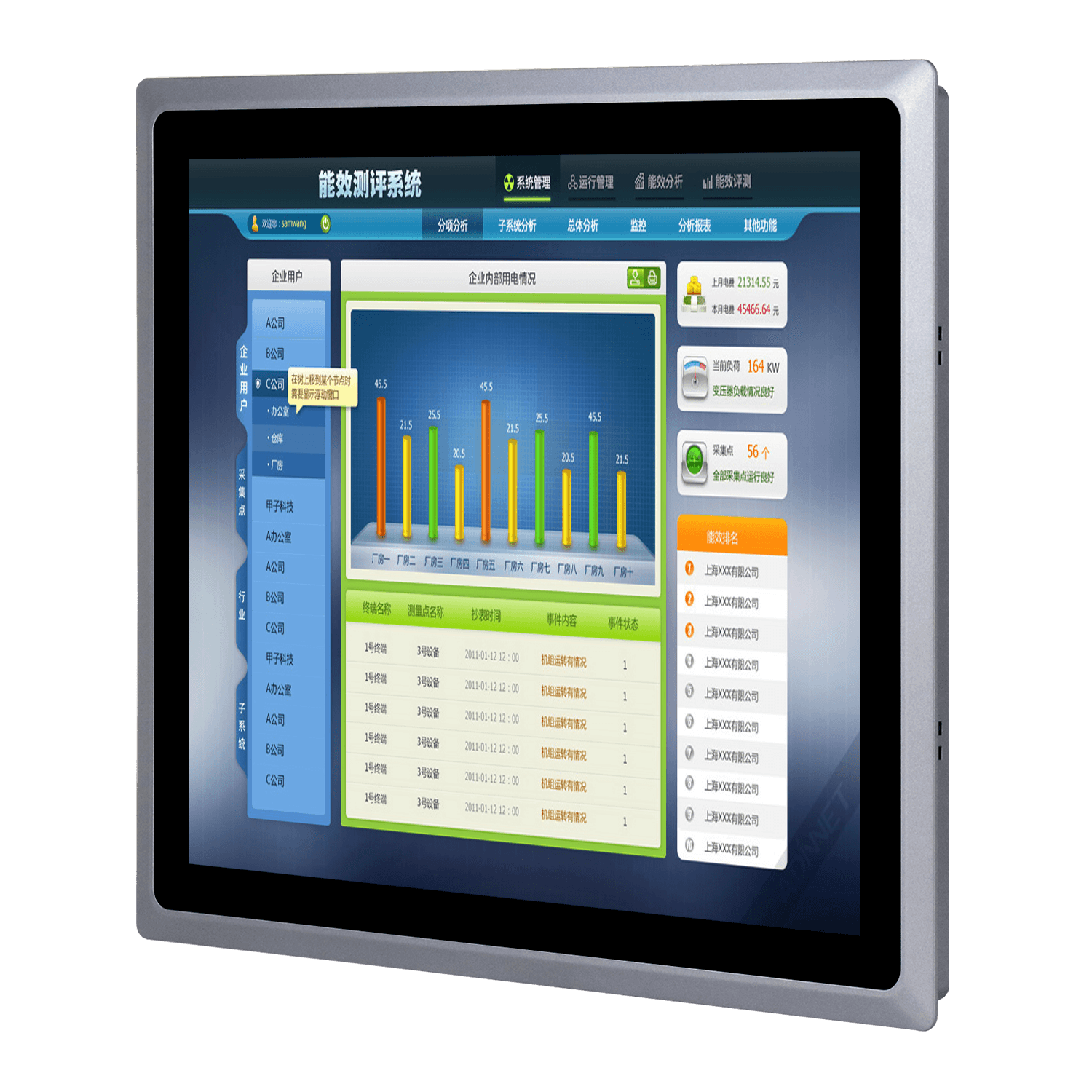

17 inch fanless industrial touch All in one PC SCP-K170SR

0 Reviews Write a review

Product codeSCP-K170SR

Availability In Stock

Estimated delivery dates: Apr 19, 2025 - Apr 23, 2025

$735.25 – $884.00
You save

● Screen 17″ resolution 1280×1024, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M.2, 2.5 inch SATA hard drive
● Support power-on and power-on, built-in double horns, high and low temperature resistance (-20°C to 60°C) uninterrupted and stable operation, with grounding terminals
● It can be expanded to 6 COM ports, supports HDMI screen expansion display, and can choose anti-vibration buffer waterproof adhesive strip
● 1 Gigabit LAN port (optional dual network port, WIFI Bluetooth or 4G module, optional addition of 9-36V wide voltage module)
● The aluminum alloy of the chassis is sturdy and beautiful, the aluminum fin fanless heat dissipation is more efficient, and it supports embedded/VESA bracket and other installation methods

Buy 1 - 9 pieces

~~$865.00~~

$735.25

Total:

$865.00

Buy 10 - 49 pieces

~~$865.00~~

$692.00

Total:

Buy 50 - 99 pieces

~~$865.00~~

$666.05

Total:

Buy 100+ pieces

~~$865.00~~

$640.10

Total:

Total：

Processor

Memory

Hard disk

Clear

Ask about product

TagsIndustrial control all-in-one machine, Industrial Panel PC

Overview

SCP-K170SR/SZ Aluminum Fanless Industrial Panel PC All-in-one PC Equipped with intel Celeron/Core processor, data storage supports mSATA, M.2, 2.5-inch SATA, rich USB, LAN and other complete interfaces, expandable COM port, WIFI Bluetooth or 4G module, optional 9-36V wide voltage for unstable voltage environment, optional anti-vibration buffer waterproof adhesive strip to better prevent moisture from penetrating into the box, It is widely used in industrial fields and embedded devices, and is also equipped with HDMI video output for extended display, supporting Windows and Linux systems.

Aluminum fanless industrial panel PC All-in-one supports a wide temperature environment (-20°C to 60°C), and the fully enclosed aluminum fin fanless design ensures more efficient heat dissipation and strong vibration resistance, making it a more reliable industrial platform and providing safe grounding components to protect equipment more effectively. Screen: 17-inch LED backlit industrial screen, aluminum alloy front panel meets IP65 waterproof standard, optional full-plane capacitive touch screen or resistive touch screen.

Embedded and VESA wall-mounted, desktop and other installation methods can be quickly and flexibly installed in various environments, and can be applied to industrial automation, military heavy industry, power communications, smart government affairs, medical education, visual logistics, advertising display, digital signage, smart city and other fields.

Specs

system	C P U	intel Celeron J1900/J4125/J6412、Core i3/i5/i7
	Display the core	intel HD Graphics
	Memory support	DDR3/4 SO-DIMM
	Hard disk support	mSATA/M.2/2.5寸SATA
	Network chips	Gigabit Ethernet
	Audio chips	Integrated (built-in dual speakers).
	operating system	Support Windows/Linux

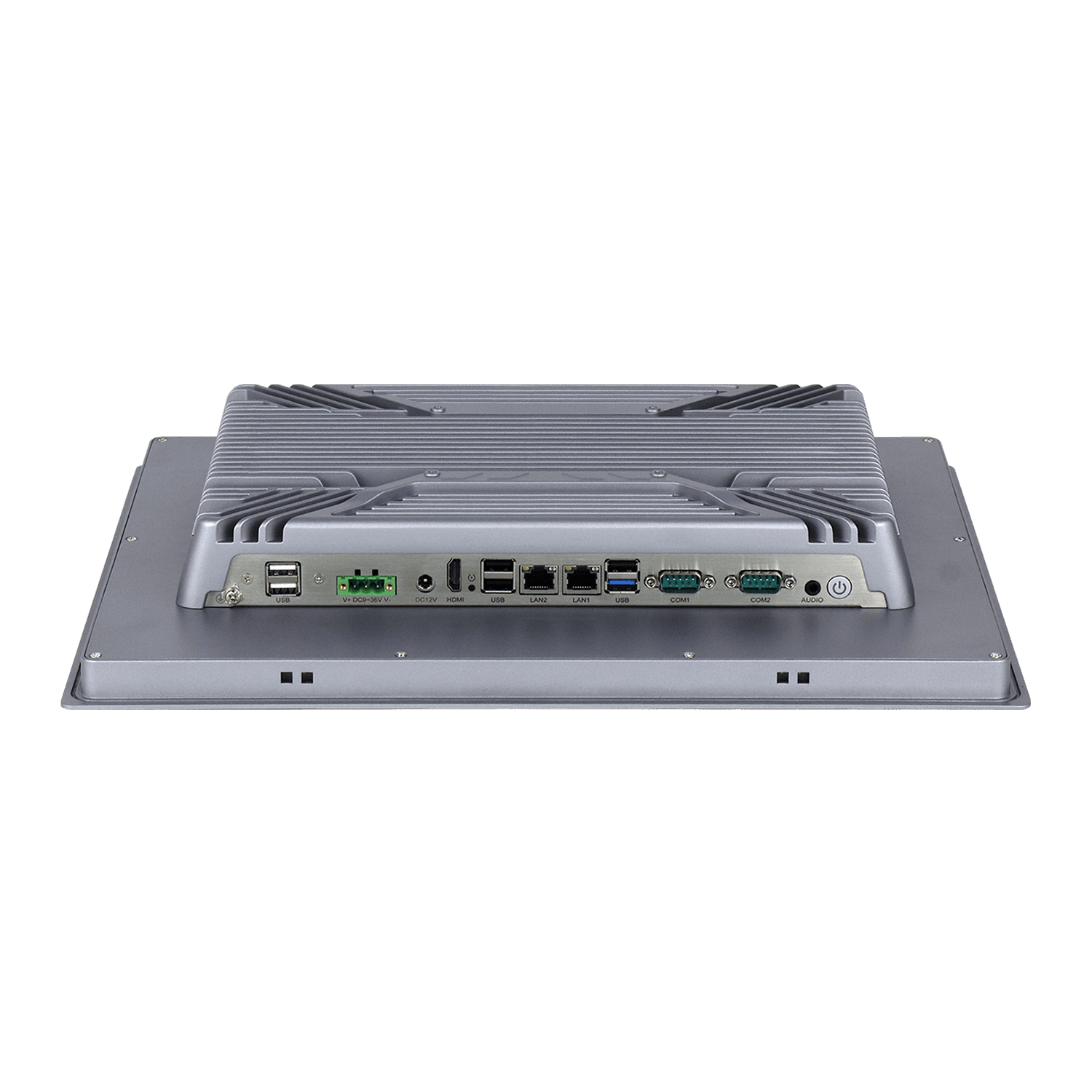

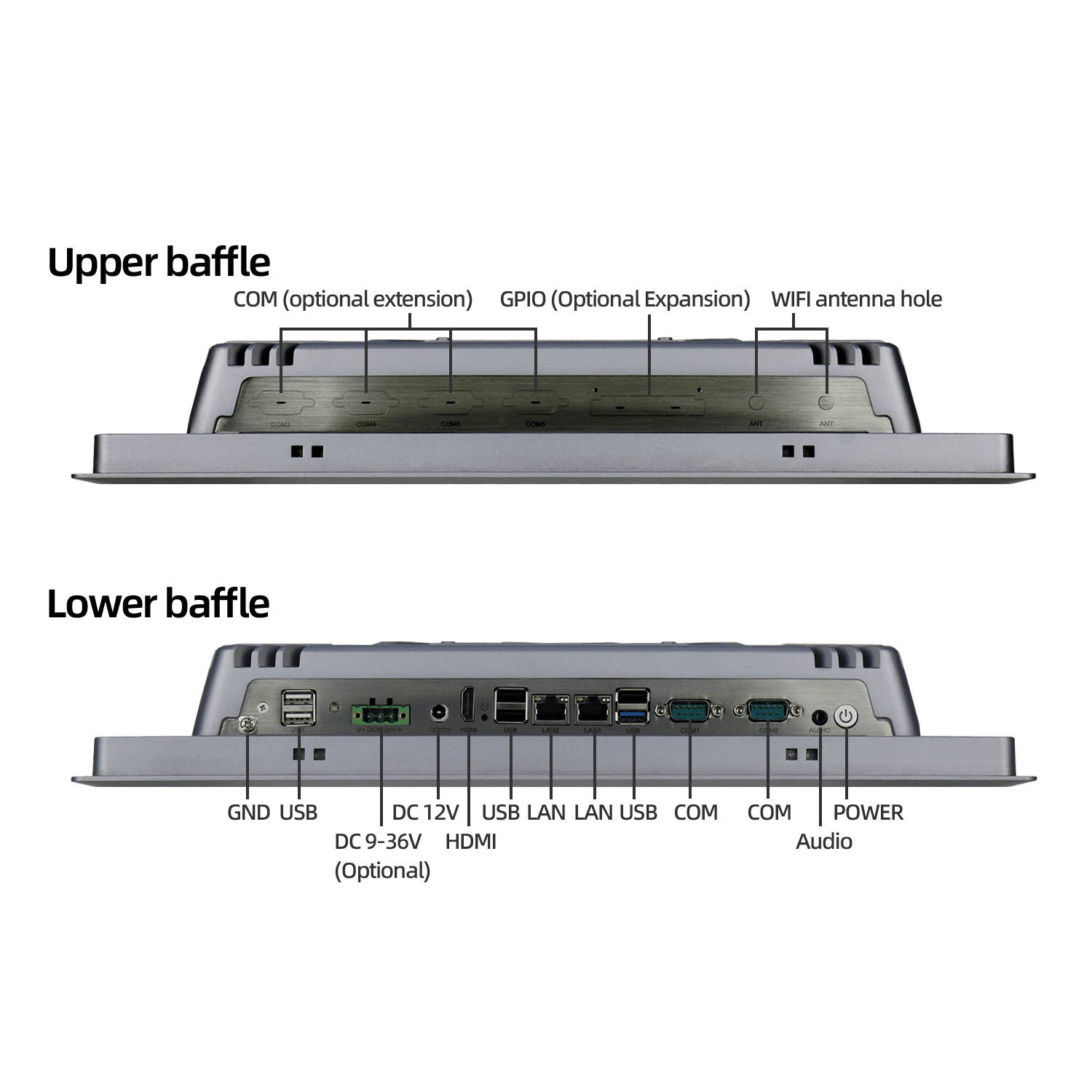

Interfaces	USB	6×USB
	Serial port	None (optional expansion 6 x DB9 RS232, 1-3 x optional switching RS485/422).
	Ethernet port	1× LAN 1000Mbps (2 LAN ports optional).
	Extended display	1×HDMI
	Audio	1×Audio
	Electrical source	1×DC 12V (optional 3pin 9-36V wide voltage).
	Turn it off	1×Power
	Grounding	1×GND
	Wireless communications	1× MINI-PCIE (OPTIONAL EXPANSION WIFI/BLUETOOTH/4G MODULE).
Display	Screen type	17" LED, 54 front screen
	Resolution	1280×1024 @60Hz
	Display colors	16.7M
	Degree of contrast	1000:1
	Screen brightness	300~500cd/㎡
	Viewing angle	Horizontal 160° / Vertical 150°
	Viewable area	340×270mm
Touch	Touch the screen	Available capacitive touch screen or resistive touch screen
	Support contacts	10-point touch or 1-point touch
	Surface hardness	≧7H or ≧4H
	Light transmittance	>87% or >79%
	Controllers	USB
Structure	Front panel	Aluminum alloy: 4 mm to thick, 2mm to thin
	Ingress protection	The front panel is IP65 waterproof and dustproof
	Chassis material	Aluminum alloy with ground terminal

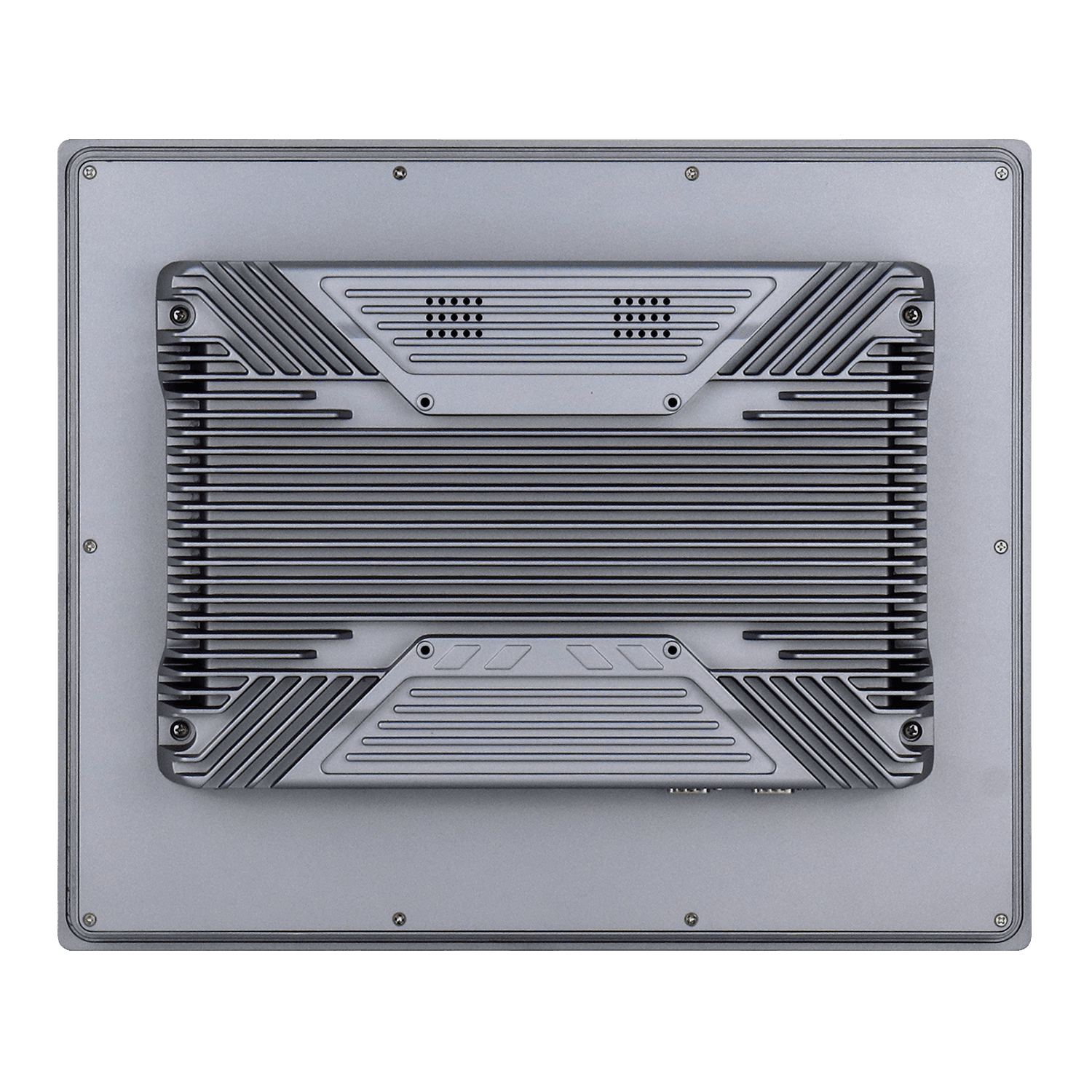

	Heat dissipation	Aluminum fins fanless
	Power Specifications	DC 12V power adapter
	Installation:	Embedded, VESA mount type (100×100mm))

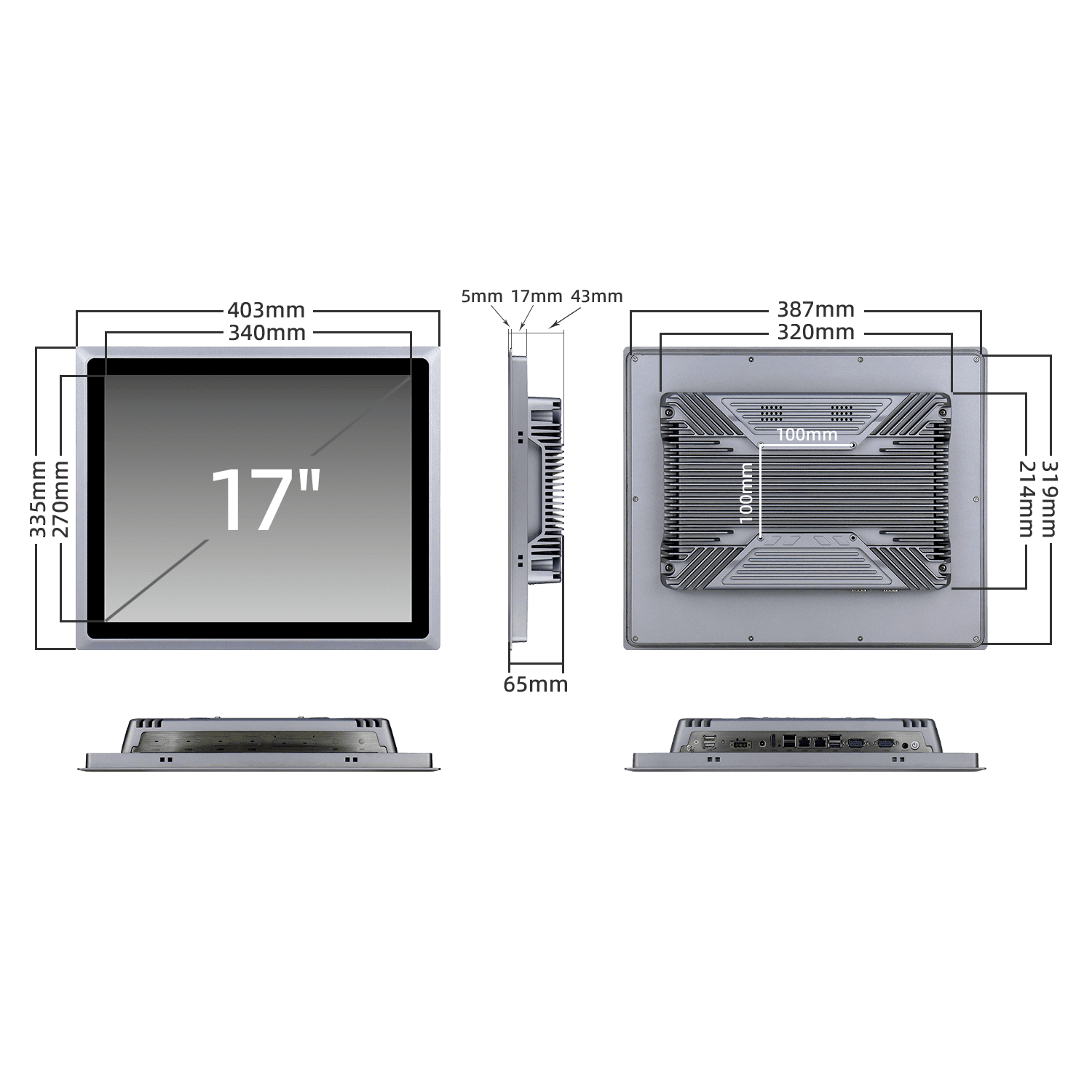

	Product dimensions	403×335×65mm
	Embedded cut-outs	387×319mm
	Package size	485×425×155mm
	Product color	Silver（grayish tint）
	Product weight	Net weight 5.4kg, gross weight 6.8kg
Environment	Interference resistance	EMI/EMC interference detection standards
	ESD static electricity	The contact discharge ± 8KV, the air discharge ± 15KV
	Vibration resistance	5~500Hz, 2Grms random vibration
	Shock resistant	Working Status: 10G@11ms, Non-Working Status: 20G@11ms
	Working environment	-20℃～60℃
	Storage environment	-20℃～70℃
	relative humidity	10%~90% (no condensation).
