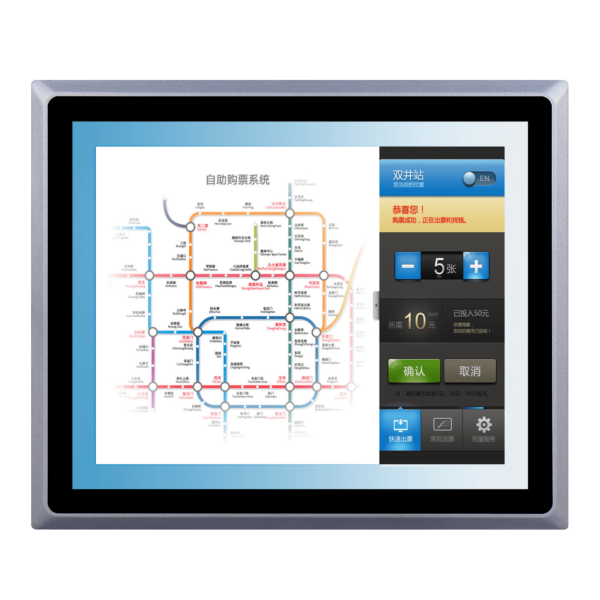

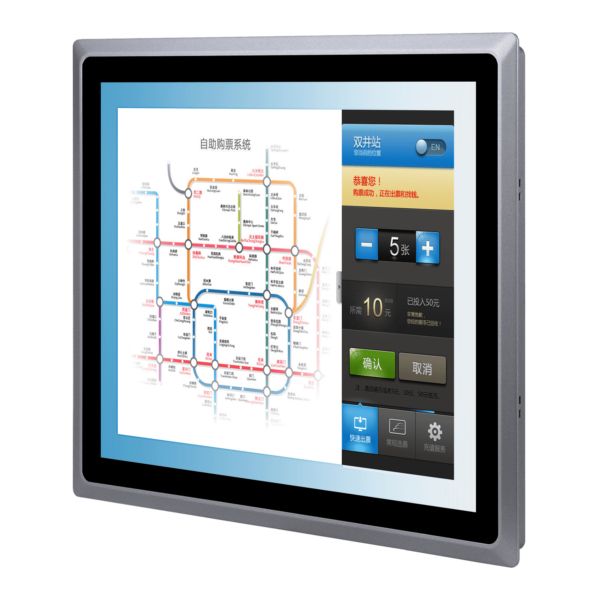

    17 inch capacitive touch industrial monitor

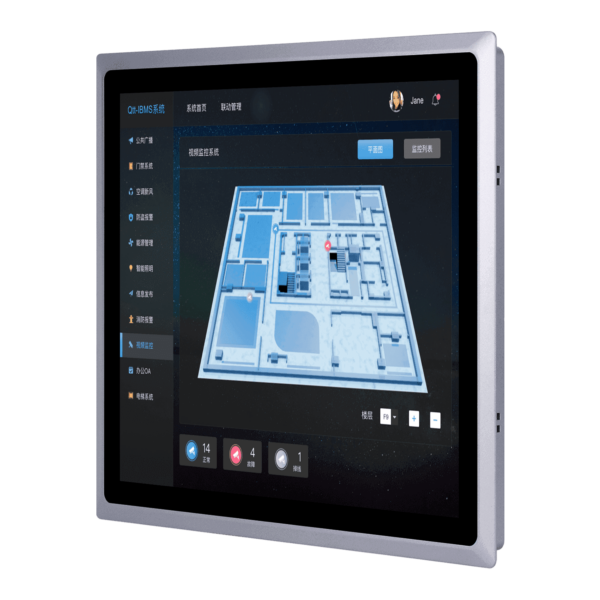

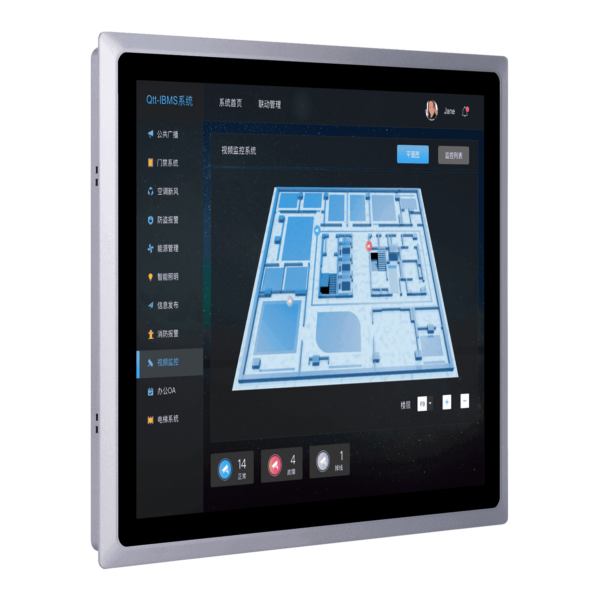

    19 inch touch screen industrial monitor

    18.5 inch desktop capacitive industrial monitor

    0 out of 5
    ( There are no reviews yet. )

    $328.00 – $335.00

    SKU: SCD-A185WR Tag:

    ● 18.5″ LED industrial screen, resolution 1920×1080, optional capacitive touch screen or resistive touch screen, in line with IP65 waterproof grade
    ● Aluminum alloy front panel and metal box structure, sturdy, dustproof and anti-interference, optional anti-vibration buffer waterproof rubber strip to better prevent moisture from penetrating into the box
    ● Wide temperature (-10 ~ 60°C) stable operation, voltage input DC 12V and 2PIN phoenix terminal, support grounding wire

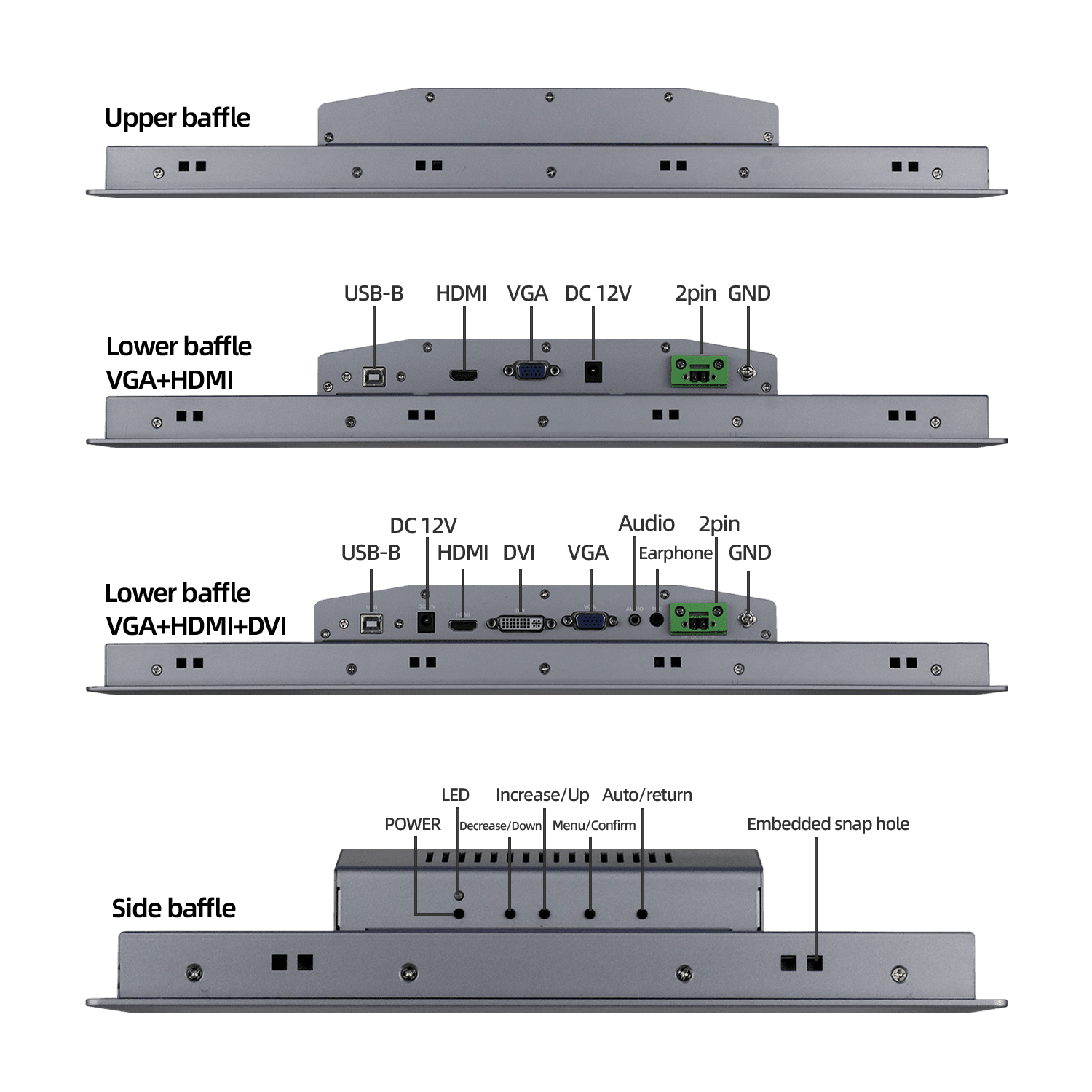

    ● The display input can be VGA+HDMI or VGA+DVI+HDMI, the touch is a USB interface, and the audio port can be added with a built-in speaker
    ● OSD button menu supports brightness, contrast, color temperature, multi-Chinese languages such as Chinese/English and other functions

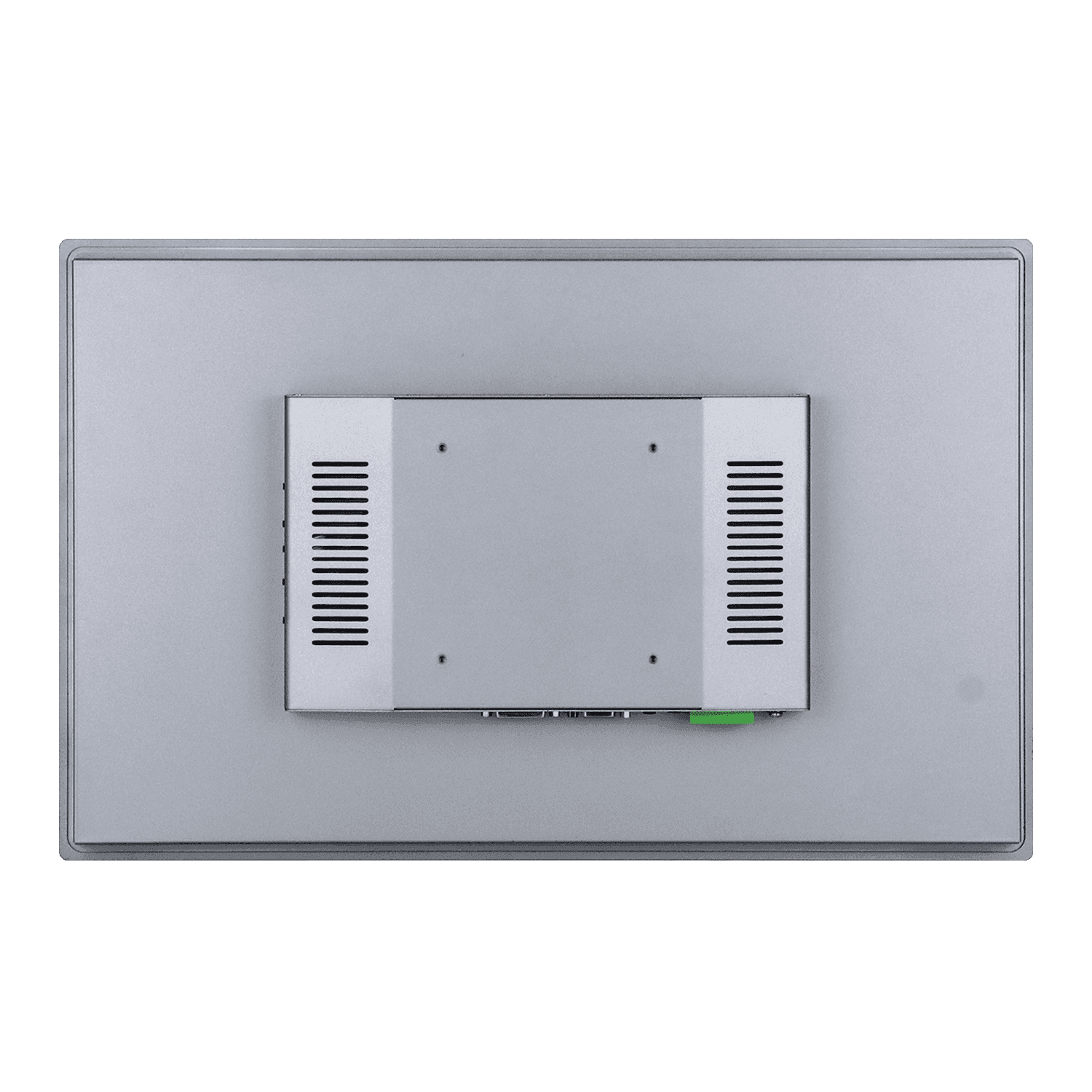

    ● Support embedded, VESA standard (100×100mm) bracket or support arm flexible installation

    Clear

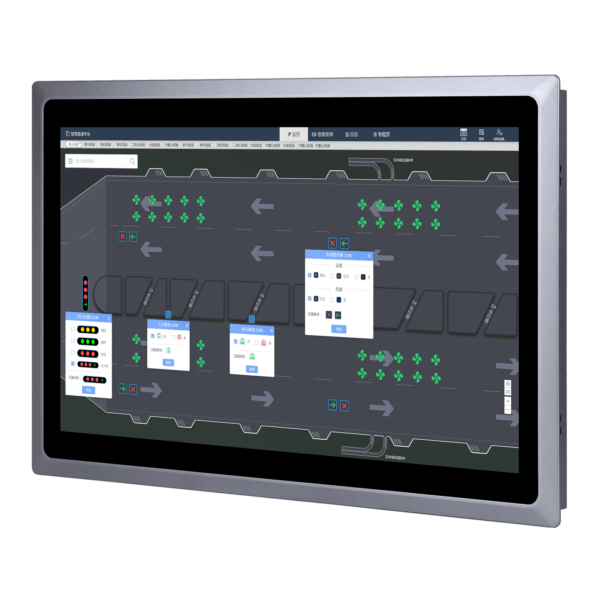

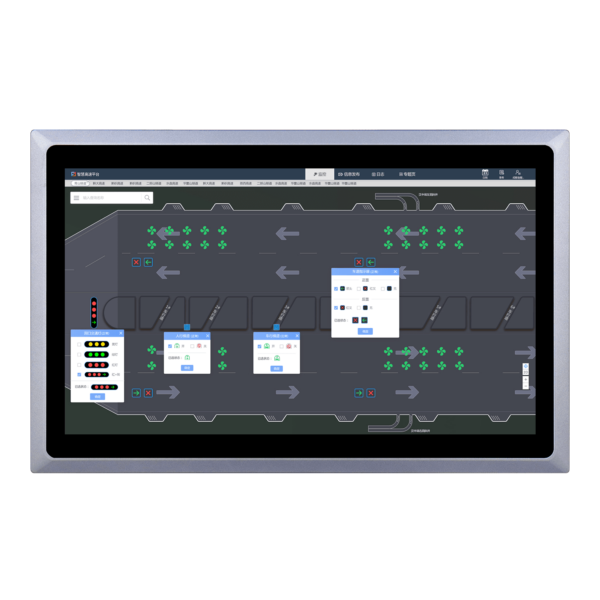

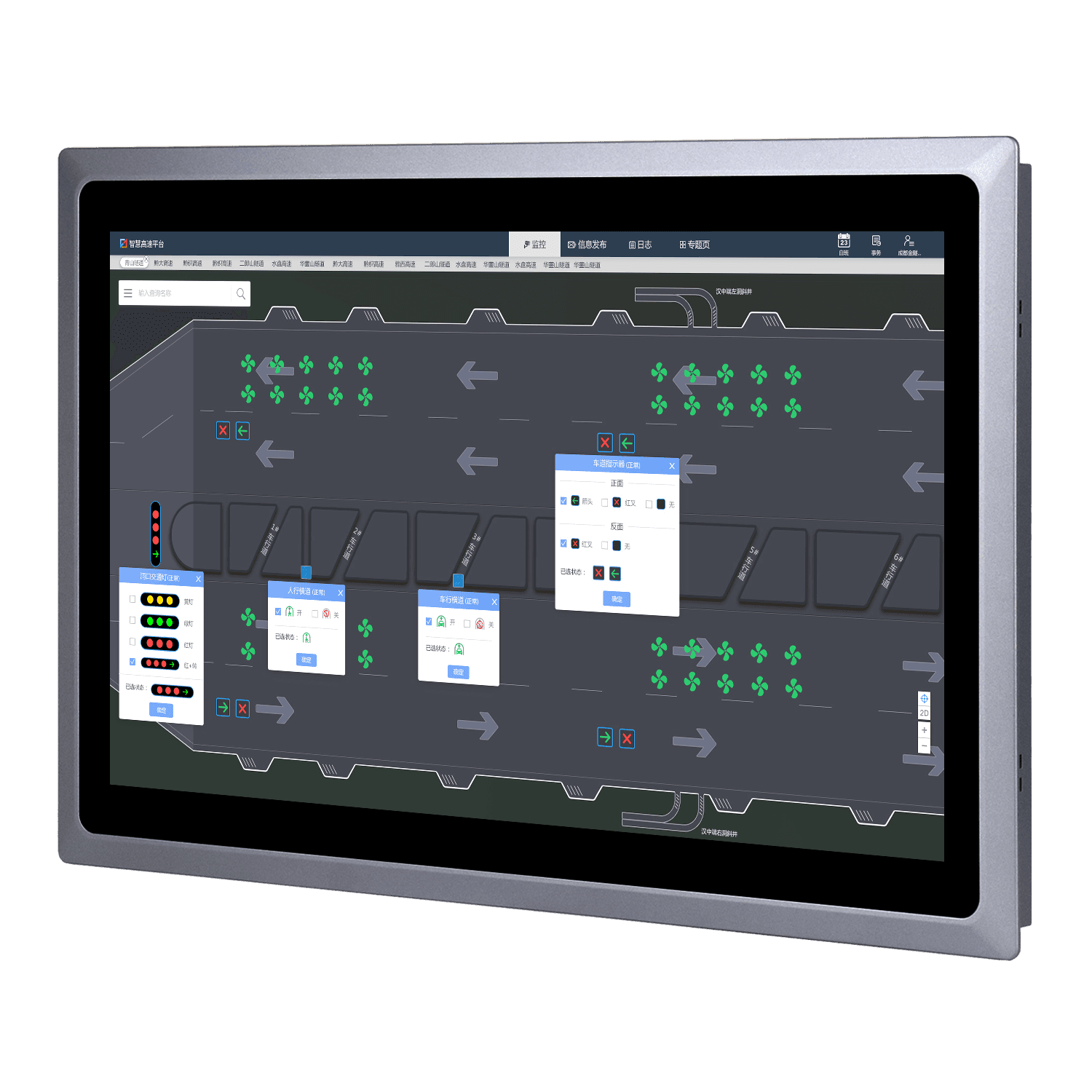

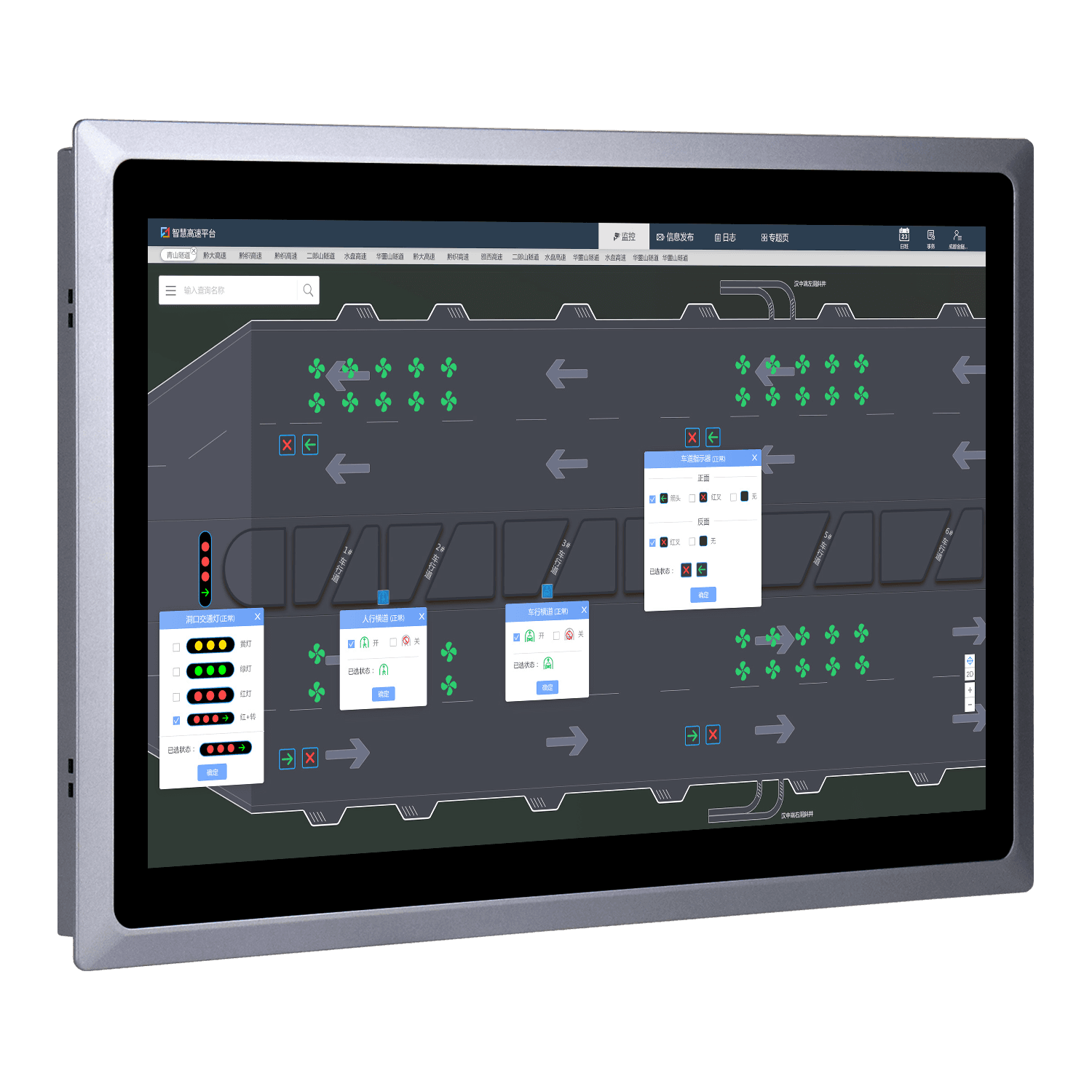

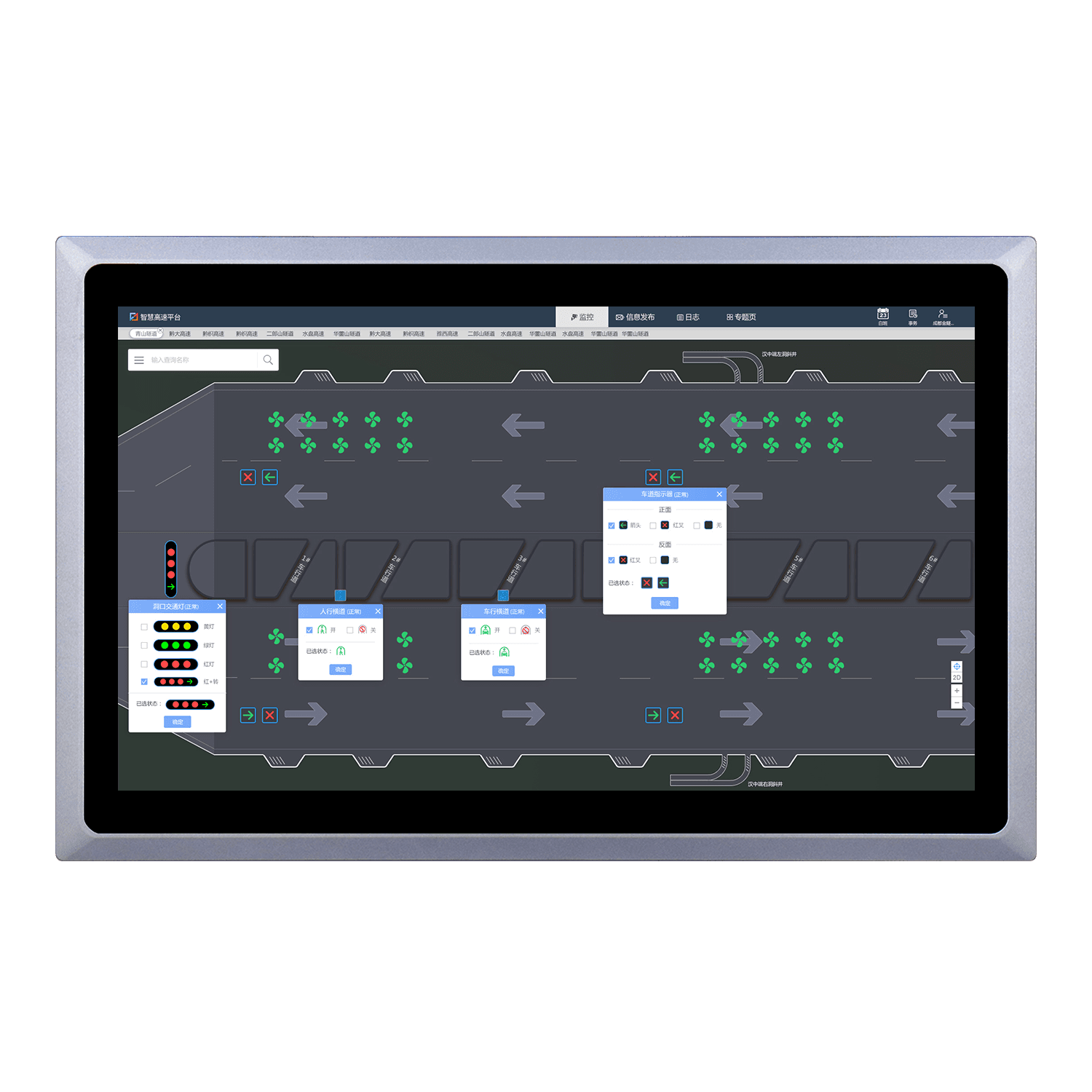

    18.5 inch desktop capacitive industrial monitor

    $328.00 – $335.00

    In stock
    Compare

    Description

    SCD-A185WR/WZ/WG desktop capacitive industrial monitor adopts a 18.5-inch 16:9 LED LCD screen with a resolution of 1920×1080, optional full-plane capacitive touch screen or resistive touch screen, with IP65 protection grade, aluminum alloy front panel is beautiful and stylish, sturdy dustproof and anti-interference, can be used in harsh environments, wide temperature (-10 ~ 60℃) operation is stable.
    desktop capacitive industrial monitor provides rich display input interfaces: VGA+HDMI or VGA+DVI+HDMI, voltage input supports DC 12V and 2PIN phoenix terminals, provides components for effective grounding protection to protect the device, optional vibration-damping cushioning waterproof strips to prevent water from seeping into the housing, supports embedded and VESA standard installation methods, and can quickly install with various universal brackets or support arms for convenient and flexible installation.
    Can be applied to fields such as industrial control, power communication, medical education, visual logistics, smart city, and self-service terminals.

    desktop capacitive industrial monitordesktop capacitive industrial monitordesktop capacitive industrial monitordesktop capacitive industrial monitordesktop capacitive industrial monitordesktop capacitive industrial monitor

    Additional information

    Weight 5.8 kg
    Dimensions 535 × 455 × 155 mm
    Model

    SCD-A185WR
    Screen

    18.5 inch
    Ratio

    16:9
    Resolution

    1920 x 1080
    Panel type

    TFT-LED
    Response time

    5ms
    Contrast

    1000:1
    Pixel spacing

    0.300mm
    Brightness

    300-500cd/㎡
    Viewing angle

    Horizontal 160° Vertical 150°
    Viewable area

    409 x 230mm
    Display color

    16.7M
    Touch

    Capacitive
    Touch points

    10-point touch
    Surface hardness

    ≧7H
    Light transmittance

    ＞87%
    Number of touches

    > 50 million times
    Controller

    USB Port
    Front panel

    Aluminum alloy
    Protection level

    Front panel IP65 waterproof and dustproof
    Shell material

    SECC
    Heat dissipation

    Fanless
    Speaker

    None (optional built-in dual speakers)
    Installation

    Boom type, Cantilever type, Desktop, Embedded, Floor, VESA（100x100mm）, Wall-mounted

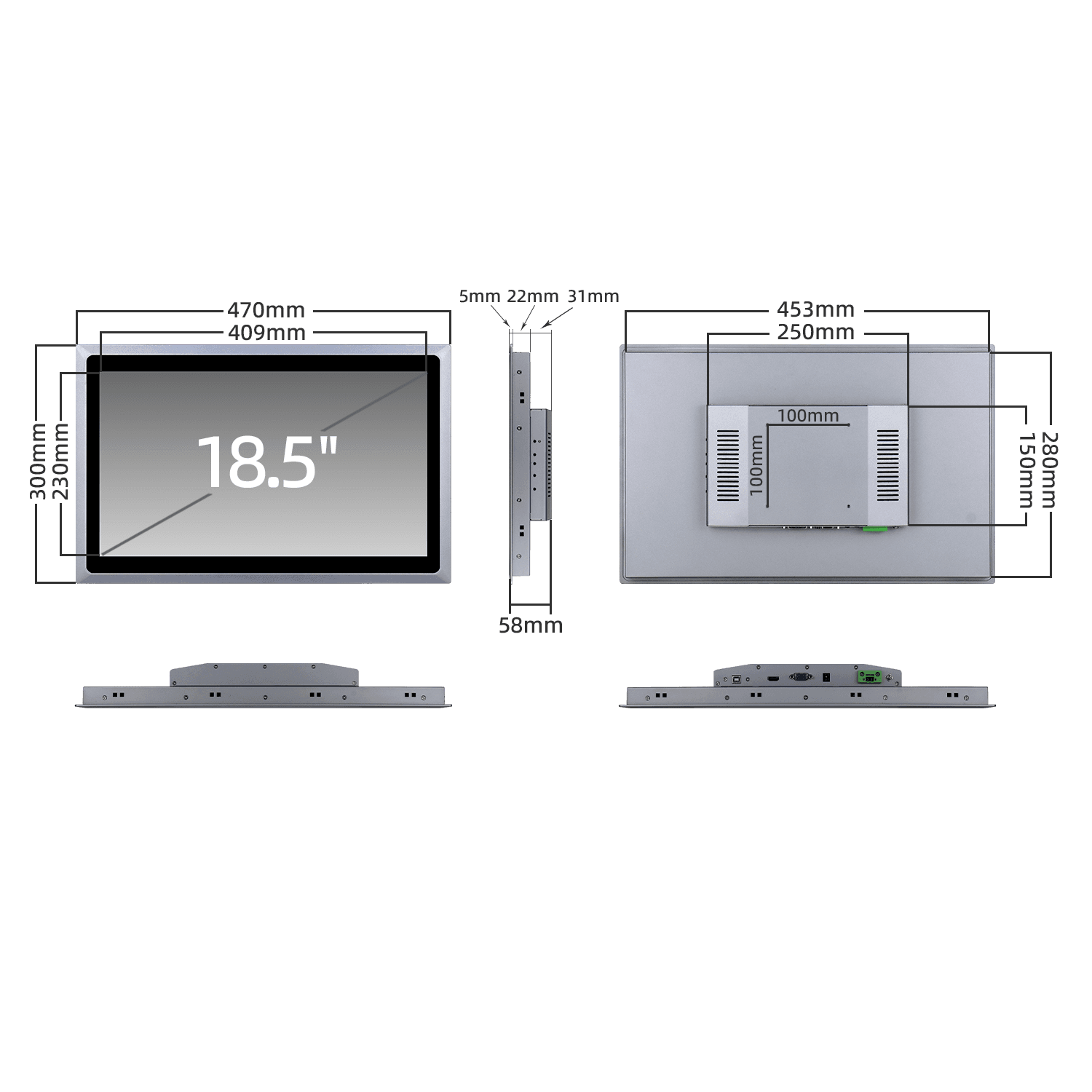

    Product size

    470 x 300 x 58mm
    Embedded size

    453 x 280mm
    Product Weight

    4.2KG
    Color

    Silver
    Power supply

    Input AC 220V, DC 12V power adapter
    Operating System

    Android, Linux, Windows
    Interface

    1 x 2pin, 1 x DC, 1 x GND
    Display interface

    VGA+HDMI, VGA+HDMI+DVI
    OSD

    -, +, Auto, Menu, Power
    Menu

    Support brightness, contrast, color temperature, language and other functions to adjust
    Menu Language

    Deutsch, English, Español, Français, Italiano, Português, 简体中文, 한국어
    Interference resistance

    EMI/EMC interference detection standards
    ESD static electricity

    The contact discharge ± 8KV, the air discharge ± 15KV
    Anti vibration

    5~500Hz, 2Grms random vibration
    Impact resistant

    Working Status: 10G@11ms, Non-Working Status: 20G@11ms
    Work environment

    -10°C to 60°C
    Storage environment

    -20°C to 70°C
    Relative humidity

    5%~85% (no condensation)
