    19 inch Core i3 i5 i7 industrial panel PC
    15 inch embedded industrial panel PC

    10.4 inch capacitive industrial panel PC

    0 out of 5
    ( There are no reviews yet. )

    $409.00 – $605.00

    SKU: SCP-D104SR Tag:

    ● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M.2, 2.5 inch SATA hard drive
    ● Screen 10.4″ resolution 1024×768, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
    ● Support power-on and boot, built-in double horns, high and low temperature resistance (-10 to 50°C) uninterrupted and stable operation, support grounding wire
    ● 6 DB9 RS232 COM ports, optional RS422/485 switching, support HDMI or VGA extended display, optional anti-vibration buffer waterproof adhesive strip
    ● 1 Gigabit Ethernet port (optional dual Ethernet port), 1 MINI-PCIE slot (optional WIFI Bluetooth or 4G module)
    ● Rugged chassis with or without fan for efficient heat dissipation, supporting embedded/VESA bracket and other mounting methods

    Clear

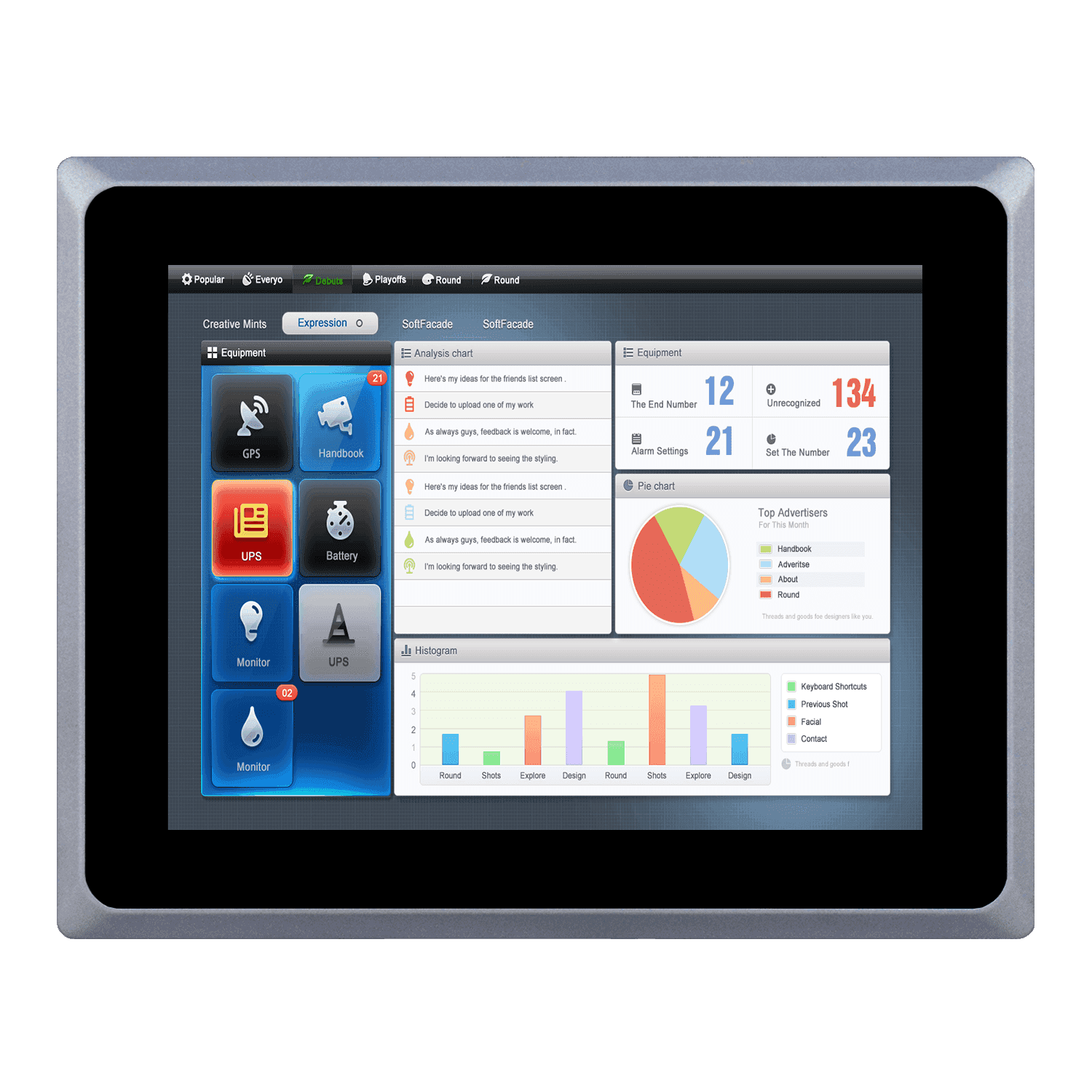

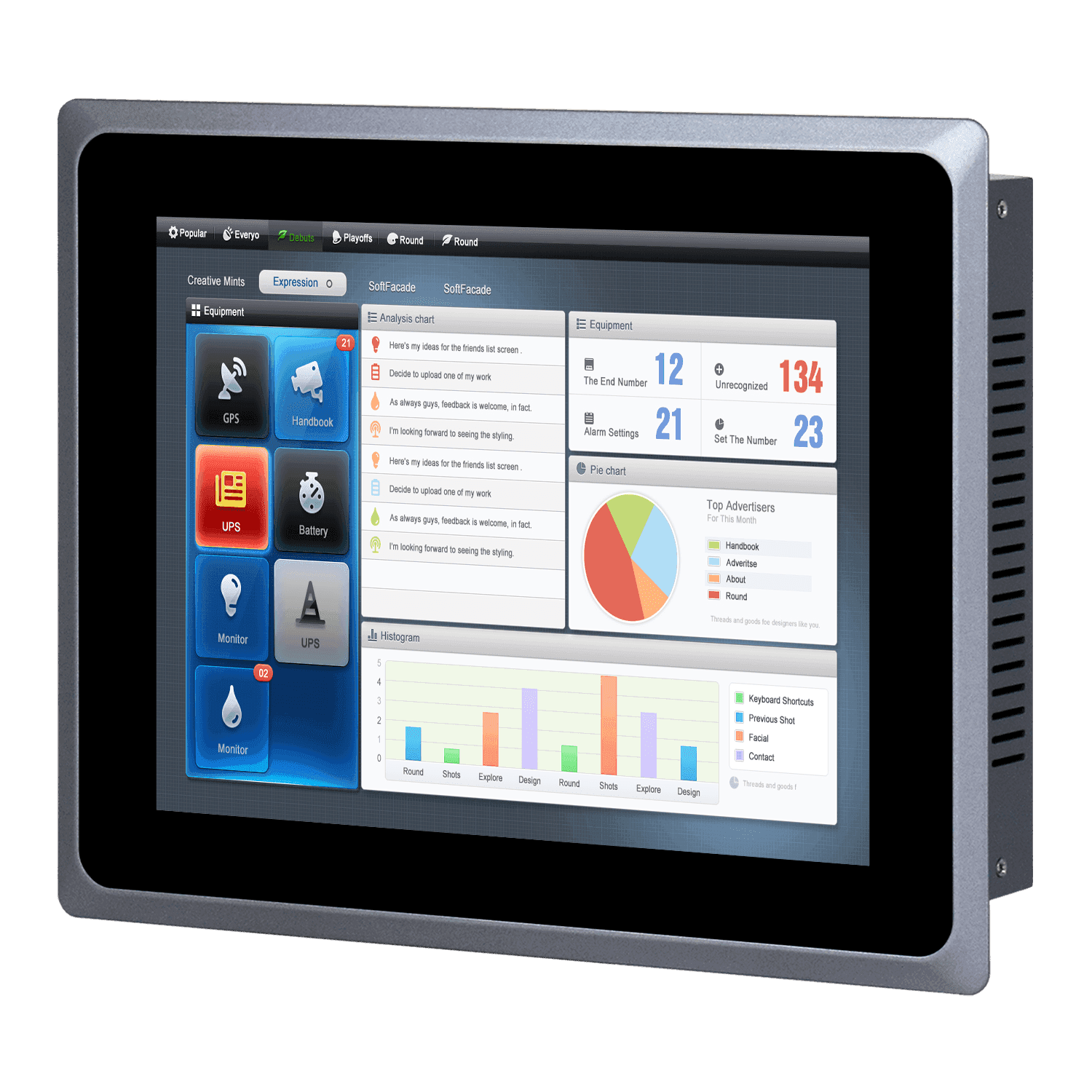

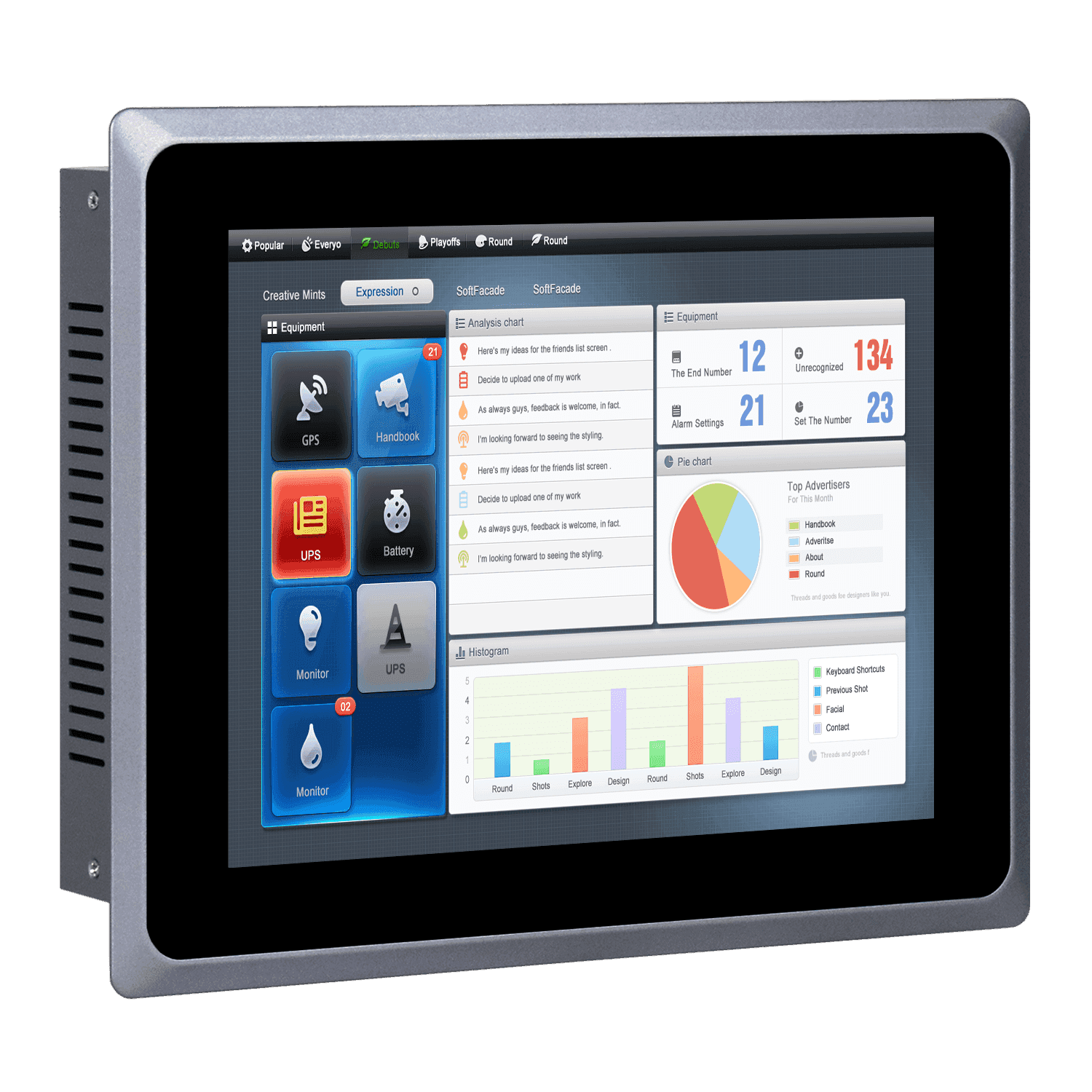

    10.4 inch capacitive industrial panel PC

    $409.00 – $605.00

    In stock
    Compare

    Description

    SCP-D104SR/SZ aluminum alloy capacitive industrial panel computer is equipped with intel Celeron/Core processor, data storage supports mSATA, M. 2. 2.5-inch SATA, rich COM (RS232/422/485), USB, LAN and other complete interfaces, expandable WIFI Bluetooth or 4G module, optional anti-vibration buffer waterproof tape to better prevent moisture from penetrating into the box, it has been widely used in the industrial field and embedded equipment., It is also equipped with HDMI or VGA video output for extended display, and supports Windows and Linux systems.
    capacitive industrial panel computer supports a wide temperature environment (-10 to 50°C), and the streamlined design ensures its efficient heat dissipation and strong shock resistance, making it a reliable industrial platform and providing safe grounding components to protect equipment more effectively. The screen adopts a 10.4-inch LED backlit industrial screen, the aluminum alloy front panel complies with IP65 waterproof standard, and a full-plane capacitive touch screen or resistive touch screen is optional.
    Embedded and VESA installation methods can be quickly and flexibly installed in various environments, and can be applied to industrial automation, power communications, medical education, transportation, logistics and warehousing, smart cities and other fields.

    capacitive industrial panel computercapacitive industrial panel computercapacitive industrial panel computercapacitive industrial panel computer

    Additional information

    Weight 3.0 kg
    Dimensions 310 × 305 × 150 mm
    Model

    SCP-D104SR
    Processor

    Intel Celeron J1900, Intel Celeron J4125, Intel Celeron J6412, Intel Core i3, Intel Core i3-10110U, Intel Core i5, Intel Core i7
    Display chips

    intel HD Graphics
    Memory

    4G, 8G, 16G
    Hard disk

    64G SSD, 128G SSD, 256G SSD, 512G SSD
    Network chips

    Gigabit Ethernet
    Audio chips

    ntegrated audio chip (built-in dual speakers)
    Power on

    Yes (Disabled by default, need to be enabled in BIOS)
    Operating System

    Linux, Windows
    Screen

    10.4 inch
    Panel type

    TFT-LED
    Ratio

    4:3
    Resolution

    1024 x 768
    Display color

    16.7M
    Contrast

    1000:1
    Brightness

    300-500cd/㎡
    Viewing angle

    178° full viewing angle
    Viewable area

    212 x 160mm
    Touch

    Capacitive
    Touch points

    10-point touch
    Surface hardness

    ≧7H
    Light transmittance

    ＞87%
    Controller

    USB Port
    Interface

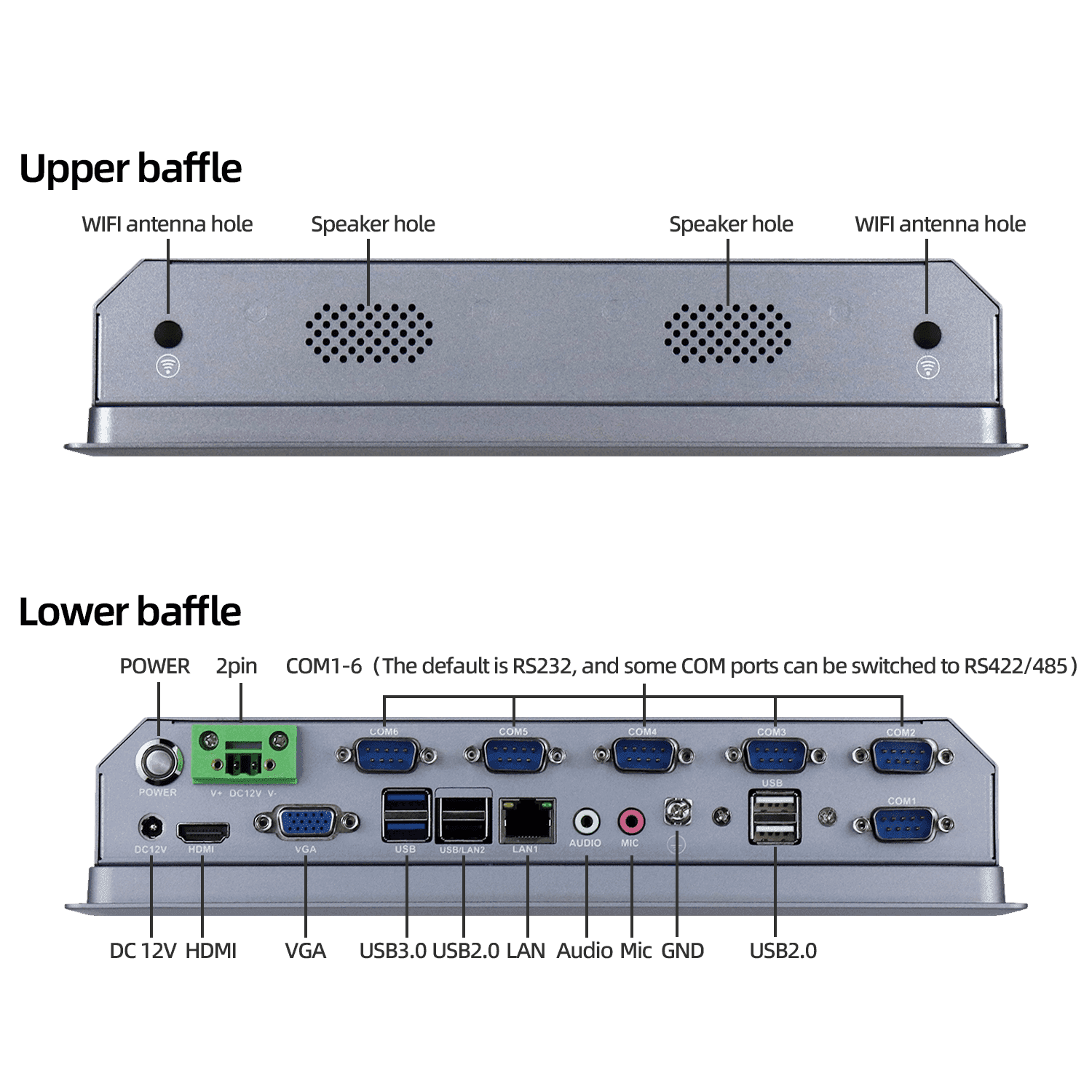

    1 x 2pin, 1 x Audio, 1 x DC 12V, 1 x GND, 1 x HDMI, 1 x LAN, 1 x Mic, 1 x MINI-PCIE (Optional extended WIFI/Bluetooth/4G module), 1 x Power, 1 x VGA, 6 x COM, 6 x USB
    Front panel

    Aluminum alloy
    Protection level

    Front panel IP65 waterproof and dustproof
    Shell material

    SECC
    Heat dissipation

    Fan cooling, Fanless
    Power supply

    Input AC 220V, DC 12V power adapter
    Installation

    Boom type, Cantilever type, Desktop, Embedded, Floor, VESA（100x100mm）, Wall-mounted

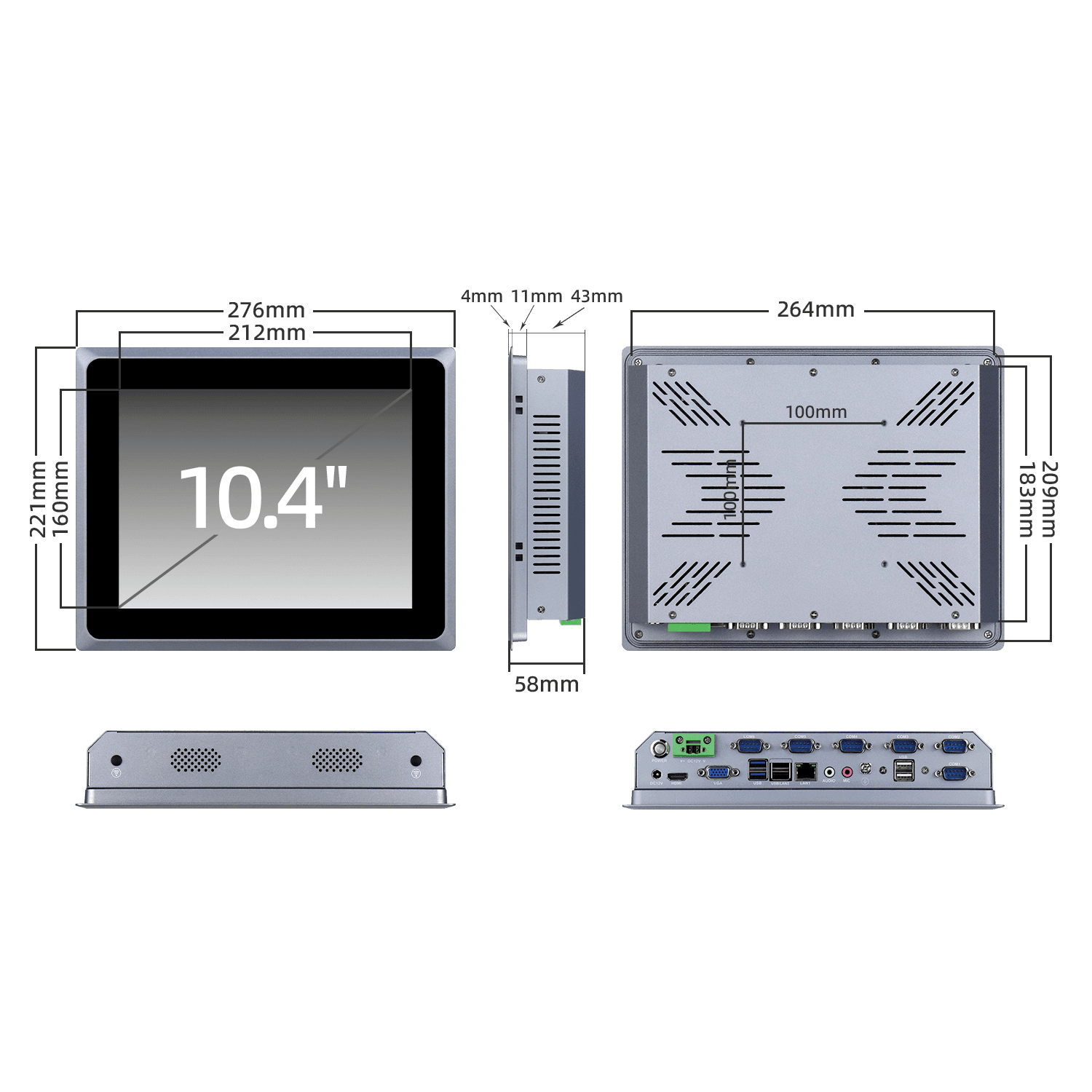

    Product size

    276 x 221 x 58mm
    Embedded size

    264 x 209mm
    Product Weight

    2.2KG
    Color

    Silver
    Interference resistance

    EMI/EMC interference detection standards
    ESD static electricity

    The contact discharge ± 8KV, the air discharge ± 15KV
    Anti vibration

    5~500Hz, 2Grms random vibration
    Impact resistant

    Working Status: 10G@11ms, Non-Working Status: 20G@11ms
    Work environment

    -10°C to 50°C
    Storage environment

    -20°C to 60°C
    Relative humidity

    10%~90% (no condensation)
