12.1 inch fanless embedded industrial panel PC
$425.00 – $600.00
● Screen 12.1″ resolution 1024×768, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M.2, 2.5 inch SATA hard drive
● Support power-on and power-on, built-in double horns, high and low temperature resistance (-20°C to 60°C) uninterrupted and stable operation, with grounding terminals
● It can be expanded to 6 COM ports, supports HDMI screen expansion display, and can choose anti-vibration buffer waterproof adhesive strip
● 1 Gigabit LAN port (optional dual network port, WIFI Bluetooth or 4G module, optional addition of 9-36V wide voltage module)
● The aluminum alloy of the chassis is sturdy and beautiful, the aluminum fin fanless heat dissipation is more efficient, and it supports embedded/VESA bracket and other installation methods
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description
SCP-K121SR/SZ Aluminum Alloy fanless embedded industrial panel PC equipped with Intel Celeron/Core processor, data storage supports mSATA, M.2, 2.5-inch SATA, rich USB, LAN, and other interfaces are complete, can expand COM port, WIFI Bluetooth, or 4G module, optional 9-36V wide voltage for unstable voltage environment, optional vibration-proof shockproof waterproof rubber strips to better prevent water from seeping into the box, widely used in industrial fields and embedded devices, also equipped with HDMI video output for display expansion, supports Windows and Linux systems.
fanless embedded industrial panel PC it supports a wide temperature environment (-20°C to 60°C), a fully enclosed aluminum fin design without a fan, ensuring more efficient heat dissipation and strong vibration resistance, making it a more reliable industrial platform and providing more effective protection for equipment with safety grounding components. The screen is a 12.1-inch LED-backlit industrial screen, the aluminum alloy front panel meets the IP65 waterproof standard, and optional full-plane capacitive touch screen or resistive touch screen are available.
Embedded and VESA wall-mounted, desktop and other installation methods can be quickly and conveniently installed in various environments, and can be applied to fields such as industrial automation, military heavy industry, power communication, intelligent government affairs, medical education, visual logistics, advertising display, digital signage, and smart city.
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 390 × 330 × 155 mm |
| Model | SCP-K121SR |
| Processor | Intel Celeron J1900, Intel Celeron J4125, Intel Celeron J6412, Intel Core i3, Intel Core i3-10110U, Intel Core i5, Intel Core i7 |
| Display chips | intel HD Graphics |
| Memory | 4G, 8G, 16G |
| Hard disk | 64G SSD, 128G SSD, 256G SSD, 512G SSD |
| Network chips | Gigabit Ethernet |
| Audio chips | ntegrated audio chip (built-in dual speakers) |
| Power on | Yes (Disabled by default, need to be enabled in BIOS) |
| Operating System | Linux, Windows |
| Screen | 12.1 inch |
| Panel type | TFT-LED |
| Ratio | 4:3 |
| Resolution | 1024 x 768 |
| Display color | 16.7M |
| Contrast | 1000:1 |
| Brightness | 300-500cd/㎡ |
| Viewing angle | Horizontal 160° Vertical 150° |
| Viewable area | 246 x 185mm |
| Touch | Capacitive |
| Touch points | 10-point touch |
| Surface hardness | ≧7H |
| Light transmittance | ＞87% |
| Controller | USB Port |

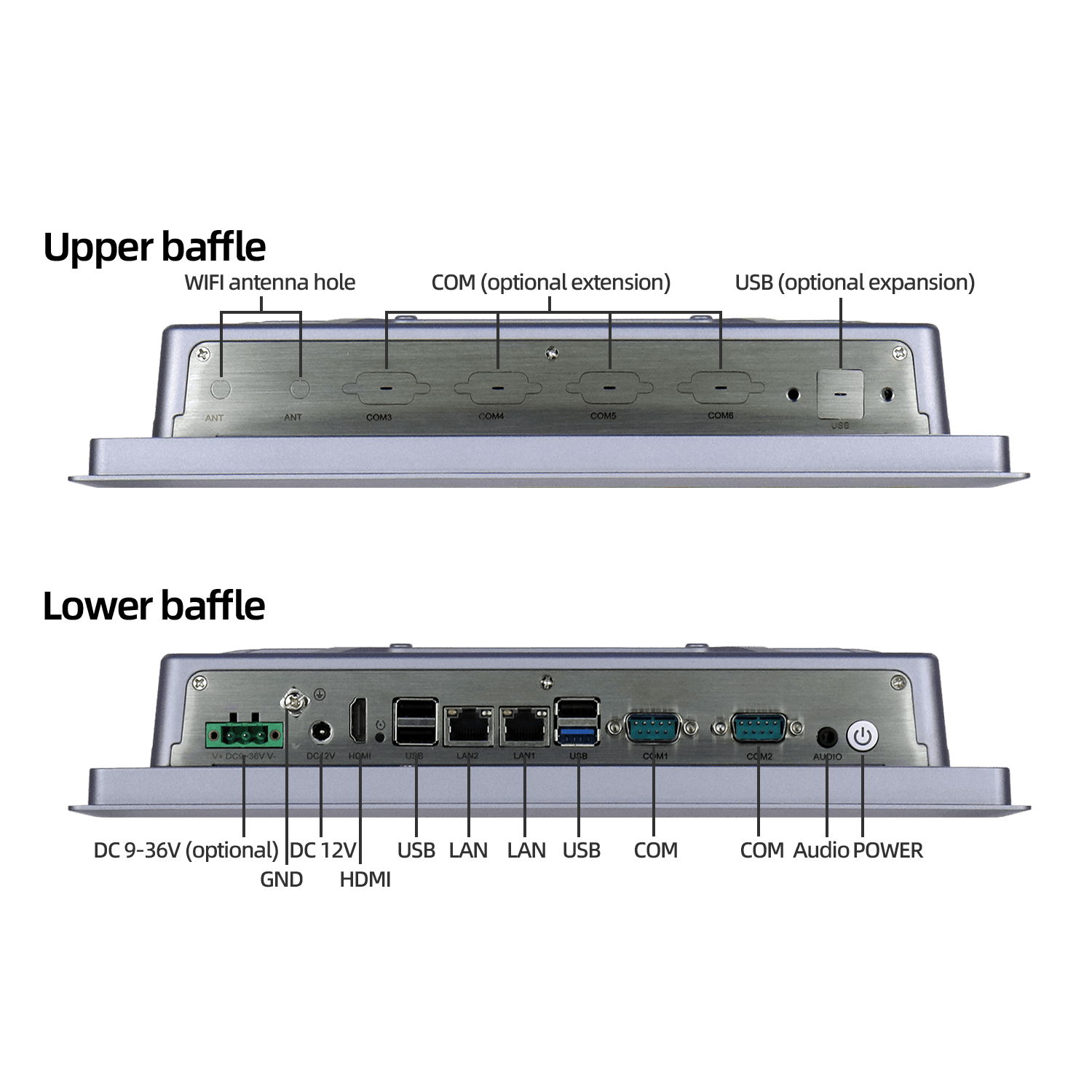

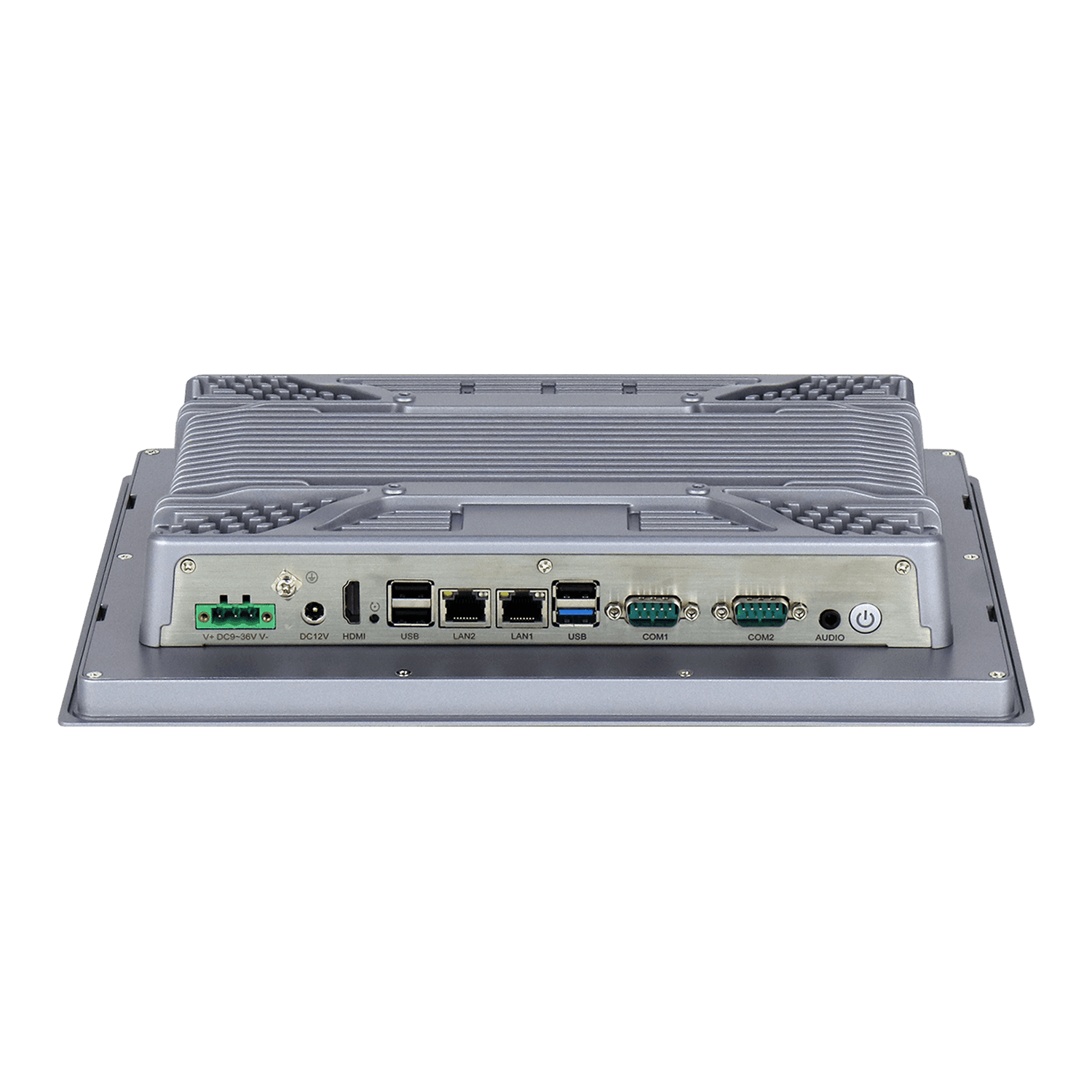

| Interface | 1 x Audio, 1 x DC 12V, 1 x GND, 1 x HDMI, 1 x LAN, 1 x MINI-PCIE (Optional extended WIFI/Bluetooth/4G module), 1 x Power, 4 x USB, Optional 3pin 9-36V wide voltage, The COM port can be expanded with 6 DB9 RS232 ports, and 1-3 RS485/422 ports can be switched |
| Front panel | Aluminum alloy |
| Protection level | Front panel IP65 waterproof and dustproof |
| Shell material | Aluminum alloy |

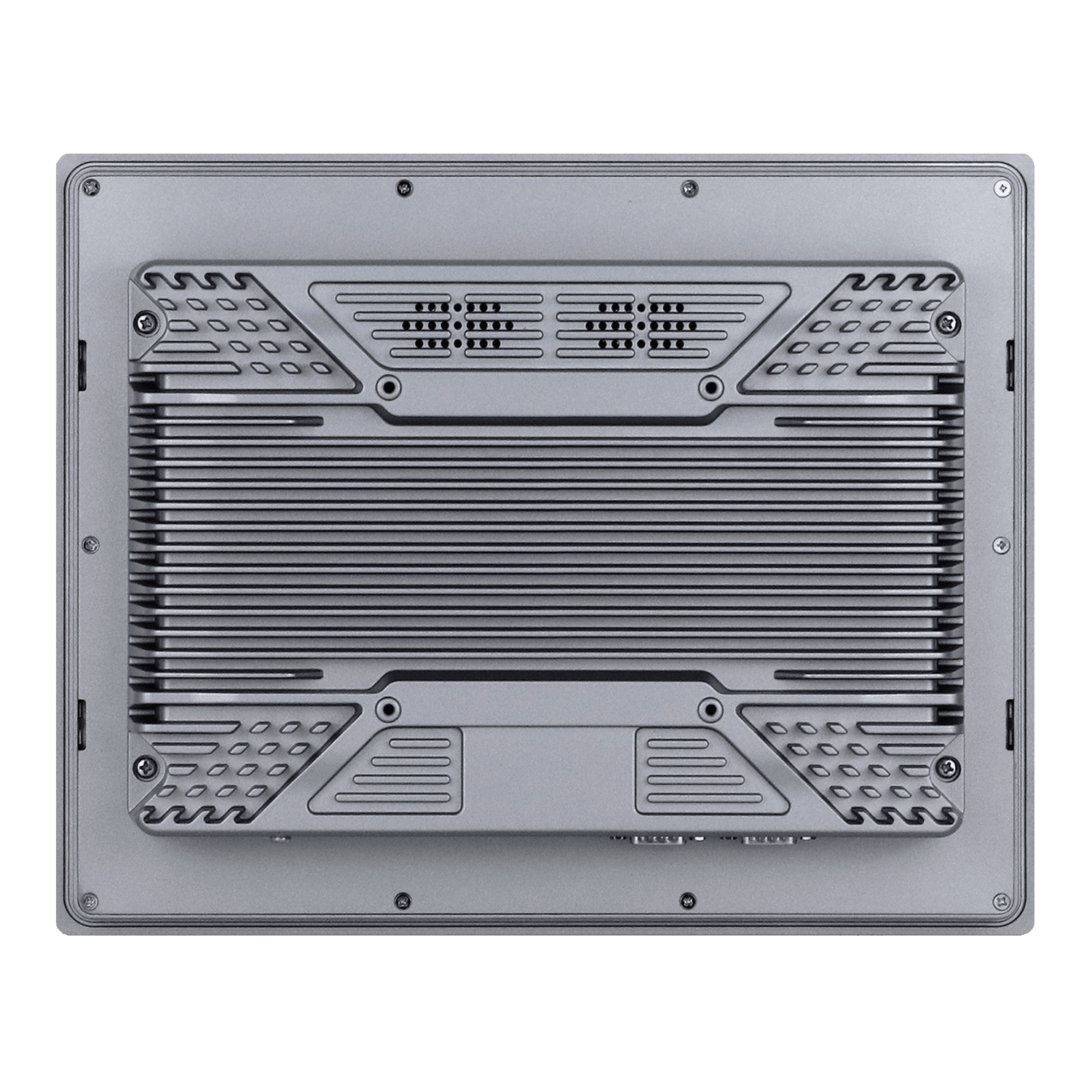

| Heat dissipation | Aluminum fin fanless |
| Power supply | Input AC 220V, DC 12V power adapter |
| Installation | Boom type, Cantilever type, Desktop, Embedded, Floor, VESA（100x100mm）, Wall-mounted |

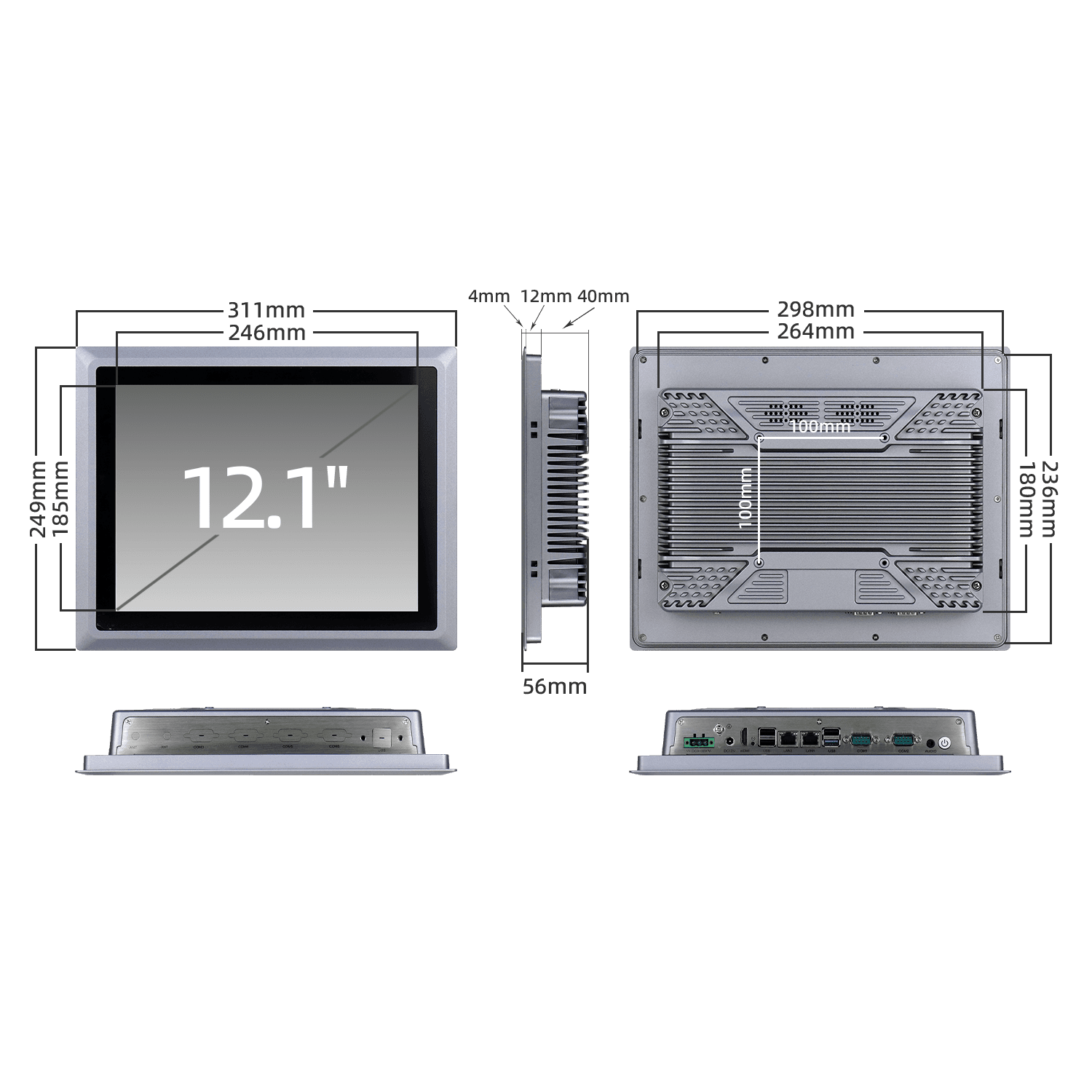

| Product size | 311 x 249 x 56mm |
| Embedded size | 298 x 236mm |
| Product Weight | 3.4KG |
| Color | Silver |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -20°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 10%~90% (no condensation) |
| Shipping Methods: We offer worldwide delivery with no minimum purchase quantity required for all orders. You can also select your preferred shipping method on the Order Information page during the checkout process. We offer you different shipping methods, here are some of them: |
||
| Shipping from Chinese Warehouse： | ||
| Airmail and register airmail | Area | time |
| United States, Canada, Netherlands, Spain, Germany, France, Japan, Republic of Korea, United Kingdom | 7-15 business days | |
| Australia ,New Zealand, Singapore | 7-15 business days | |
| Belgium, Denmark, Finland, Ireland, Norway, Portugal, Sweden, Switzerland | 7-20 business days | |
| Brazil, Russia, Mexico | 15-35 business days | |
| Other countries | 7-25 business days | |
| EMS | All countries except those listed below | 6-8 business days |
| Brazil and Russia | 10-25 business days | |
| Expedited Shipping*(DHL) | 3-7business days to worldwide. | 3-7 business days |
The transit time depends on where you’re located . If you want to know more information, please contact our customer service team. We will settle your problem as soon as possible. Enjoy your shopping! |
||
| Payment Methods: soncci.com accepts PayPal and Credit Card as secure payment methods: |
||
1. PayPal 1) Login To Your Account or use Credit Card Express. 2) Enter your Card Details, the order will be shipped to your PayPal address. And click “Submit”. 3) Your Payment will be processed and a receipt will be sent to your email inbox. |
||
2. Credit Card 1) Choose your shipping address OR create a new one. 2) Enter your Card Details and click “Submit”. 3) Your Payment will be processed and a receipt will be sent to your email inbox. |
||
Be the first to review “12.1 inch fanless embedded industrial panel PC”
| Document Name | Document size | Upload time | Click Download |
| Datasheet（PDF） | 510KB | 2024-9-30 |  Download Now |
