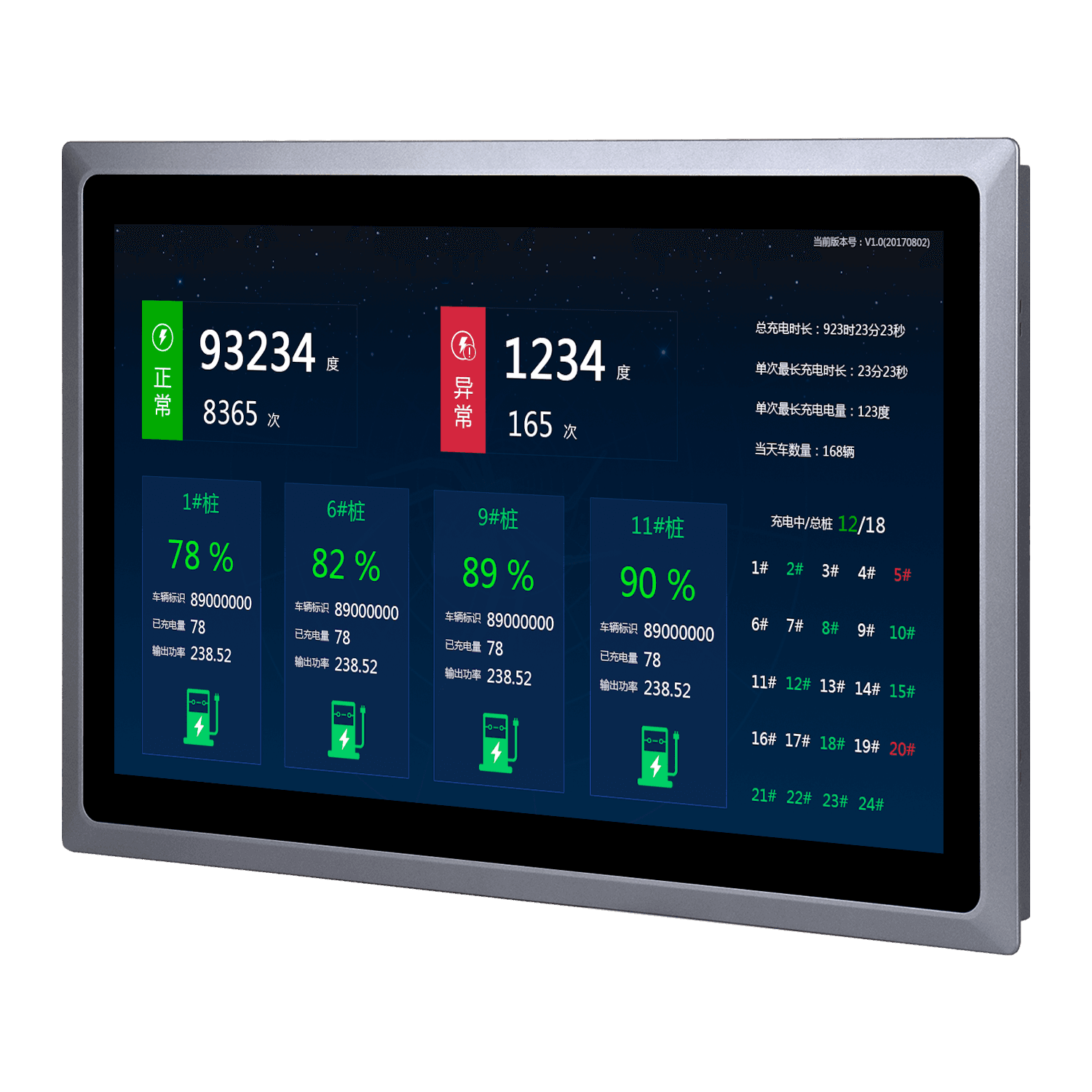

18.5 inch J6412 heavy industrial panel PC
$475.00 – $650.00

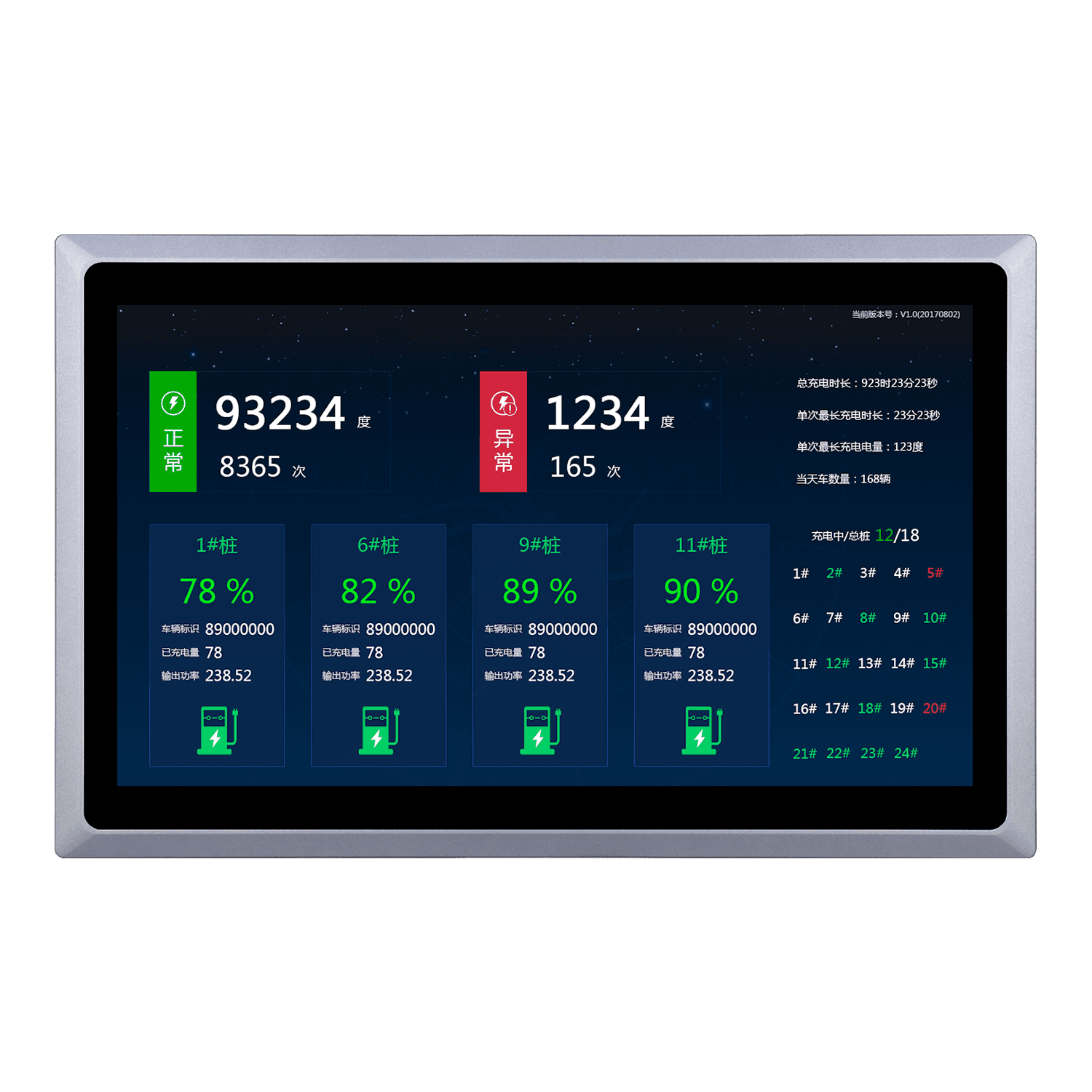

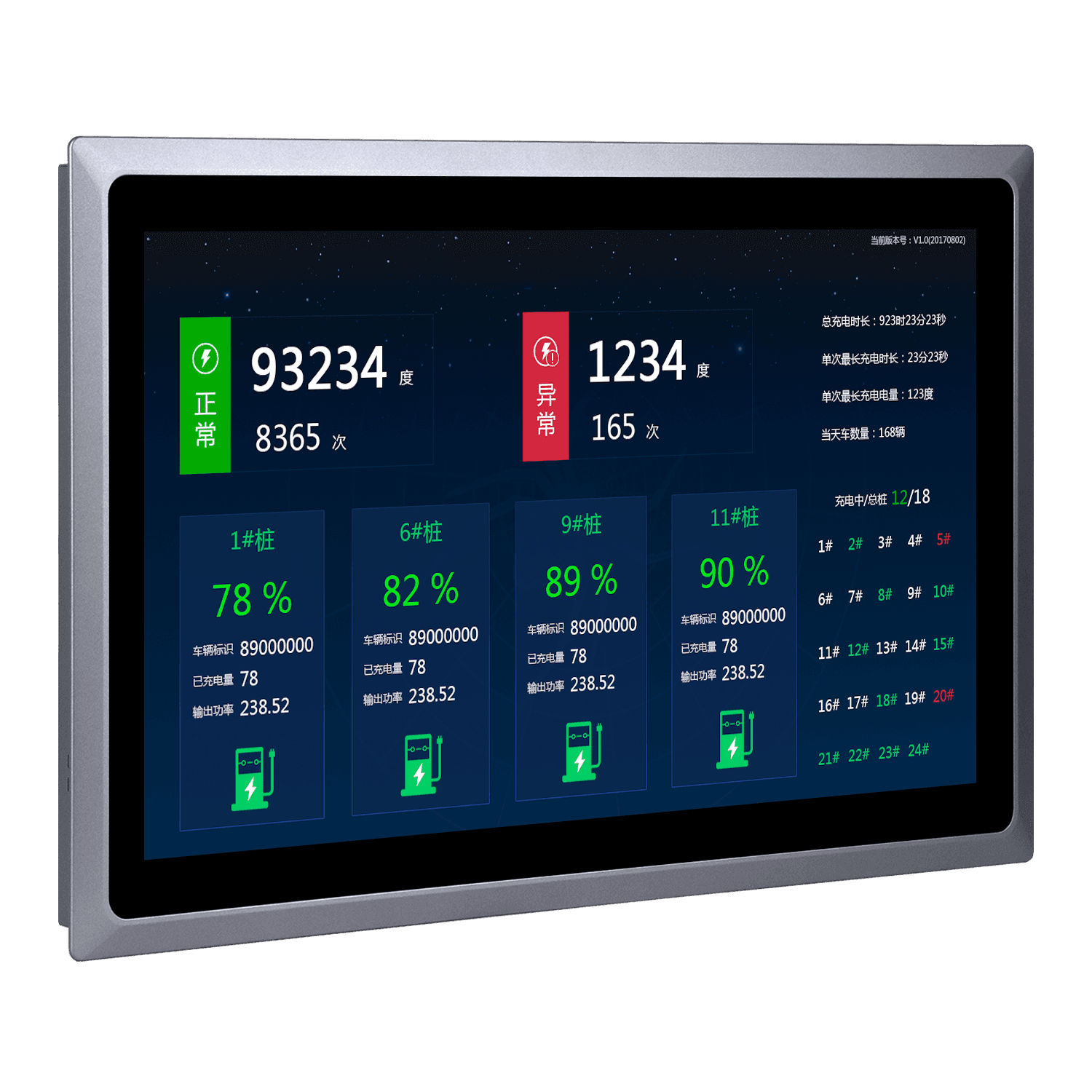

● Screen: 18.5″ LED screen, resolution 1920×1080, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M.2, 2.5 inch SATA hard drive
● Support power-on and power-on, built-in double horns, high and low temperature resistance (-20°C to 60°C) uninterrupted and stable operation, with grounding terminals
● It can be expanded to 6 COM ports, supports HDMI or VGA video expansion display, and optional waterproof adhesive strip to better prevent moisture from penetrating into the cabinet
● 1 Gigabit LAN port (optional dual network port, WIFI Bluetooth or 4G module, optional addition of 9-36V wide voltage module)

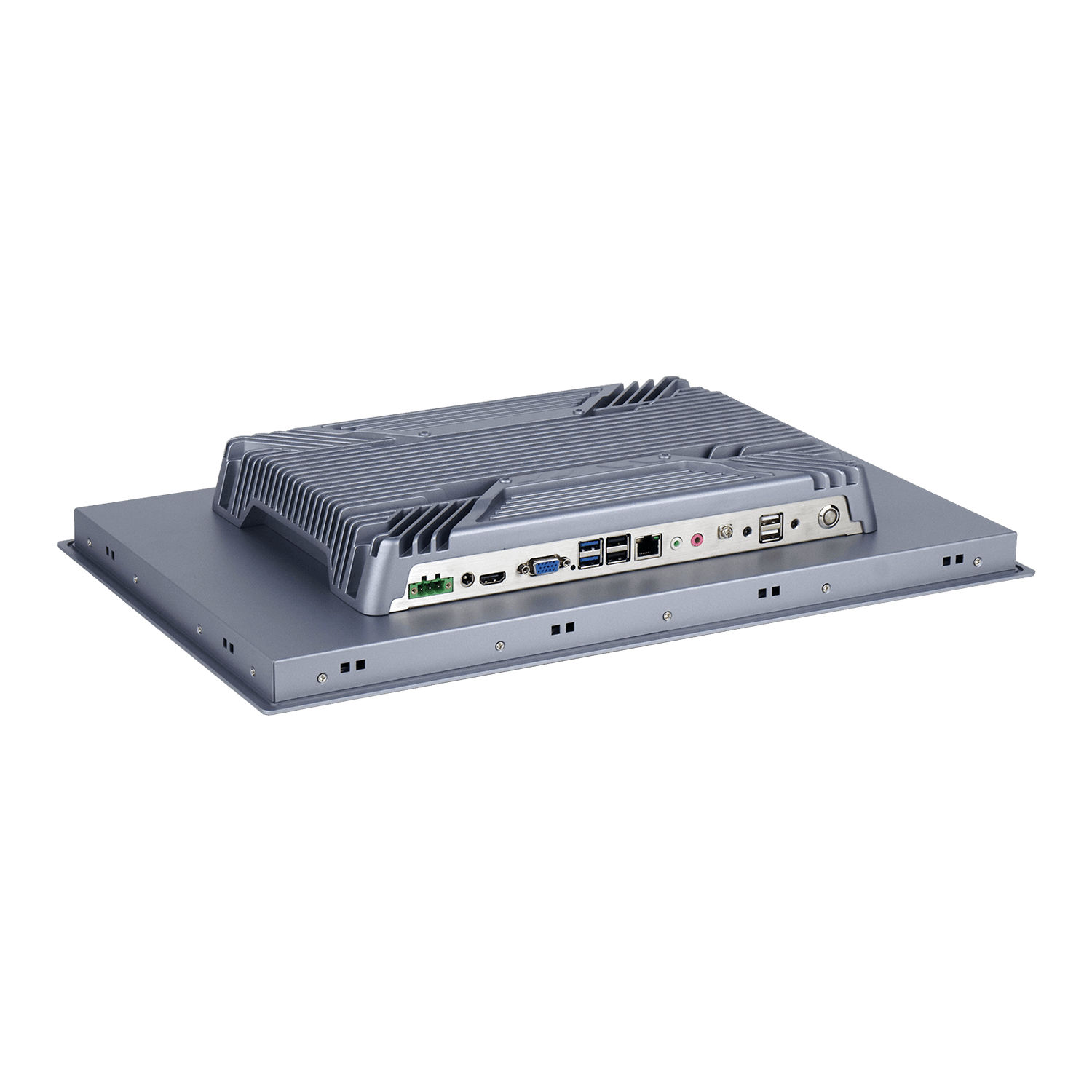

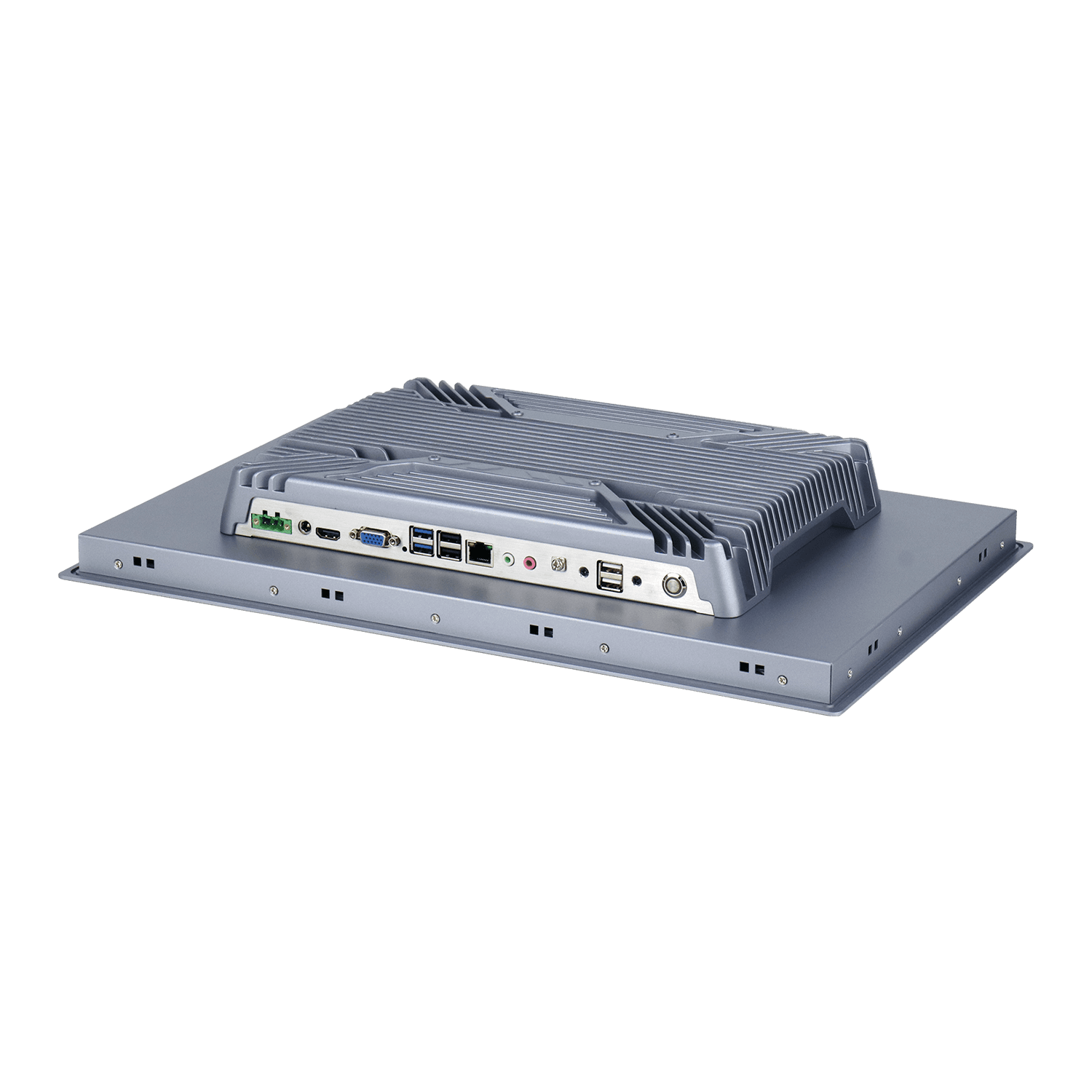

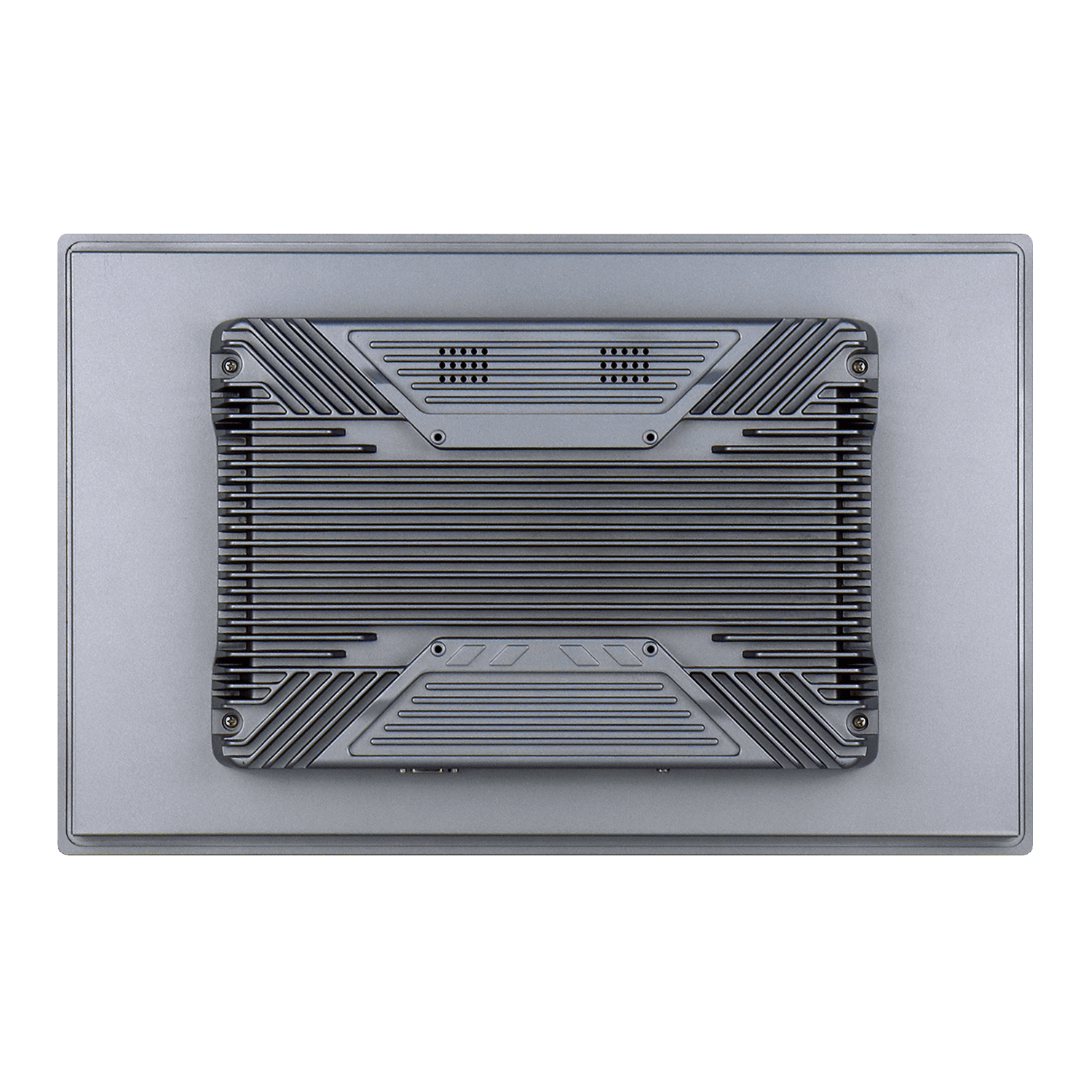

● The chassis is sturdy and beautiful, with aluminum fins fanless + built-in dual copper pipes for more efficient heat dissipation, and supports embedded/VESA bracket and other installation methods
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description
SCP-K185WR/WZ aluminum heavy industrial panel PC is equipped with intel Celeron/Core processor, data storage supports mSATA, M.2, 2.5-inch SATA, rich USB, LAN and other interfaces are complete, expandable COM port, WIFI Bluetooth or 4G module, optional 9-36V wide voltage for unstable voltage environment, optional waterproof strip to better prevent moisture from penetrating into the box, has been widely used in industrial fields and embedded equipment, It is also equipped with HDMI or VGA video output for extended display, supporting Windows and Linux systems.
heavy industrial panel PC supports a wide temperature environment (-20°C to 60°C), aluminum fin fanless + built-in dual copper tube design, ensuring more efficient heat dissipation and strong shock resistance, making it a more reliable industrial platform and providing safe grounding components to protect equipment more effectively. Screen: 18.5-inch LED backlit industrial screen, aluminum alloy front panel meets IP65 waterproof standard, optional full-plane capacitive touch screen or resistive touch screen.
The embedded and VESA mounting methods can be quickly and flexibly installed in various environments, and can be applied to industrial automation, military heavy industry, power communications, smart government affairs, medical education, visual logistics, advertising display, digital signage, smart city and other fields.
Additional information
| Weight | 7.7 kg |
|---|---|
| Dimensions | 535 × 455 × 155 mm |
| Model | SCP-K185WR |
| Processor | Intel Celeron J1900, Intel Celeron J4125, Intel Celeron J6412, Intel Core i3, Intel Core i3-10110U, Intel Core i5, Intel Core i7 |
| Display chips | intel HD Graphics |
| Memory | 4G, 8G, 16G |
| Hard disk | 64G SSD, 128G SSD, 256G SSD, 512G SSD |
| Network chips | Gigabit Ethernet |
| Audio chips | ntegrated audio chip (built-in dual speakers) |
| Power on | Yes (Disabled by default, need to be enabled in BIOS) |
| Operating System | Linux, Windows |
| Screen | 18.5 inch |
| Panel type | TFT-LED |
| Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Display color | 16.7M |
| Contrast | 1000:1 |
| Brightness | 300-500cd/㎡ |
| Viewing angle | Horizontal 160° Vertical 150° |
| Viewable area | 409 x 230mm |
| Touch | Capacitive |
| Touch points | 10-point touch |
| Surface hardness | ≧7H |
| Light transmittance | ＞87% |
| Controller | USB Port |

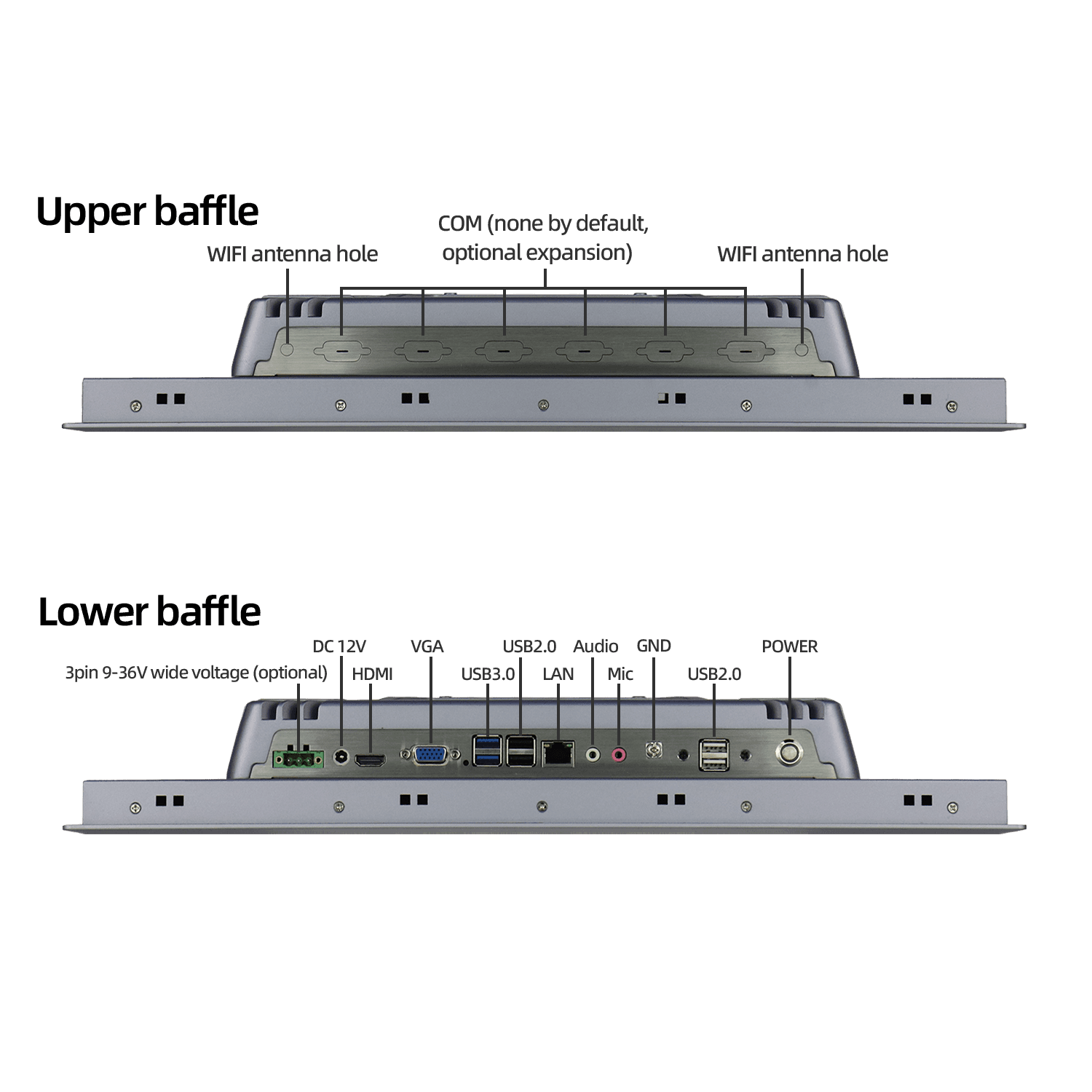

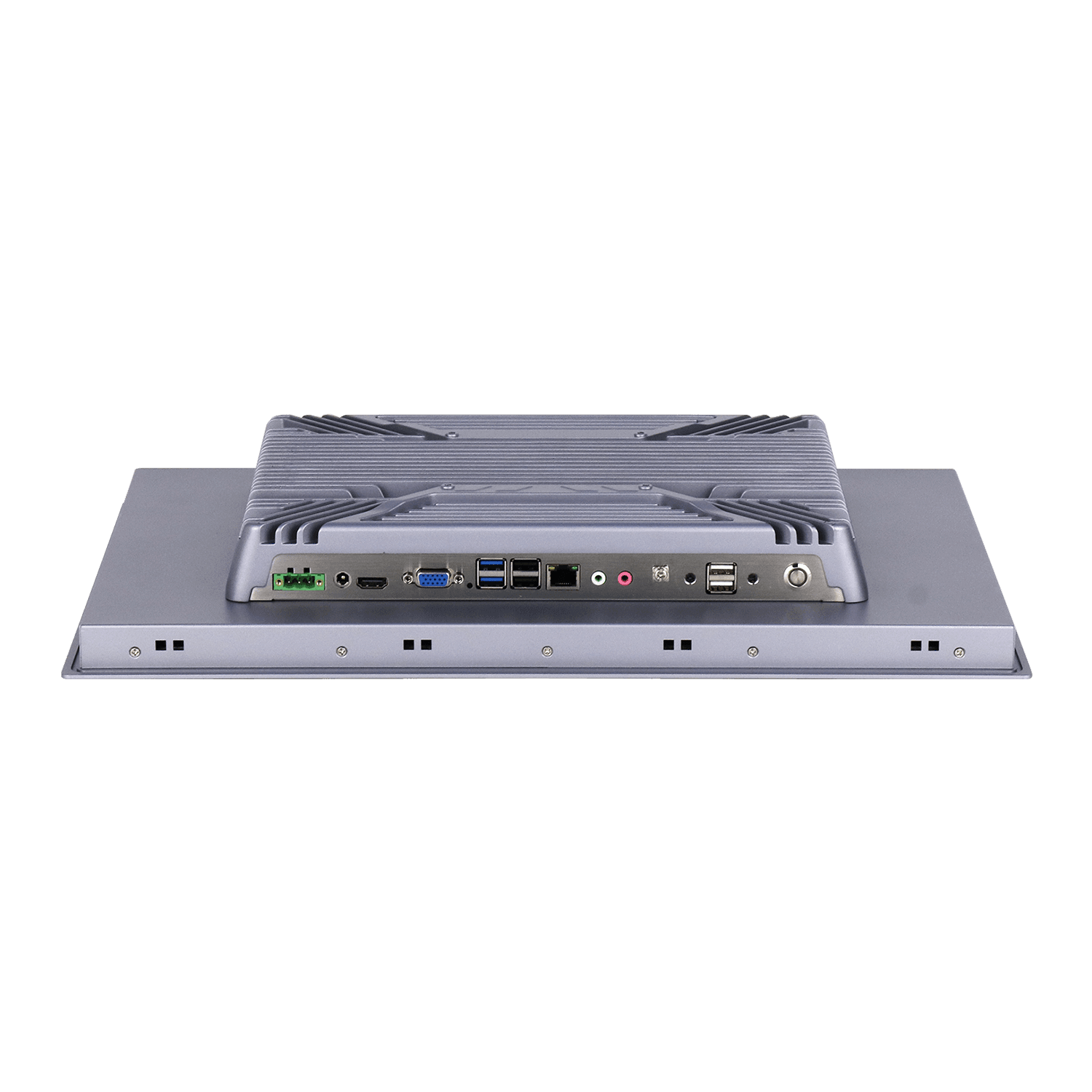

| Interface | 1 x Audio, 1 x DC 12V, 1 x GND, 1 x HDMI, 1 x LAN, 1 x MINI-PCIE (Optional extended WIFI/Bluetooth/4G module), 1 x Power, 6 x USB, Optional 3pin 9-36V wide voltage, The COM port can be expanded with 6 DB9 RS232 ports, and 1-3 RS485/422 ports can be switched |
| Front panel | Aluminum alloy |
| Protection level | Front panel IP65 waterproof and dustproof |
| Shell material | Aluminum alloy |
| Heat dissipation | Aluminum fin fanless |
| Power supply | Input AC 220V, DC 12V power adapter |
| Installation | Boom type, Cantilever type, Desktop, Embedded, Floor, VESA（100x100mm）, Wall-mounted |

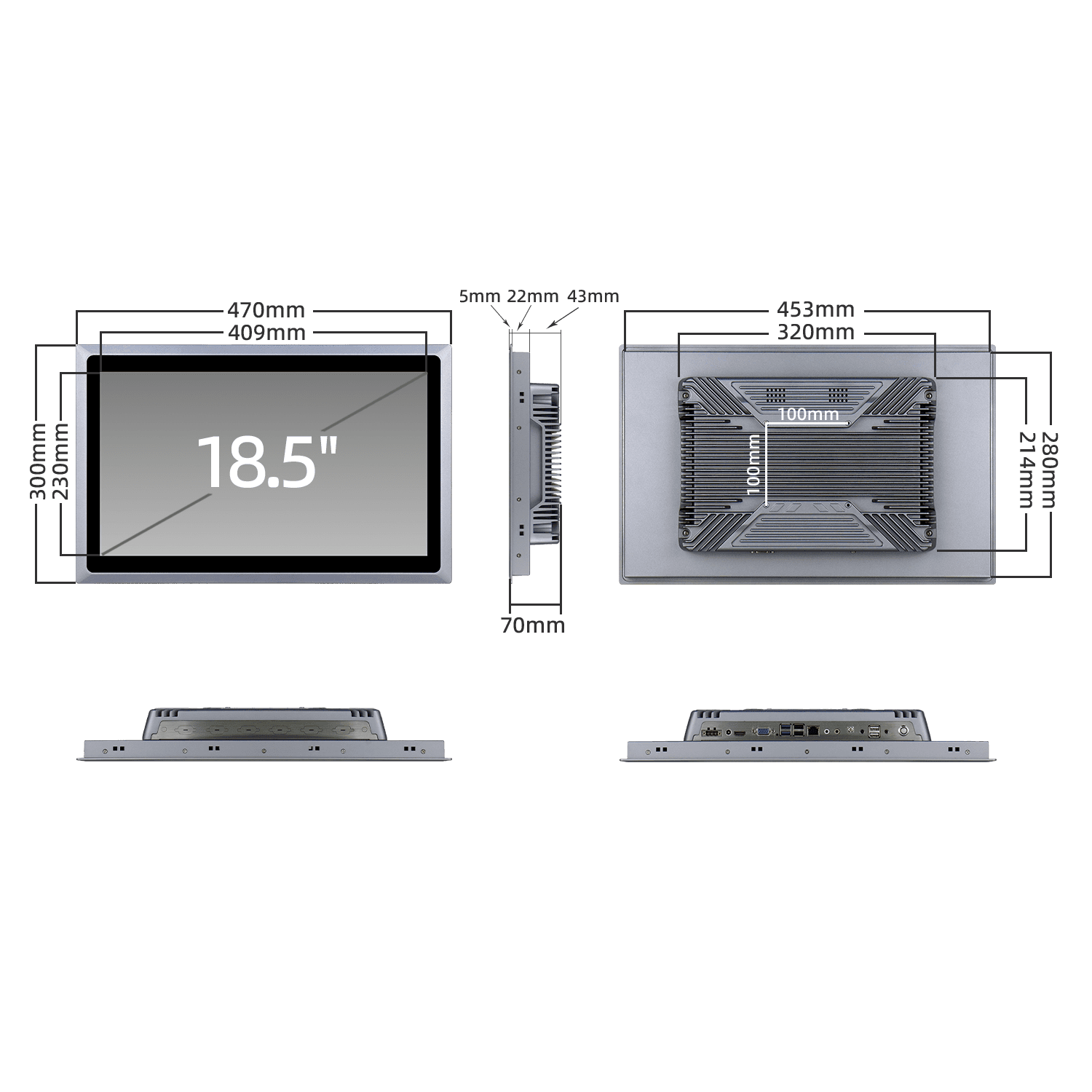

| Product size | 470 x 300 x 70mm |
| Embedded size | 453 x 280mm |
| Product Weight | 6.3KG |
| Color | Silver |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -20°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 10%~90% (no condensation) |
