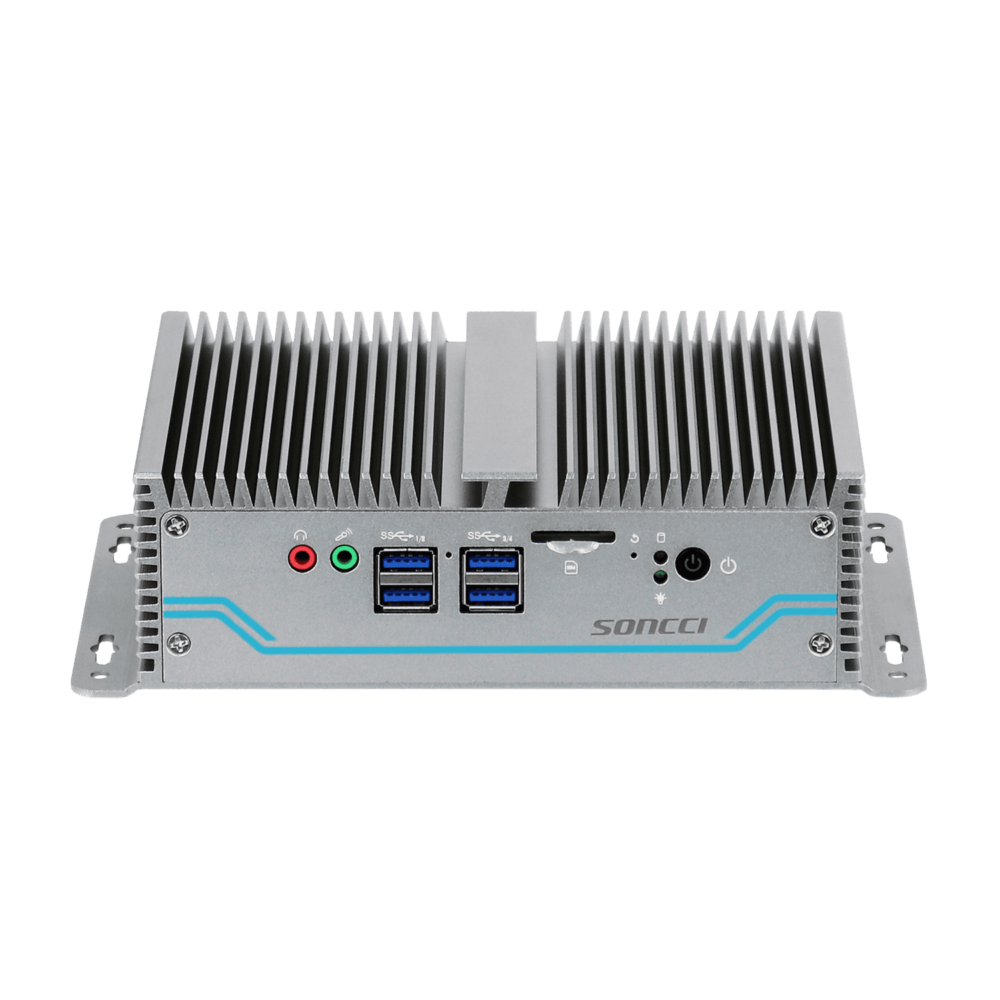

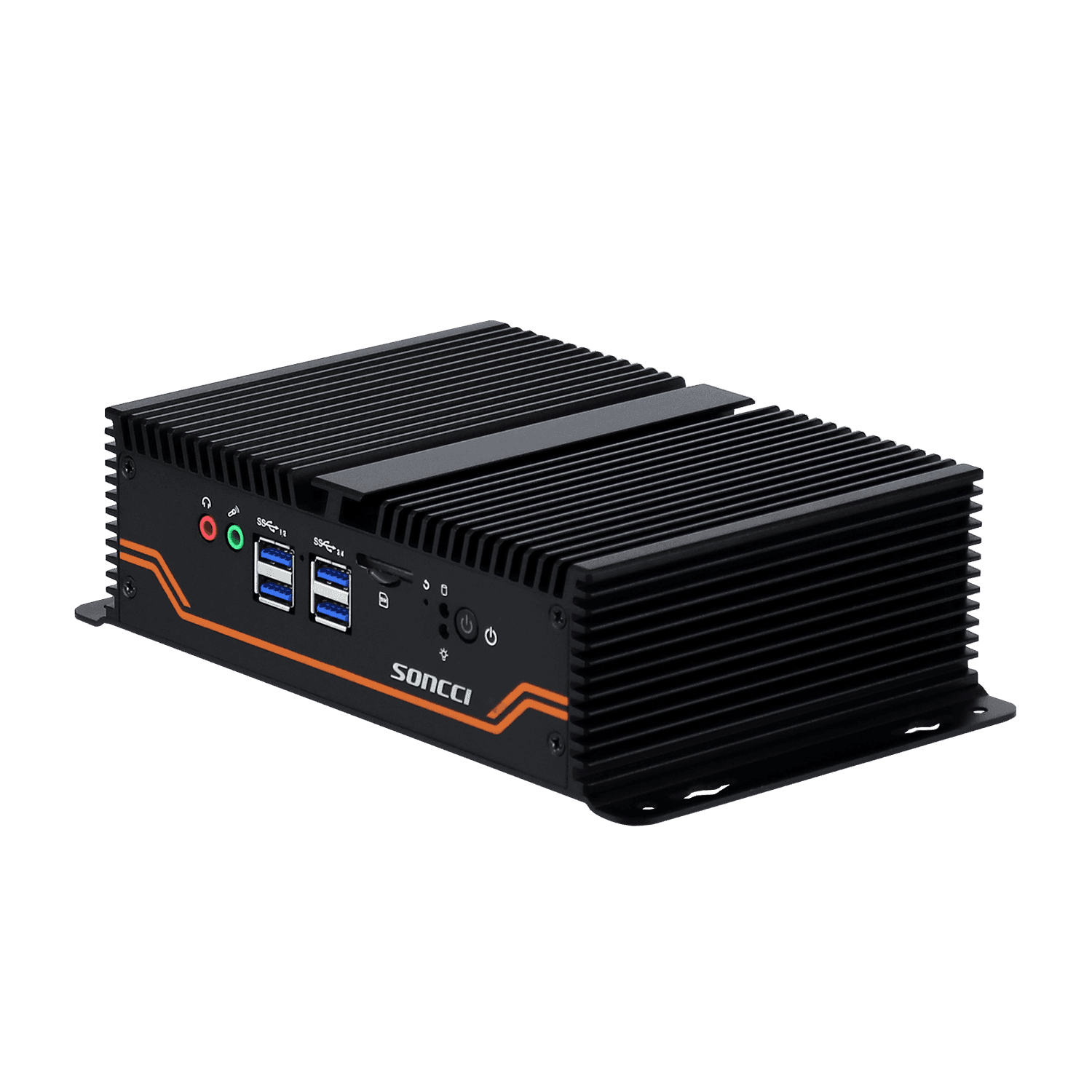

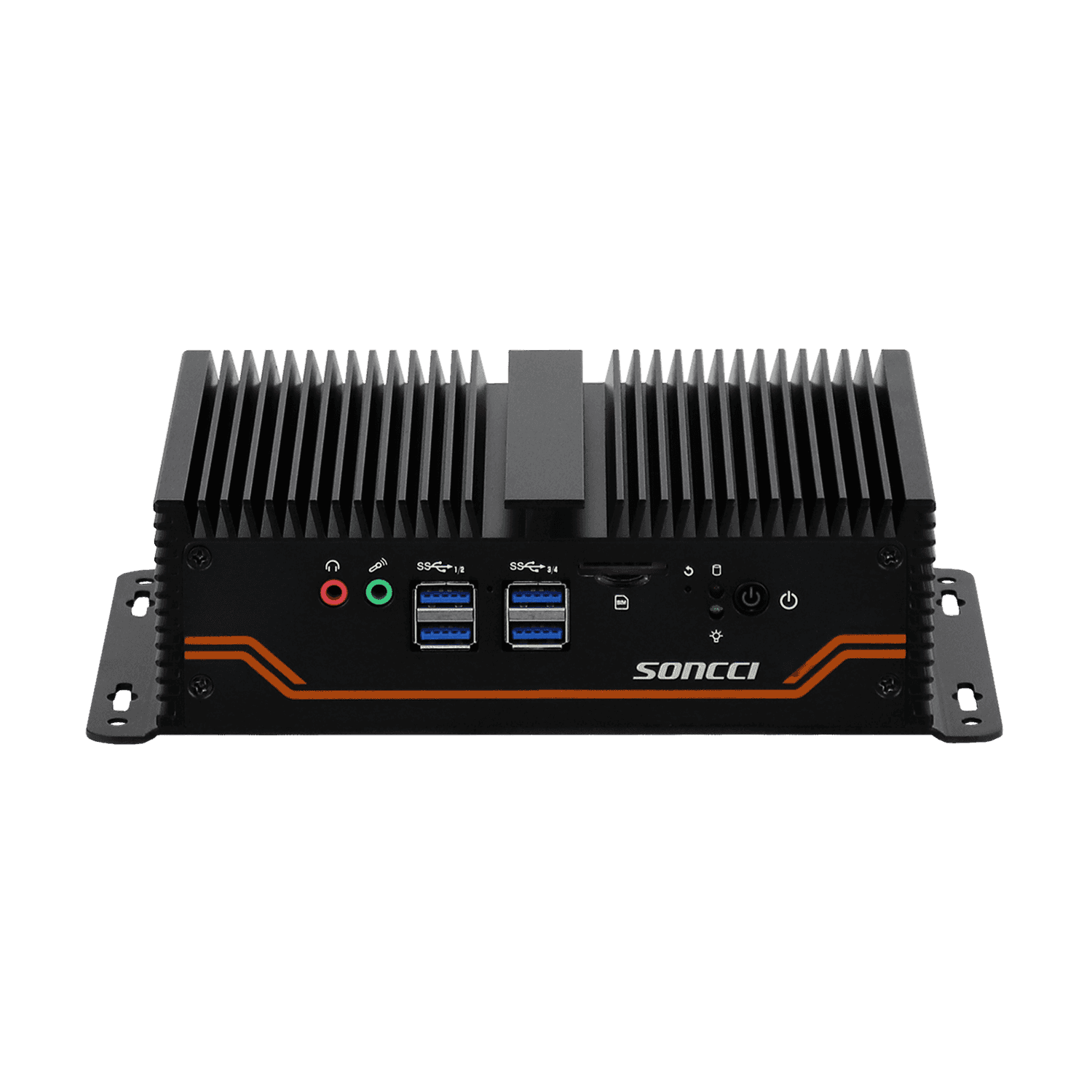

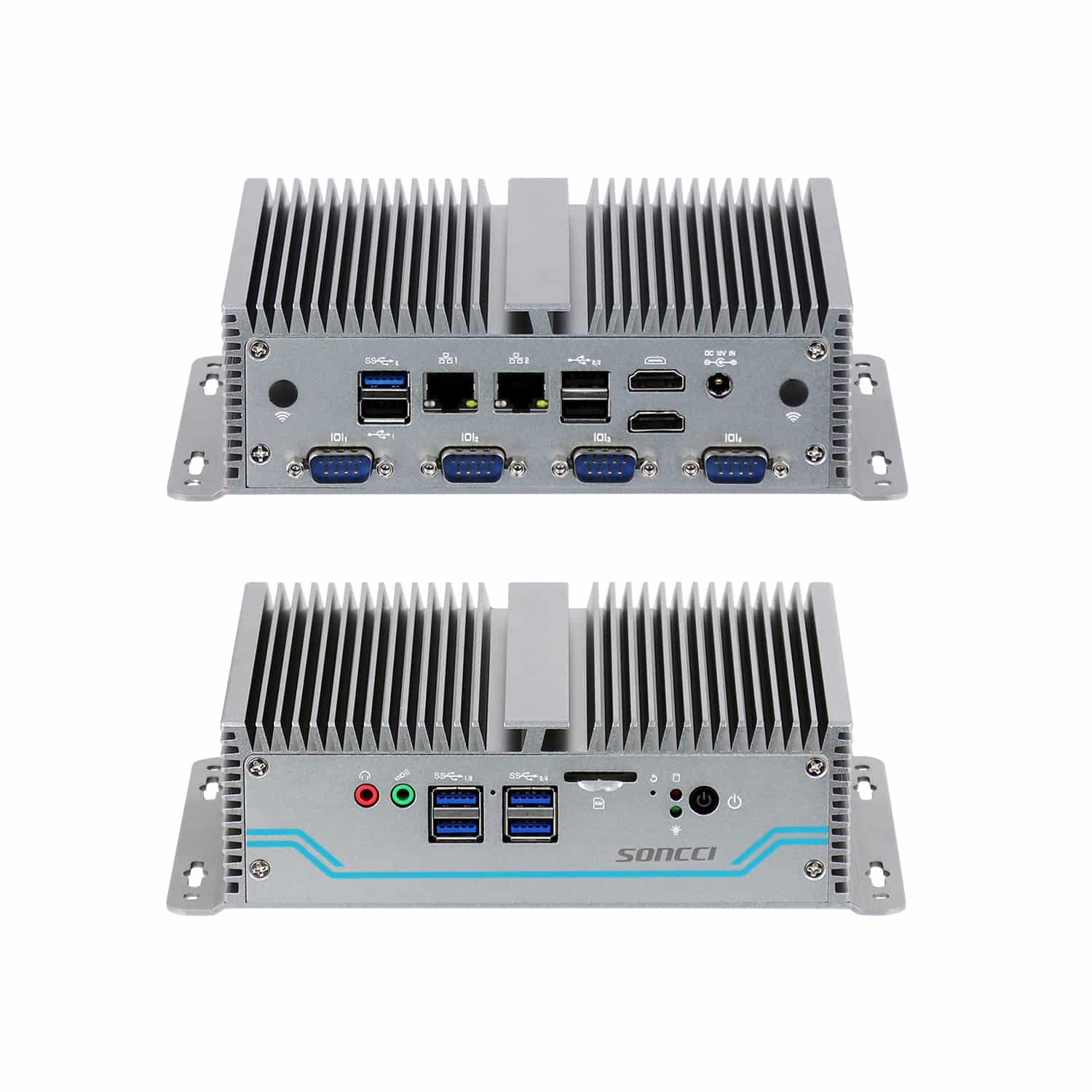

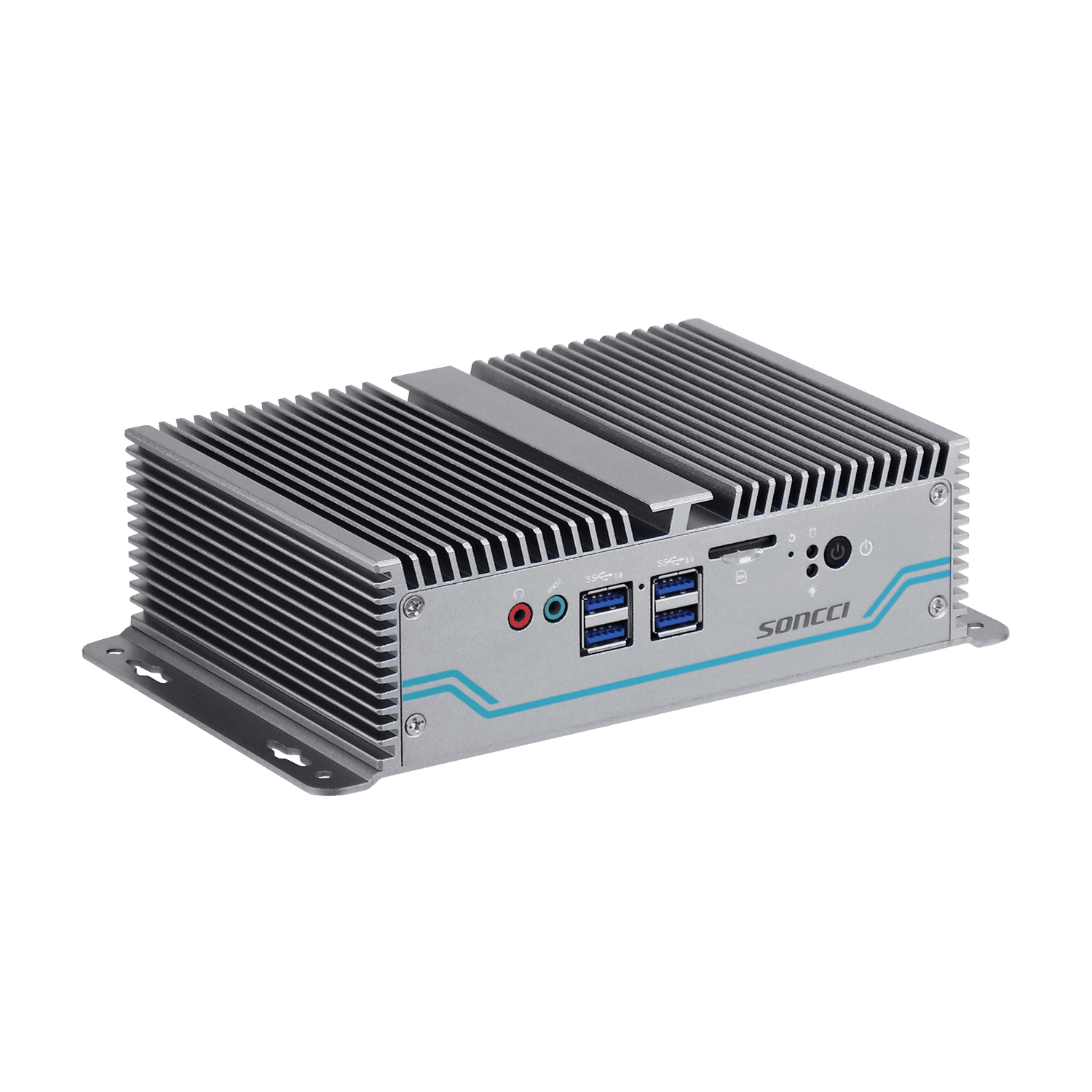

J4125 fanless embedded aluminum Box PC
$188.00 – $255.00
● Support intel Celeron processor and integrated intel core graphics card
● Support 1 SO-DIMM DDR4 memory slot, 2.5-inch SATA hard disk, M.2 solid state drive
● 2 Gigabit Ethernet ports, support network wake-up, diskless boot, with SIM card slot, optional WIFI/Bluetooth/4G module

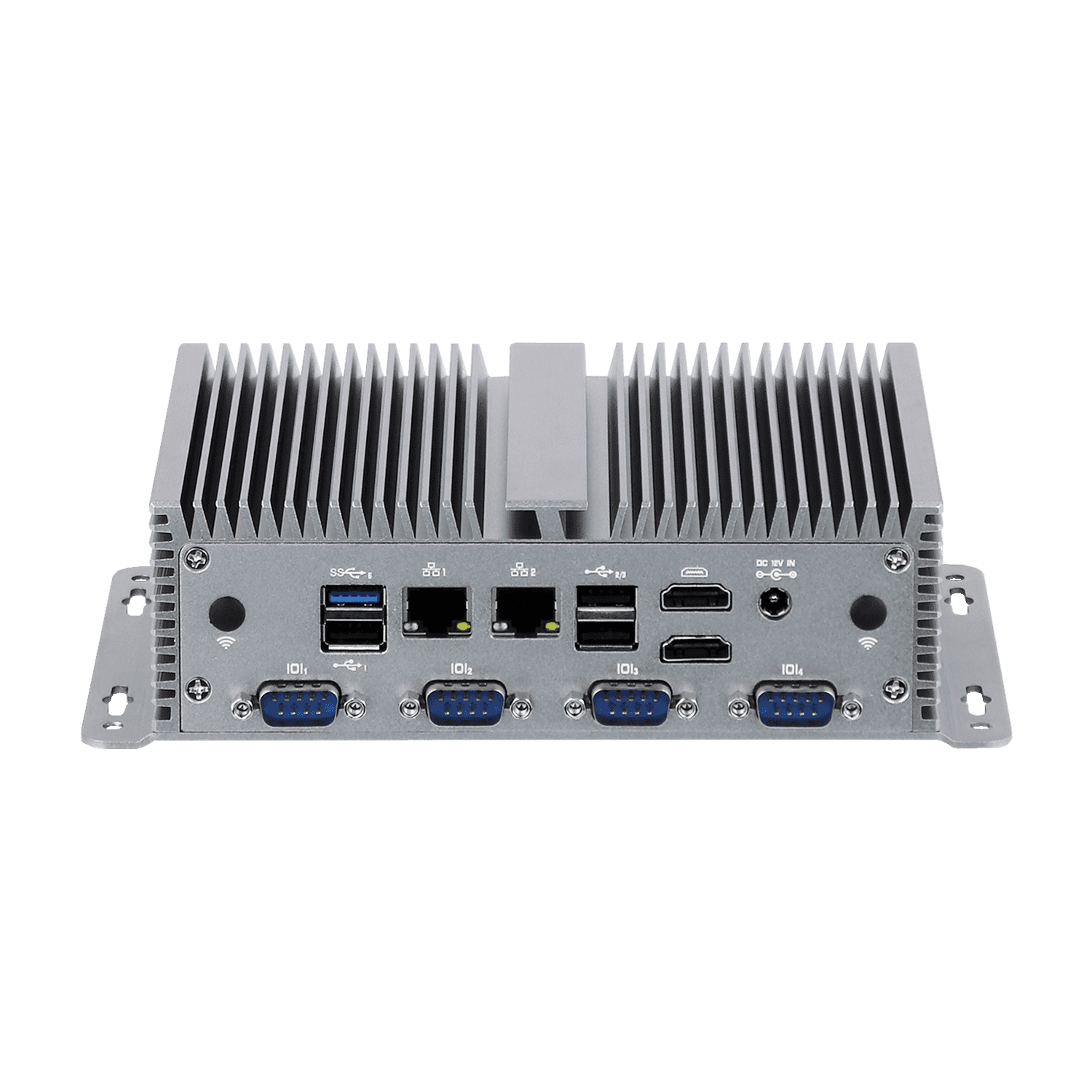

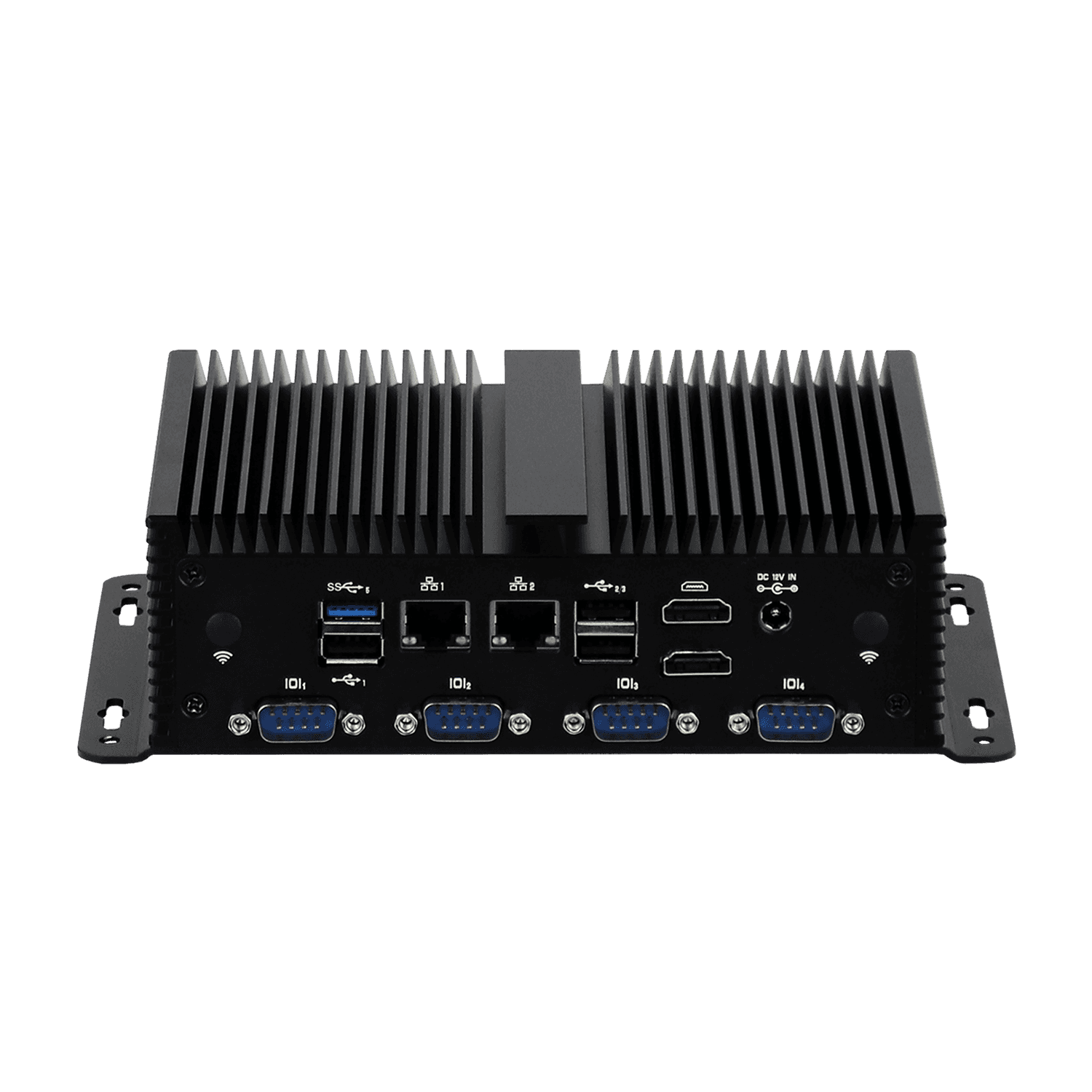

● 4 RS232 DB9 COM serial interfaces, COM1 supports RS485 switching, HDMI+HDMI dual display output

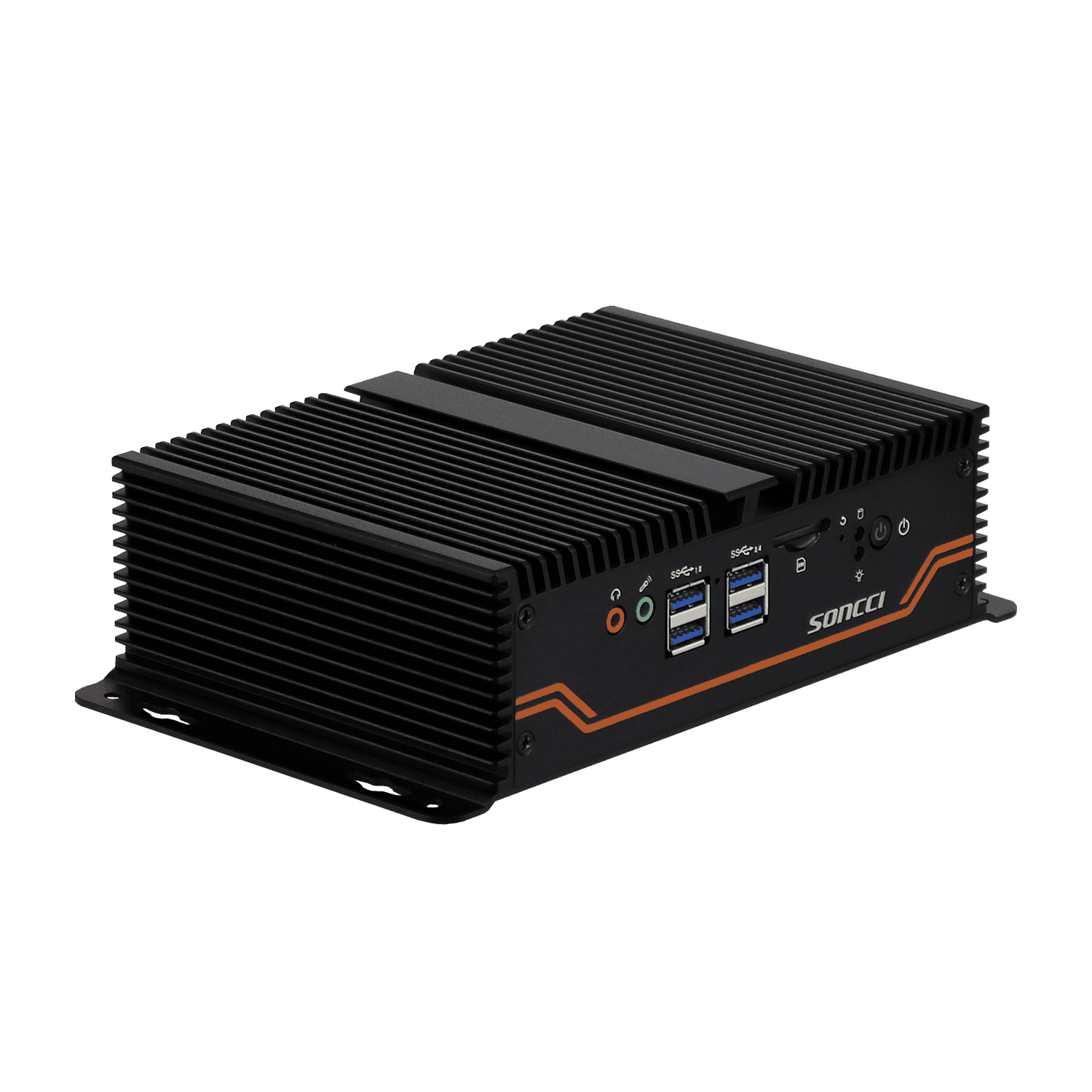

● Support power-on, one-click restore of GHOST button, and hardware reset function of Watchdog
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
● The host is small and palm-sized, black/silver optional, and supports embedded, wall-mounted, and desktop-mounted
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description
The SCI-S4030 fanless embedded aluminum Box PC is powered by intel Celeron processors, supports DDR4 memory, and offers a variety of options in 2.5-inch SATA and M.2 storage. It is equipped with a wealth of interfaces and buttons, including LAN, COM RS232/485, USB, one-click restore buttons, SIM card slot, HDMI+HDMI dual display, etc., expandable WIFI/Bluetooth/4G module, supporting Windows and Linux systems.
embedded aluminum Box PC aluminum alloy shell of the whole machine has strong properties, the aluminum fin design quickly dissipates the heat of the host, and the fanless and fully enclosed structure effectively prevent dust from entering, so as to ensure the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible to install, which can be applied to industrial control, financial systems, self-service terminals, security machine vision, mini servers, smart cities and other fields.
Additional information
| Weight | 1.8 kg |
|---|---|
| Dimensions | 305 × 305 × 135 mm |
| Model | SCI-S4030 |
| Processor | Intel Celeron J4125 |
| Memory | 4G, 8G, 16G |
| Hard disk | 128G SSD, 256G SSD, 512G SSD |
| Network chips | Realtek RTL8111 Gigabit LAN |
| Audio chips | integration |
| Power supply | Input AC 220V, DC 12V power adapter |
| Wireless communications | 1xMINI-PCIE (optional expansion WIFI/Bluetooth/4G module) |
| Operating System | Linux, Windows |
| BIOS | It supports power-on, timed boot, network wake-up, and diskless boot |
| Watchdog | Watchdog supports hardware reset (256 levels, 0~255 seconds) |

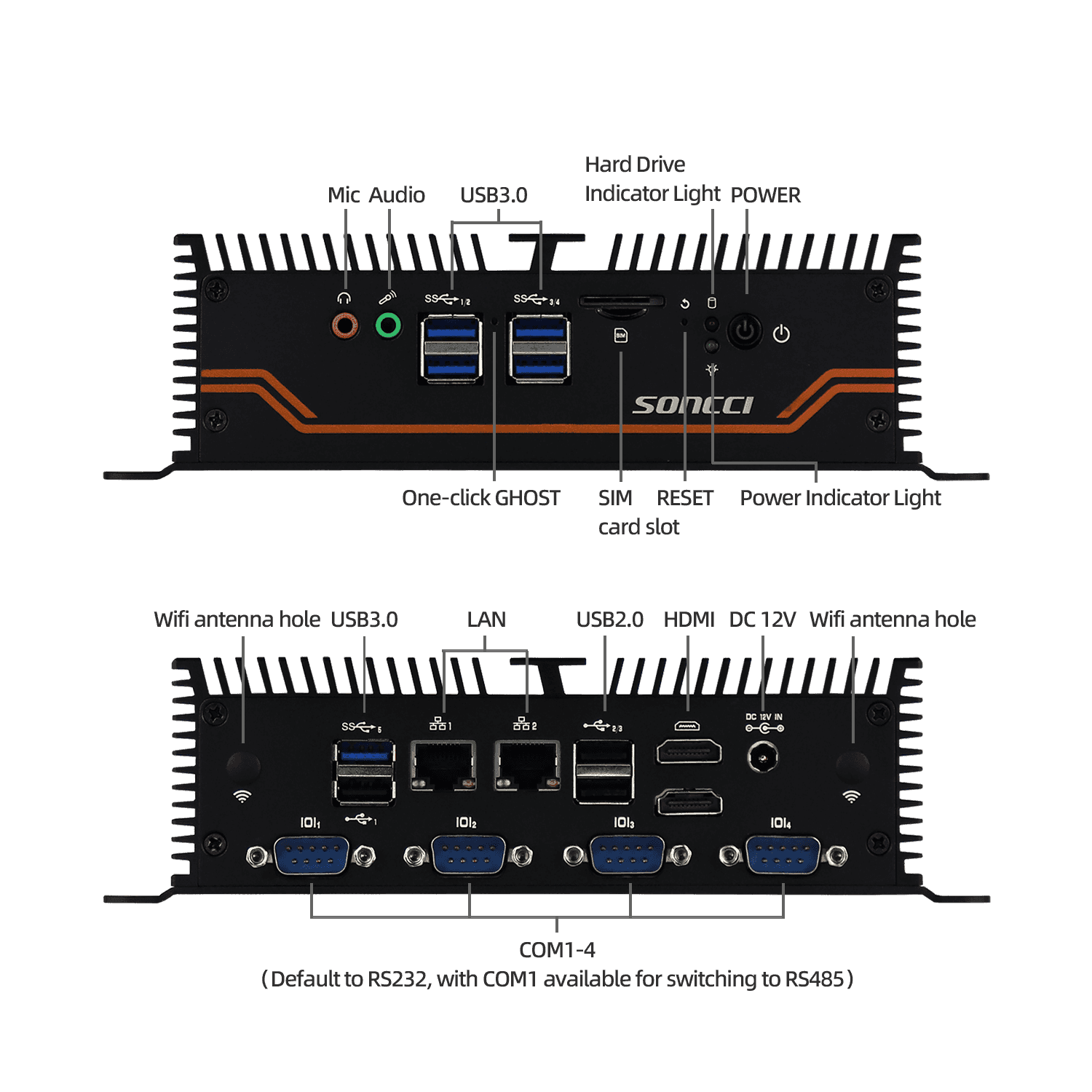

| Interface | 1 x Audio, 1 x DC, 1 x GHOST, 1 x HDD LED, 1 x Mic, 1 x Power, 1 x Power LED, 1 x Reset, 2 x HDMI, 2 x LAN, 4 x COM, 8 x USB |
| Extended interfaces | 1xMini-PCIE, 1xSIM external card slot |
| Installation | Desktop, Embedded, Wall-mounted |

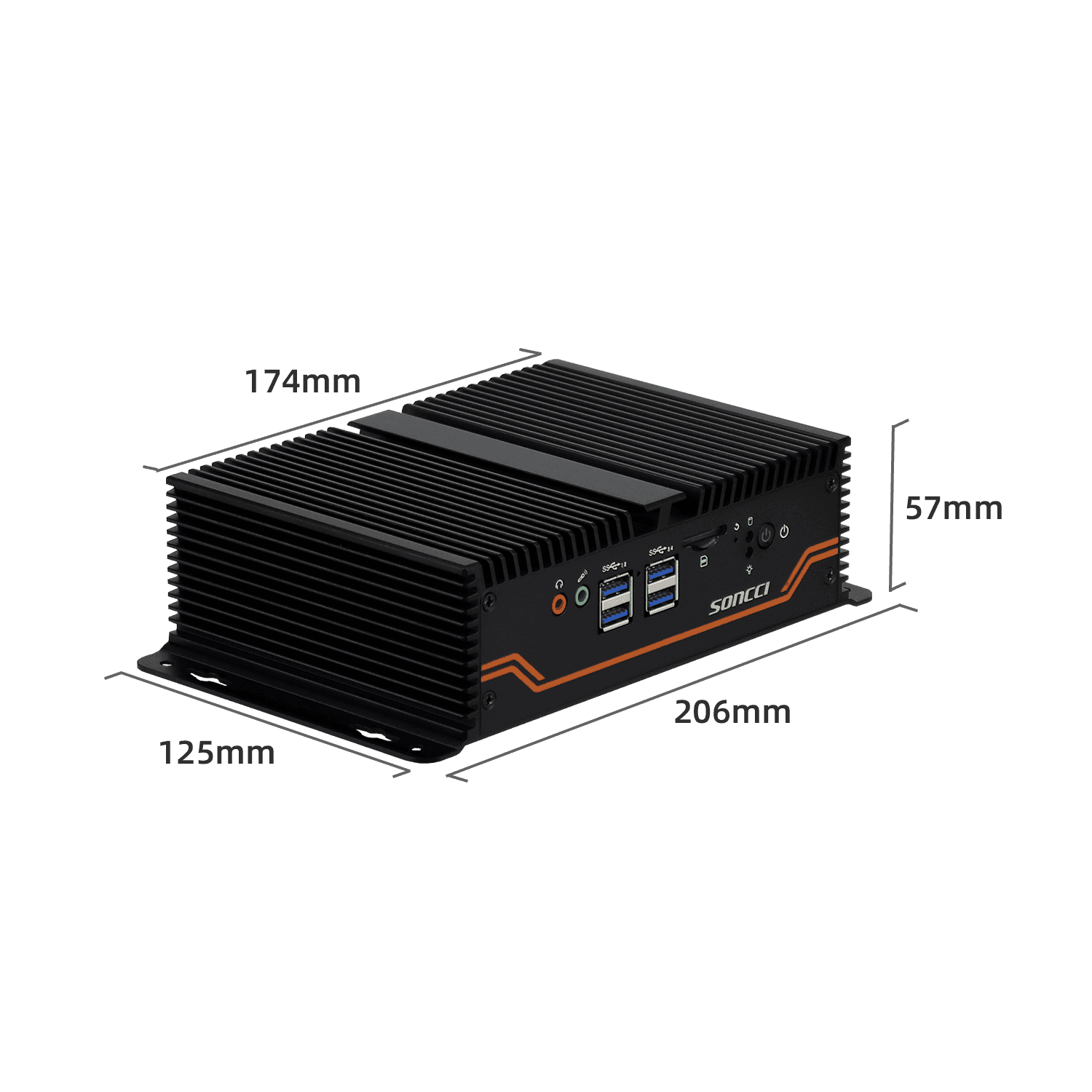

| Product size | 206 x 125 x 57mm |
| Product Weight | 1.0KG |
| Shell material | Aluminum alloy |
| Heat dissipation | Aluminum fin fanless |

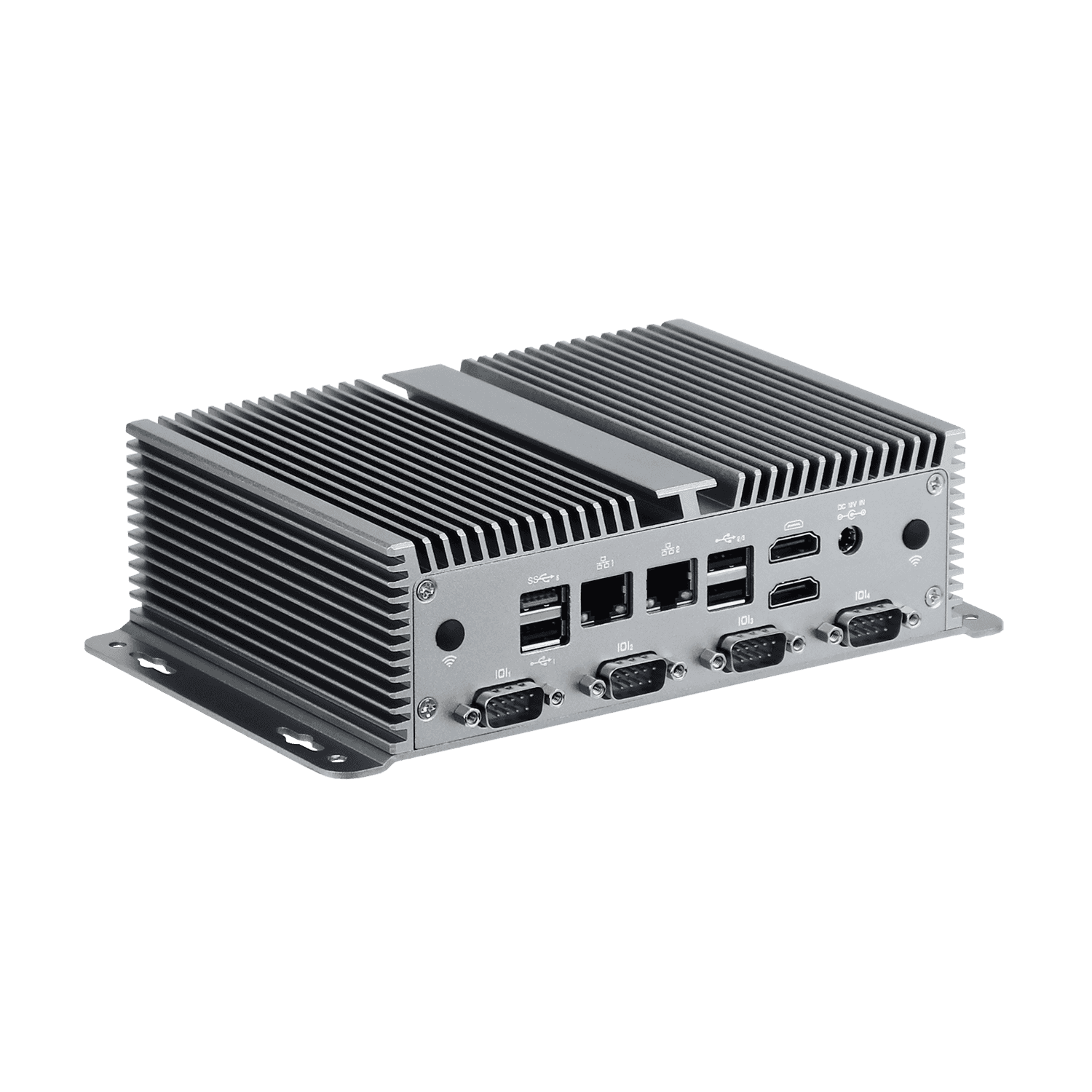

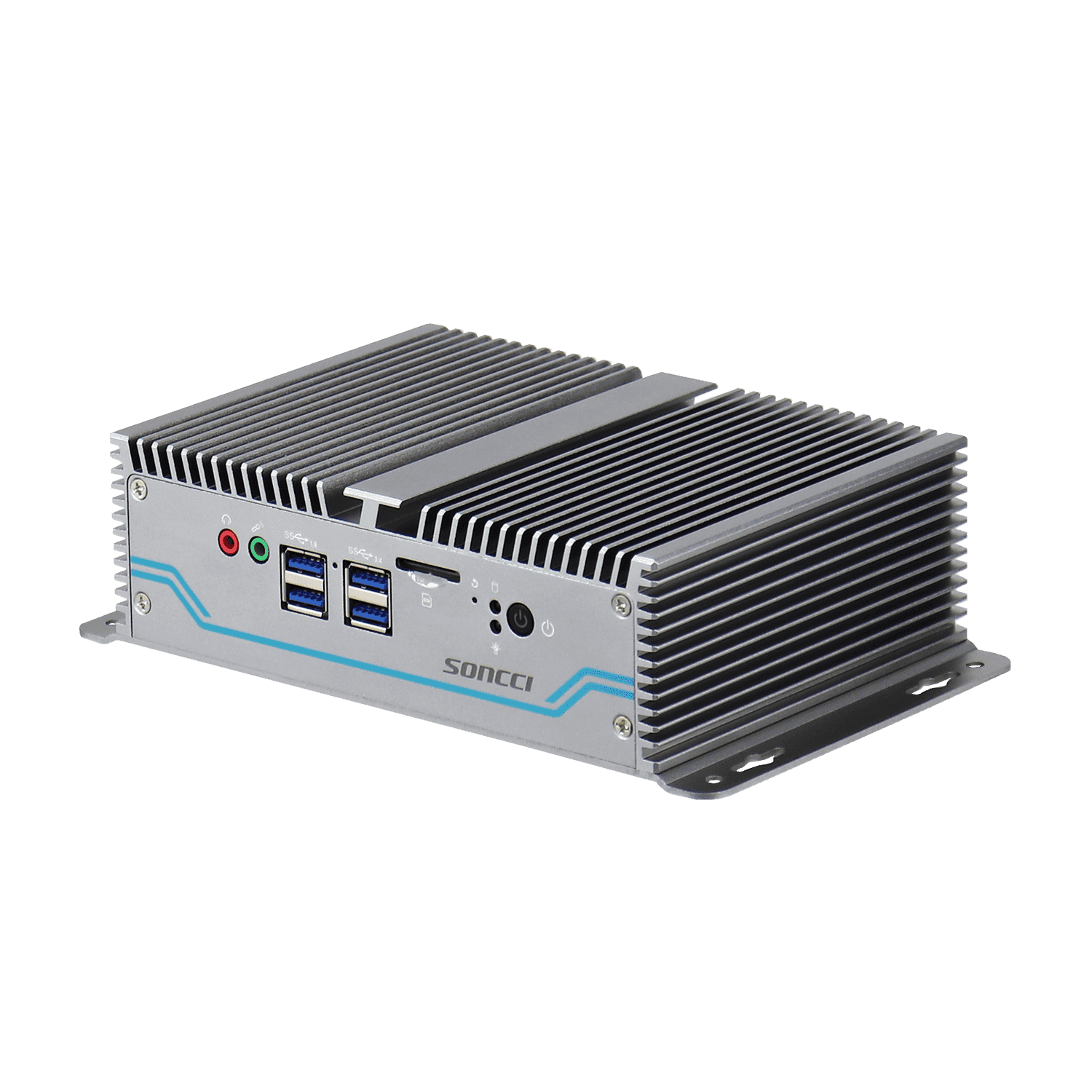

| Color | Silver, Black |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -10°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 5%~95% (no condensation) |
