Core i5 i7 Embedded Mini IPC
$245.00 – $667.00
● Support intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
● Support 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard disk, mSATA, M.2 solid state drive
● 2 Gigabit Ethernet ports, support Wake-on-LAN, diskless boot, external SIM card slot, optional WIFI/Bluetooth/4G module

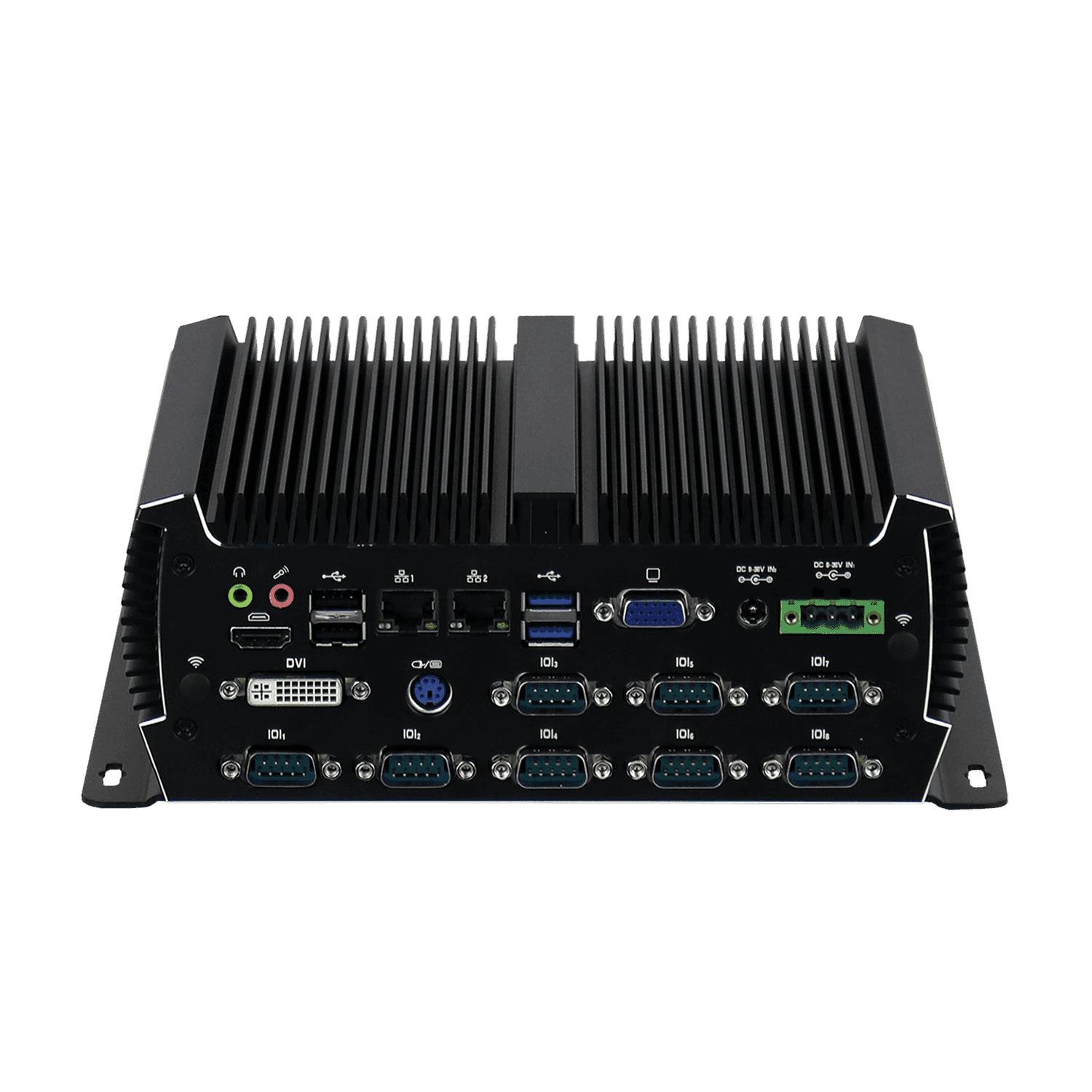

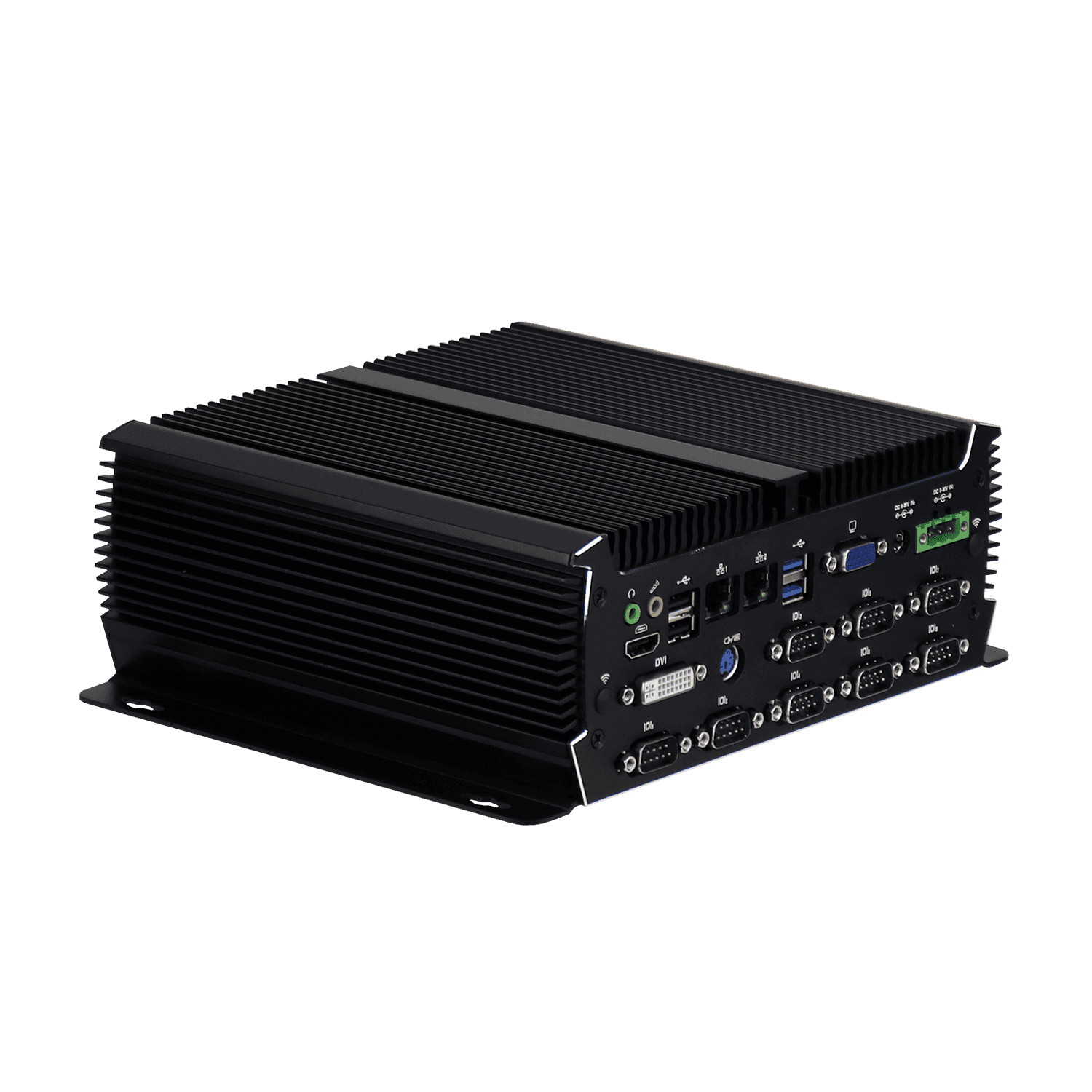

● 10 RS232 DB9 COM serial interfaces, COM5-10 support RS485 switching, HDMI+VGA+DVI triple display

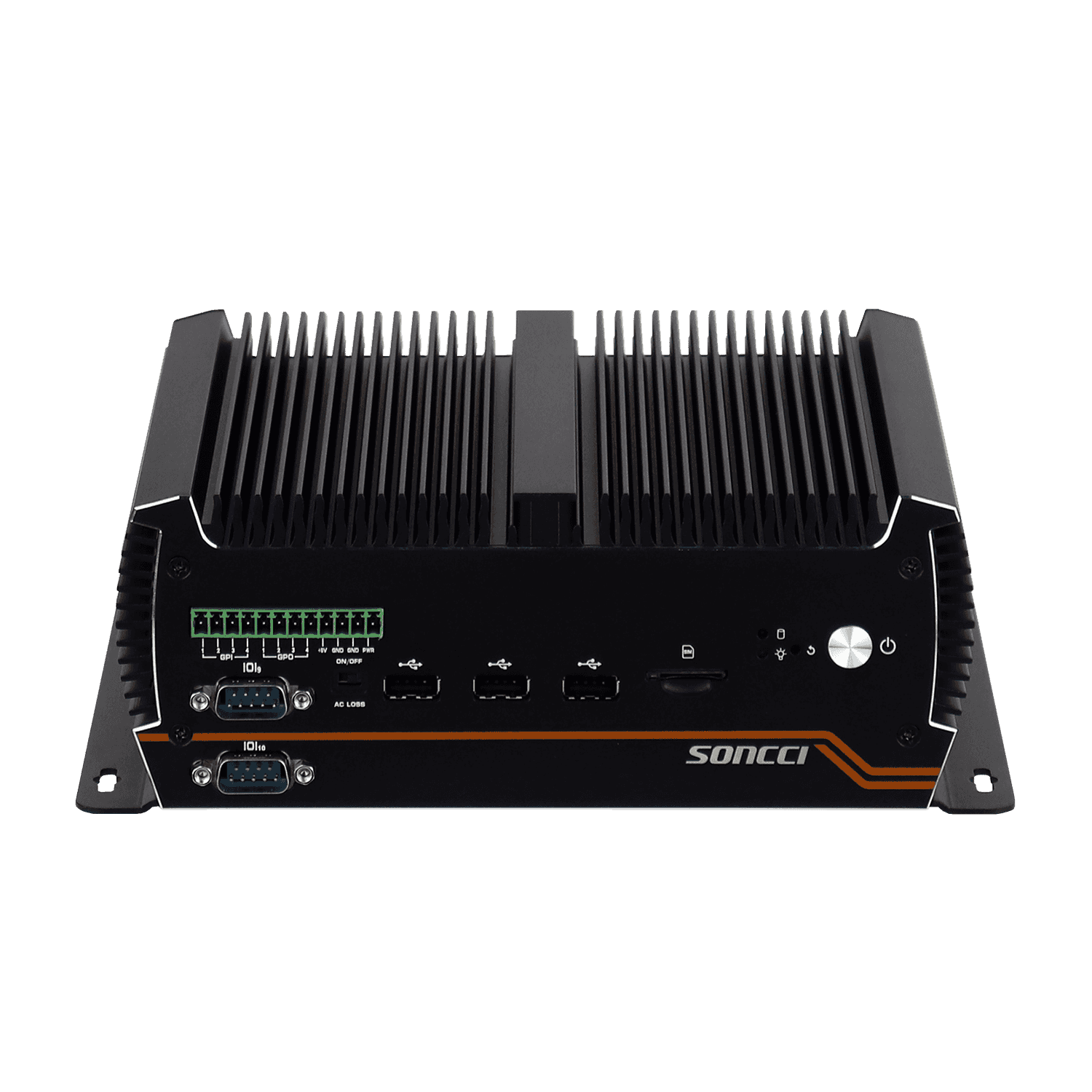

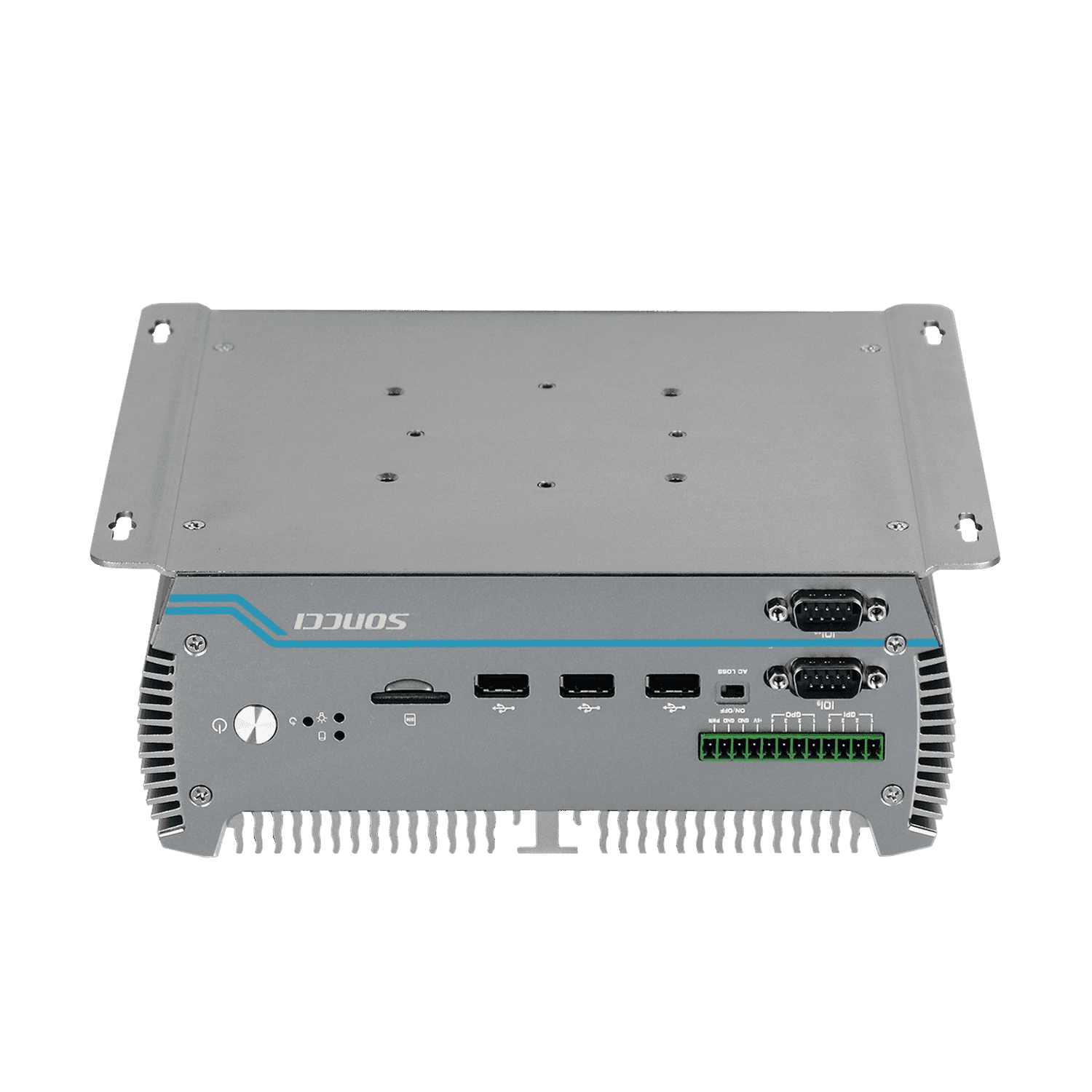

● 1 x 12pin phoenix terminal (including four input and four out GPIO/switch/5V), power-on toggle switch, 9-36V wide voltage input

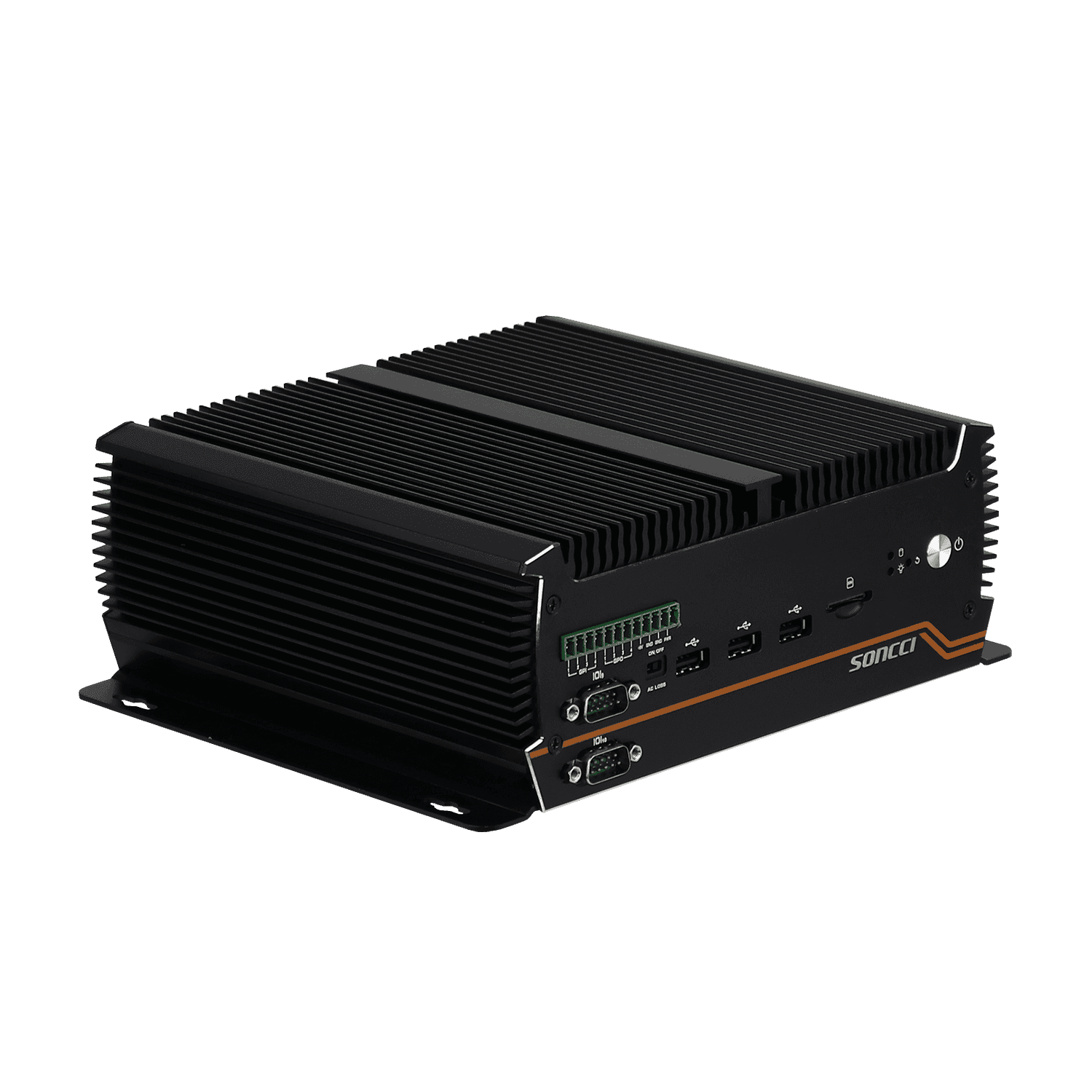

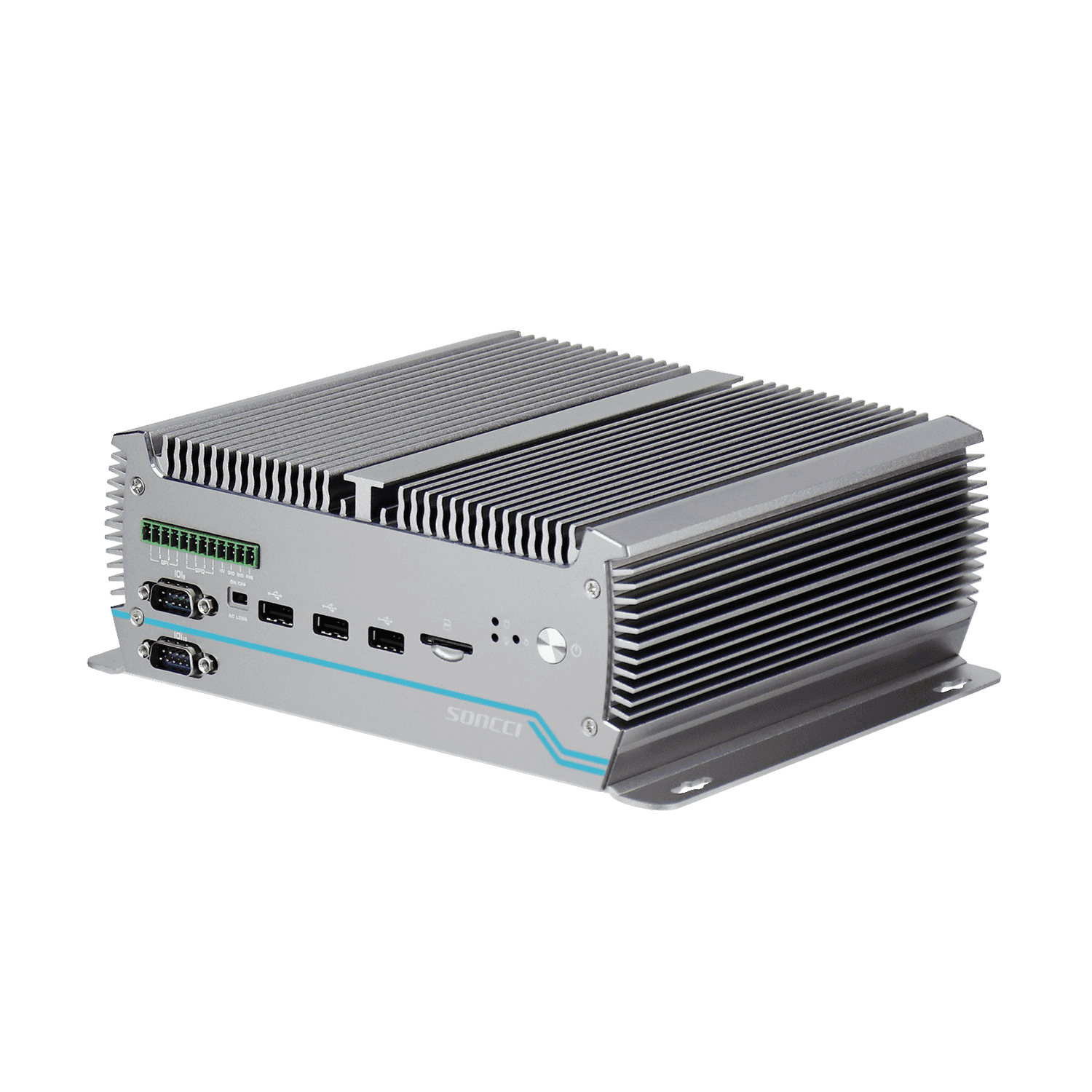

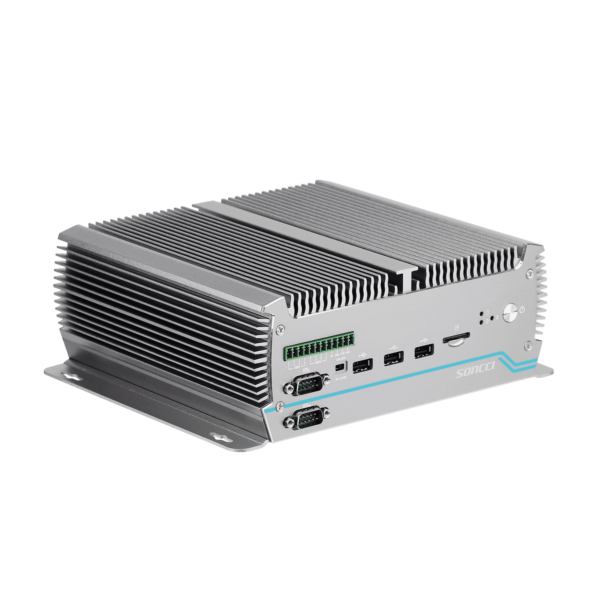

● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
● Support Watchdog hardware reset, host black/silver optional, support embedded, wall-mounted, desktop installation
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description

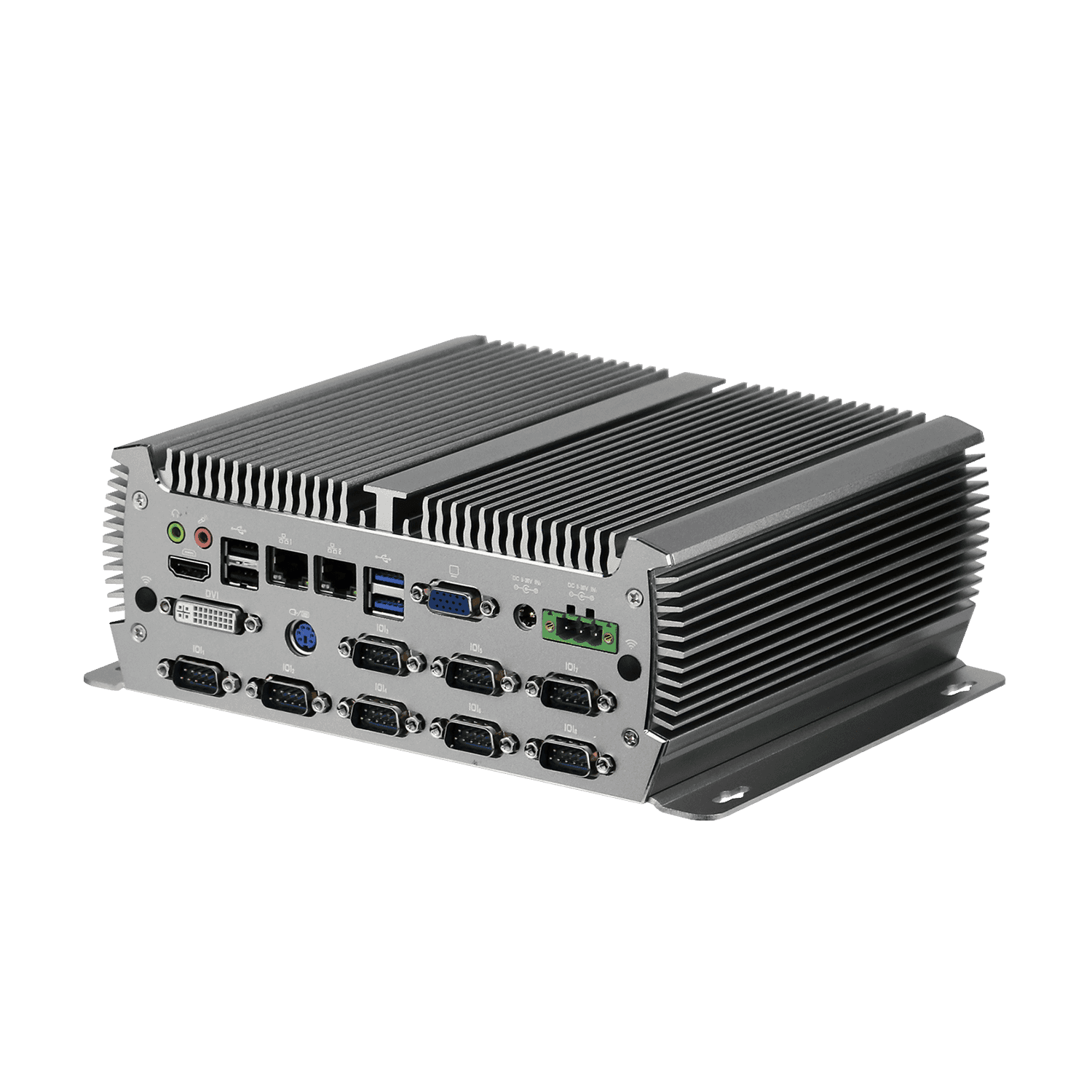

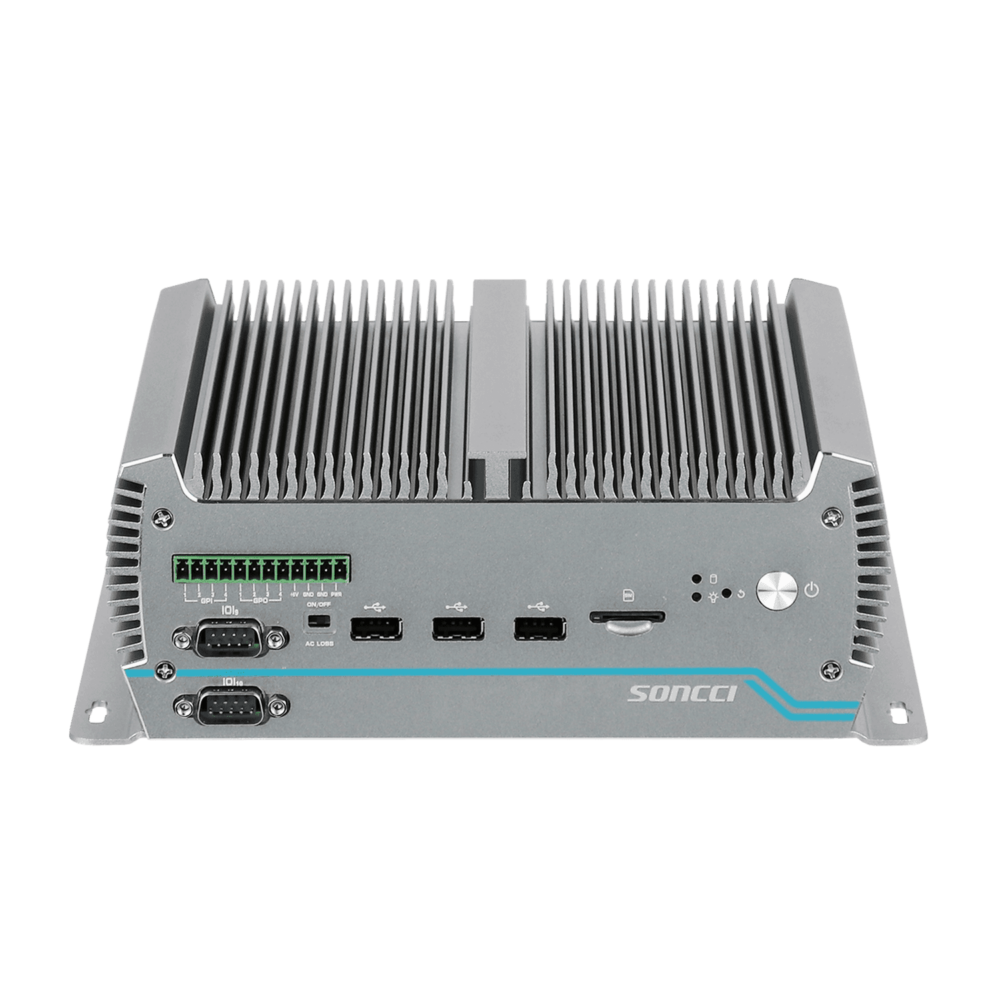

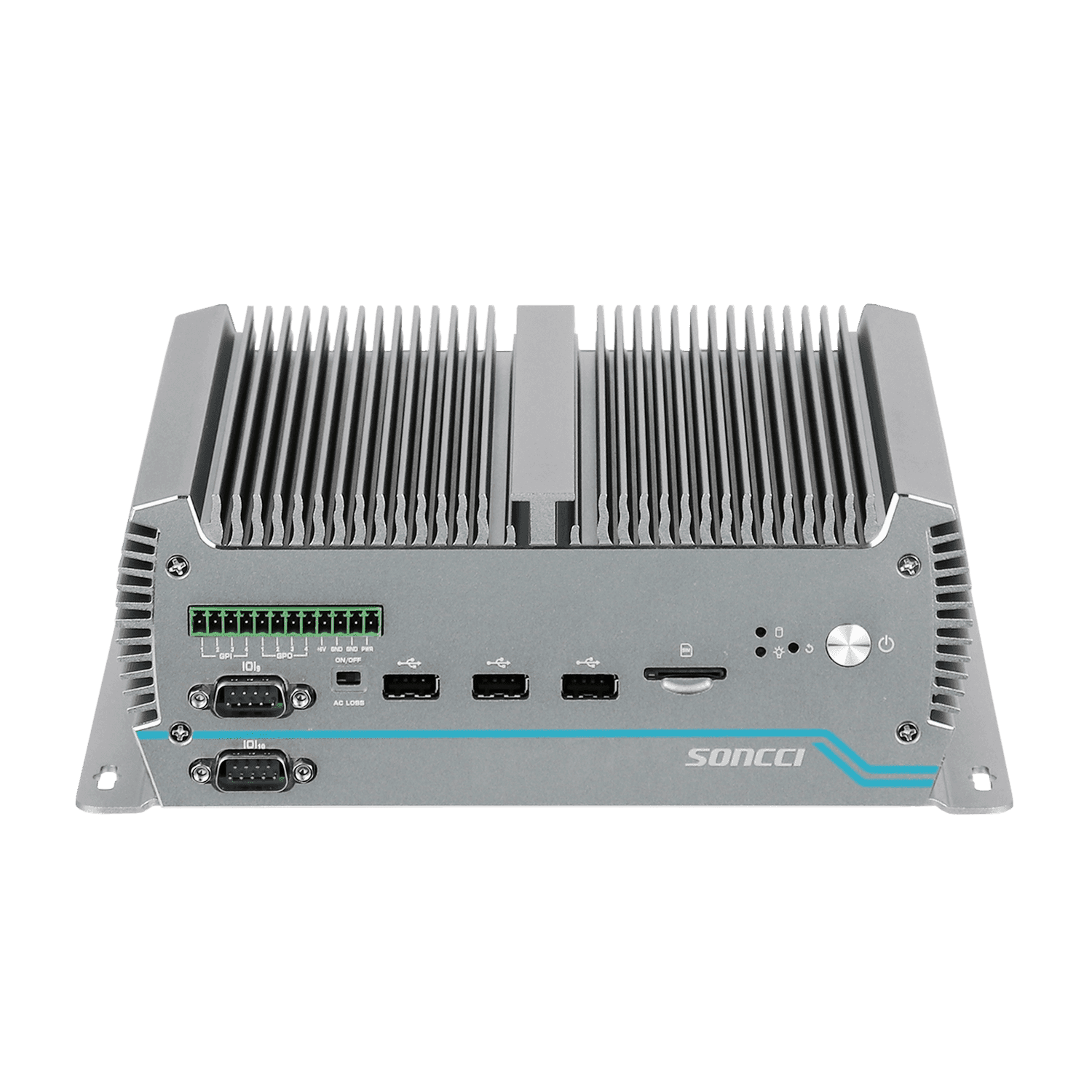

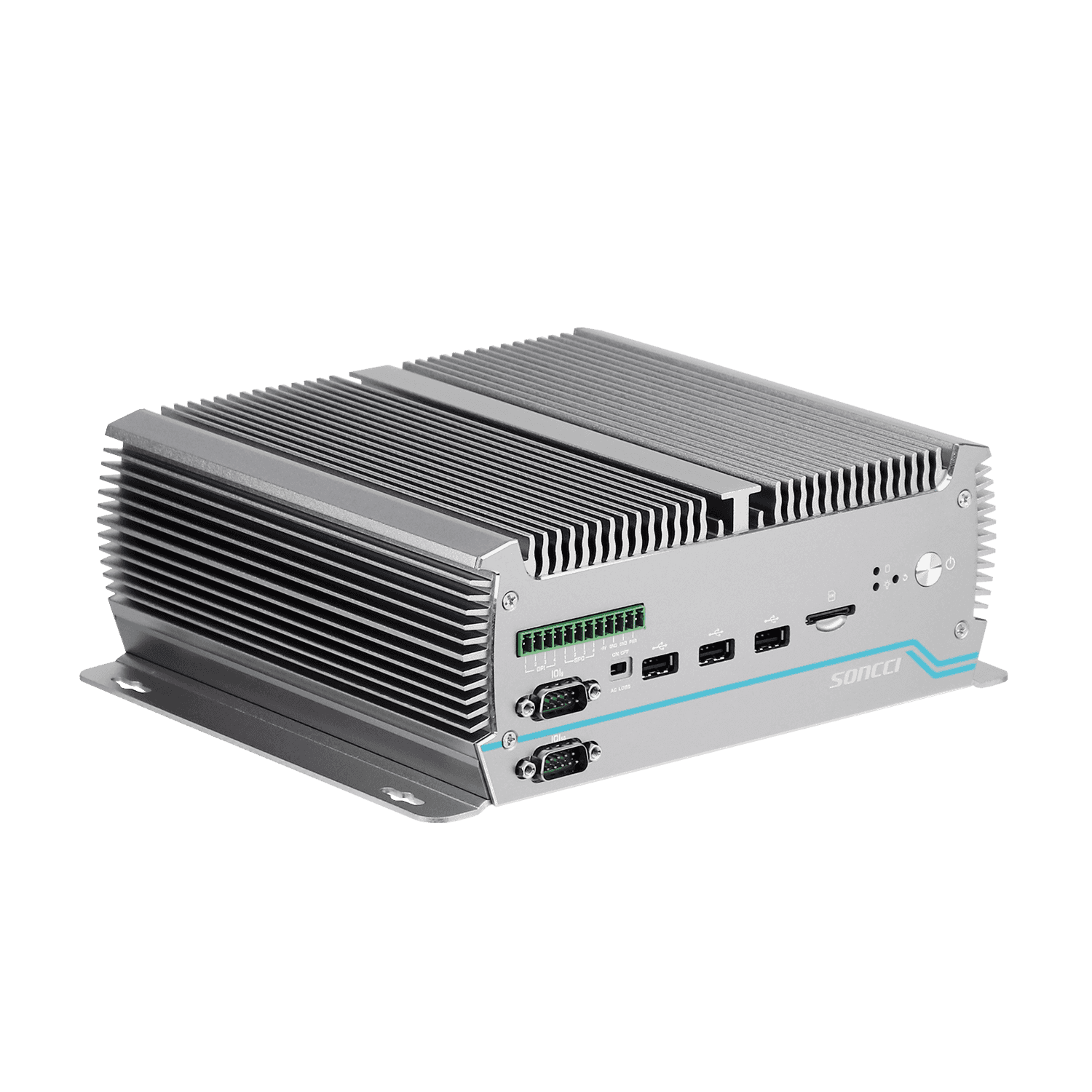

The SCI-S5010C10 fanless Embedded Mini IPC is powered by intel Celeron/Core processors, supports DDR3/4 memory, and offers a variety of options in 2.5-inch SATA, mSATA, and M.2 storage. It is equipped with a wealth of interfaces and buttons, including LAN, COM RS232/485, USB, GPIO, power-on toggle switch, SIM card slot, HDMI+VGA+DVI three displays, etc., supports DC input from 9-36V wide voltage range, expandable WIFI/Bluetooth/4G module, supports Windows and Linux systems.
fanless Embedded Mini IPC aluminum alloy shell of the whole machine has strong strength, the aluminum fin design quickly dissipates the heat of the host, and the internal cable-free fanless and fully enclosed structure prevents dust from entering, so as to ensure the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop-mounted installations are flexible, and can be used in industrial control, transportation, self-service terminals, security machine vision, mini servers, smart cities and other fields.
Additional information
| Weight | 3.3 kg |
|---|---|
| Dimensions | 305 × 305 × 135 mm |
| Model | SCI-S5010C10 |
| Processor | Intel Celeron 3865U, Intel Celeron 5205U, Intel Celeron 6305, Intel Celeron J1900, Intel Celeron J4125, Intel Celeron J6412, Intel Core i3-5020U, Intel Core i5-10210U, Intel Core i5-1135G7, Intel Core i5-4310U, Intel Core i5-6300U, Intel Core i5-7200U, Intel Core i7-1195G7, Intel Core i7-6650U, Intel Core i7-7500U |
| Memory | 4G, 8G, 16G |
| Hard disk | 64G SSD, 128G SSD, 256G SSD, 512G SSD |
| Network chips | Intel i211 Gigabit LAN card |
| Audio chips | integration |
| Power supply | 9~36V wide voltage |
| Wireless communications | 1xMINI-PCIE (optional expansion WIFI/Bluetooth/4G module) |
| Operating System | Linux, Windows |
| BIOS | It supports power-on, timed boot, network wake-up, and diskless boot |
| Watchdog | Watchdog supports hardware reset (256 levels, 0~255 seconds) |

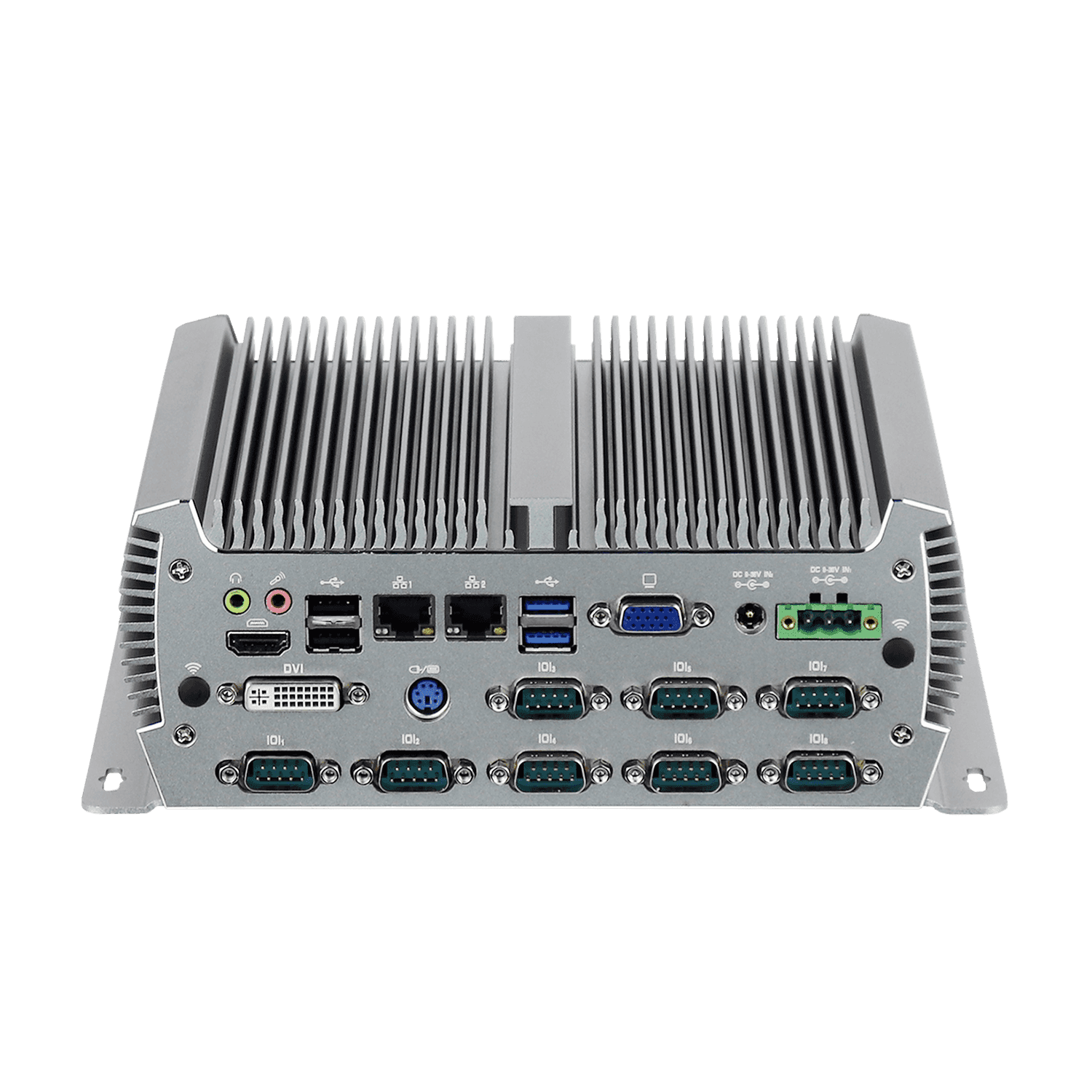

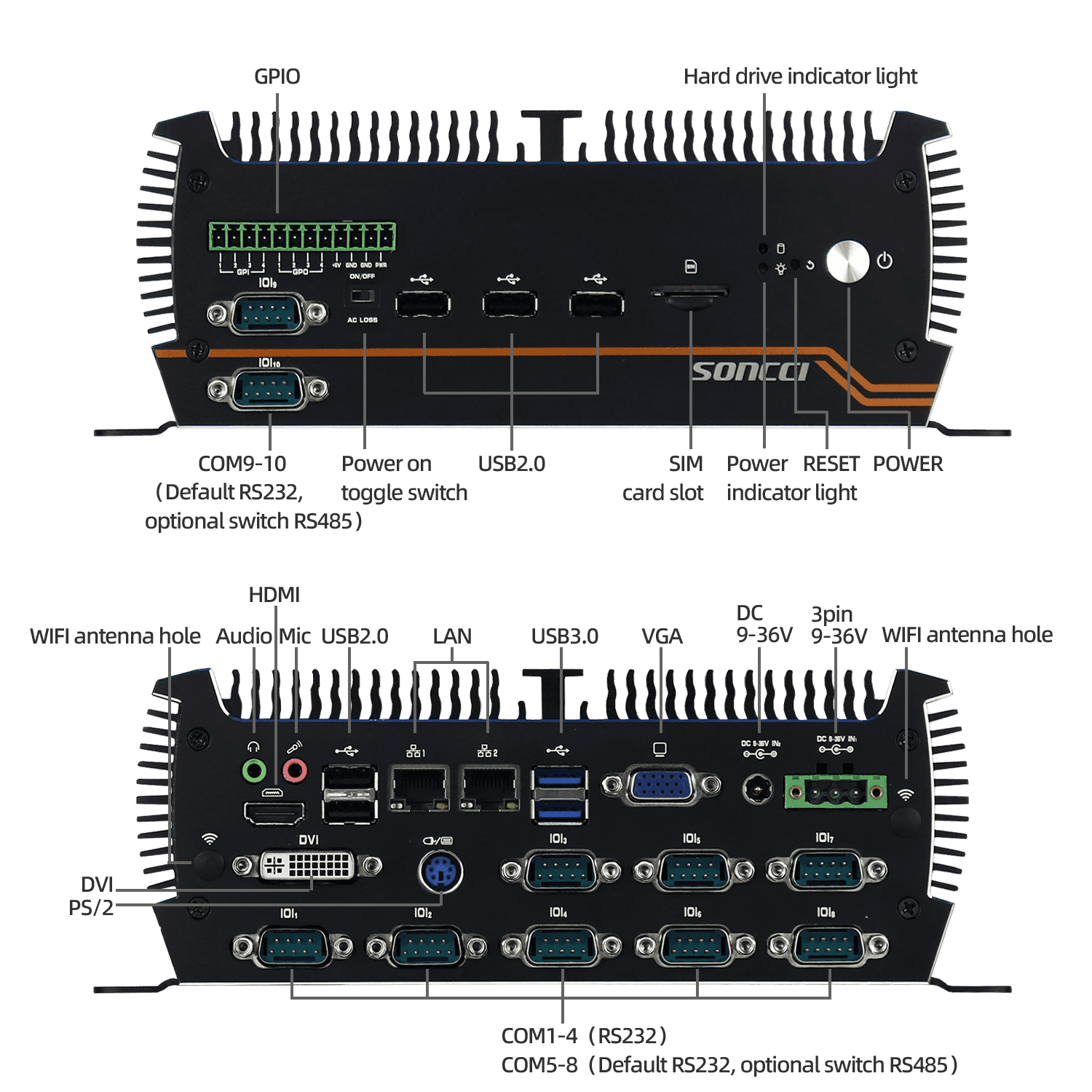

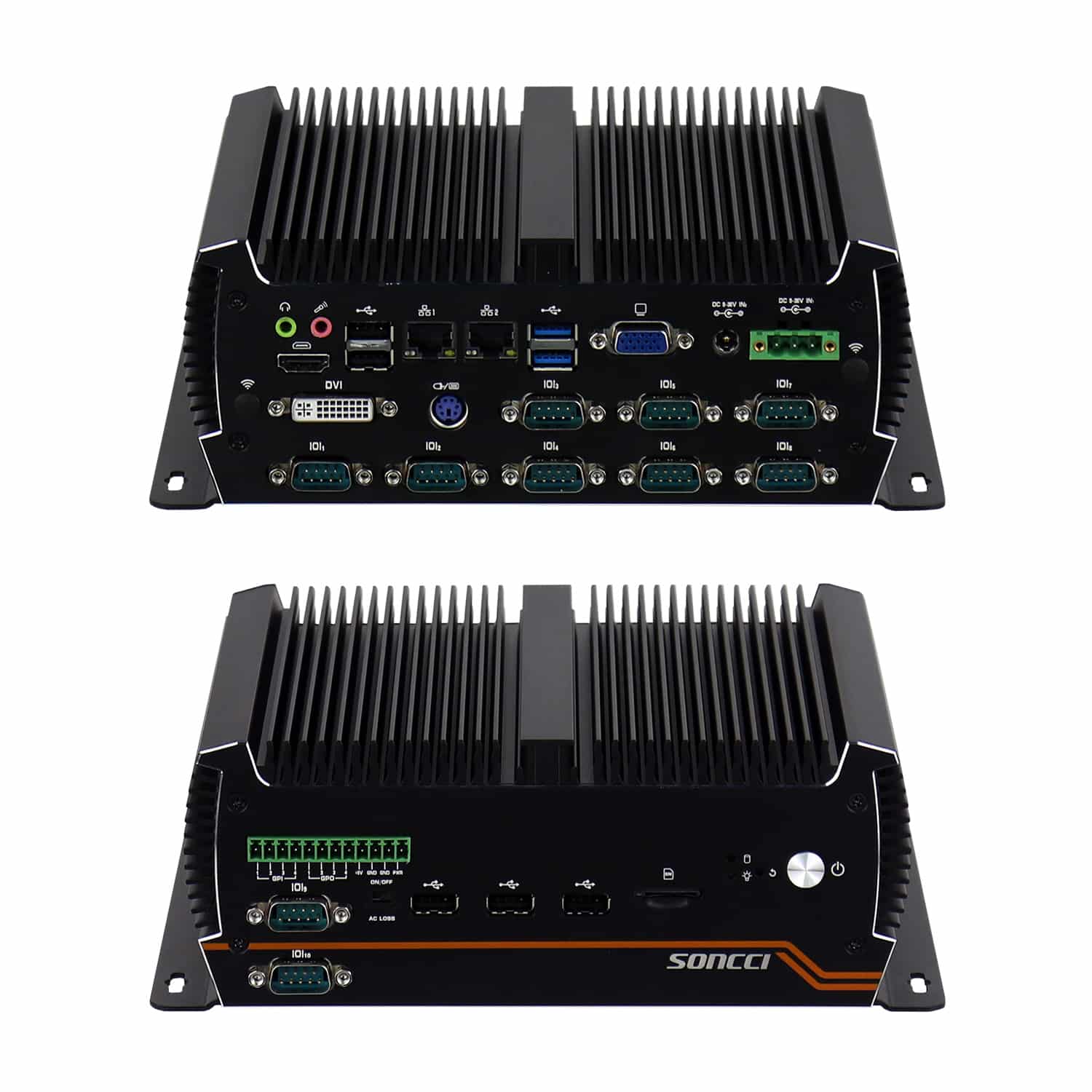

| Interface | 1 x 3pin 9-36V, 1 x AC LOSS, 1 x Audio, 1 x DC 9-36V, 1 x DVI, 1 x GPIO, 1 x HDD LED, 1 x HDMI, 1 x Mic, 1 x Power, 1 x Power LED, 1 x PS/2, 1 x Reset, 1 x VGA, 10 x COM, 2 x LAN, 7 x USB |
| Extended interfaces | 1xMini-PCIE, 1xSIM external card slot |

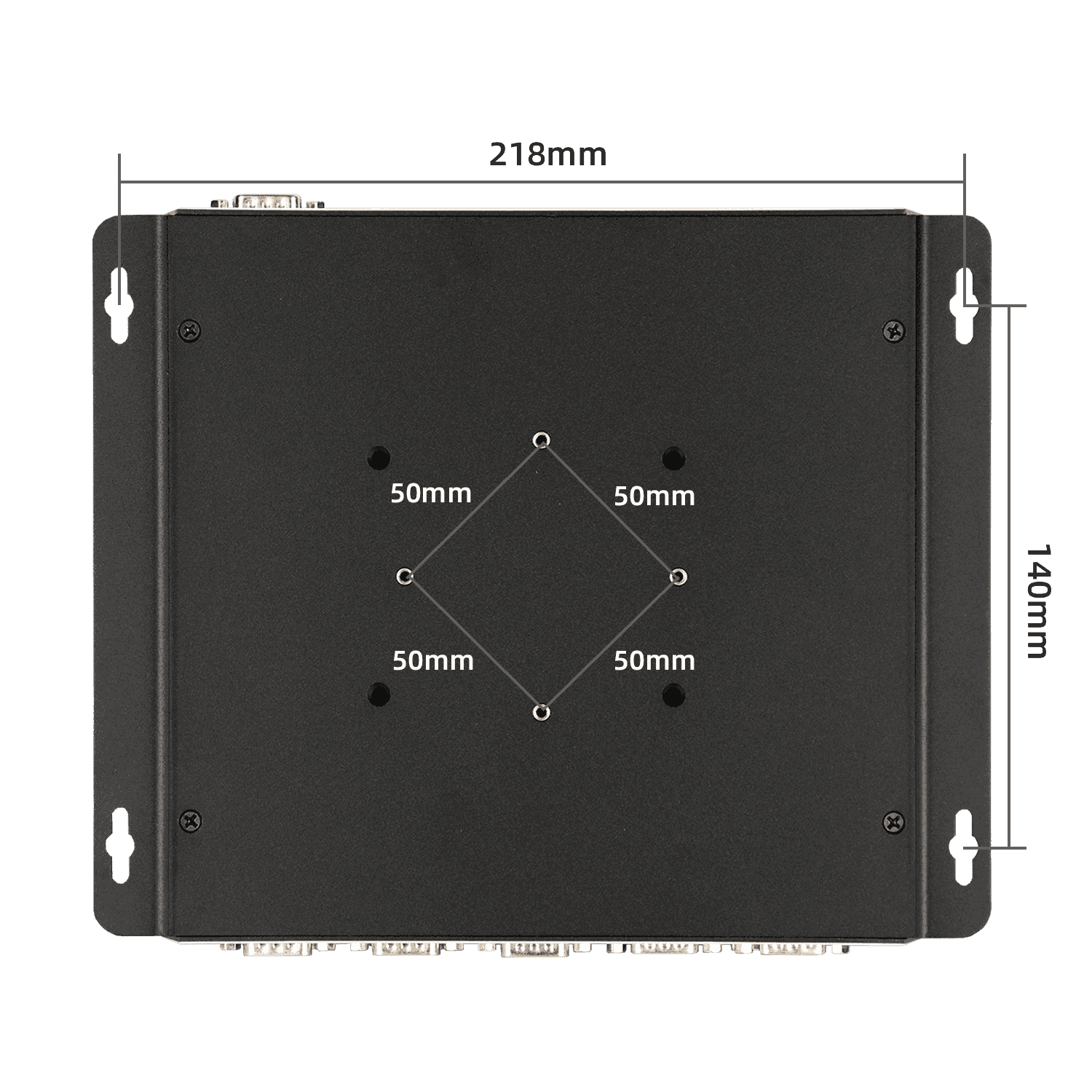

| Installation | Desktop, Embedded, Wall-mounted |

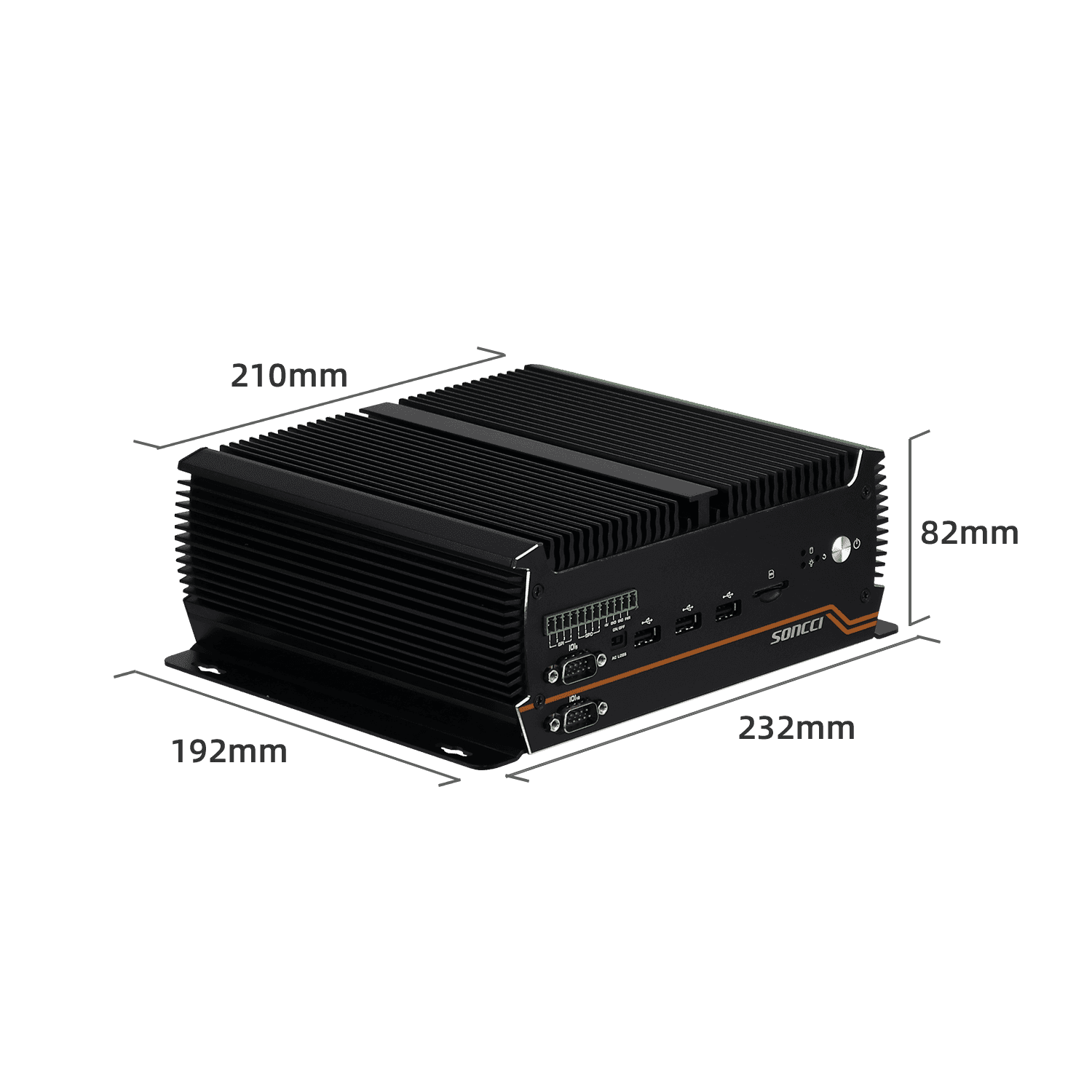

| Product size | 232 x 192 x 82mm |
| Product Weight | 2.5KG |
| Shell material | Aluminum alloy |
| Heat dissipation | Aluminum fin fanless |

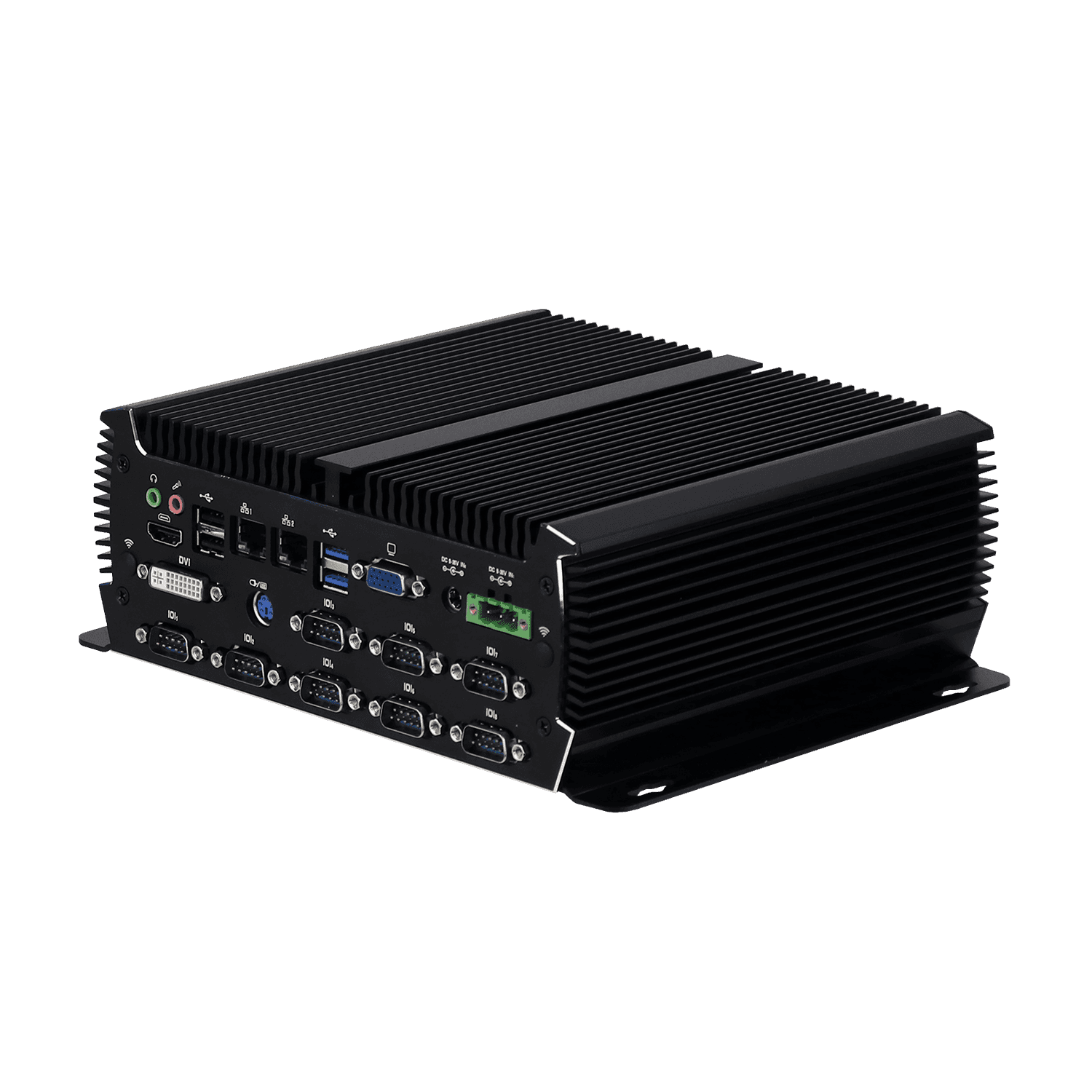

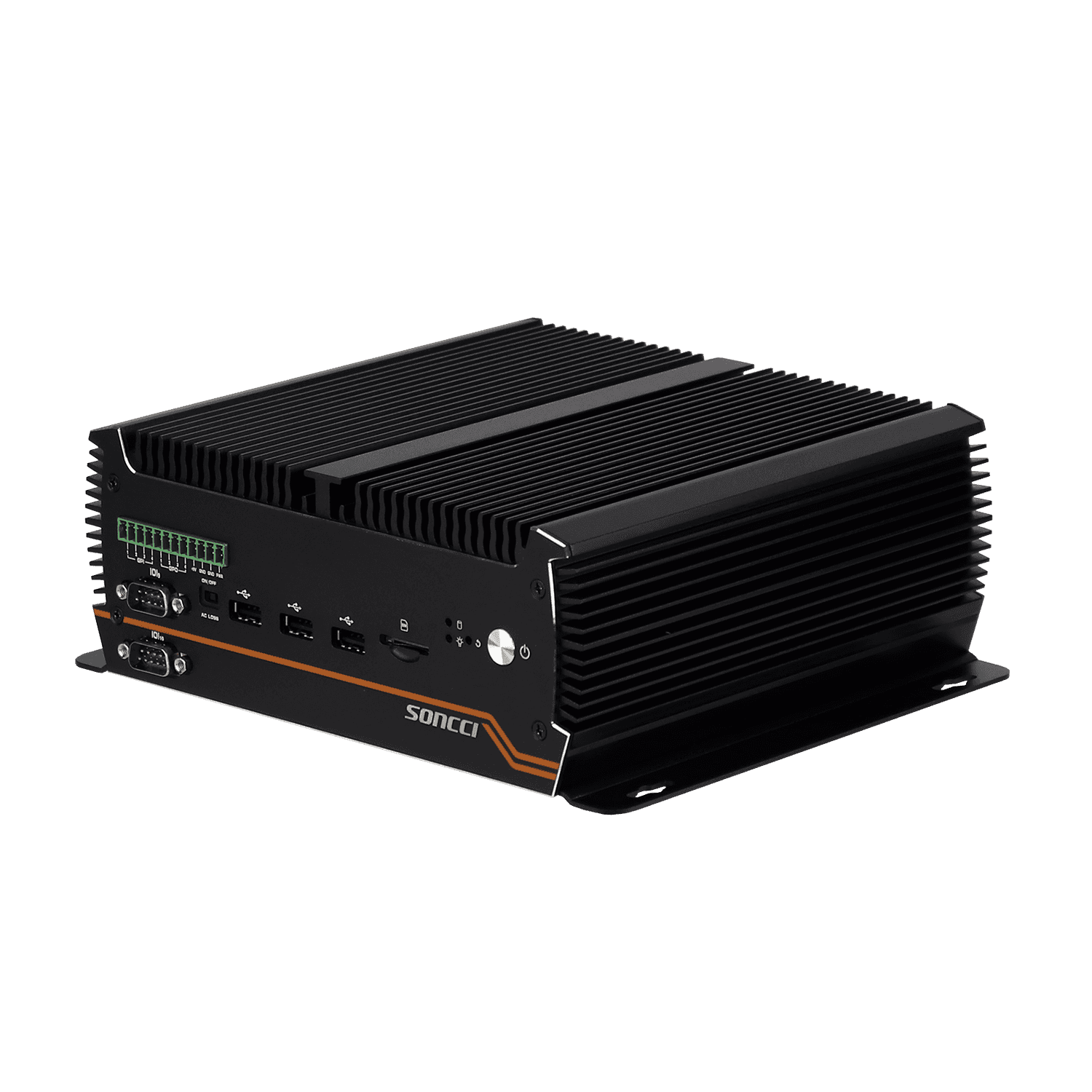

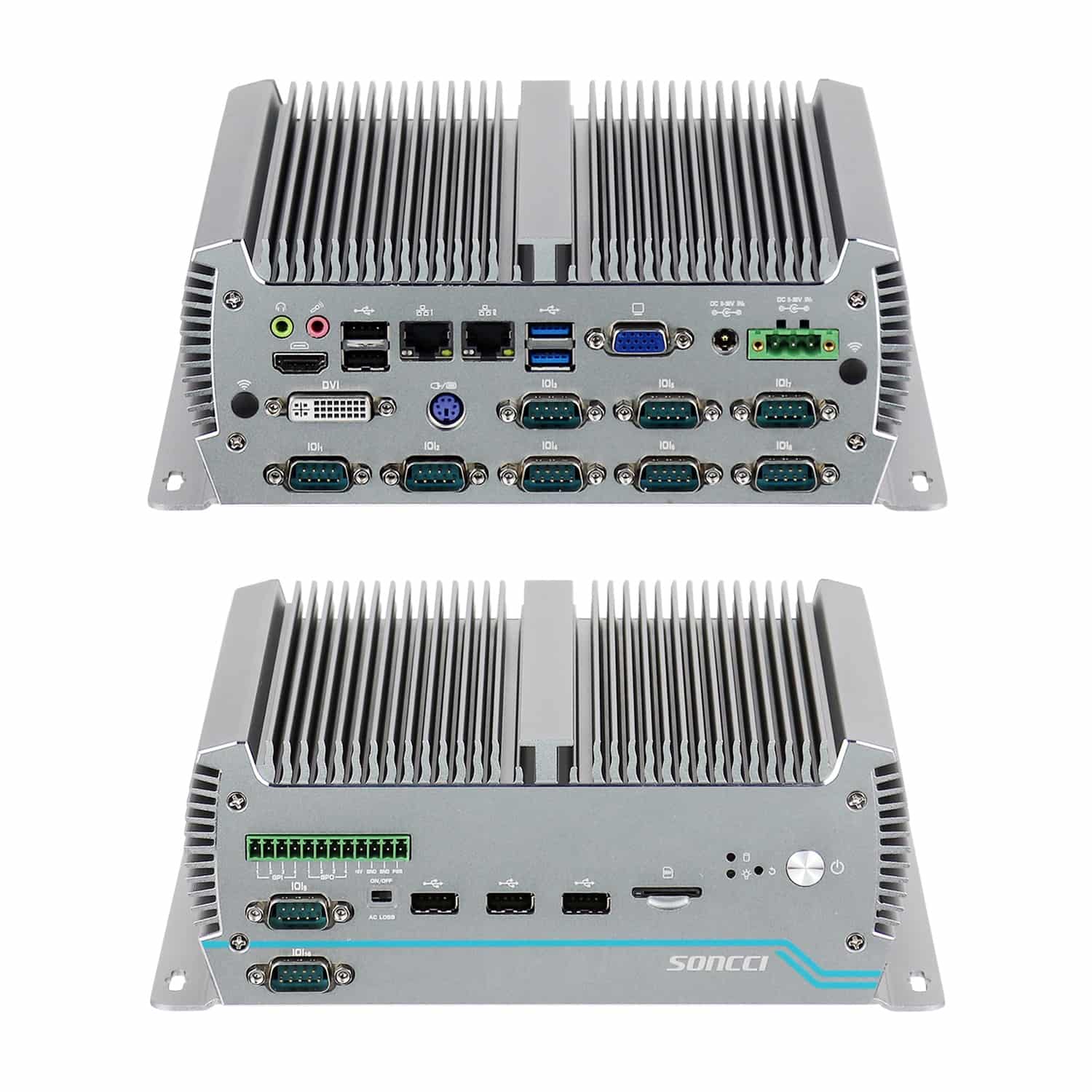

| Color | Silver, Black |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -10°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 5%~95% (no condensation) |
