fanless embedded Core i3 i5 i7 mini IPC SCI-S4070

0 Reviews Write a review

Product codeSCI-S4070

Availability In Stock

Estimated delivery dates: May 11, 2025 - May 15, 2025

$334.56 – $486.26
You save

● 支持英特尔赛扬/酷睿 i3、i5、i7 处理器，集成英特尔酷睿显卡
● 支持 1 个 SO-DIMM DDR3/4 内存插槽、mSATA、M.2 SSD
● 2 个千兆以太网端口，支持网络唤醒、无盘启动、SIM 卡内置卡槽、可选 WIFI/蓝牙/4G 模块
● 6 个 RS232 DB9 COM 串行接口，COM1-2 支持 RS485 切换，HDMI+VGA 双显输出
● BIOS 支持看门狗硬件重置，开机和开机功能
● 紧凑坚固的全密封铝合金机箱和大面积铝翅片无风扇散热结构，宽温（-10 ~ 60°C）稳定运行
● 迷你小巧只有手掌大小，主机为黑色/银色可选，支持嵌入式、壁挂式、桌面安装

Buy 1 - 9 pieces

$0.00

Total:

$0.00

Buy 10 - 49 pieces

~~$0.00~~

$0.00

Total:

Buy 50 - 99 pieces

~~$0.00~~

$0.00

Total:

Buy 100+ pieces

~~$0.00~~

$0.00

Total:

Total：

ProcessorIntel Core i3-3217U

Memory4G

Hard disk64G SSD

ColorBlack

Clear

Ask about product

TagsEmbedded IPC, microcomputer, Mini PC

Overview

The SCI-S4070 fanless embedded industrial computer is equipped with Intel Celeron/Core processors, supports DDR3/4 memory, and offers a variety of choices for mSATA and M.2 storage. It is equipped with a rich array of interfaces, including LAN, COM RS232/485, USB, and HDMI+VGA dual display outputs. It is also expandable with WIFI/Bluetooth/4G modules and supports Windows and Linux operating systems.

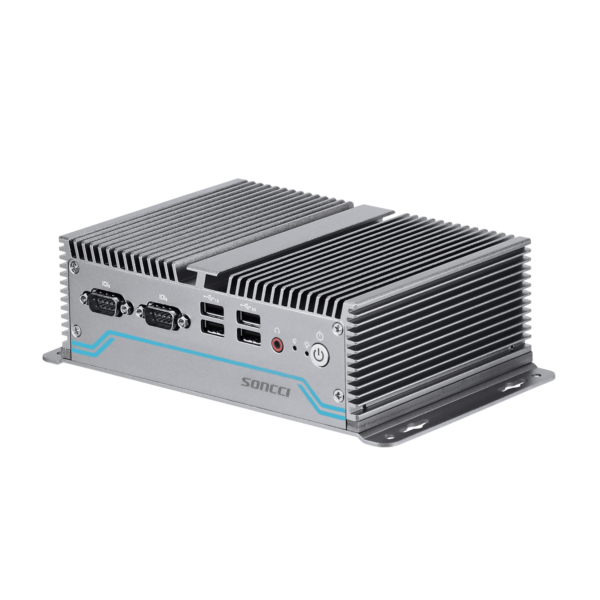

The whole-aluminum alloy shell has strong rigidity, and the aluminum fin design quickly dissipates the heat of the main unit. The internal structure without cables, fans, and the fully enclosed design effectively prevents dust from entering, ensuring stable operation of the main unit in a wide temperature range (-10 ~ 60℃). The embedded, wall-mounted, and desktop installation methods allow for quick and flexible installation, and it can be applied to fields such as industrial control, power systems, cloud terminals, security machine vision, mini servers, and smart cities.

Specs

system	C P U	intel i3-3217U / i5-3317U / J1900 / J4125 / J6412 / i5-6300U / i7-6500U / i5-7200U
	Display chips	Intel Core Graphics Card
	Memory support	SO-DIMM DDR3/DDR4
	Hard disk support	mSATA SSD/2.5" SATA HDD
	Network card chip	Realtek RTL8111 Gigabit Network Card
	Audio chips	Integration
	Power supply characteristics	Input AC 220V, DC 12V power adapter
	Wireless communications	Mini-PCIE slot (optional WIFI/Bluetooth/4G module)
	operating system	Supports Windows/Linux
	B I O S	Support for power-on startup, scheduled startup, support for network wake-up, and diskless booting
	Watchdog	Watchdog supports hardware reset (256 levels, 0~255 seconds)

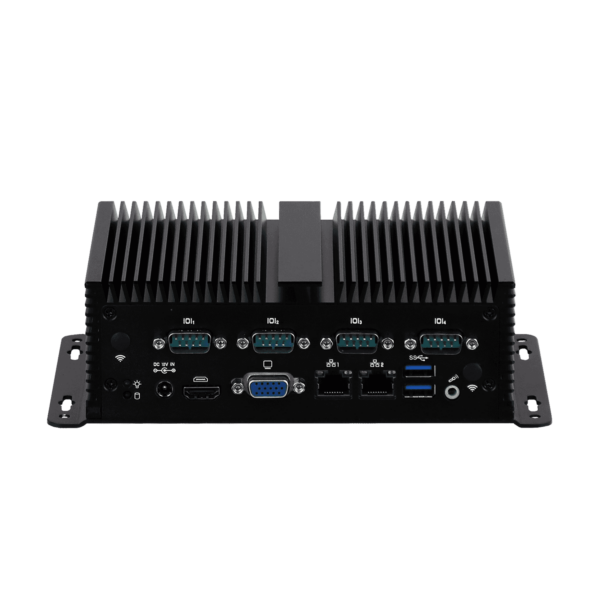

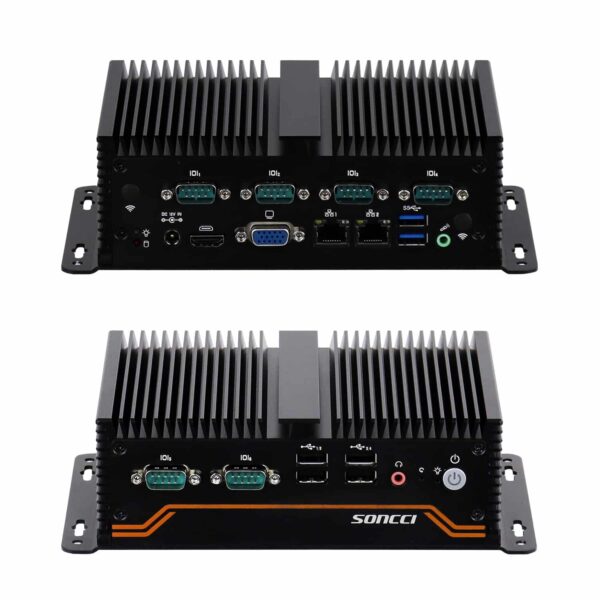

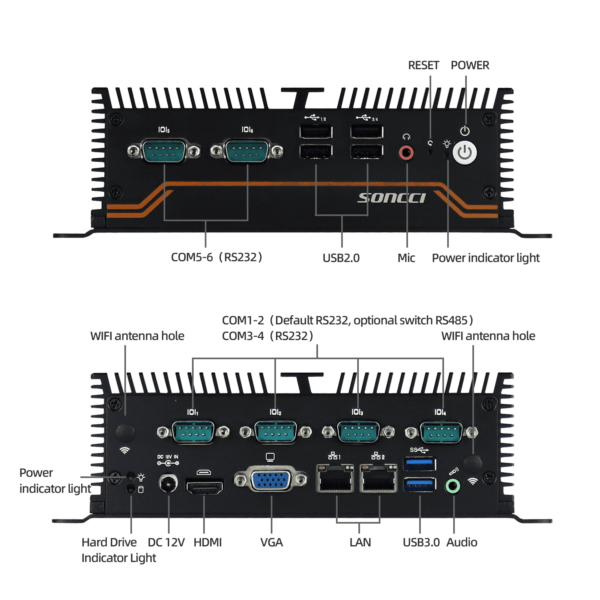

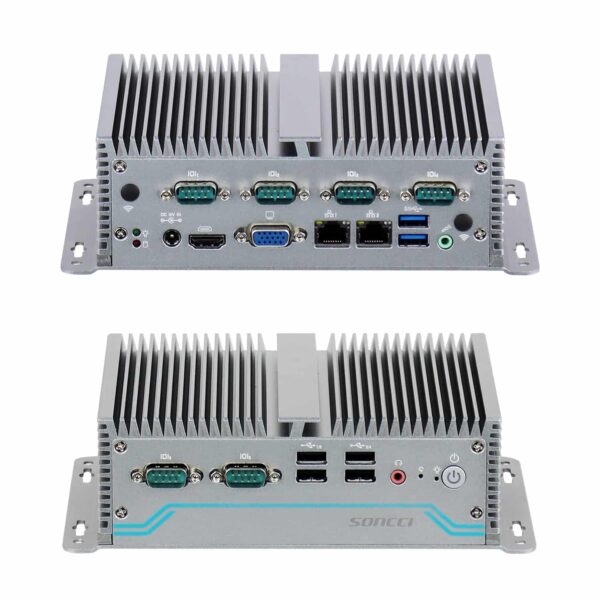

interface	I/O interface	6×USB、1×HDMI、1×VGA、2×LAN、1×Audio、1×Mic、6×COM、1×DC、1×Power、1×Reset、1×Power LED、1×HDD LED
interface	Extended interfaces	1×SIM built-in card slot, 1× Mini-PCIE

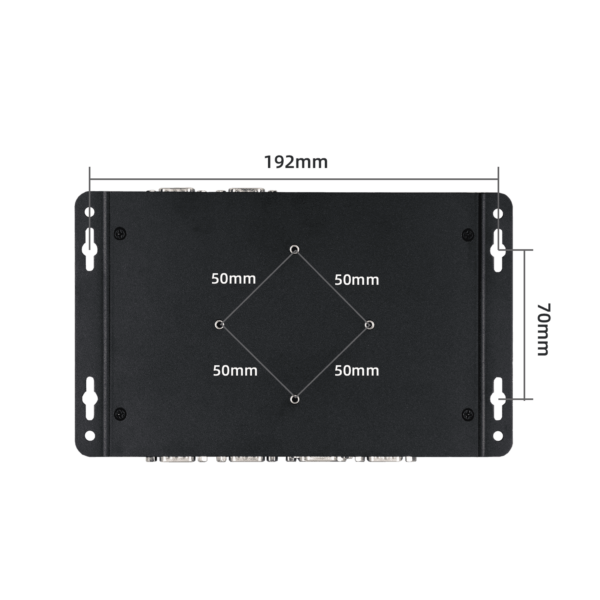

structure	Installation	Support embedded, wall-mounted, and desktop mounting

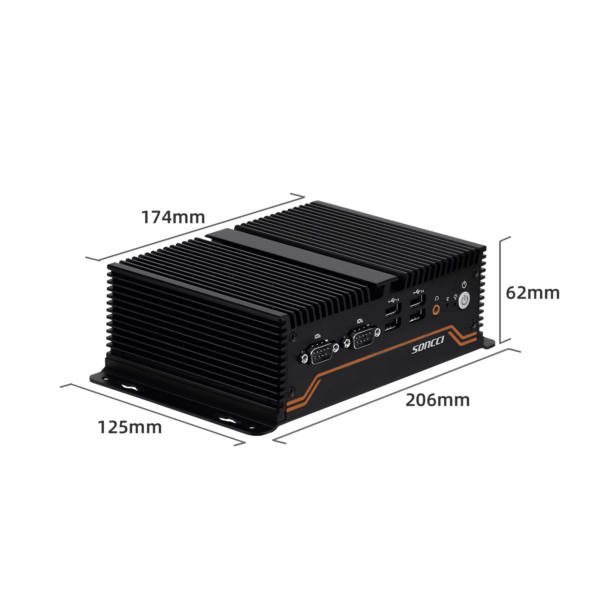

	Product dimensions	Host: 206×125×62mm, Packaging: 305×305×135mm
	Product weight	Net Weight: 1.2 kg, Gross Weight: 2.0 kg

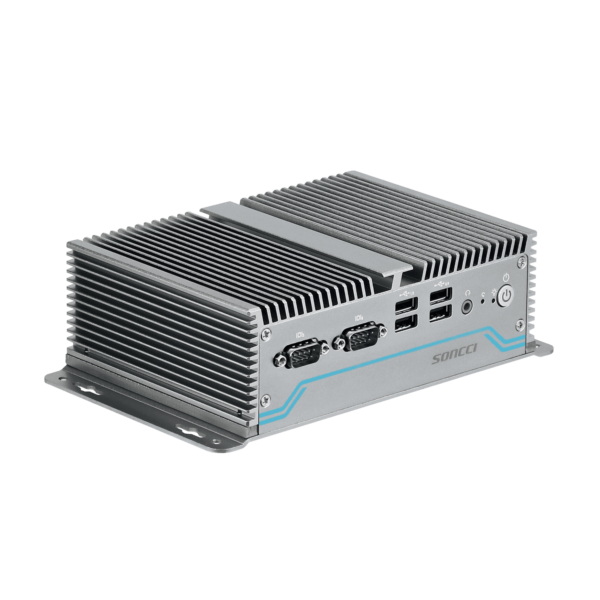

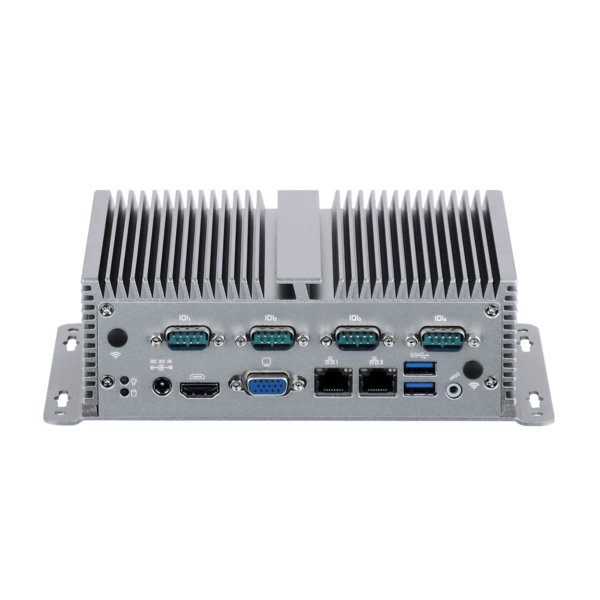

	Material color	Aluminum alloy chassis, main unit color: black/silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
