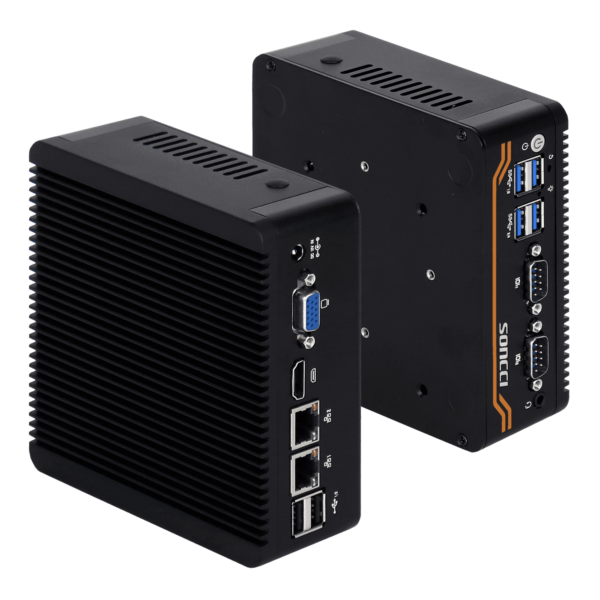

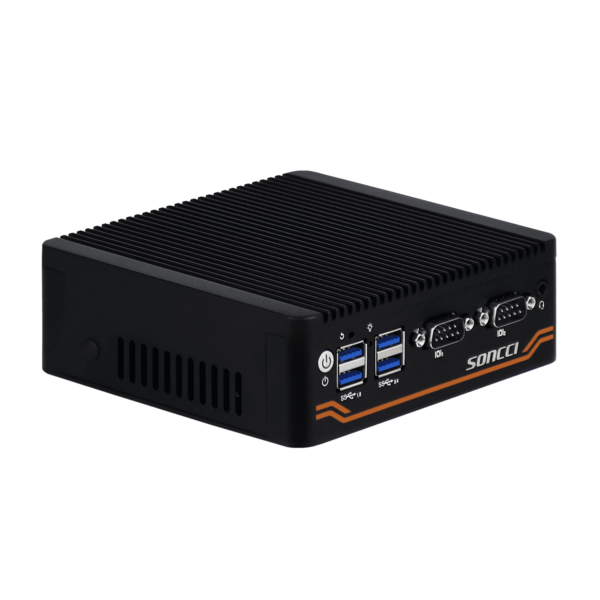

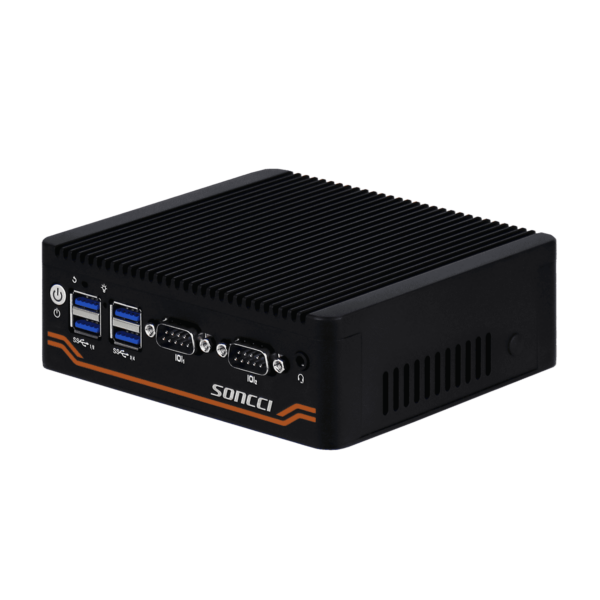

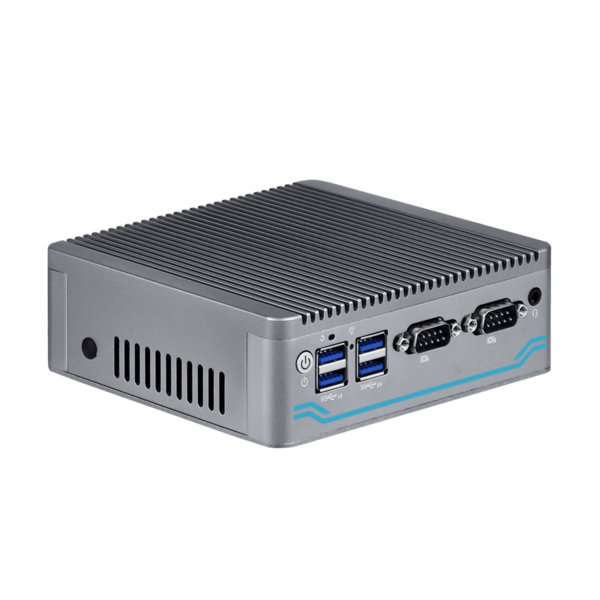

N100 compact mini Box PC SCI-S4050

0 Reviews Write a review

Product codeSCI-S4050

Availability In Stock

Estimated delivery dates: May 6, 2025 - May 10, 2025

$236.16 – $380.48
You save

● Support intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
● Support 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard disk, mSATA, M.2 solid state drive
● 2 Gigabit Ethernet ports, support network wake-up, diskless boot, SIM built-in card slot, optional WIFI/Bluetooth/4G module
● 2 RS232 DB9 COM serial interfaces, and both support RS485 switching, HDMI+VGA dual display output
● BIOS supports Watchdog hardware reset, power-on and power-on function
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
● Mini and small is only the size of the palm of your hand, the host is black/silver optional, and supports embedded, wall-mounted, and desktop installation

Buy 1 - 9 pieces

~~$399.00~~

$327.18

Total:

$399.00

Buy 10 - 49 pieces

~~$399.00~~

$311.22

Total:

Buy 50 - 99 pieces

~~$399.00~~

$299.25

Total:

Buy 100+ pieces

~~$399.00~~

$287.28

Total:

Total：

ProcessorIntel N100

Memory4G

Hard disk128G SSD

ColorSilver

Clear

Ask about product

TagsEmbedded IPC, Mini PC

Overview

The SCI-S4050 fanless embedded computer is powered by intel Celeron/Core processors, supports DDR3/4 memory, and provides a variety of options in 2.5-inch SATA, mSATA, and M.2 storage. It is equipped with a wealth of interfaces, including LAN, COM RS232/485, USB, HDMI+VGA dual display, etc., expandable WIFI/Bluetooth/4G module, supporting Windows and Linux systems. The aluminum alloy shell of the whole machine has strong strength, the aluminum fin design quickly dissipates the heat of the host, and the internal cable-free fanless and fully enclosed structure effectively prevents dust from entering, ensuring the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible for installation, which can be applied to industrial control, medical health, cloud terminals, security machine vision, mini servers, smart cities and other fields.

Specs

system	C P U	intel N2830 / J1900 / N100 / J4125 / J6412 / i3-5005U / i5-4300U / i7-4600U / i5-5300U / i7-5600U
	Display chips	intel Core graphics card
	Memory support	SO-DIMM DDR3/DDR4
	Hard disk support	mSATA/M.2 SSD/2.5" SATA HDD
	Network card chip	Realtek RTL8111 Gigabit LAN card
	Audio chips	integration
	Power supply characteristics	Input AC 220V, DC 12V power adapter
	Wireless communications	1*Mini-PCIE slot (optional WIFI/Bluetooth/4G module)
	operating system	Support Windows/Linux
	B I O S	supports power-on, timed boot, network wake-up, and diskless boot
	Watchdog	Watchdog supports hardware reset (256 levels, 0~255 seconds)

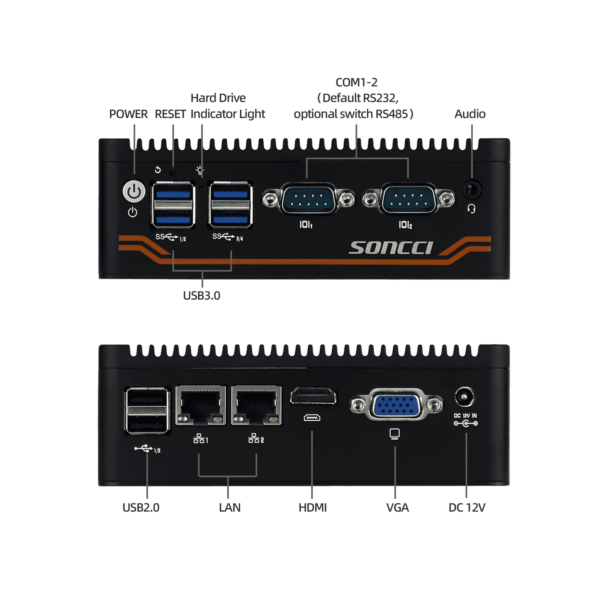

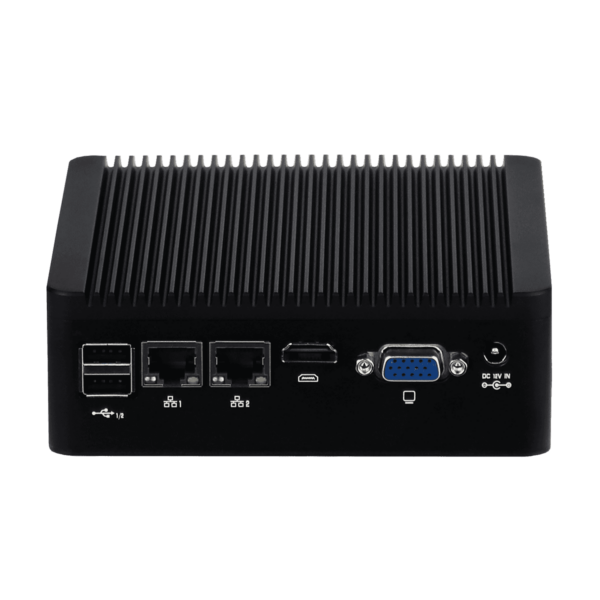

interface	I/O interface	6×USB、1×HDMI、1×VGA、2×LAN、1×Audio、2×COM、1×DC、1×Power、1×Reset
interface	Extended interfaces	1×SIM external card slot, 1× Mini-PCIE
structure	Installation	Support embedded, wall-mounted, and desktop mounting

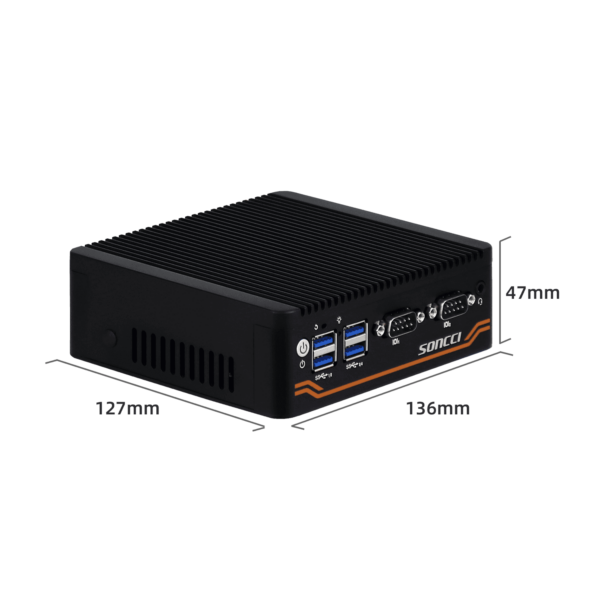

	Product dimensions	The main engine is 136×127×47mm, packing: 205×175×120mm
	Product weight	net weight:0.7kg，gross weight:1.3kg

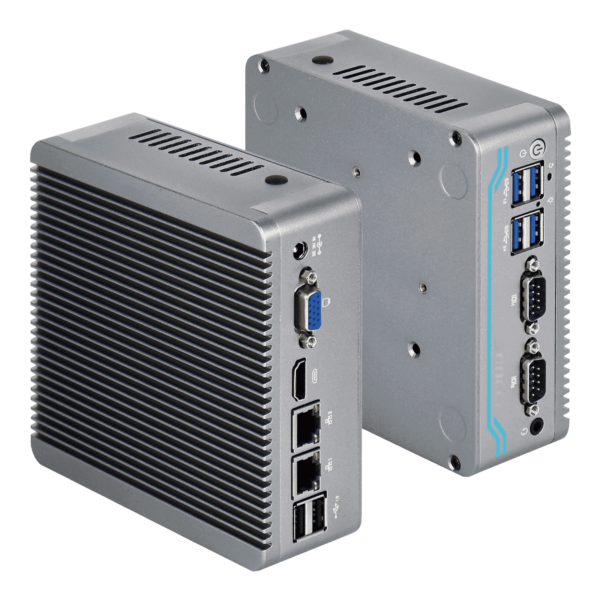

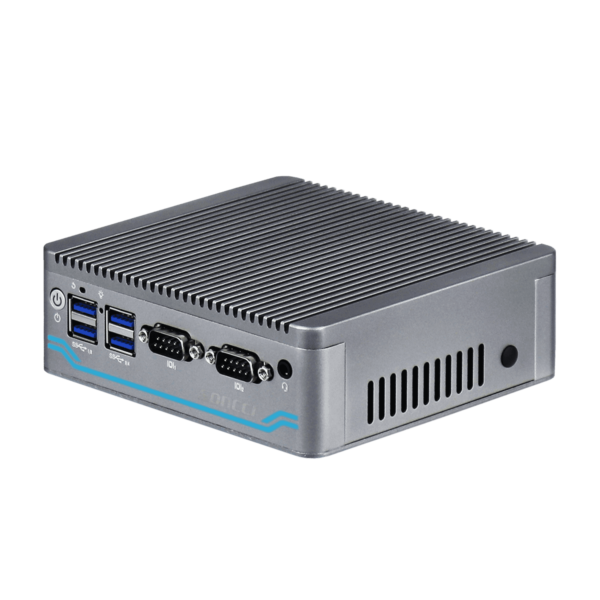

	Material color	Aluminum alloy chassis, main unit color: black/silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
