15.6 inch capacitive industrial panel PC
$472.00 – $640.00
● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M. 2. 2.5-inch SATA hard drive

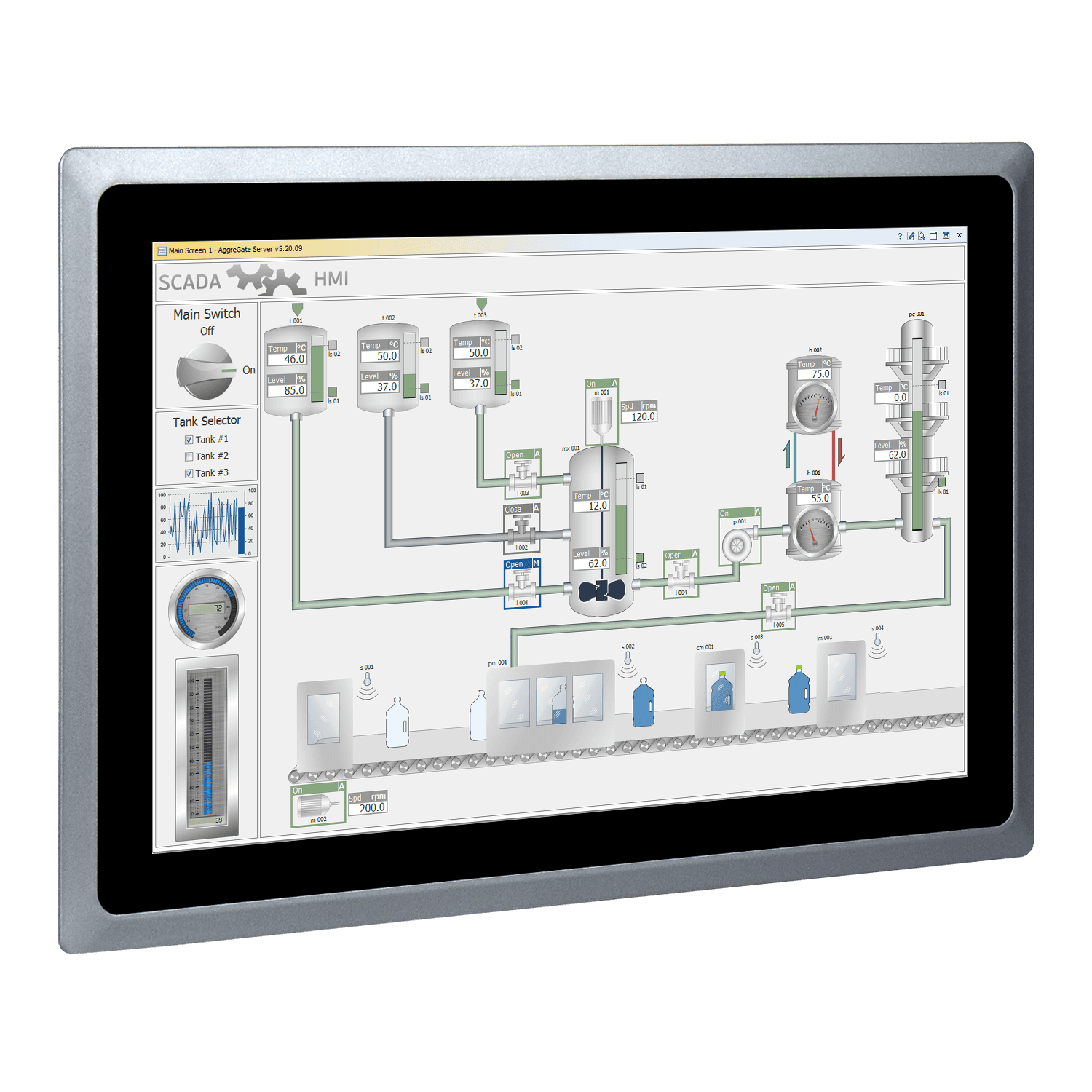

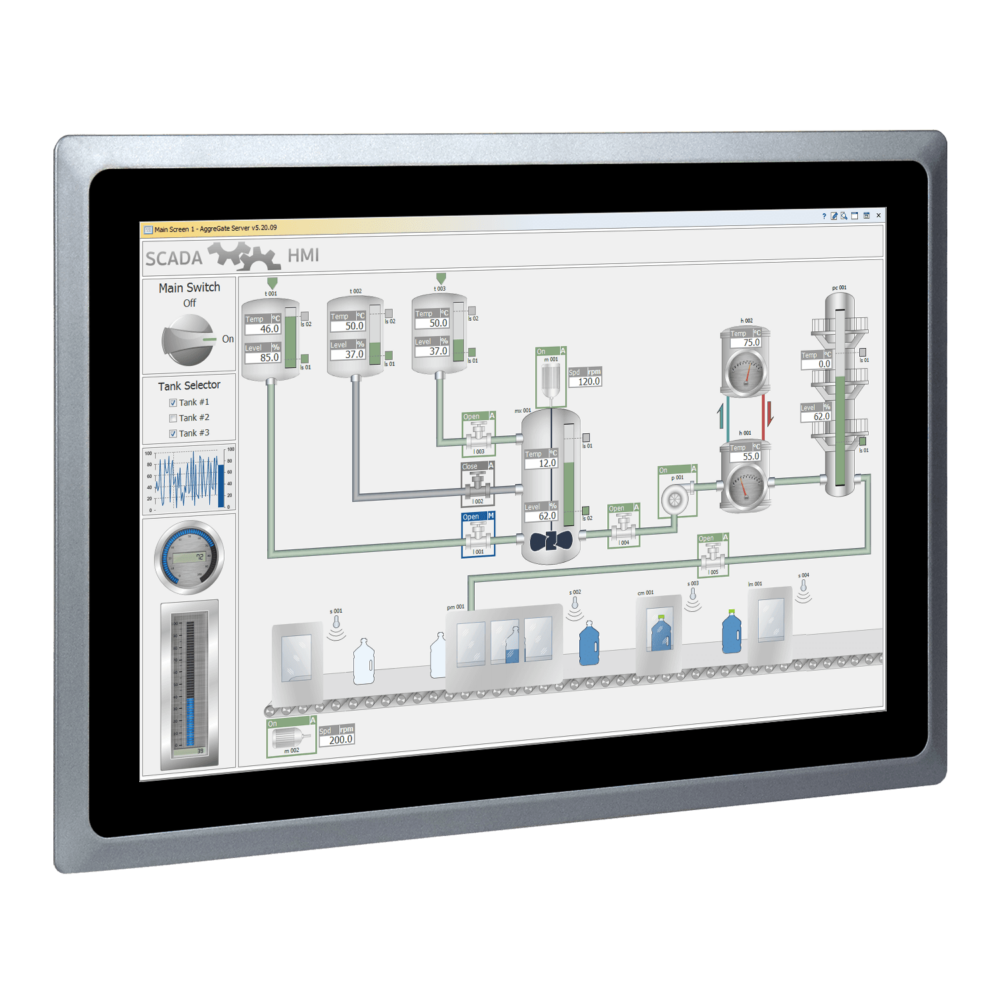

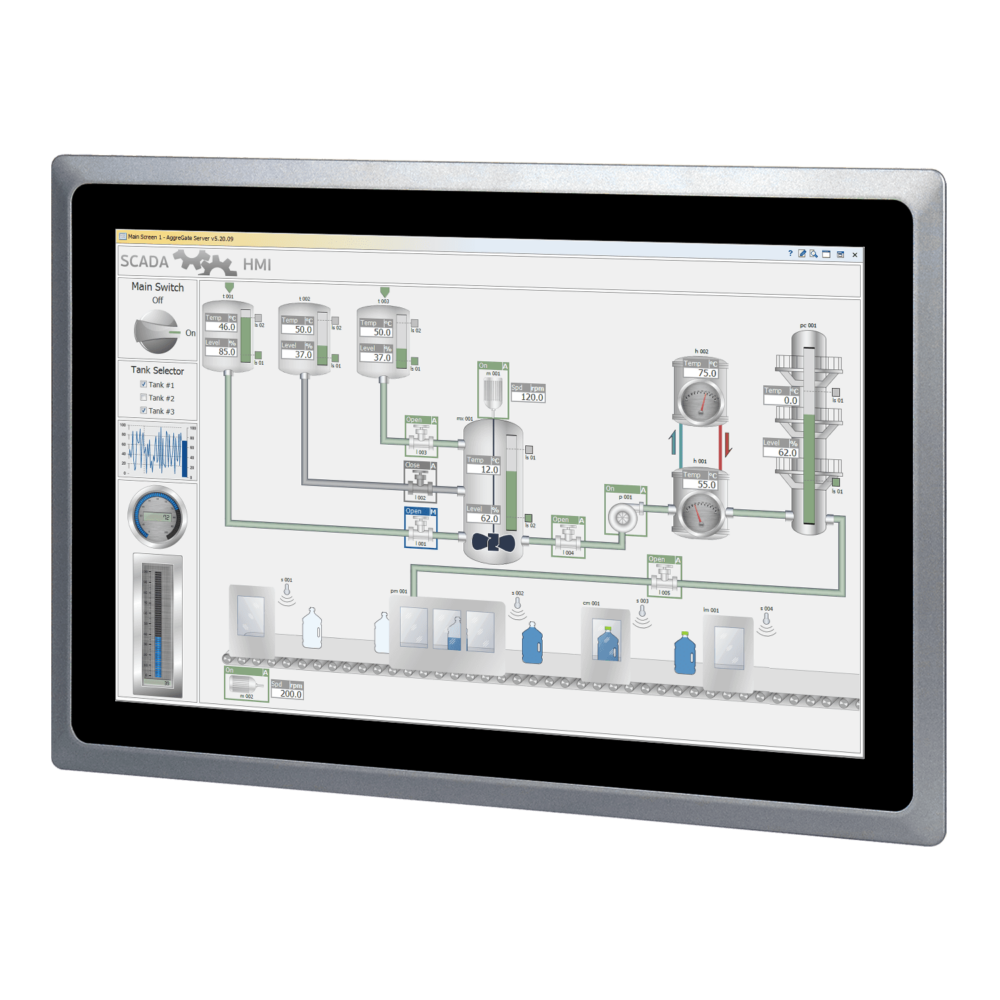

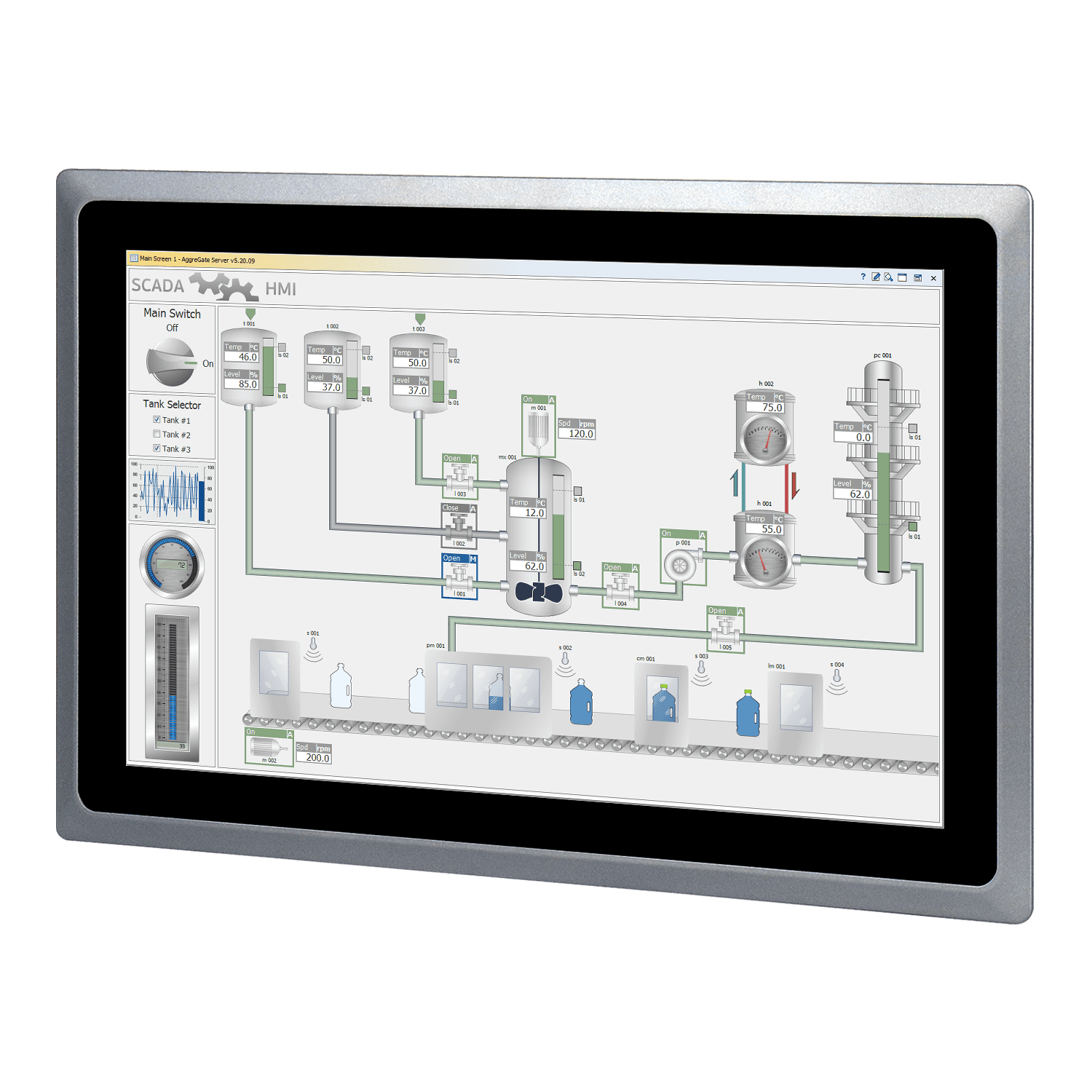

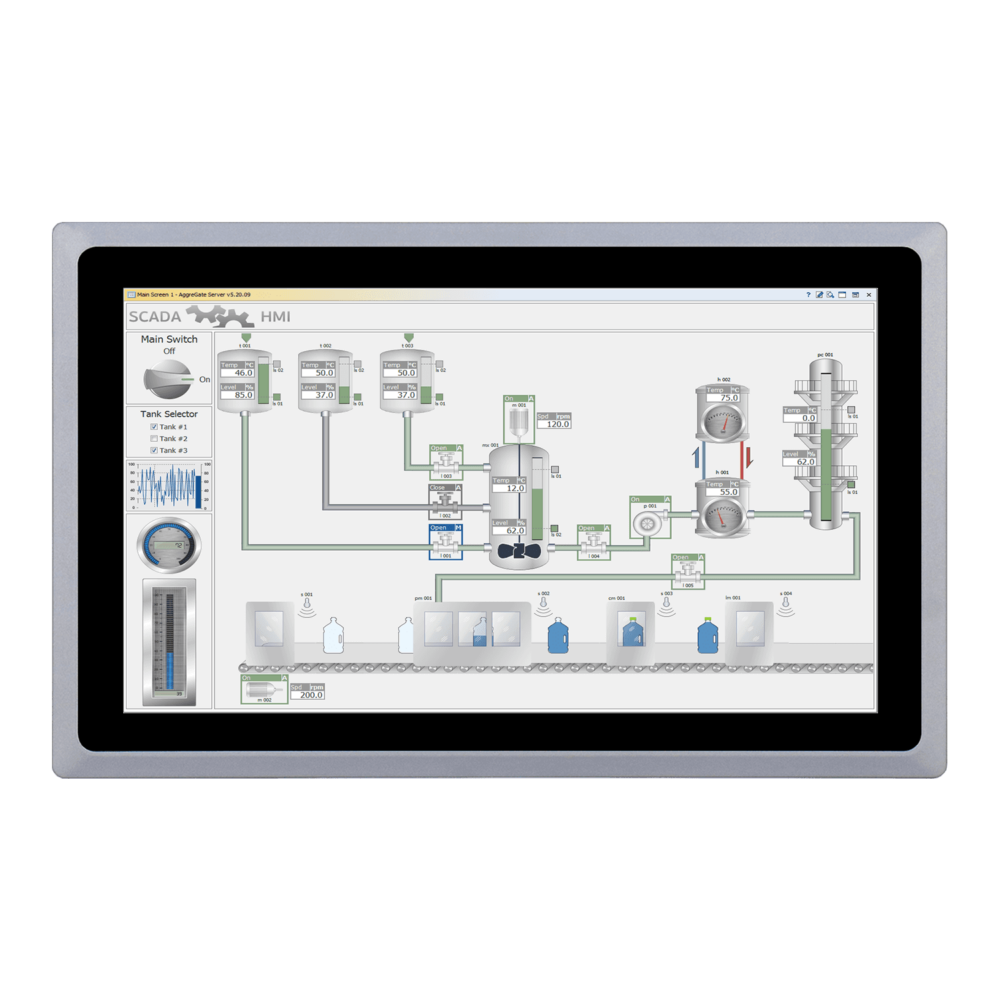

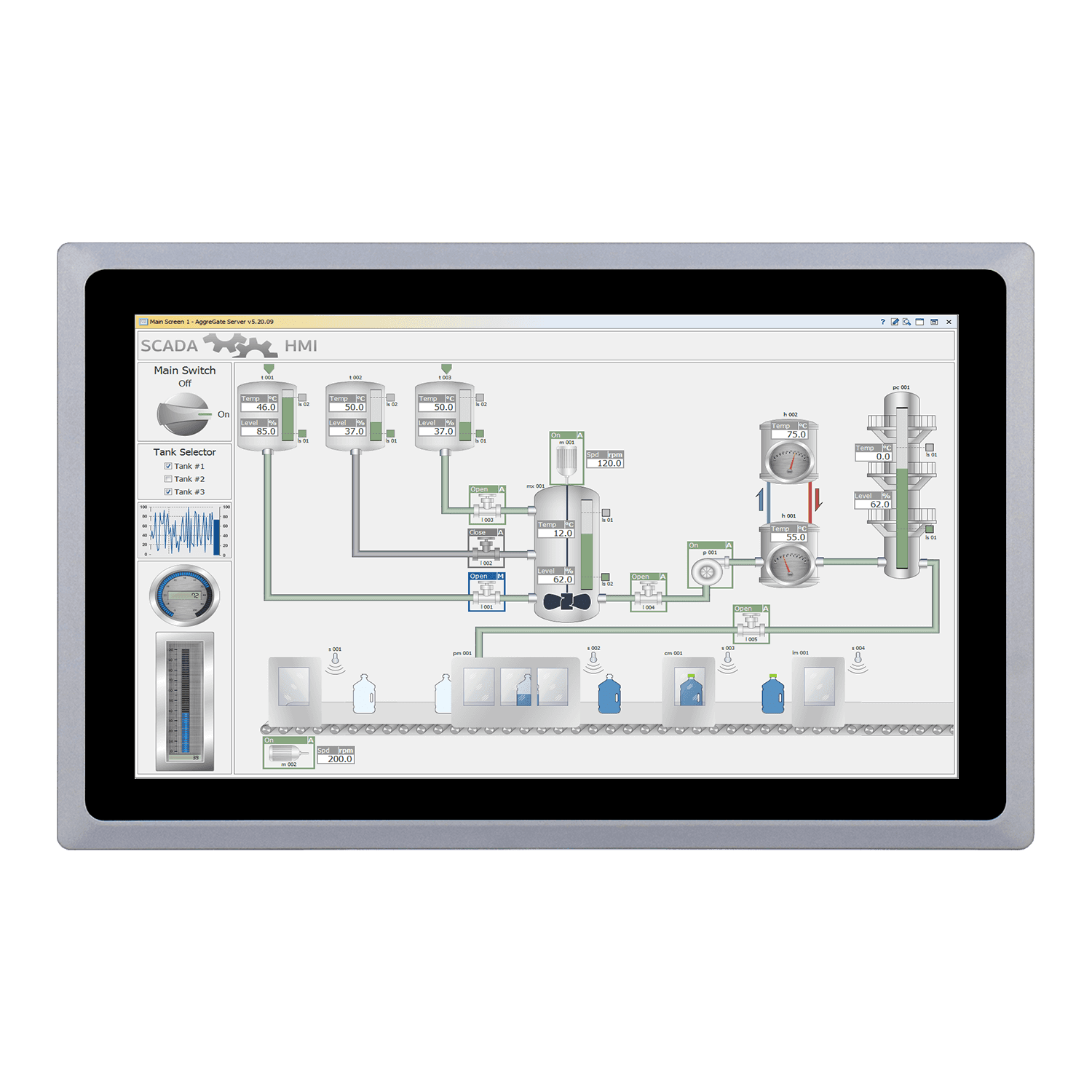

● Screen 15.6″ resolution 1920×1080, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support power-on and power-on, built-in dual speakers, uninterrupted operation and stable resistance to high and low temperatures (-10 to 50°C), support grounding wire
● 6 DB9 RS232 COM ports, optional RS422/485 switching, support HDMI or VGA extended display, optional anti-vibration buffer waterproof tape
● 1 Gigabit network port (optional dual network port), 1 MINI-PCIE slot (optional WIFI bluetooth or 4G module)
● Sturdy chassis, with fan or no fan for efficient heat dissipation, supports embedded/VESA bracket installation methods
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description
SCP-D156WR/WZ aluminum alloy capacitive industrial panel PC is equipped with intel Celeron/Core processor, data storage supports mSATA, M.2, 2.5-inch SATA, rich COM (RS232/422/485), USB, LAN and other interfaces, expandable WIFI Bluetooth or 4G module, optional anti-vibration buffer waterproof adhesive strip to better prevent moisture from penetrating into the box, has been widely used in the industrial field and embedded equipment, It is also equipped with HDMI or VGA video output for extended display, supporting Windows and Linux systems.
capacitive industrial panel PC supports a wide temperature range (-10 to 50°C) and its streamlined design ensures efficient heat dissipation and strong shock resistance, making it a reliable industrial platform with safe grounding components to protect equipment more effectively. The screen adopts a 15.6-inch LED backlit industrial screen, the aluminum alloy front panel meets the IP65 waterproof standard, and the full-plane capacitive touch screen or resistive touch screen can be selected.
The embedded and VESA mounting methods can be quickly and flexibly installed in various environments, and can be applied to industrial automation, power communication, medical education, transportation, logistics and warehousing, smart city and other fields.
Additional information
| Weight | 4.8 kg |
|---|---|
| Dimensions | 490 × 350 × 155 mm |
| Model | SCP-D156WR |
| Processor | Intel Celeron J1900, Intel Celeron J4125, Intel Celeron J6412, Intel Core i3, Intel Core i3-10110U, Intel Core i5, Intel Core i7 |
| Display chips | intel HD Graphics |
| Memory | 4G, 8G, 16G |
| Hard disk | 64G SSD, 128G SSD, 256G SSD, 512G SSD |
| Network chips | Gigabit Ethernet |
| Audio chips | ntegrated audio chip (built-in dual speakers) |
| Power on | Yes (Disabled by default, need to be enabled in BIOS) |
| Operating System | Linux, Windows |
| Screen | 15.6 inch |
| Panel type | TFT-LED |
| Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Display color | 16.7M |
| Contrast | 1000:1 |
| Brightness | 300-500cd/㎡ |
| Viewing angle | Horizontal 160° Vertical 150° |
| Viewable area | 345 x 195mm |
| Touch | Capacitive |
| Touch points | 10-point touch |
| Surface hardness | ≧7H |
| Light transmittance | ＞87% |
| Controller | USB Port |

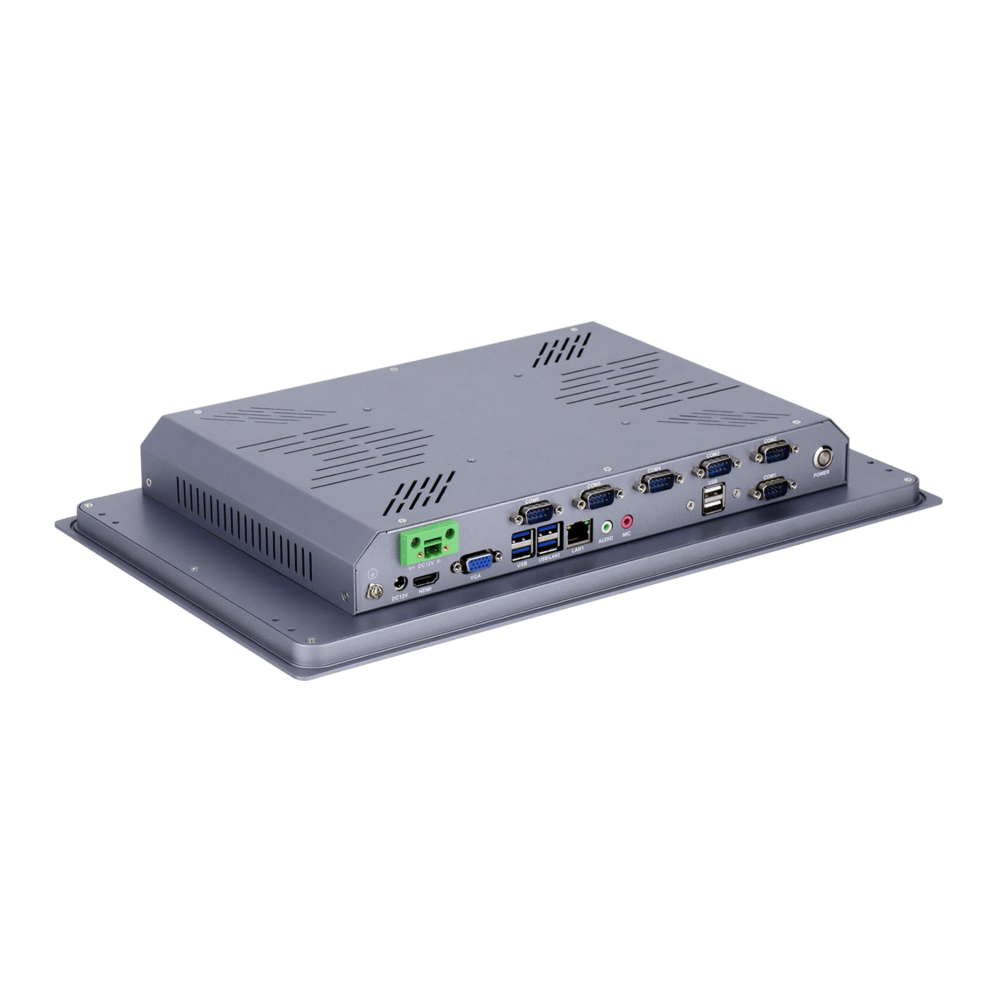

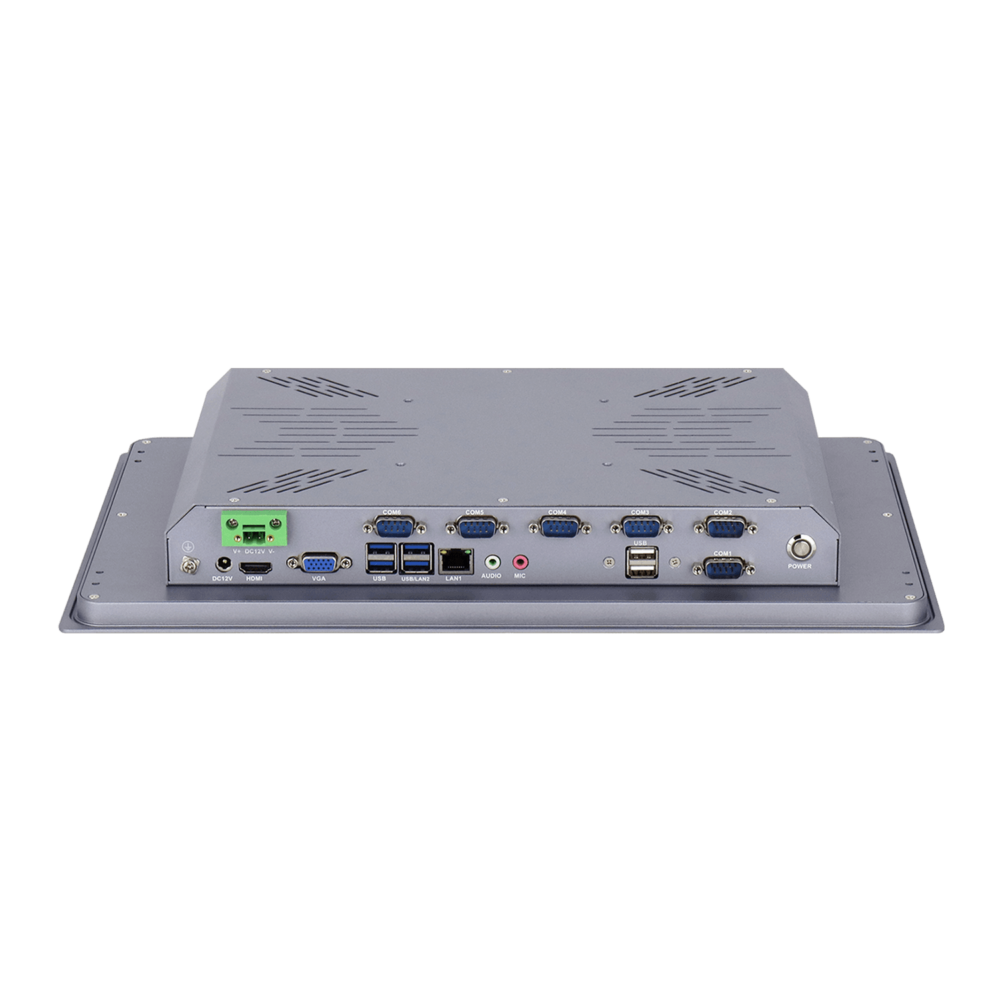

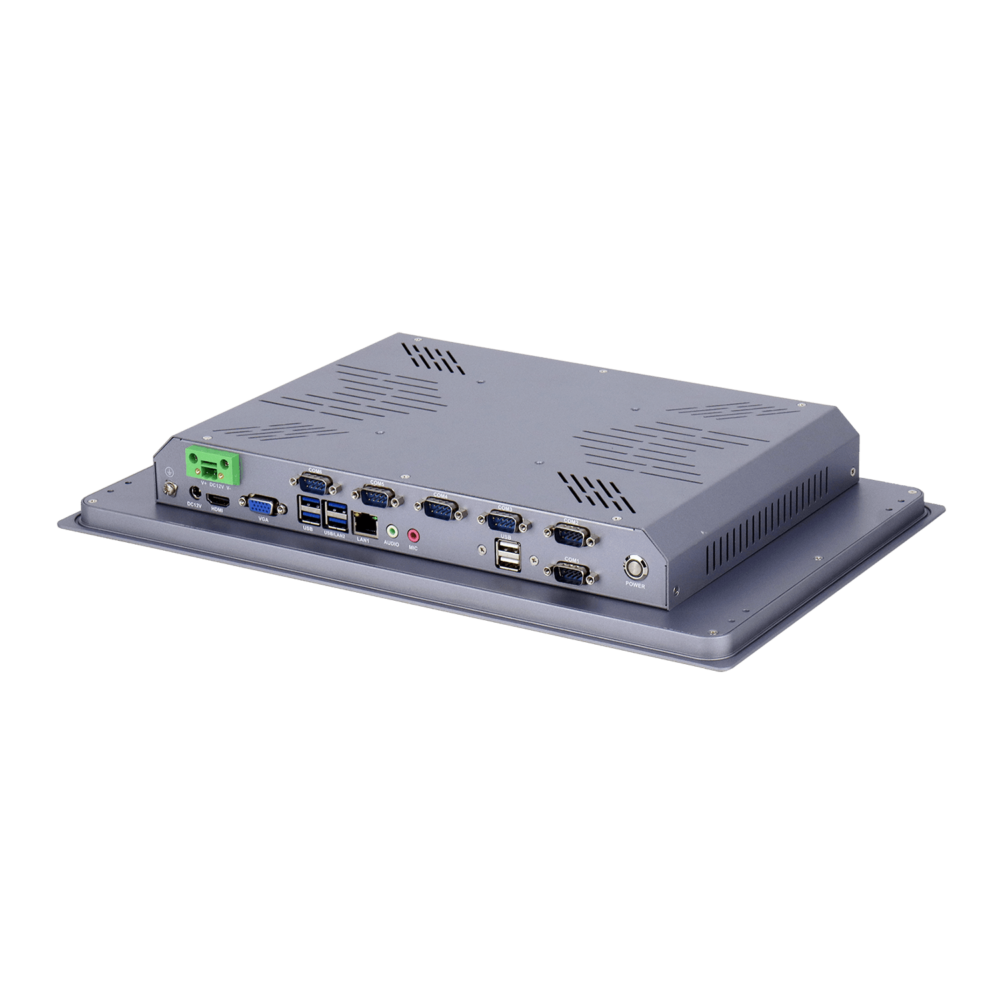

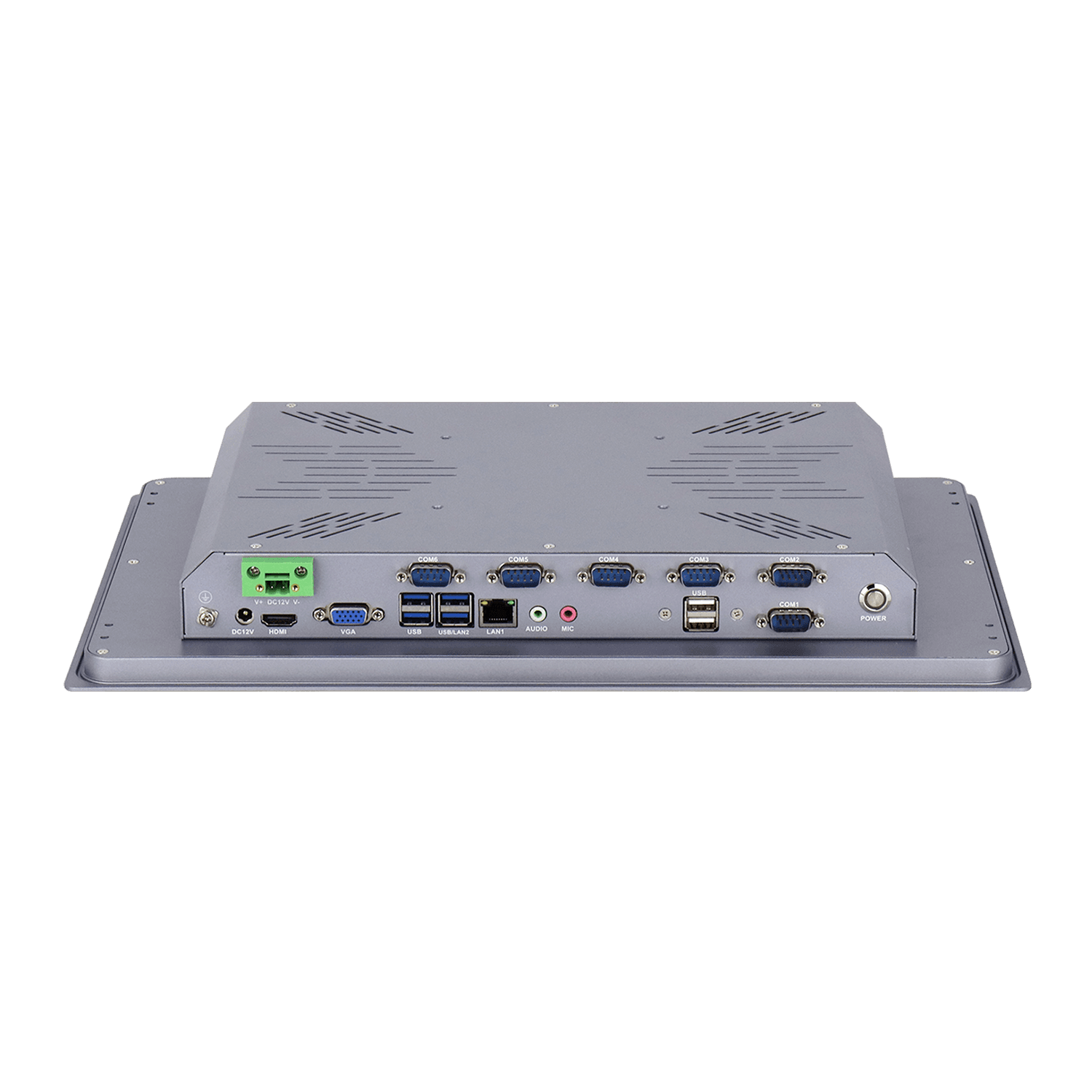

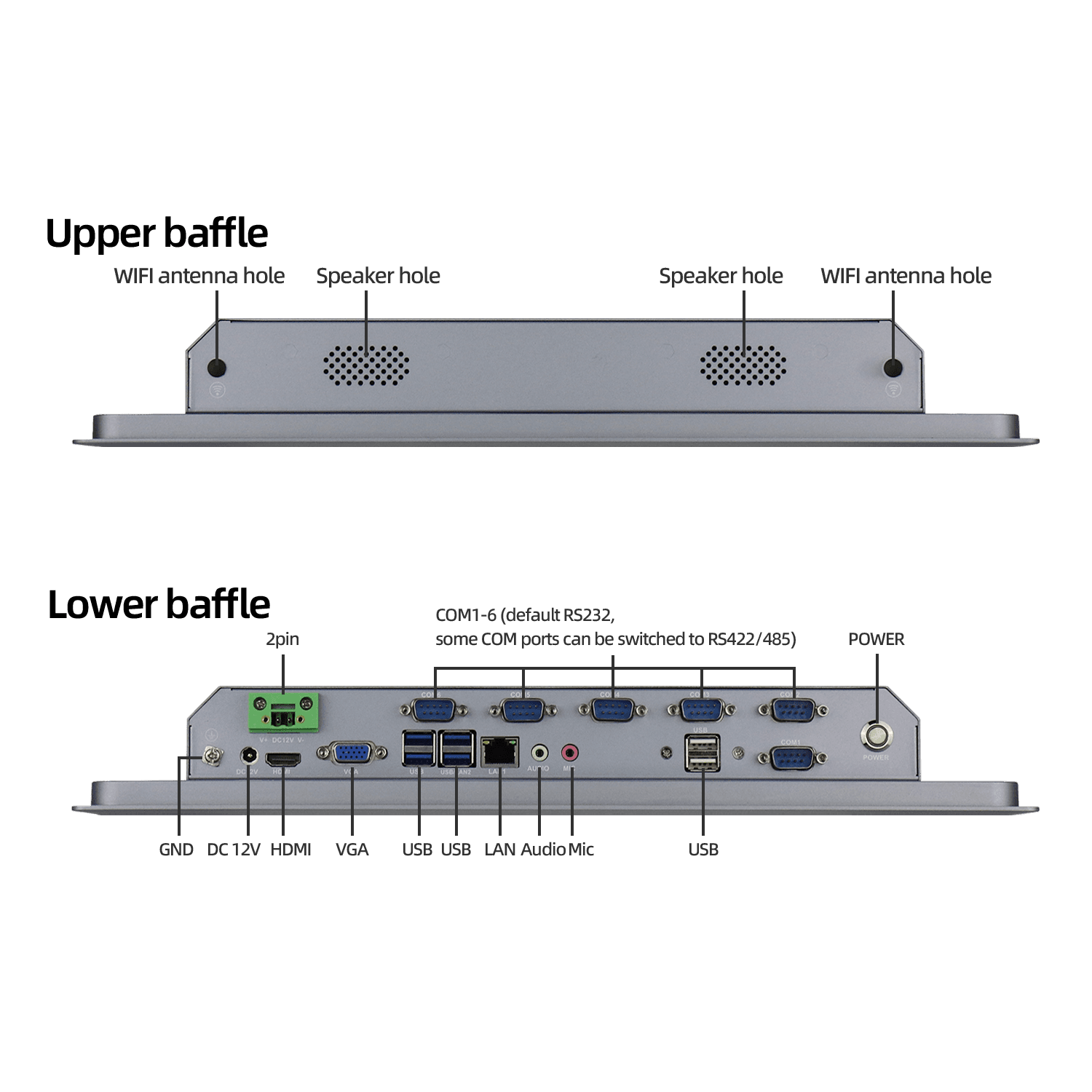

| Interface | 1 x 2pin, 1 x Audio, 1 x DC 12V, 1 x GND, 1 x HDMI, 1 x LAN, 1 x Mic, 1 x MINI-PCIE (Optional extended WIFI/Bluetooth/4G module), 1 x Power, 1 x VGA, 6 x COM, 6 x USB |
| Front panel | Aluminum alloy |
| Protection level | Front panel IP65 waterproof and dustproof |
| Shell material | SECC |
| Heat dissipation | Fan cooling, Fanless |
| Power supply | Input AC 220V, DC 12V power adapter |
| Installation | Boom type, Cantilever type, Desktop, Embedded, Floor, VESA（100x100mm）, Wall-mounted |
| Product size | 412 x 256 x 56mm |
| Embedded size | 397 x 241mm |
| Product Weight | 3.5KG |
| Color | Silver |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -10°C to 50°C |
| Storage environment | -20°C to 60°C |
| Relative humidity | 10%~90% (no condensation) |
