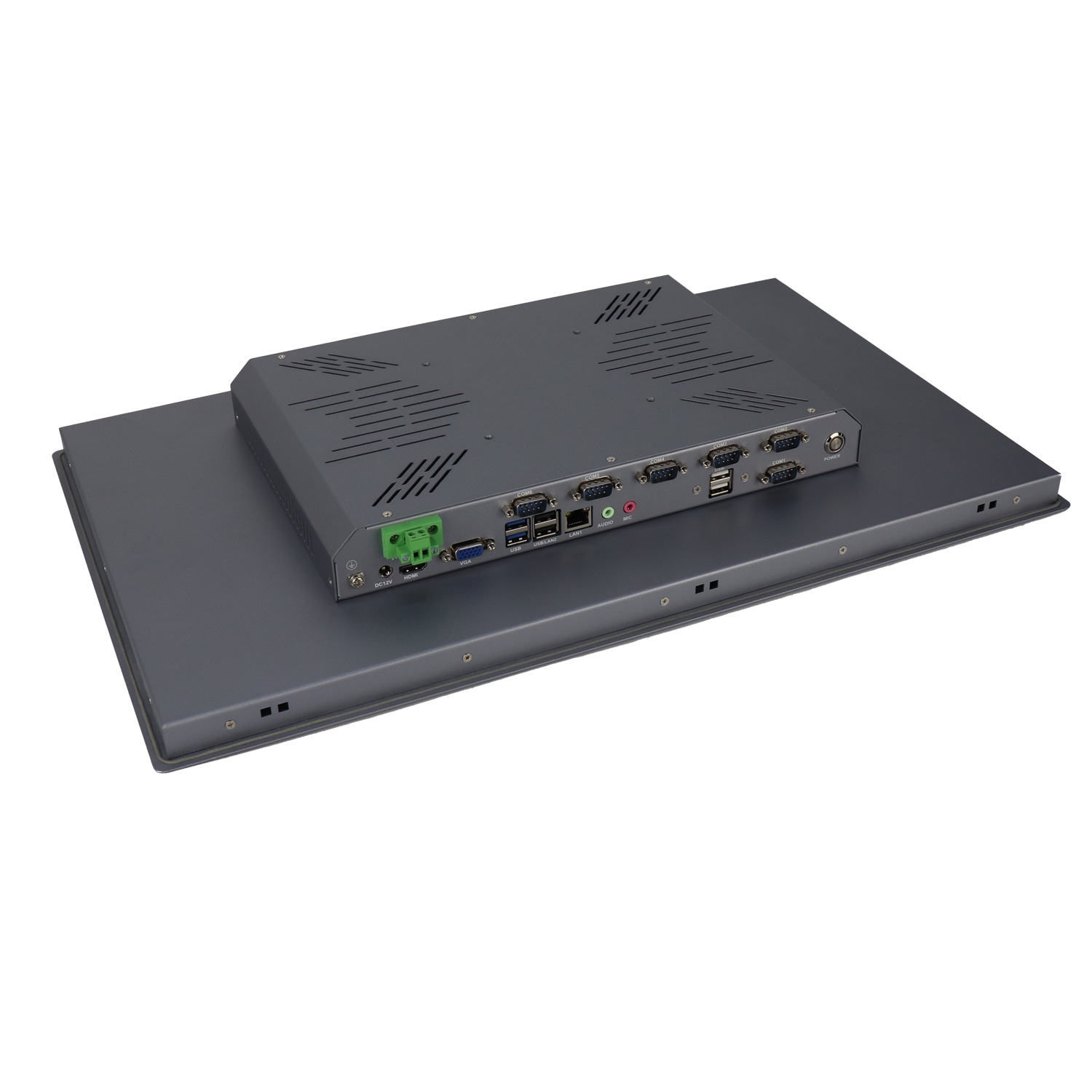

21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR - Image 3

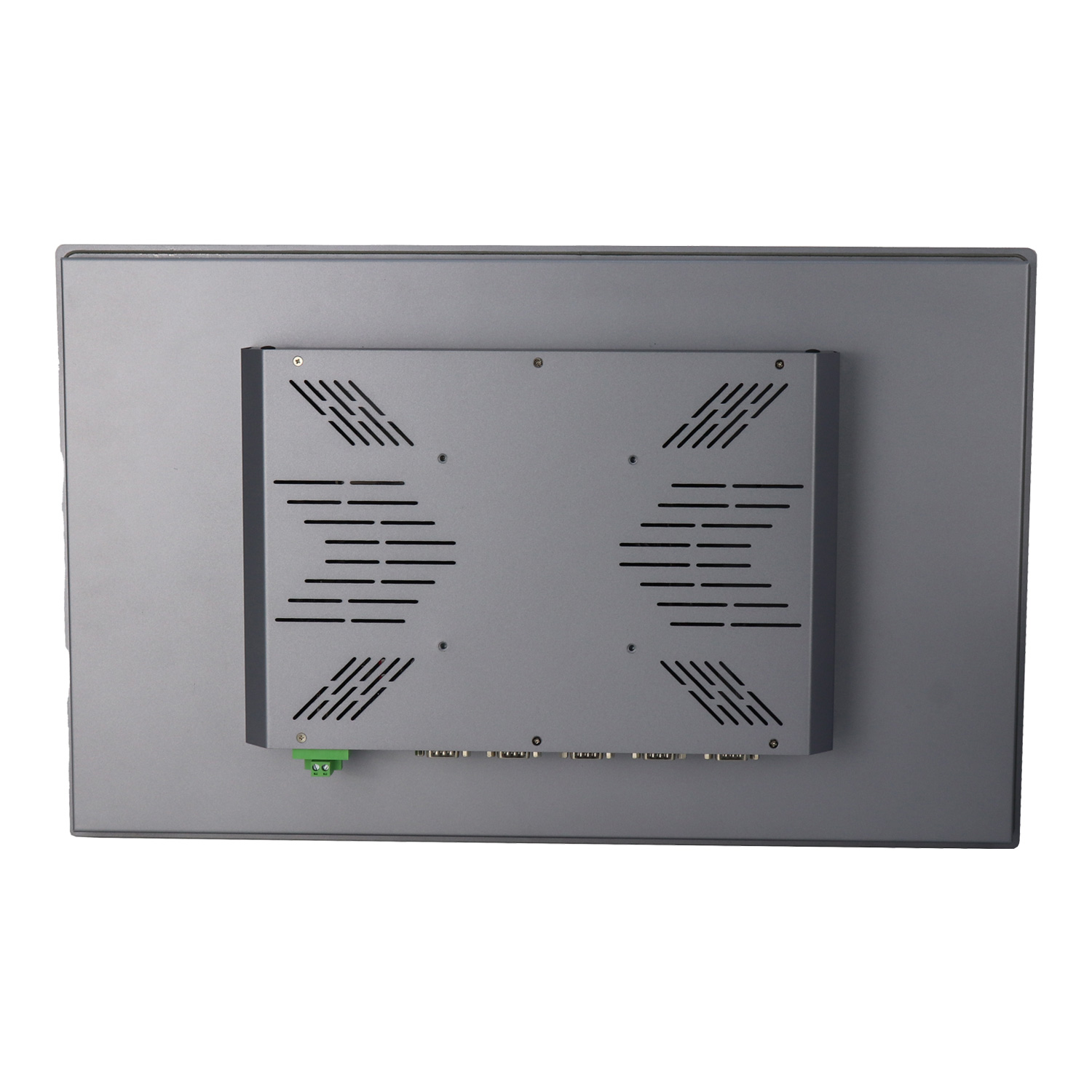

21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR - Image 4

21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR - Image 5

21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR - Image 6

21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR - Image 7

-60%Feature

Video 360

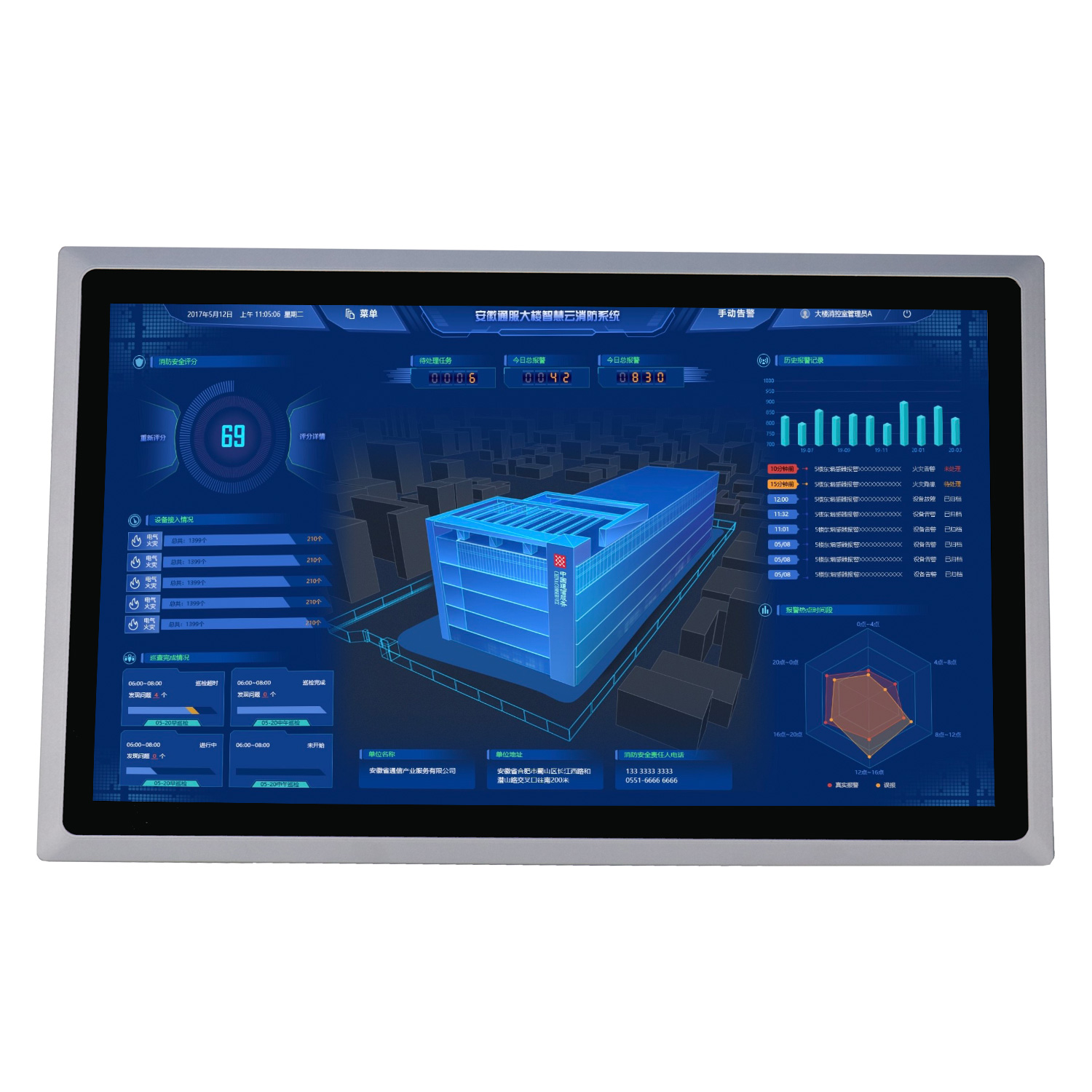

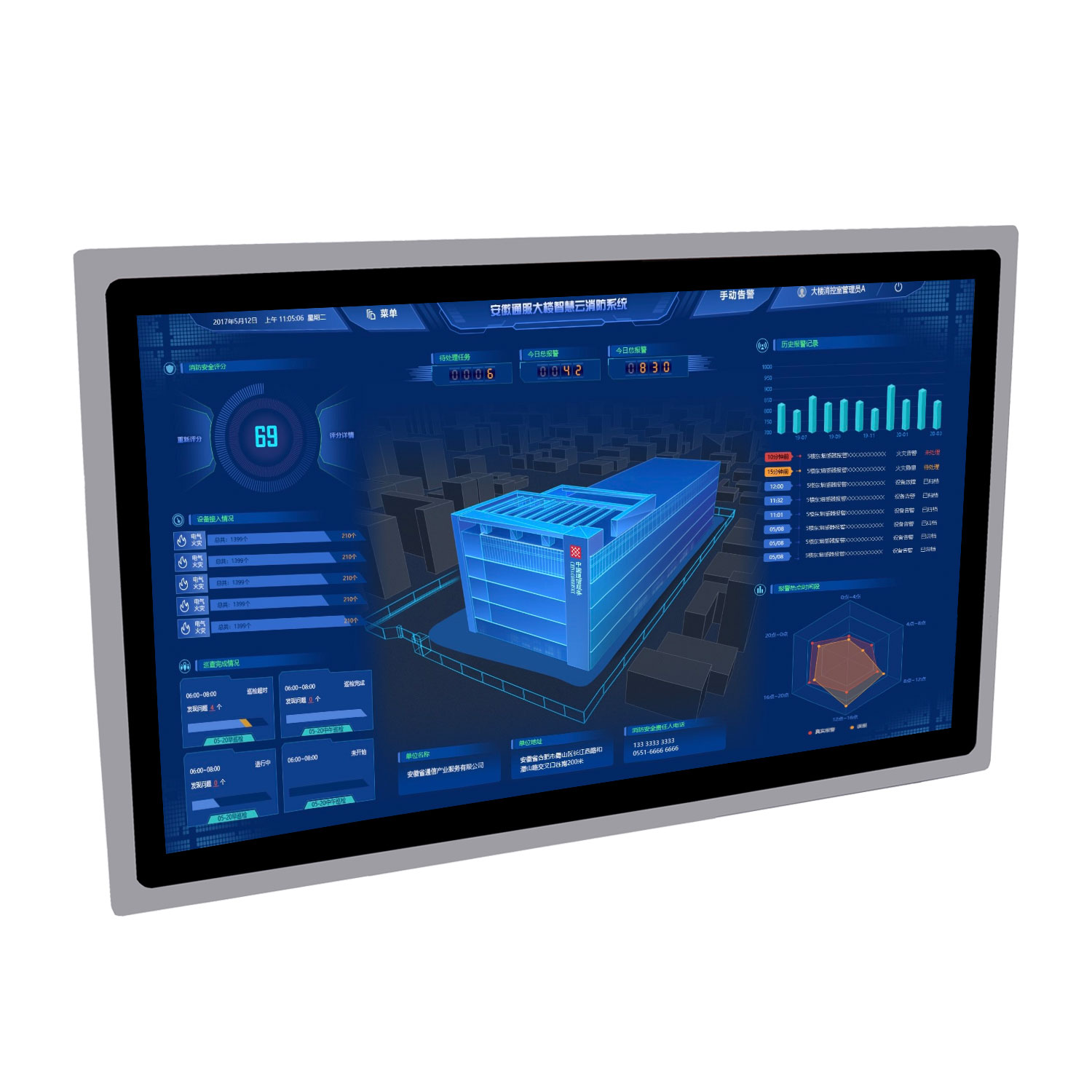

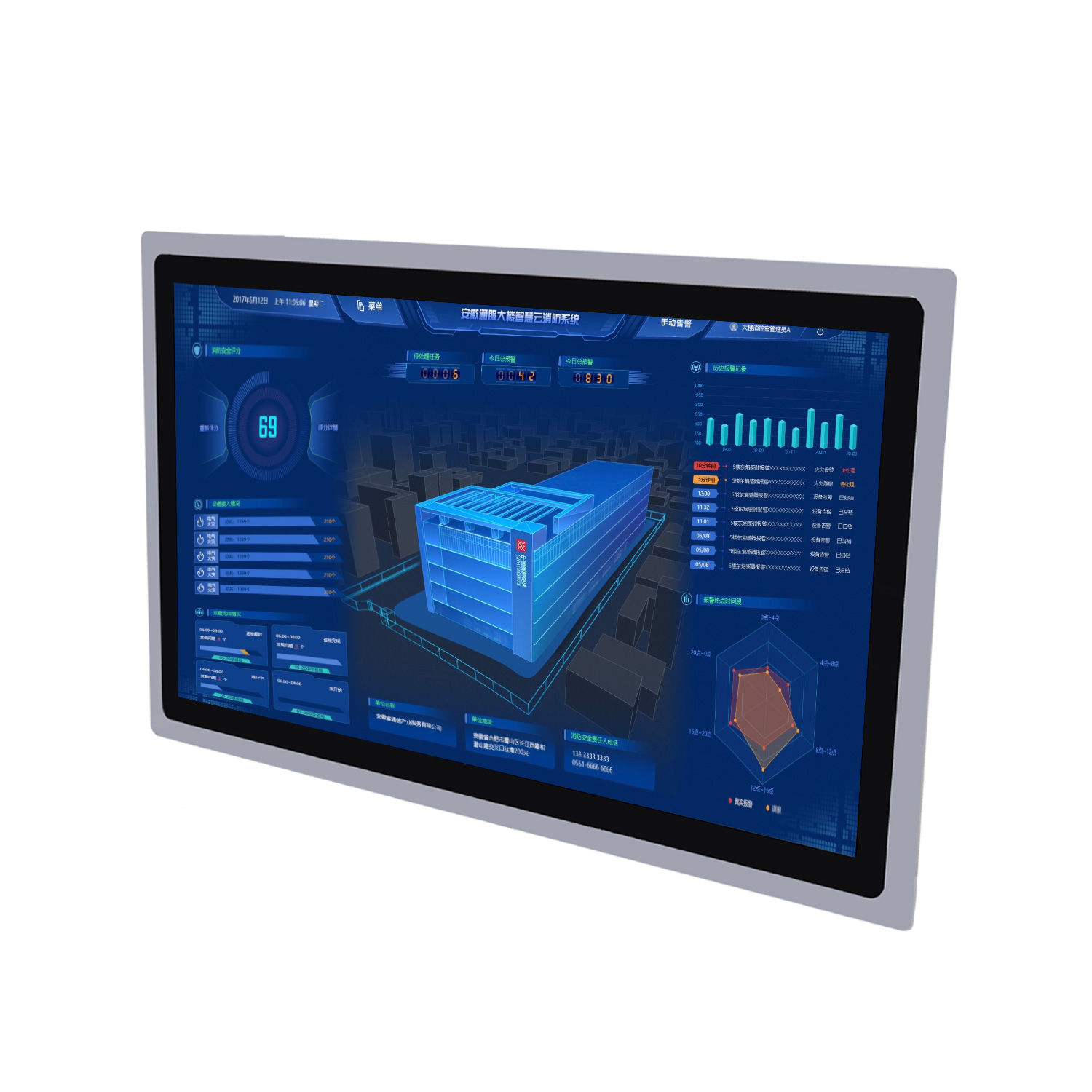

21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR

0 Reviews Write a review

Product codeSCP-D215WR

Availability In Stock

Estimated delivery dates: Apr 19, 2025 - Apr 23, 2025

$442.00 – $942.65
You save

● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M. 2. 2.5-inch SATA hard drive
● Screen 21.5″ resolution 1920×1080, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support power-on and power-on, built-in double horns, high and low temperature resistance (-20°C to 60°C) uninterrupted and stable operation, with grounding terminals
● 6 DB9 RS232 COM ports, optional RS422/485 switching, support HDMI or VGA extended display, optional anti-vibration buffer waterproof adhesive strip
● 1 gigabit network port (optional dual network port, WIFI bluetooth or 4G module, optional addition of 9-36V wide voltage module)
●Rugged chassis with or without fan for efficient heat dissipation, supporting embedded/VESA bracket and other mounting methods

Buy 1 - 9 pieces

~~$928.00~~

$788.80

Total:

$928.00

Buy 10 - 49 pieces

~~$928.00~~

$742.40

Total:

Buy 50 - 99 pieces

~~$928.00~~

$714.56

Total:

Buy 100+ pieces

~~$928.00~~

$686.72

Total:

Total：

Processor

Memory

Hard disk

Clear

Ask about product

TagsIndustrial Panel PC

Frequently Bought Together

Price for all: $2,106.30

This Product: 21.5-inch pure flat capacitance industrial tablet PC SCP-D215WR – Intel Celeron J1900, 16G, 64G SSD –
You save

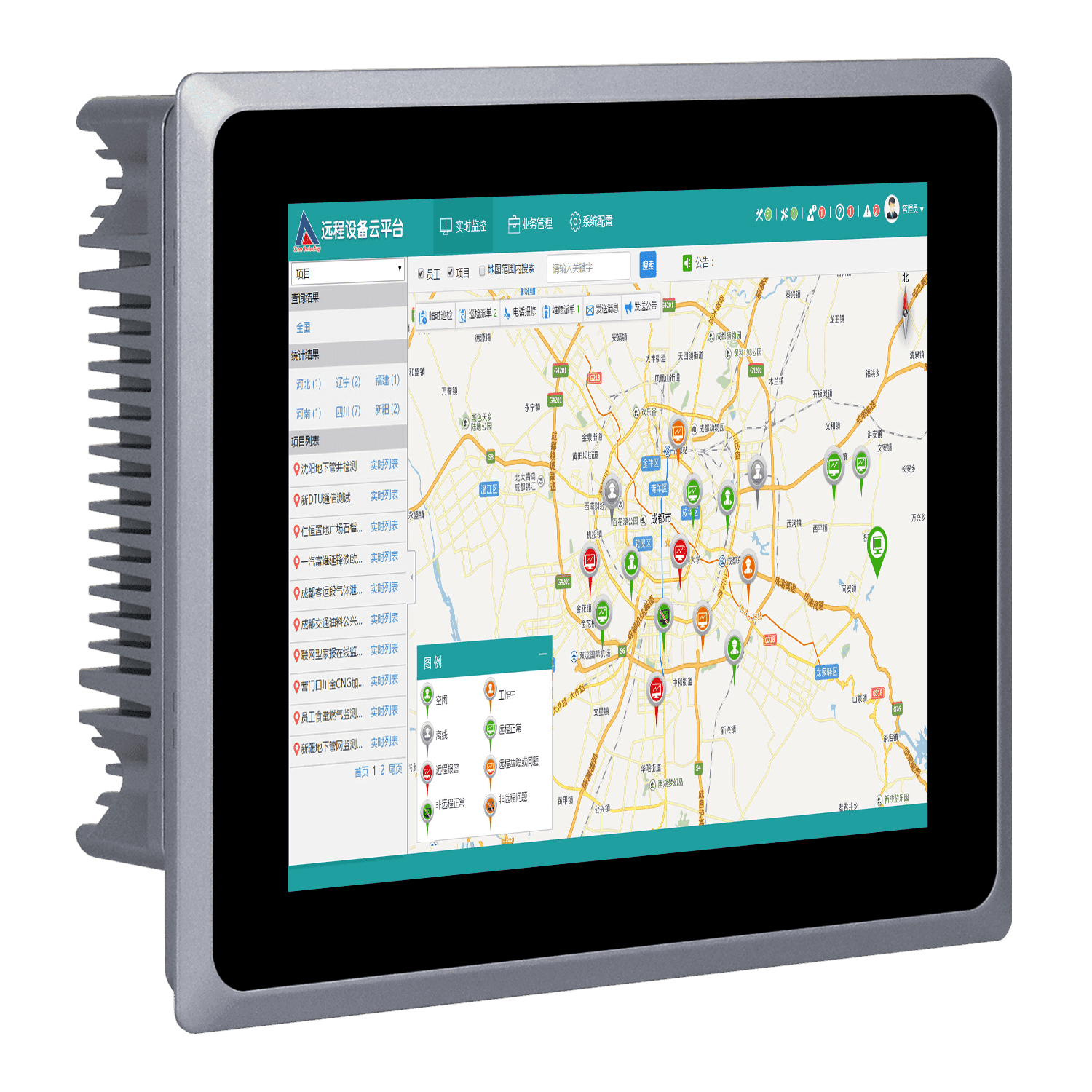

10.4 inch touch screen industrial panel PC SCP-K104SR – Intel Celeron J1900, 4G, 64G SSD – From $590.52
You save

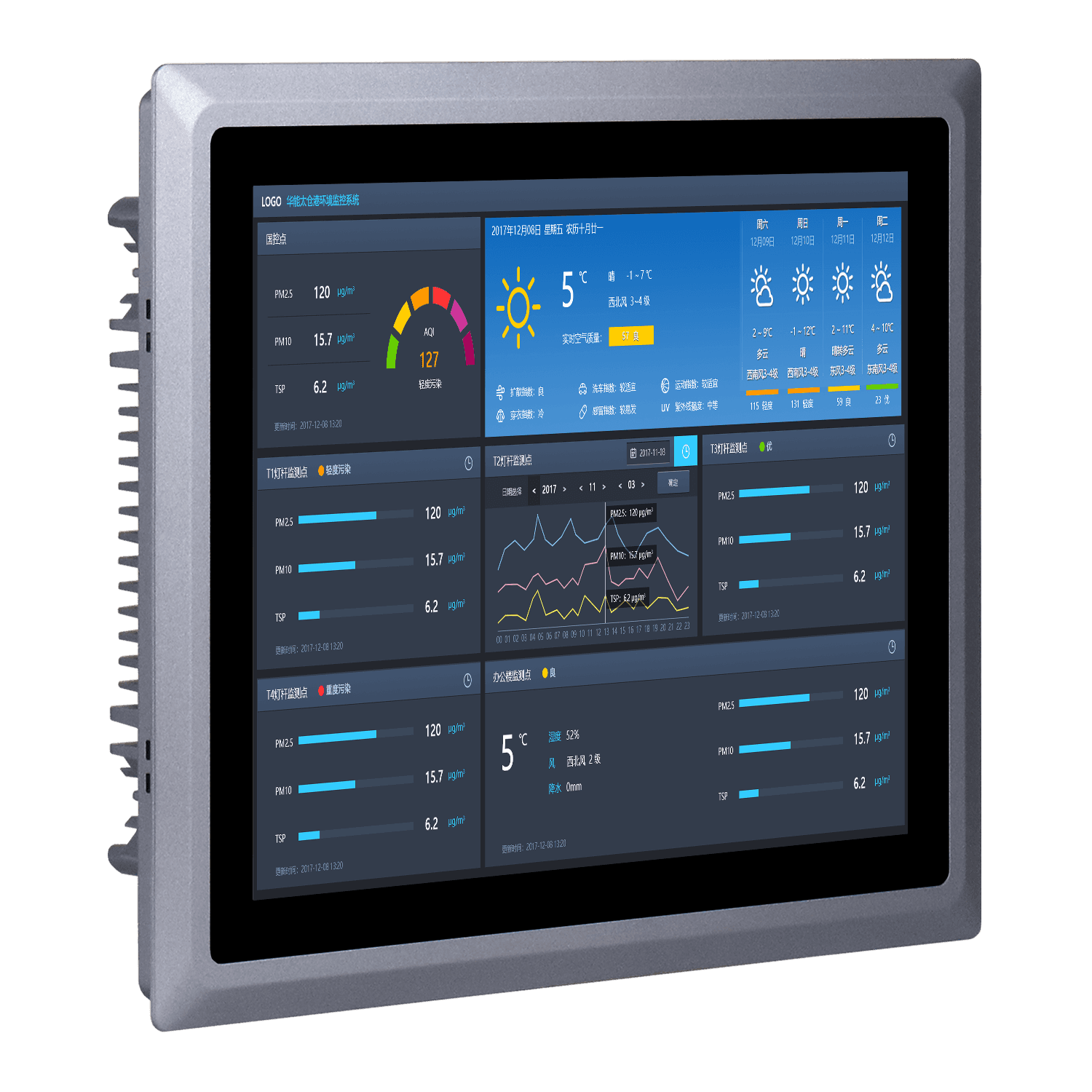

12.1 inch fanless embedded industrial panel PC SCP-K121SR – Intel Celeron J1900, 4G, 64G SSD – From $610.50
You save

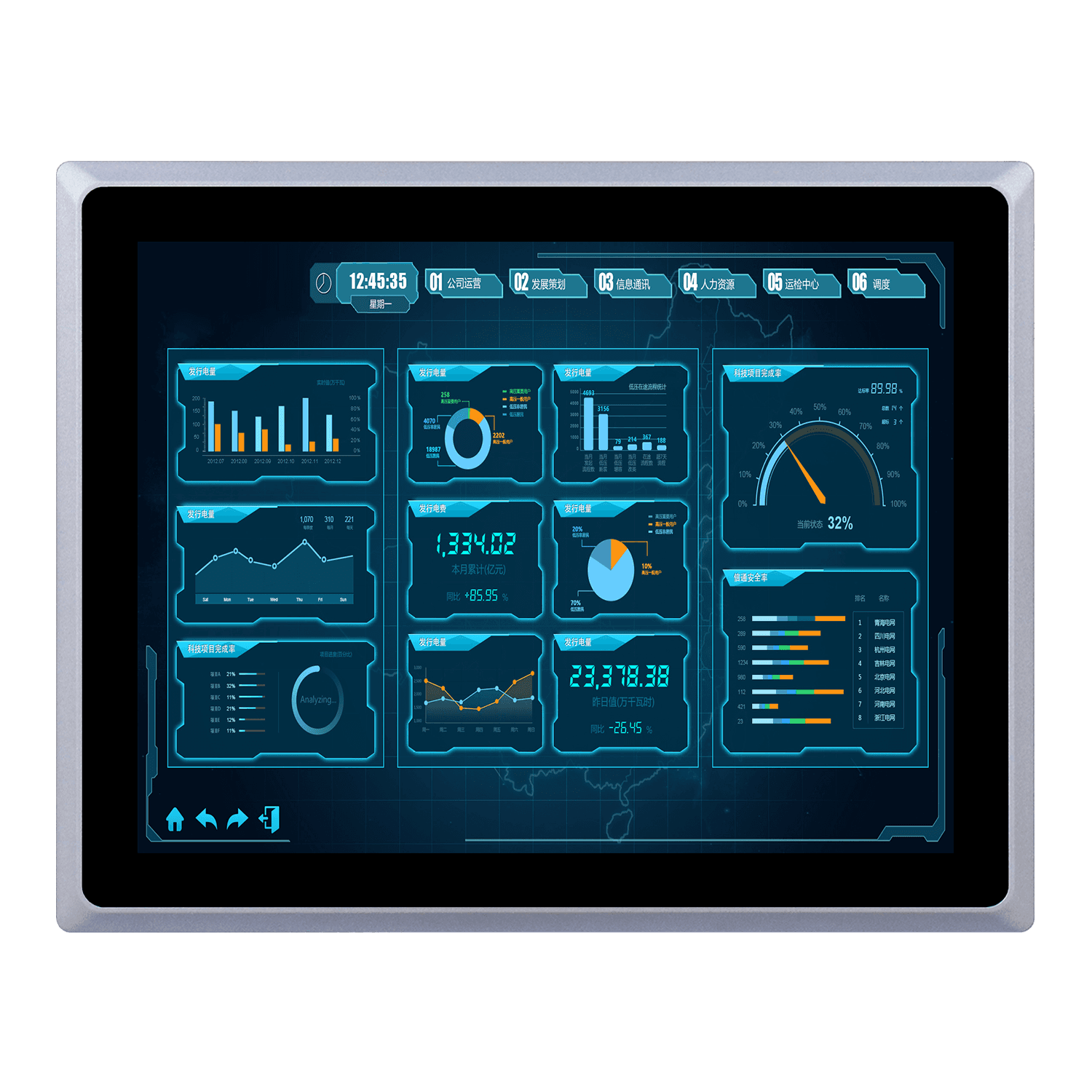

15 inch J1900 capacitive industrial panel PC SCP-K150SR – Intel Celeron J1900, 4G, 64G SSD – From $632.70
You save

Overview

SCP-D1215WR/WZ aluminum alloy industrial tablet PC is equipped with intel Celeron/Core processor, data storage supports mSATA, M.2, 2.5-inch SATA, rich COM (RS232/422/485), USB, LAN and other interfaces, expandable WIFI Bluetooth or 4G module, optional anti-vibration buffer waterproof adhesive strip to better prevent moisture from penetrating into the box, and has been widely used in industrial fields and embedded equipment. It is also equipped with HDMI or VGA video output for extended display, supporting Windows and Linux systems.

It supports a wide temperature range (-10 to 50°C) and its streamlined design ensures efficient heat dissipation and strong shock resistance, making it a reliable industrial platform with safe grounding components to protect equipment more effectively. Screen: 21.5-inch LED backlit industrial screen, aluminum alloy front panel meets IP65 waterproof standard, optional full-plane capacitive touch screen or resistive touch screen.

Embedded and VESA wall-mounted, desktop and other installation methods can be quickly and flexibly installed in various environments, and can be applied to industrial automation, military heavy industry, power communications, smart government affairs, medical education, visual logistics, advertising display, digital signage, smart city and other fields.

Specs

system	C P U	intel Celeron J1900/J4125/J6412、Core i3/i5/i7
	Display the core	intel HD Graphics
	Memory support	DDR3/4 SO-DIMM
	Hard disk support	mSATA/M.2/2.5寸SATA
	Network chips	Gigabit Ethernet
	Audio chips	Integrated (built-in dual speakers).
	operating system	Support Windows/Linux

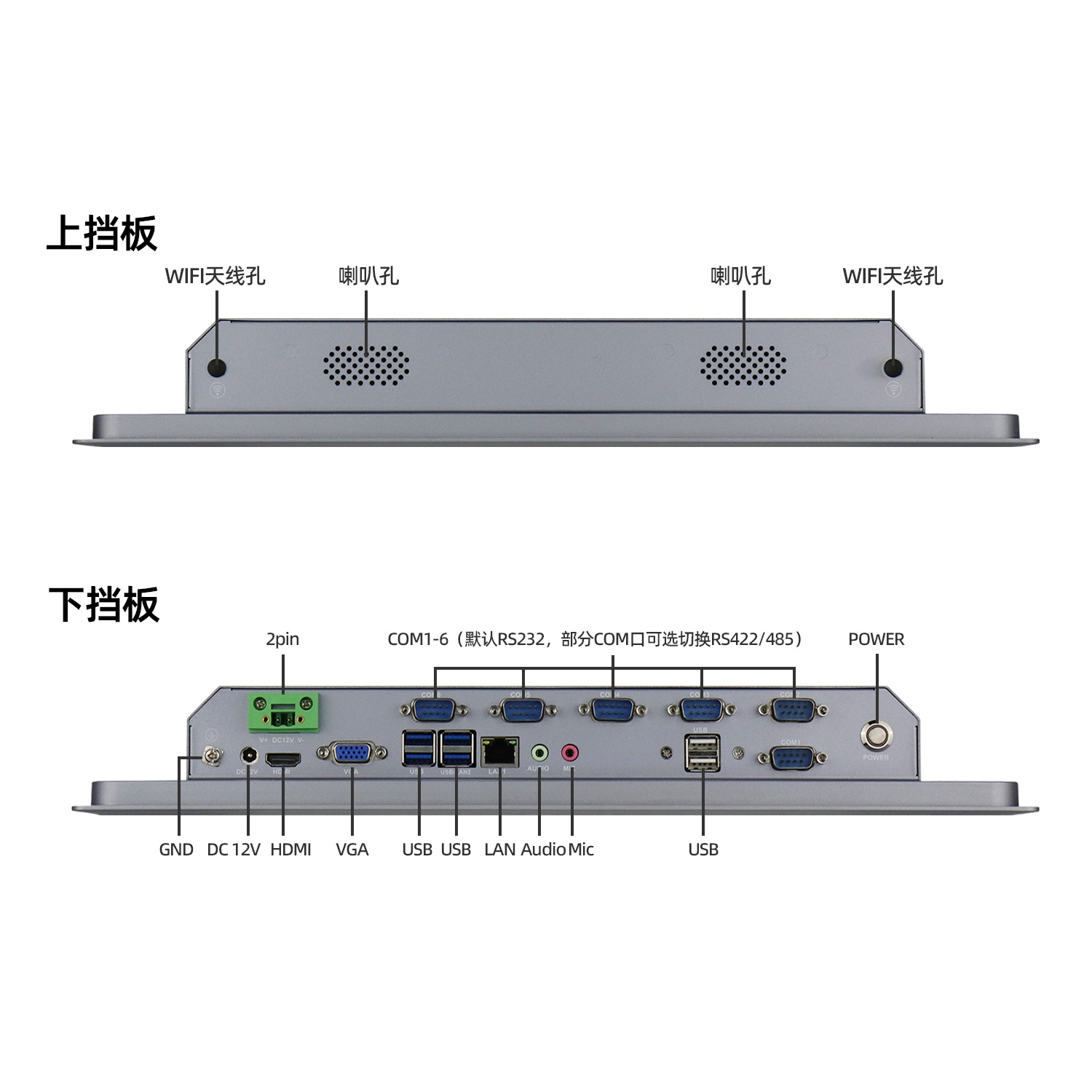

Interfaces	USB	6×USB
	Serial port	6×DB9 RS232 (optional 1-3 switching RS485/422)
	Ethernet port	1× LAN 1000Mbps (2 LAN ports optional).
	Extended display	1×VGA、1×HDMI
	Audio	1×Audio、1×Mic
	Electrical source	1×DC 12V、1×2pin
	Turn it off	1×Power
	Grounding	1×GND
	Wireless communications	1× MINI-PCIE (OPTIONAL EXPANSION WIFI/BLUETOOTH/4G MODULE).
Display	Screen type	21.5" LED, 16:9 widescreen
	Resolution	1920×1080 @60Hz
	Display colors	16.7M
	Degree of contrast	1000:1
	Screen brightness	300~500cd/㎡
	Viewing angle	Horizontal 160° / Vertical 150°
	Viewable area	478×270mm
Touch	Touch the screen	Available capacitive touch screen or resistive touch screen
	Support contacts	10-point touch or 1-point touch
	Surface hardness	≧7H or ≧4H
	Light transmittance	>87% or >79%
	Controllers	USB
Structure	Front panel	Aluminum alloy: 4 mm to thick, 2mm to thin
	Ingress protection	The front panel is IP65 waterproof and dustproof
	Chassis material	Galvanized steel SECC with ground terminal
	Heat dissipation	Fanned or fanless
	Power Specifications	DC 12V power adapter
	Installation:	Embedded, VESA mount type (100×100mm))

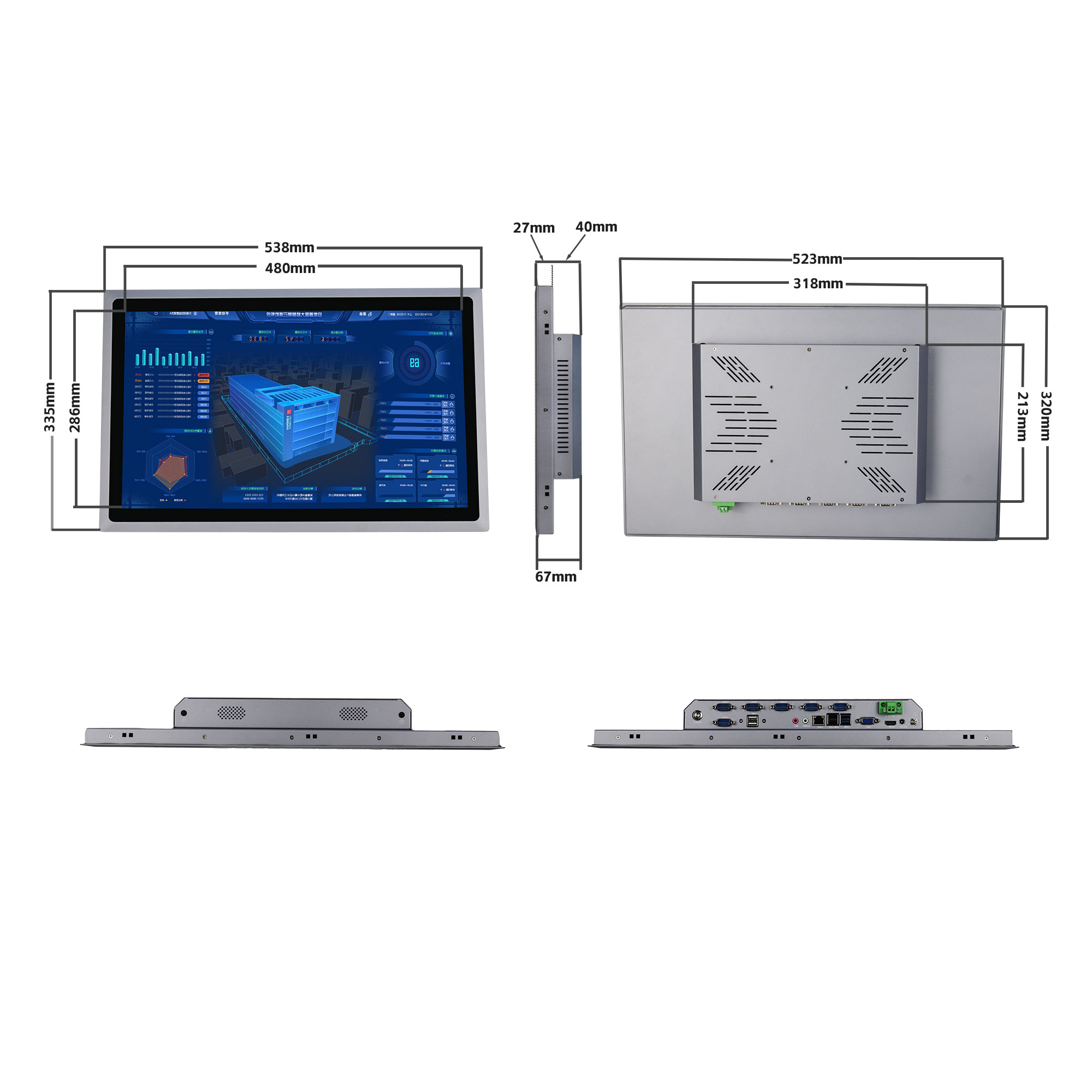

	Product dimensions	538×335×67mm
	Embedded cut-outs	523×320mm
	Package size	655×455×155mm
	Product color	Silver（grayish tint）
	Product weight	Net weight 7.8kg，gross weight 9.5kg
Environment	Interference resistance	EMI/EMC interference detection standards
	ESD static electricity	The contact discharge ± 8KV, the air discharge ± 15KV
	Vibration resistance	5~500Hz, 2Grms random vibration
	Shock resistant	Working Status: 10G@11ms, Non-Working Status: 20G@11ms
	Working environment	-20℃～60℃
	Storage environment	-20℃～70℃
	relative humidity	10%~90% (no condensation).
