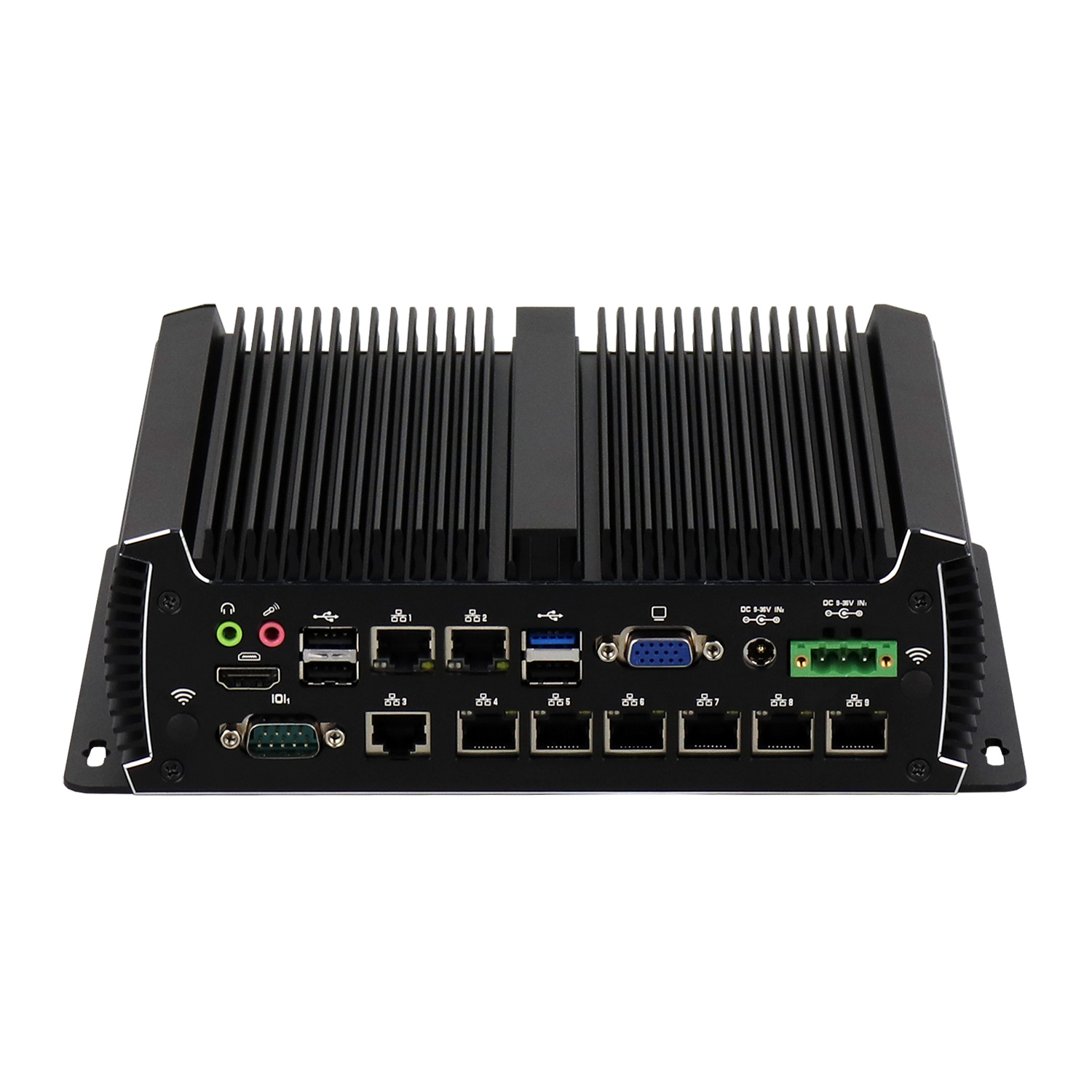

8Net POE embedded industrial computer SCI-S5100P4

8Net POE embedded industrial computer SCI-S5100P4 - Image 2

8Net POE embedded industrial computer SCI-S5100P4 - Image 3

8Net POE embedded industrial computer SCI-S5100P4 - Image 4

8Net POE embedded industrial computer SCI-S5100P4 - Image 5

8Net POE embedded industrial computer SCI-S5100P4 - Image 6

8Net POE embedded industrial computer SCI-S5100P4 - Image 7

8Net POE embedded industrial computer SCI-S5100P4 - Image 8

8Net POE embedded industrial computer SCI-S5100P4 - Image 9

-61%

360

8Net POE embedded industrial computer SCI-S5100P4

0 Reviews Write a review

Product codeSCI-S5100P4

Availability In Stock

Estimated delivery dates: Apr 4, 2025 - Apr 8, 2025

$490.36 – $1,029.10
You save

Support intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
Support 1-2 SO-DIMM DDR3/4 memory slots, 2.5-inch SATA hard disk, mSATA, M.2 solid state drive
Support independent dual display, 1*HDMI and 1*VGA display output
Support 8* WGI211AT Gigabit LAN, LAN3~6 support POE function
Support 1* DB9 RS232 serial interface, support RS485/232 switching, 1* RJ45 serial port, support RS485/422 switching
Support 1*12PIN phoenix terminal, four-in and four-out GPIO, switch, 5V
Support 4*USB3.0 interface, 3*USB2.0 interface
The power supply supports wide voltage 9~36V input
Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
fanless heat dissipation structure, all aluminum alloy material supports embedded, wall-mounted, and desktop installation

Total：

Processor

Memory

Hard disk

Color

Clear

Ask about product

TagsEmbedded IPC, microcomputer, Mini PC, Soft routing

Overview

SCI-S5100P4 fanless embedded industrial computer is equipped with Intel Celeron/Core processor, supports DDR3/4 memory, and is 2.5-inch SATA, mSATA, M. 2 Storage provides a variety of options. It is equipped with a wealth of interfaces and buttons, supports independent dual-display, HDMI or VGA optional, 8 WGI211AT gigabit network cards, LAN3~6 supports POE function, built-in 1 USB interface, 1 DB9 RS232 serial interface, supports RS485/232 switching, 1 RJ45 application port, supports RS485/232 switching, 1 RJ45 application port, supports RS485/232 switching, 1 RJ45 application port, supports RS485/232 switching, 1 RJ45 application port, supports RS485/232 switching, 1 RJ45 application port, supports RS485/232 switching,422 switch; support 9~36V wide voltage input, expandable WIFI/Bluetooth/4G module, support Windows and Linux systems.

The aluminum alloy shell of the whole machine is strong and durable. The aluminum fin design quickly dissipates heat from the host. The internal cable is fanless and the fully enclosed structure effectively prevents dust from entering, ensuring the stable operation of the host in a wide temperature (-10~60℃) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible to install, and can be applied to industrial control, transportation, self-service terminals, security machine vision, mini servers, smart cities and other fields.

Specs

system	C P U	intel J1900 / 5205U / J4125 / J6412 / i3-5020U / i5-4310U / i5-6300U / i7-6650U / i5-7200U / i5-7360U / i7-7500U / i5-8265U / i7-8565U / i5-10210U
	Display chips	Intel core graphics
	Memory support	SO-DIMM DDR3/DDR4
	Hard disk support	mSATA/M.2 SSD/2.5" SATA HDD
	Network card chip	8* Intel® WGI211AT Gigabit LAN, support Wake-on-LAN and PXE function, LAN3~6 support POE function
	Audio chips	integration
	Power supply characteristics	9~36V wide voltage, external power adapter or open frame power supply
	Wireless communications	Mini-PCIE slot (support WIFI/4G module, Note: WIFI and LAN8 are two options, the default LAN8)
	operating system	Support Windows/Linux
	B I O S	It supports power-on, timed boot, network wake-up, and diskless boot
	Watchdog	Watchdog supports hardware reset (256 levels, 0~255 seconds)

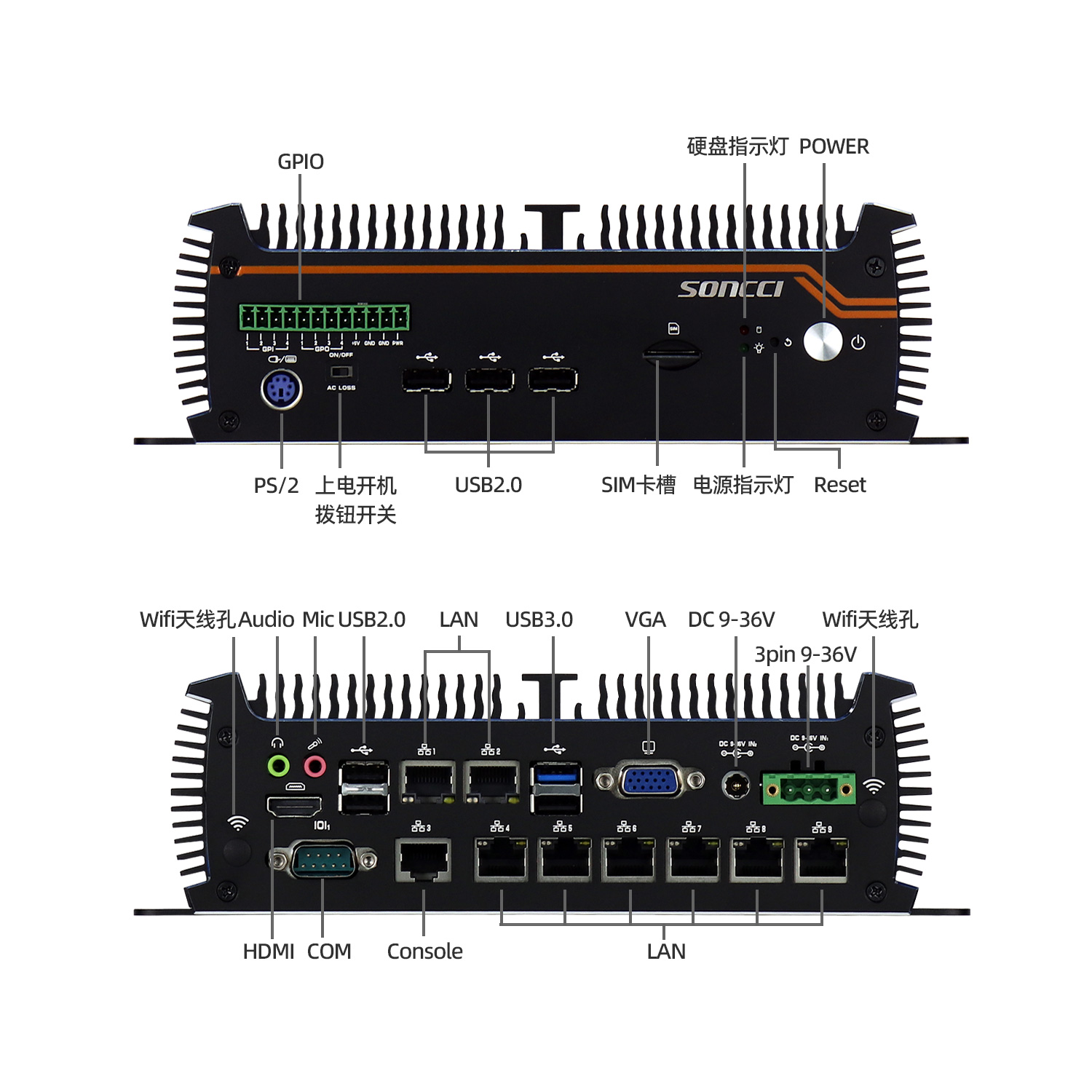

interface	I/O interface	7×USB、1×HDMI、1×VGA、8×LAN、1×Audio、1×Mic、1x RS232、1×GPIO、1×DC、1×Power、1×Reset、1×Power LED、1×HDD LED、1XPS/2
interface	Extended interfaces	1×SIM external card slot, 1× Mini-PCIE

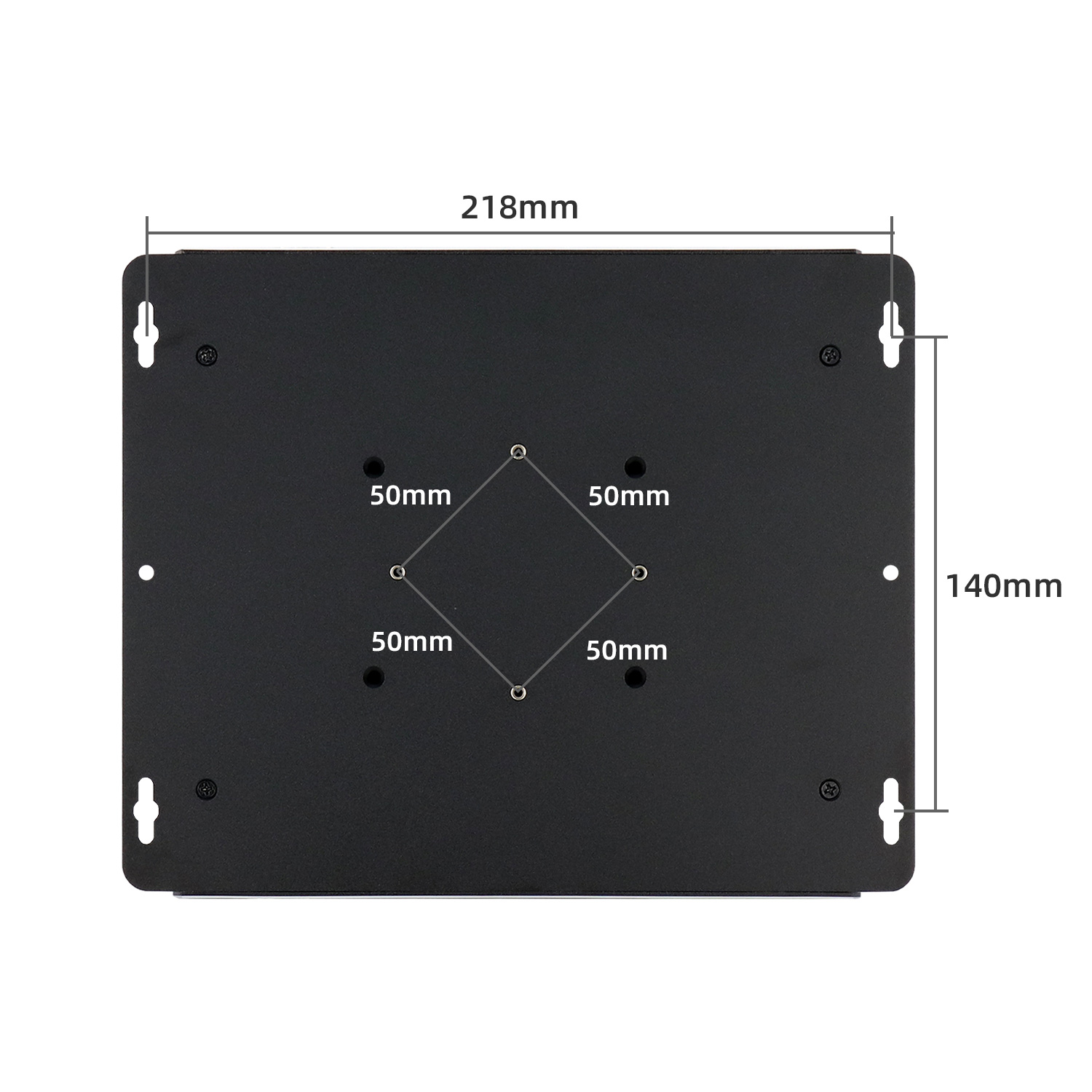

structure	Installation	Support embedded, wall-mounted, and desktop mounting

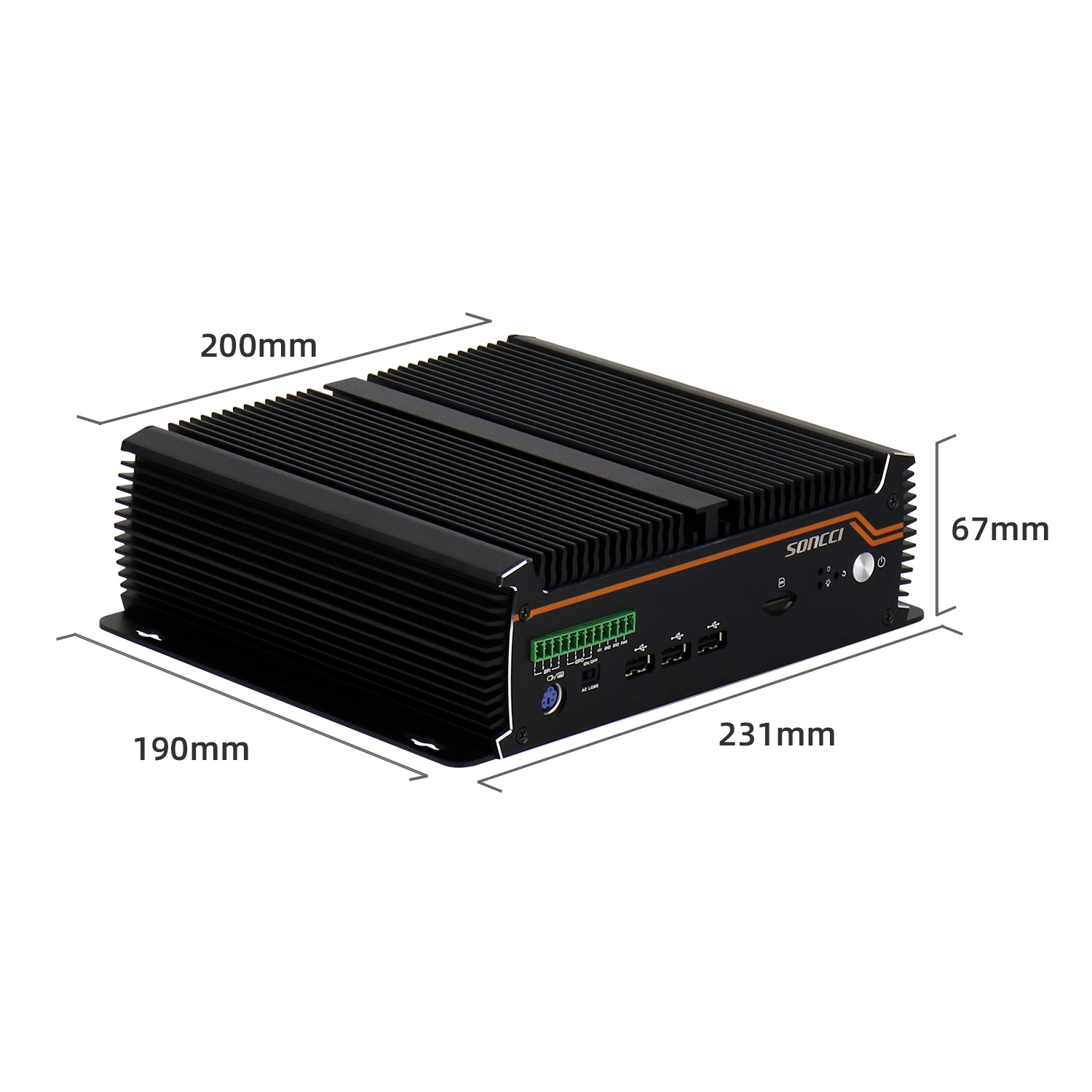

	Product dimensions	Main engine 231×190×67mm, packing: 305×305×135mm
	Product weight	Net weight 19kg, gross weight 3.0kg
	Material color	Aluminum alloy chassis, main unit color: black
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
