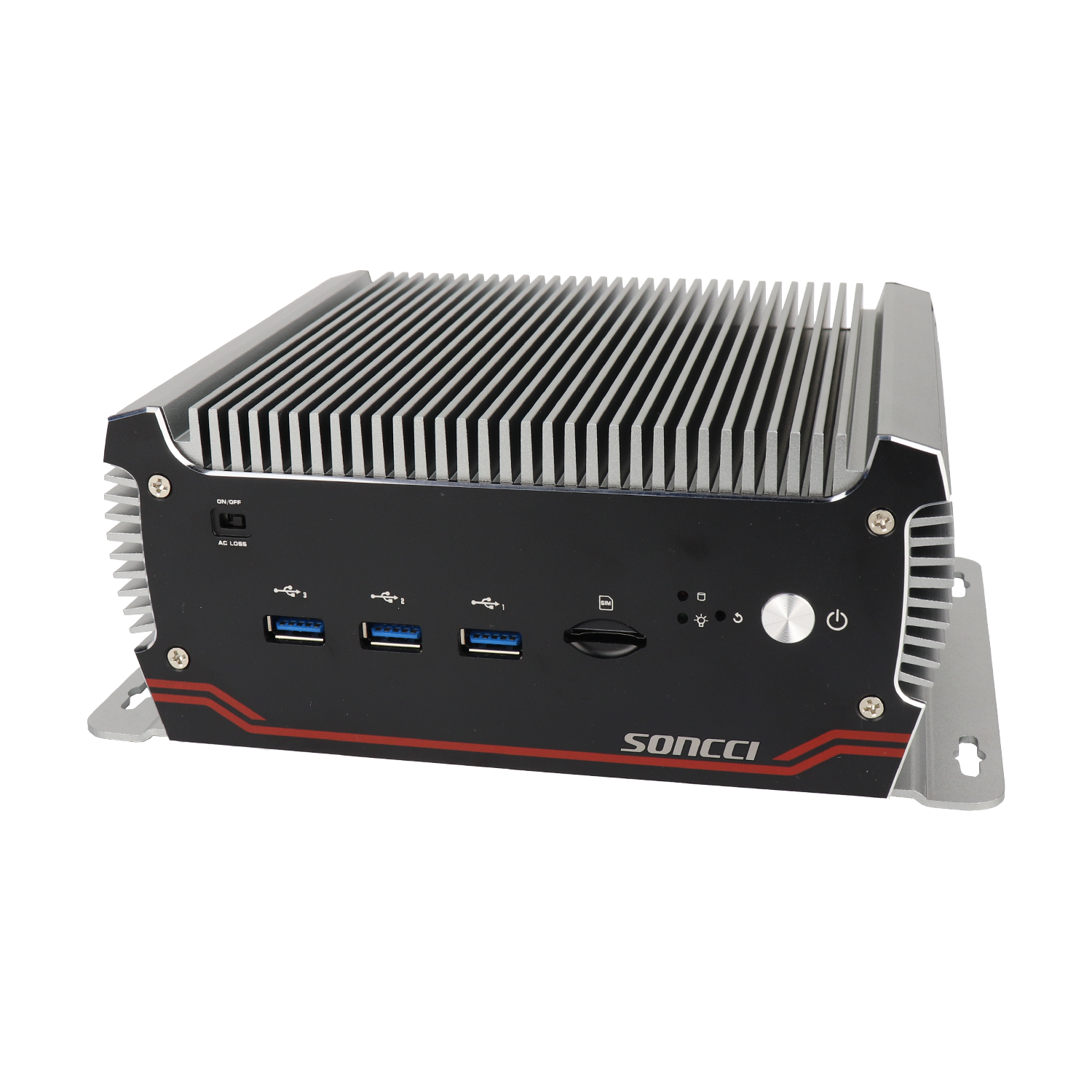

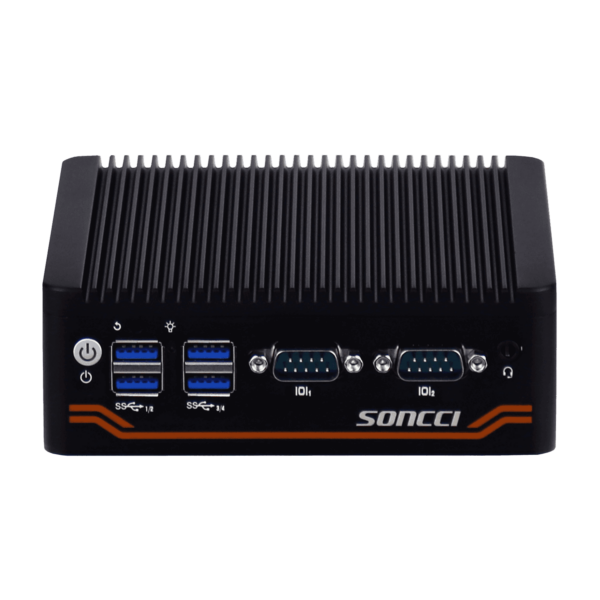

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer

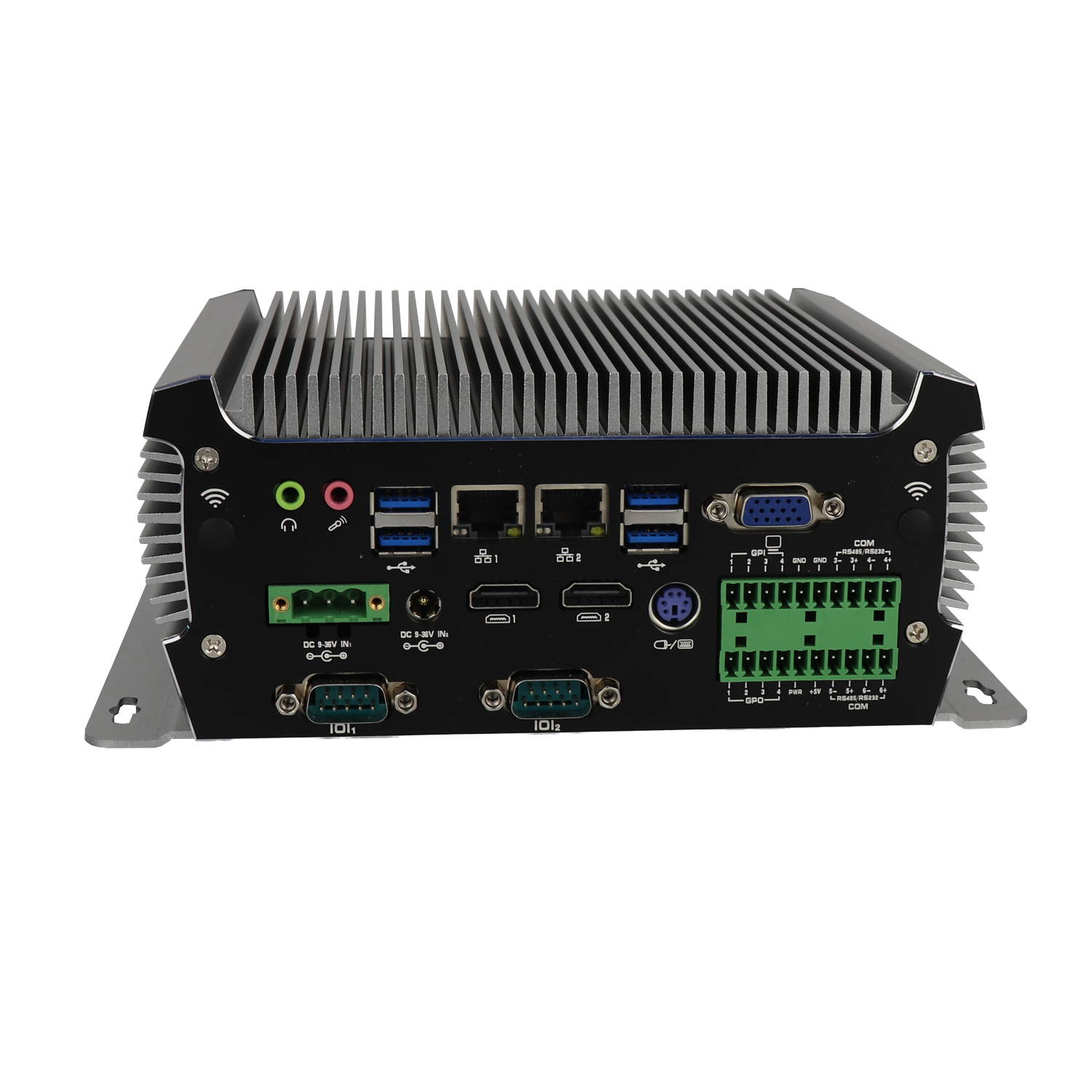

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer - Image 2

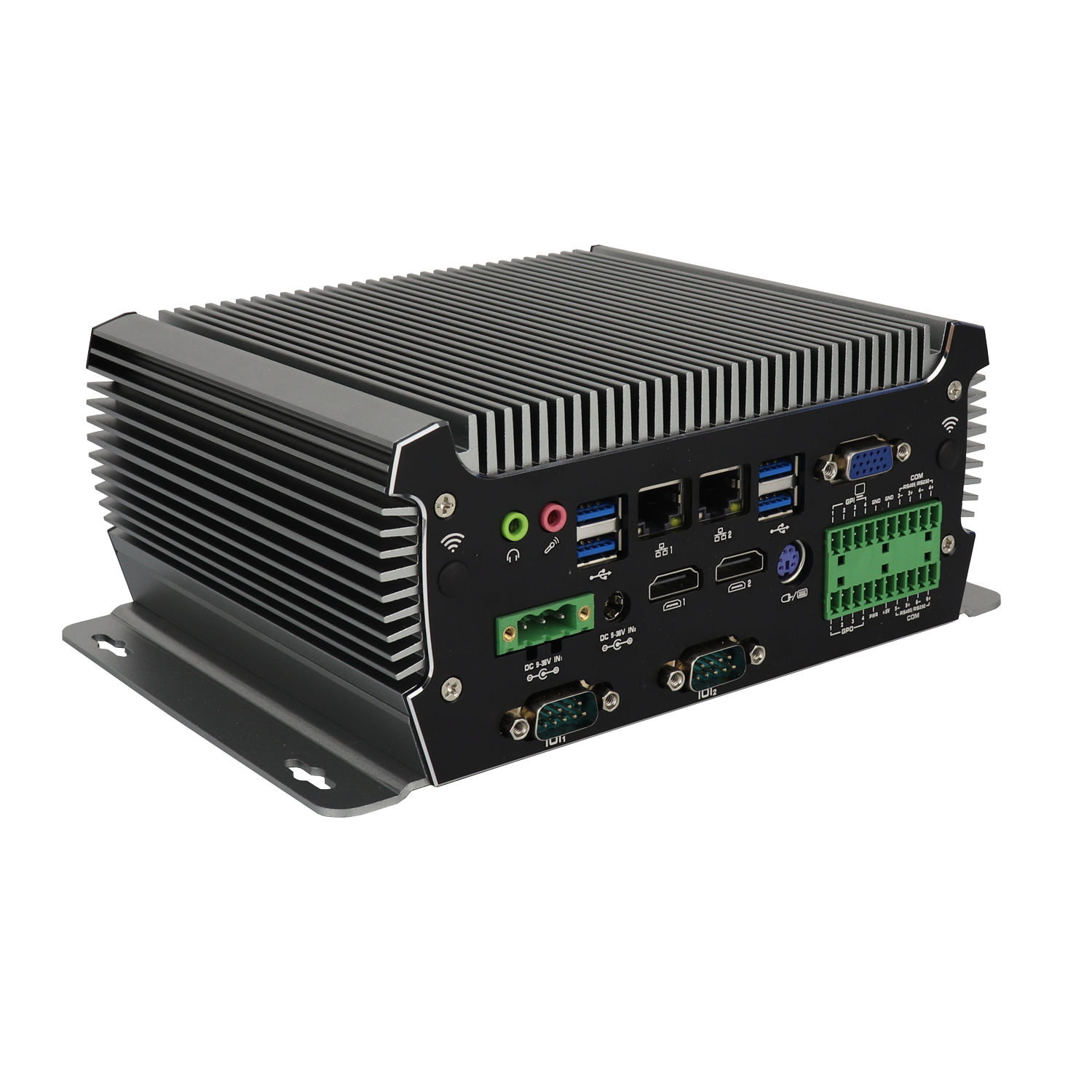

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer - Image 3

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer - Image 4

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer - Image 5

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer - Image 6

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer - Image 7

-59%

Video 360

SCI-S4000H2 Dual HDMI triple display wide-voltage embedded industrial computer

0 Reviews Write a review

Product codeSCI-S4000H2

Availability In Stock

Estimated delivery dates: Apr 4, 2025 - Apr 8, 2025

$340.30 – $684.70
You save

● Support intel Celeron/Core i3, i5, i7 processors, integrated intel HD graphics
● Supports 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard drive, mSATA, M.2 SSD
● Support HDMI+HDMI+VGA three display outputs, support 2 Gigabit Ethernet ports
● It supports 9~36V wide voltage input, supports 6 COM ports, of which 2 DB9 interfaces support RS232, and 4 RS232/485 Phoenix terminals, and do optoelectronic isolation
● Support power-on toggle switch, 2*10pin phoenix terminal, including quad input and four output GPIO/with isolation/switch/5V
● It supports embedded/wall-mounted/desktop installation, and the aluminum alloy of the chassis is fanless, fully sealed and dust-proof, and the design is stable and reliable

Buy 1 - 9 pieces

~~$438.00~~

$359.16

Total:

$438.00

Buy 10 - 49 pieces

~~$438.00~~

$341.64

Total:

Buy 50 - 99 pieces

~~$438.00~~

$328.50

Total:

Buy 100+ pieces

~~$438.00~~

$315.36

Total:

Total：

Processor

Memory

Hard disk

Color

Clear

Ask about product

TagsEmbedded IPC, Mini PC

Overview

The SCI-S4000H2 fanless embedded computer is powered by intel Celeron/Core processors, supports DDR3/4 memory, and offers a variety of options in 2.5-inch SATA, mSATA, and M.2 storage. Support HDMI+HDMI+VGA three display output, it is equipped with a wealth of interfaces and buttons, LAN, COM RS232/485, USB, GPIO, power-on toggle switch, SIM card slot, etc., expandable WIFI/Bluetooth/4G module, support Windows and Linux system.

The aluminum alloy shell of the whole machine has strong strength, the aluminum fin design quickly dissipates the heat of the host, and the internal cable-free fanless and fully enclosed structure effectively prevents dust from entering, ensuring the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible for installation, which can be applied to industrial control, transportation, self-service terminals, security machine vision, mini servers, smart cities and other fields.

Specs

system	C P U	intel J1900 / 5205U / J4125 / J6412 / i3-5020U / i5-4310U / i5-6300U / i7-6650U / i5-7200U / i5-7360U / i7-7500U / i5-8265U / i7-8565U / i5-10210U
	Display chips	Intel core graphics
	Memory support	SO-DIMM DDR3/DDR4
	Hard disk support	mSATA/M.2 SSD/2.5" SATA HDD
	Network card chip	Intel i211 Gigabit LAN card
	Audio chips	integration
	Power supply characteristics	9~36V wide voltage, external power adapter or open frame power supply
	Wireless communications	Mini-PCIE slot (*optional WIFI/Bluetooth/4G module).
	operating system	Support Windows/Linux
	B I O S	It supports power-on, timed boot, network wake-up, and diskless boot
	Watchdog	The watchdog supports hardware reset (256 levels, 0~255 seconds).

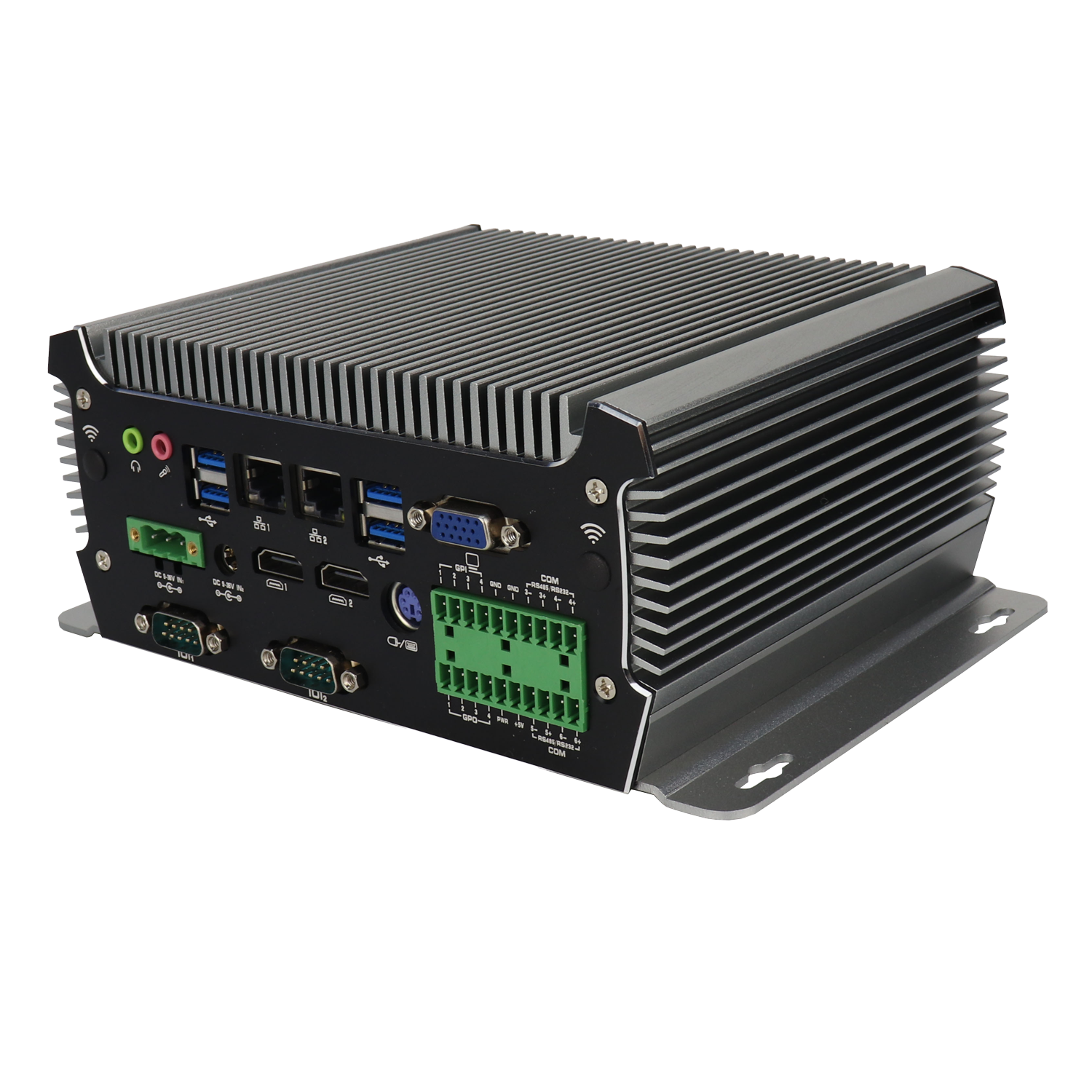

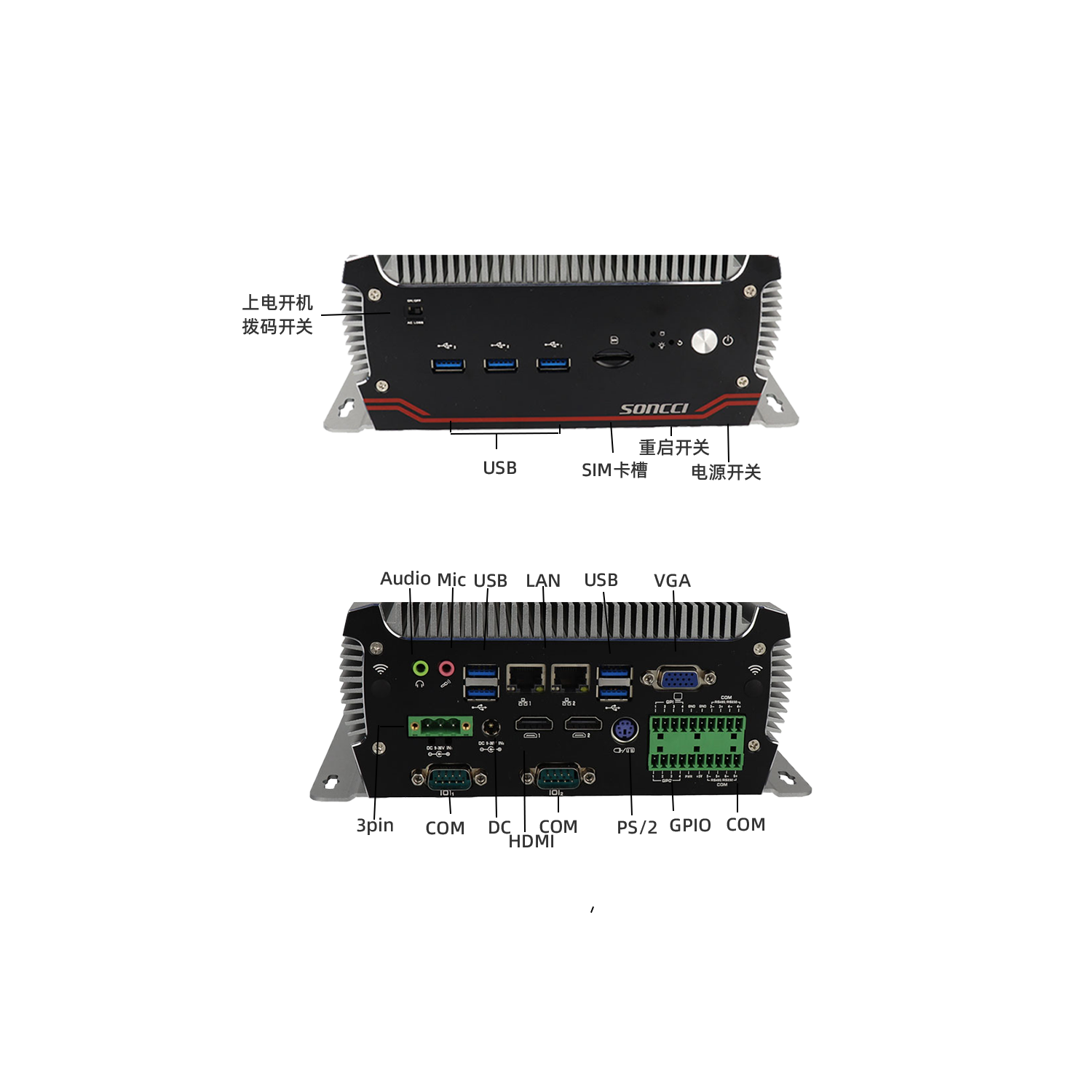

interface	I/O interface	7×USB、2×HDMI、1×VGA、2×LAN、1×PS/2、1×Audio、1×Mic、6×COM、1×AC LOSS、1×GPIO、1×DC、1*3pin、1×Power、1×Reset、1×Power LED、1×HDD LED
interface	Extended interfaces	1×SIM external card slot, 1× Mini-PCIE

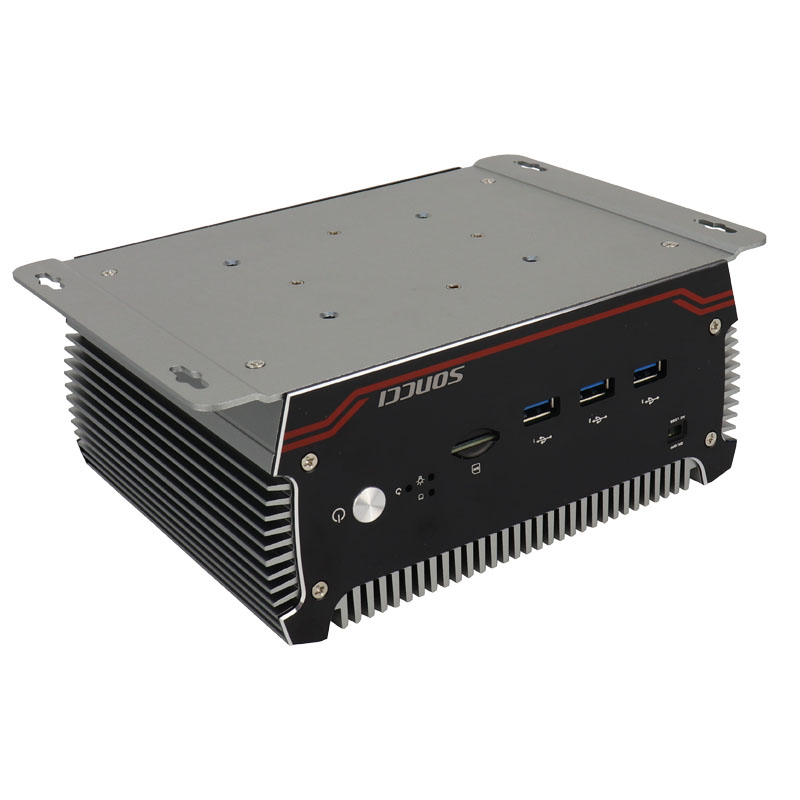

structure	Installation	Support embedded, wall-mounted, and desktop mounting

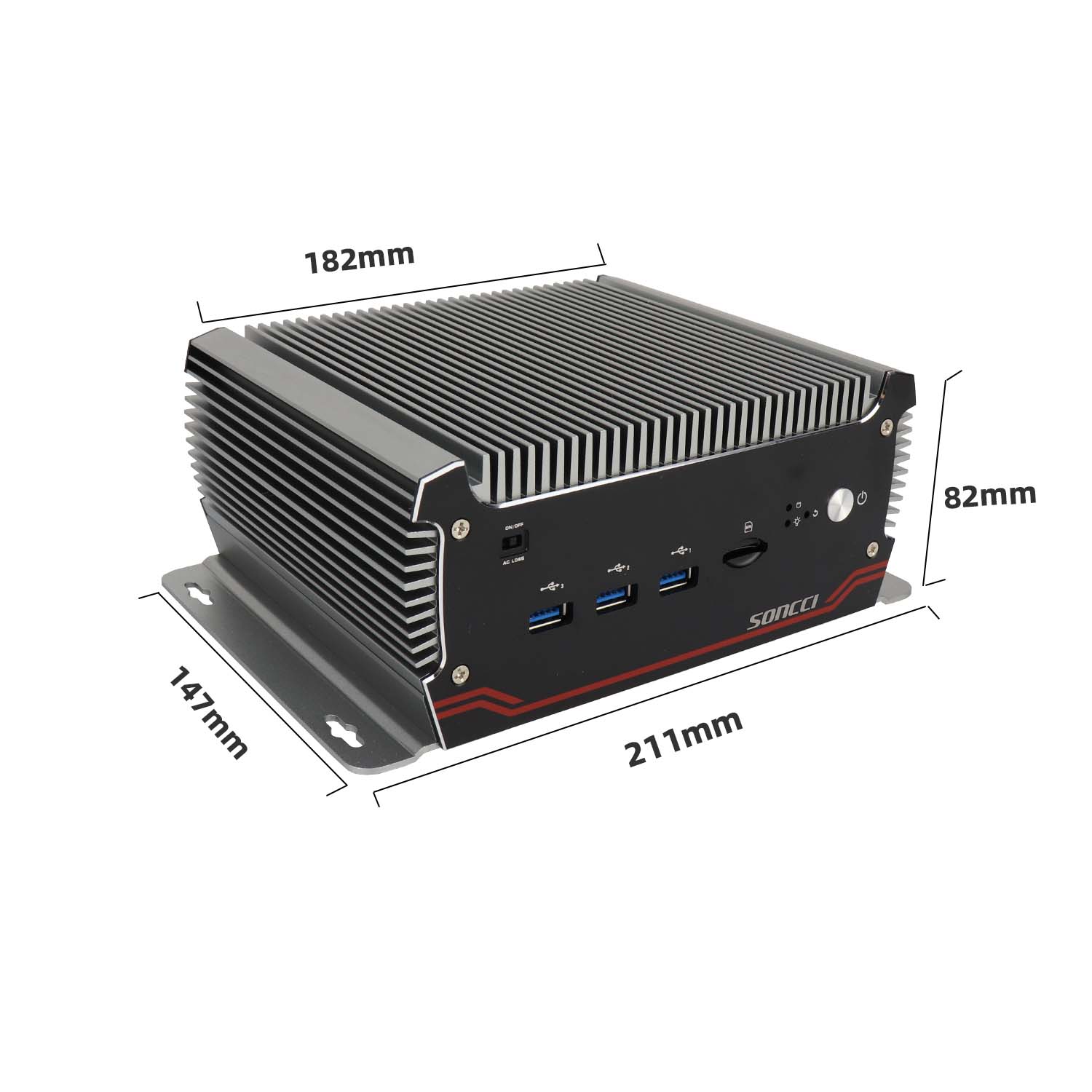

	Product dimensions	The main engine is 211×147×82mm, packing: 305×305×135mm
	Product weight	Net weight 1.8kg, gross weight: 2.8kg
	Material color	Aluminum alloy chassis, main unit color: black and silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
