SCI-S5010C6 Dual network port 6 serial port GPIO fanless embedded computer

0 Reviews Write a review

Product codeSCI-S5010C6

Availability In Stock

Estimated delivery dates: Apr 4, 2025 - Apr 8, 2025

$331.28 – $651.08
You save

Support intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
Support 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard disk, mSATA, M.2 solid state drive
2 Gigabit Ethernet ports, support network wake-up, diskless boot, with SIM card slot, optional WIFI/Bluetooth/4G module
6 RS232 DB9 COM serial interfaces, COM5/6 support RS485 switching, HDMI+VGA dual display output
1 x 12pin Phoenix terminal (including 4 input and 4 out GPIO/switch/5V), external power-on toggle switch, 9-36V wide voltage input
Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
Support Watchdog hardware reset, support embedded, wall-mounted, desktop installation

Buy 1 - 9 pieces

~~$404.00~~

$331.28

Total:

$404.00

Buy 10 - 49 pieces

~~$404.00~~

$315.12

Total:

Buy 50 - 99 pieces

~~$404.00~~

$303.00

Total:

Buy 100+ pieces

~~$404.00~~

$290.88

Total:

Total：

Processor

Memory

Hard disk

Color

Clear

Ask about product

TagsEmbedded IPC, Mini PC

Overview

The SCI-S5010C6 fanless embedded computer is powered by intel Celeron/Core processors, supports DDR3/4 memory, and offers a variety of options in 2.5-inch SATA, mSATA, and M.2 storage. It is equipped with a wealth of interfaces and buttons, including LAN, COM RS232/485, USB, GPIO, power-on toggle switch, SIM card slot, HDMI+VGA dual display, etc., supports DC input from 9-36V wide voltage range, expandable WIFI/Bluetooth/4G module, and supports Windows and Linux systems.

The aluminum alloy shell of the whole machine has strong strength, the aluminum fin design quickly dissipates the heat of the host, and the internal cable-free fanless and fully enclosed structure effectively prevents dust from entering, ensuring the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible for installation, which can be applied to industrial control, transportation, self-service terminals, security machine vision, mini servers, smart cities and other fields.

Specs

system	C P U	intel J1900 / 5205U / J4125 / J6412 / i3-5020U / i5-4310U / i5-6300U / i7-6650U / i5-7200U / i5-7360U / i7-7500U / i5-8265U / i7-8565U / i5-10210U
	Display chips	Intel core graphics
	Memory support	SO-DIMM DDR3/DDR4
	Hard disk support	mSATA/M.2 SSD/2.5" SATA HDD
	Network card chip	Intel i211 Gigabit LAN card
	Audio chips	integration
	Power supply characteristics	9~36V wide voltage, external power adapter or open frame power supply
	Wireless communications	Mini-PCIE slot (*optional WIFI/Bluetooth/4G module).
	operating system	Support Windows/Linux
	B I O S	It supports power-on, timed boot, network wake-up, and diskless boot
	Watchdog	The watchdog supports hardware reset (256 levels, 0~255 seconds).

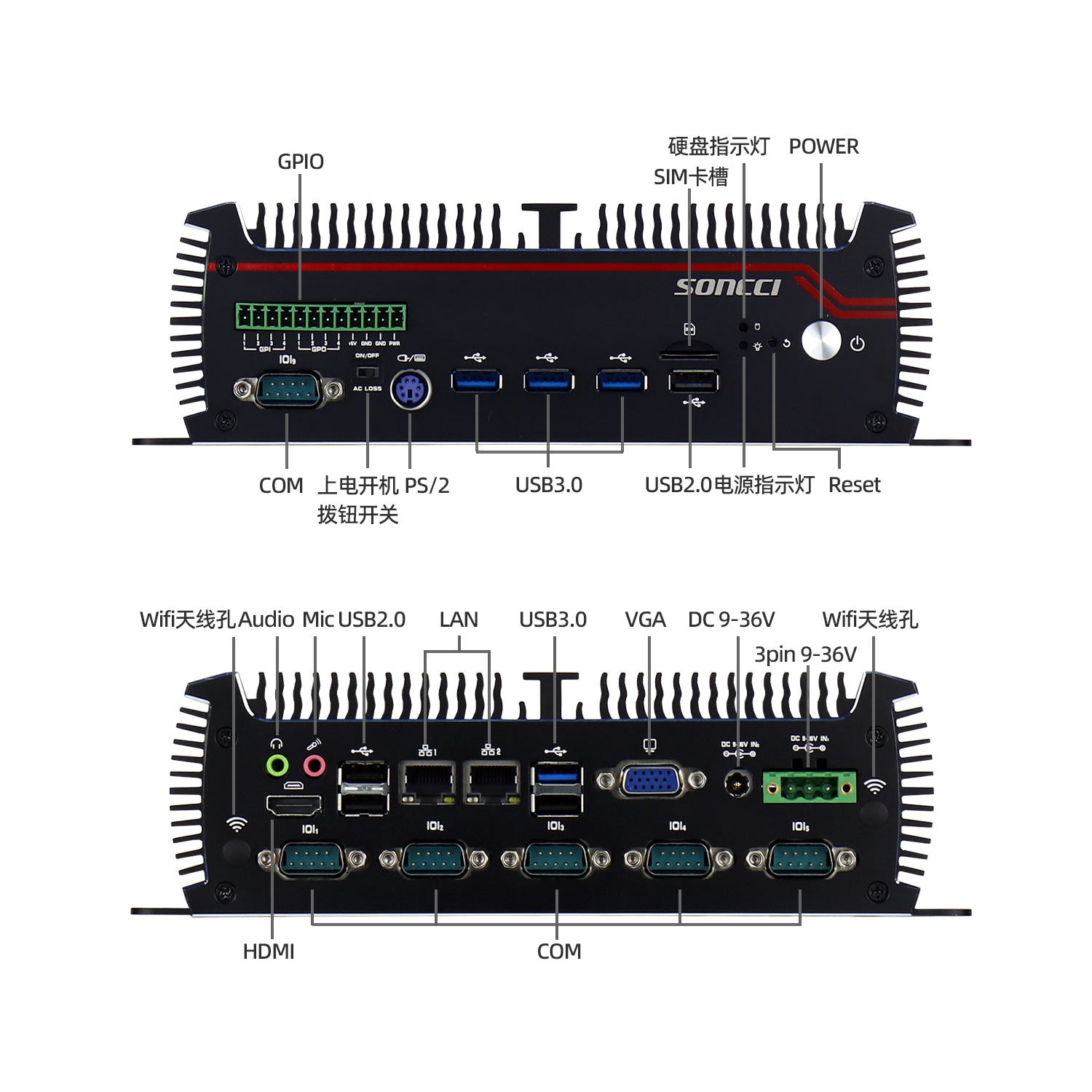

interface	I/O interface	8×USB、1×HDMI、1×VGA、2×LAN、1×Audio、1×Mic、6×COM、1×AC LOSS、1×GPIO、1×DC、1×Power、1×Reset、1×Power LED、1×HDD LED、1XPS/2
interface	Extended interfaces	1×SIM external card slot, 1× Mini-PCIE

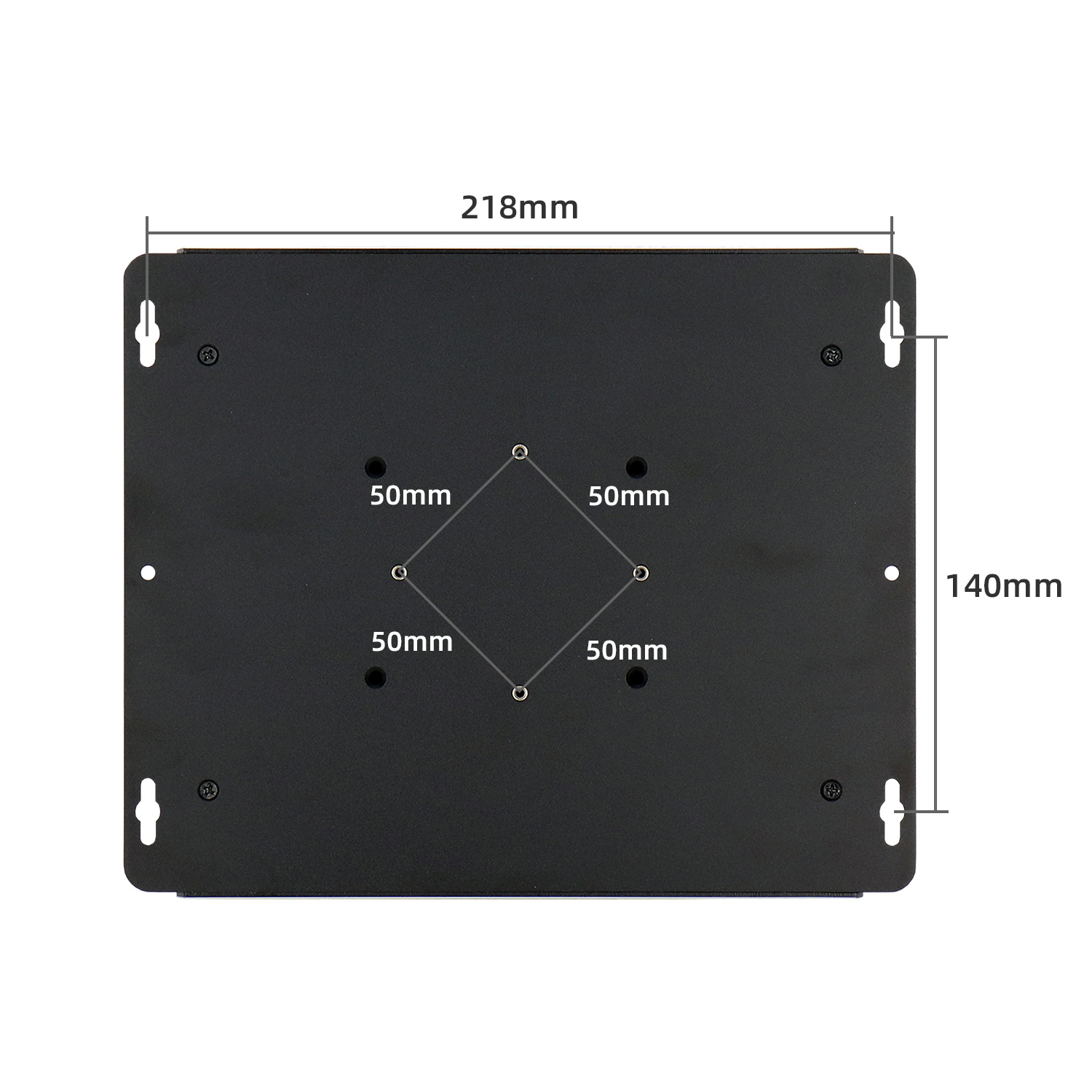

structure	Installation	Support embedded, wall-mounted, and desktop mounting

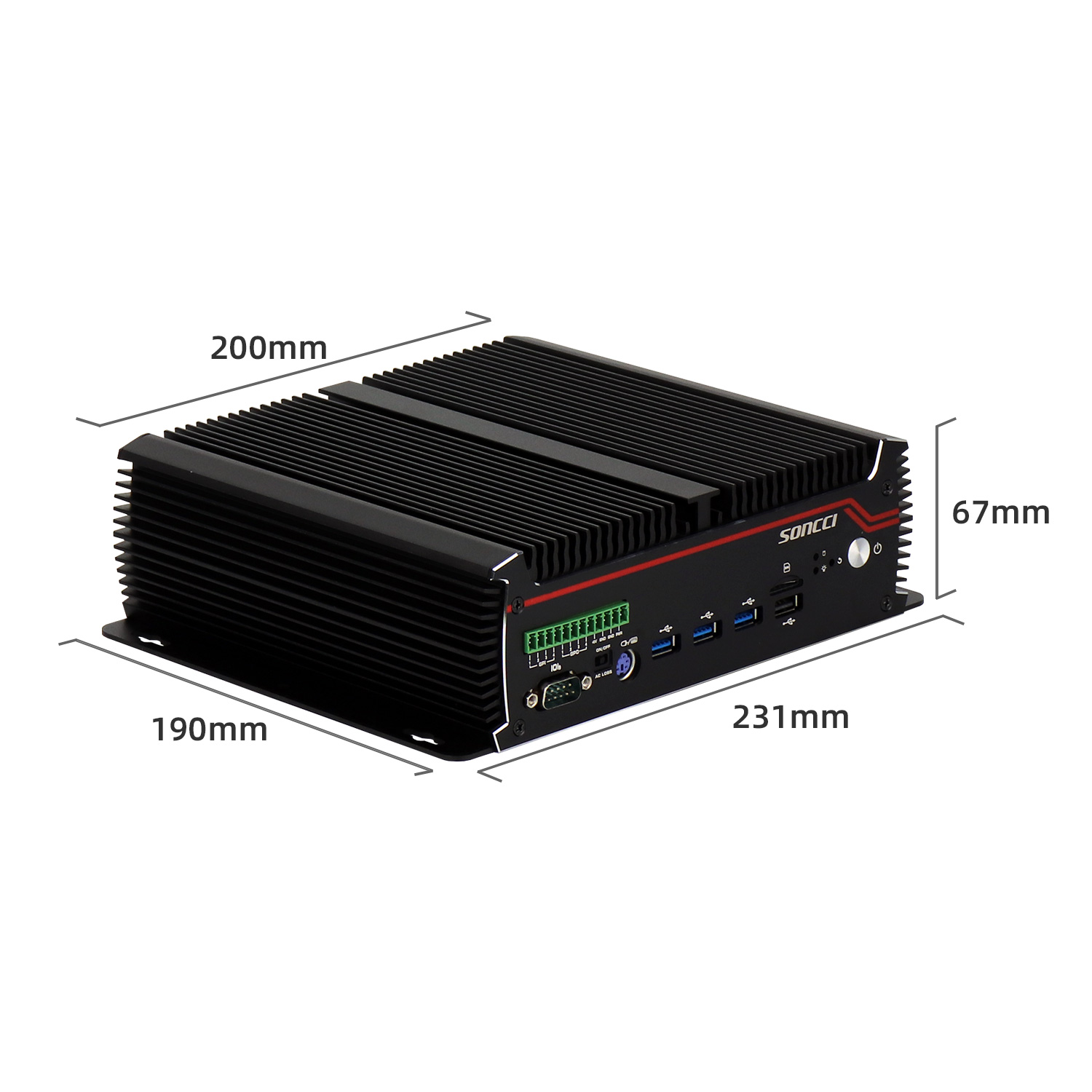

	Product dimensions	Main engine 231×190×67mm, packing: 305×305×135mm
	Product weight	Net weight 19kg, gross weight 3.0kg
	Material color	Aluminum alloy chassis, main unit color: black
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
