Fanless wall-mounted Box PC Linux
$210.00 – $315.00
● Support intel Core i3, i5, i7 processors, integrated intel core graphics card
● Support 1 SO-DIMM DDR3 memory slot, 2.5-inch SATA hard disk, mSATA solid state drive
● 2 Gigabit Ethernet ports, support network wake-up, diskless boot, SIM built-in card slot, optional WIFI/Bluetooth/4G module

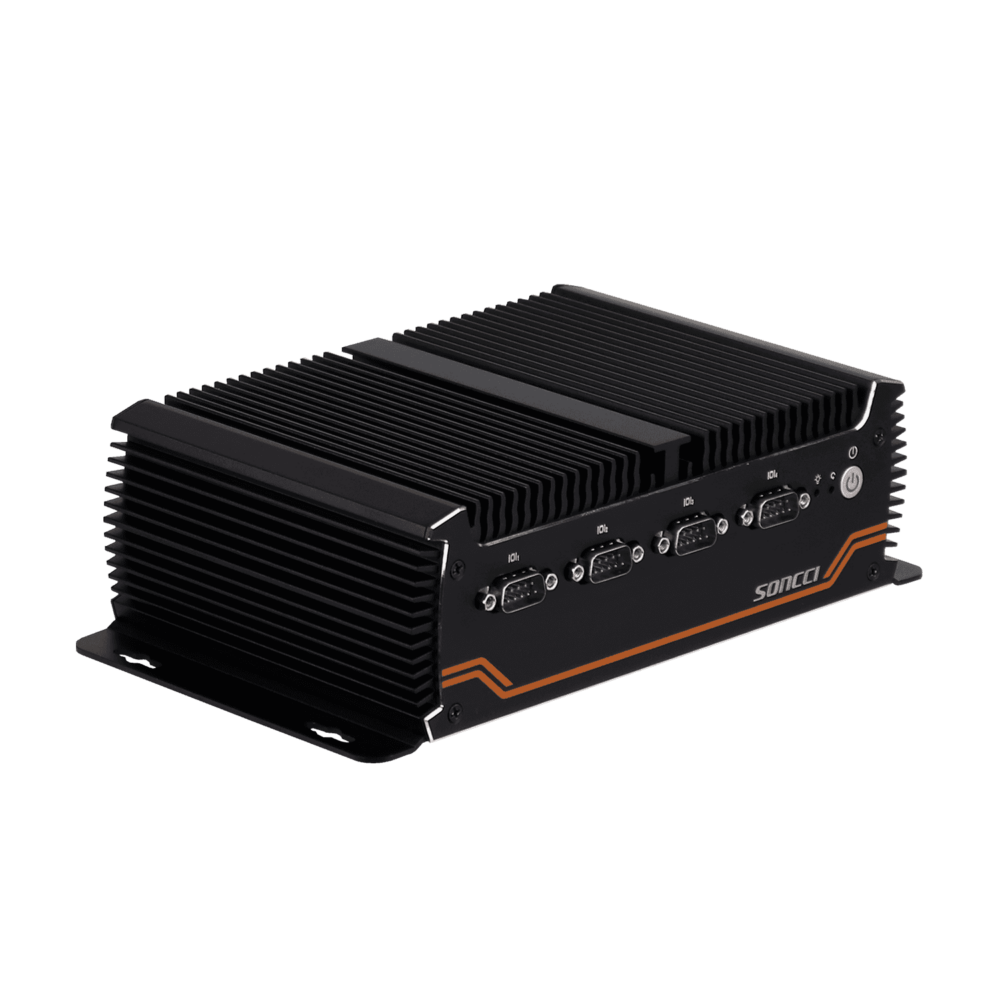

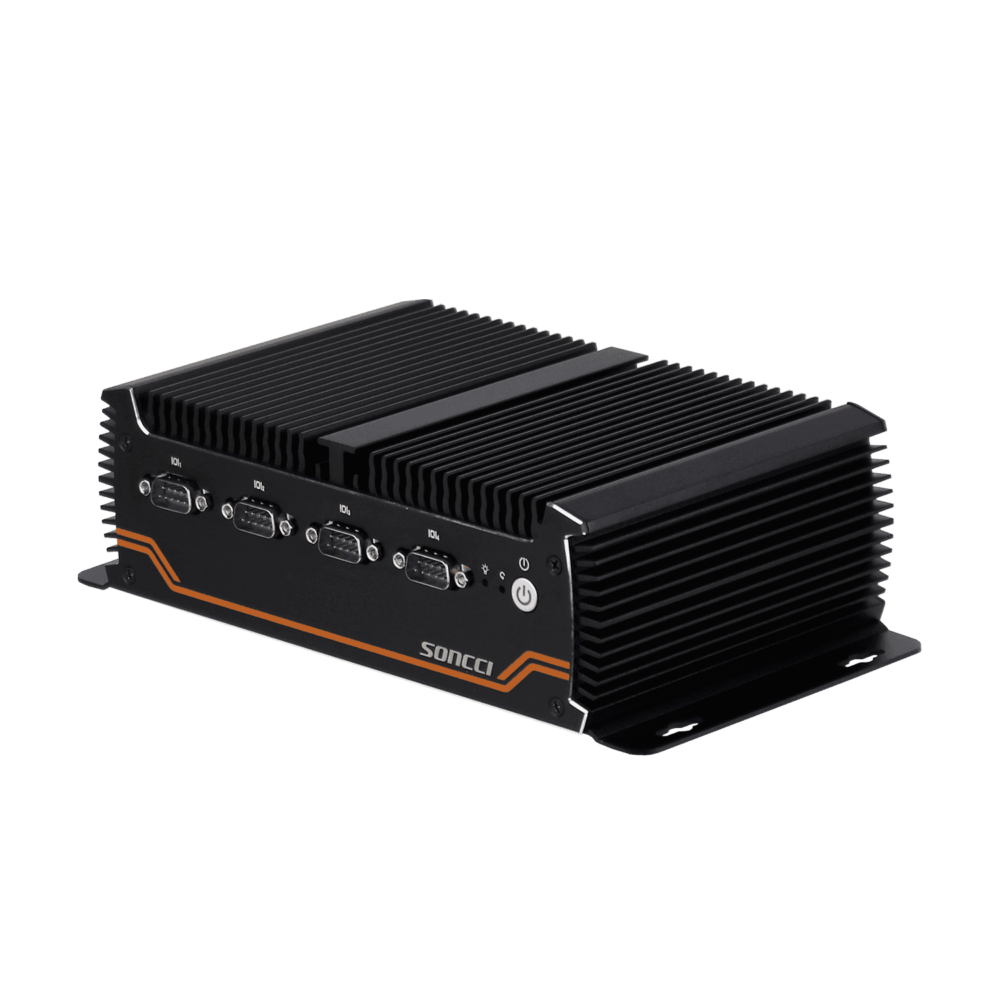

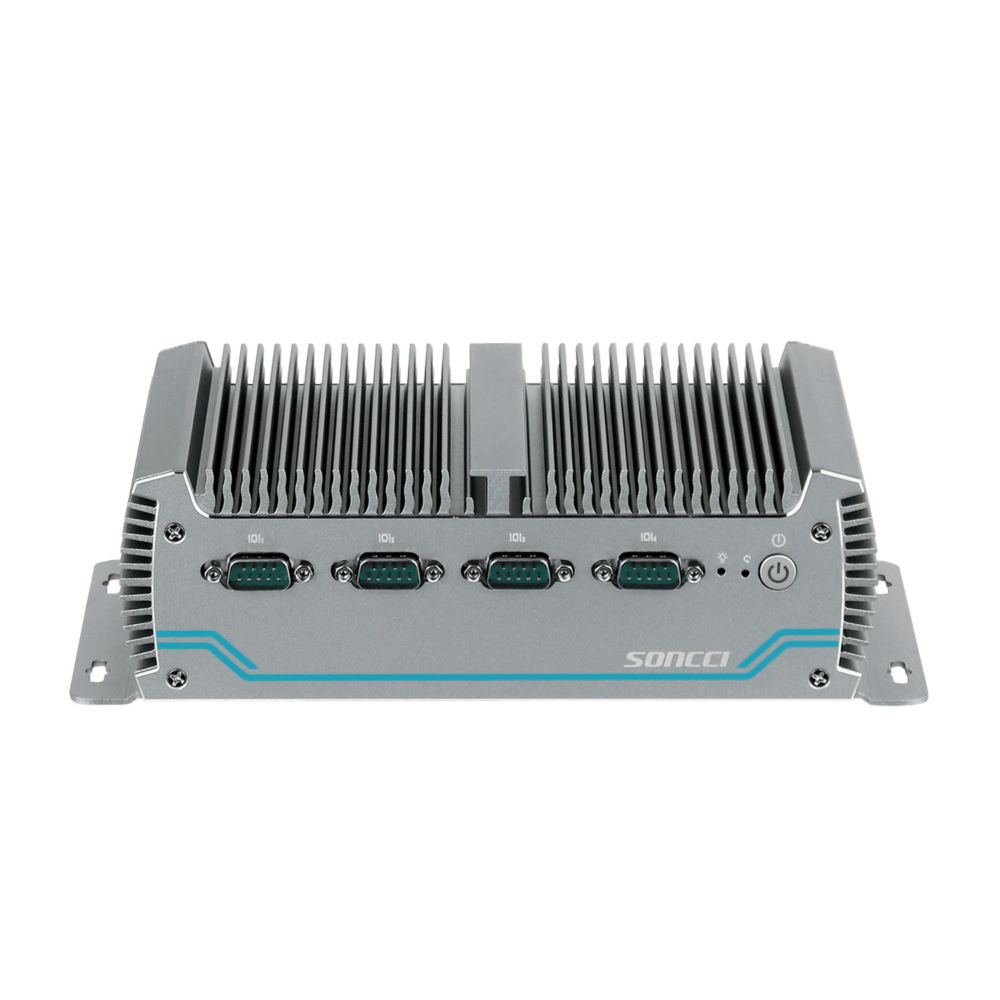

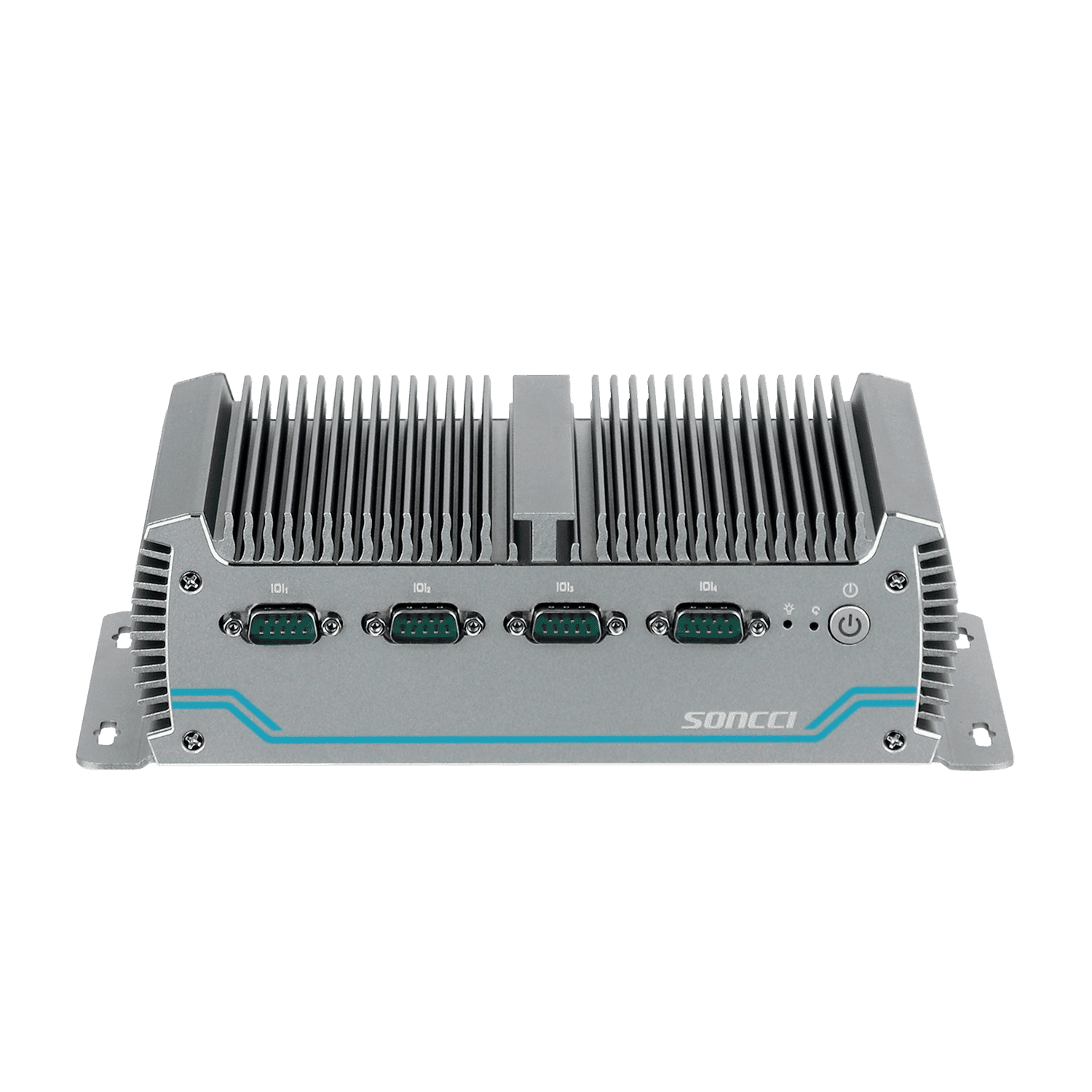

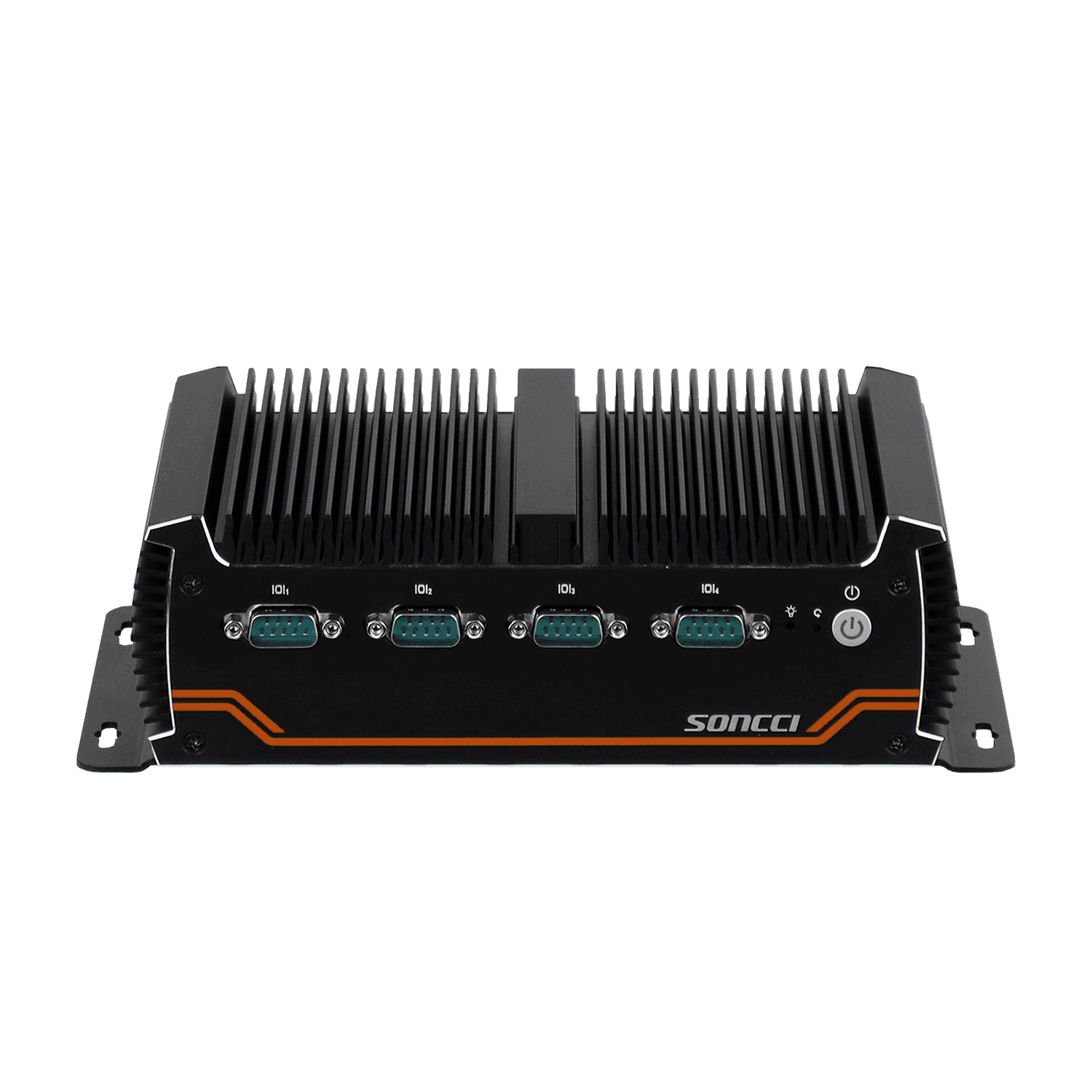

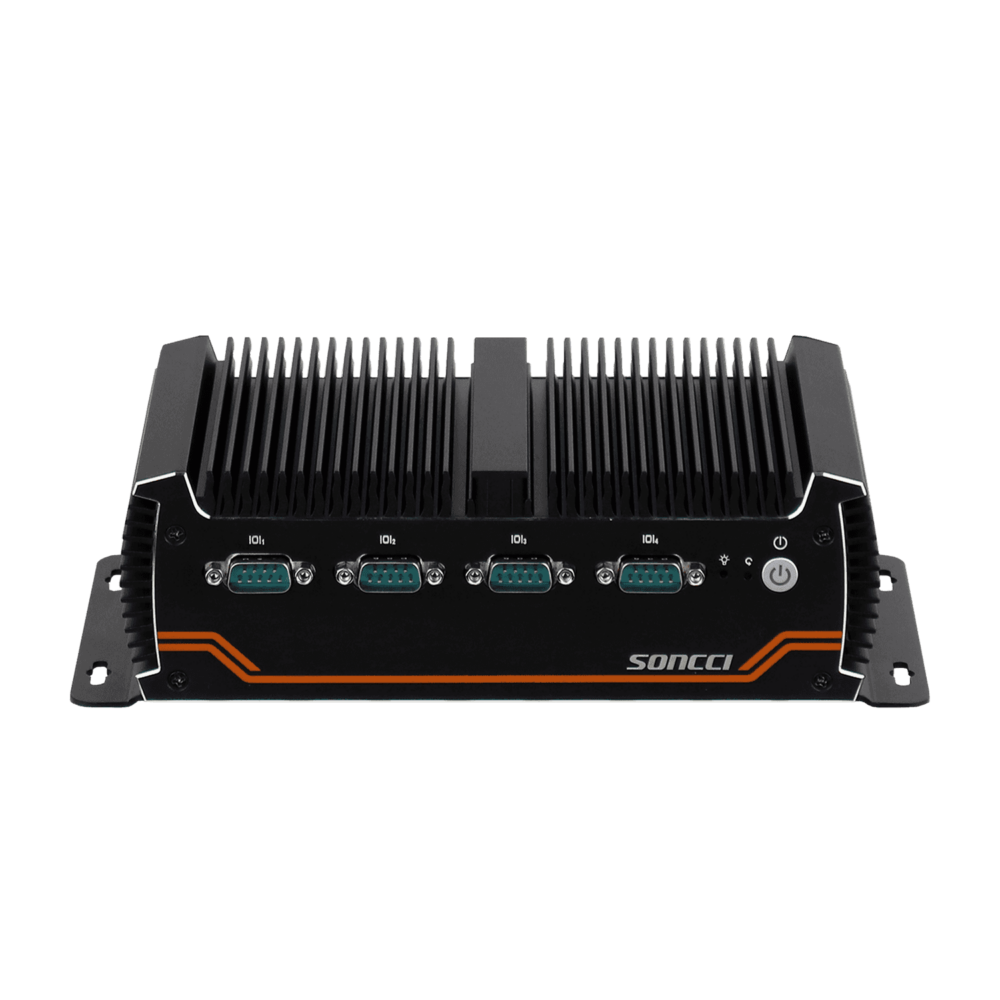

● 4 RS232 DB9 COM serial interfaces, COM2-3 support RS485 switching, HDMI+VGA dual display output
● BIOS supports Watchdog hardware reset, power-on and power-on function

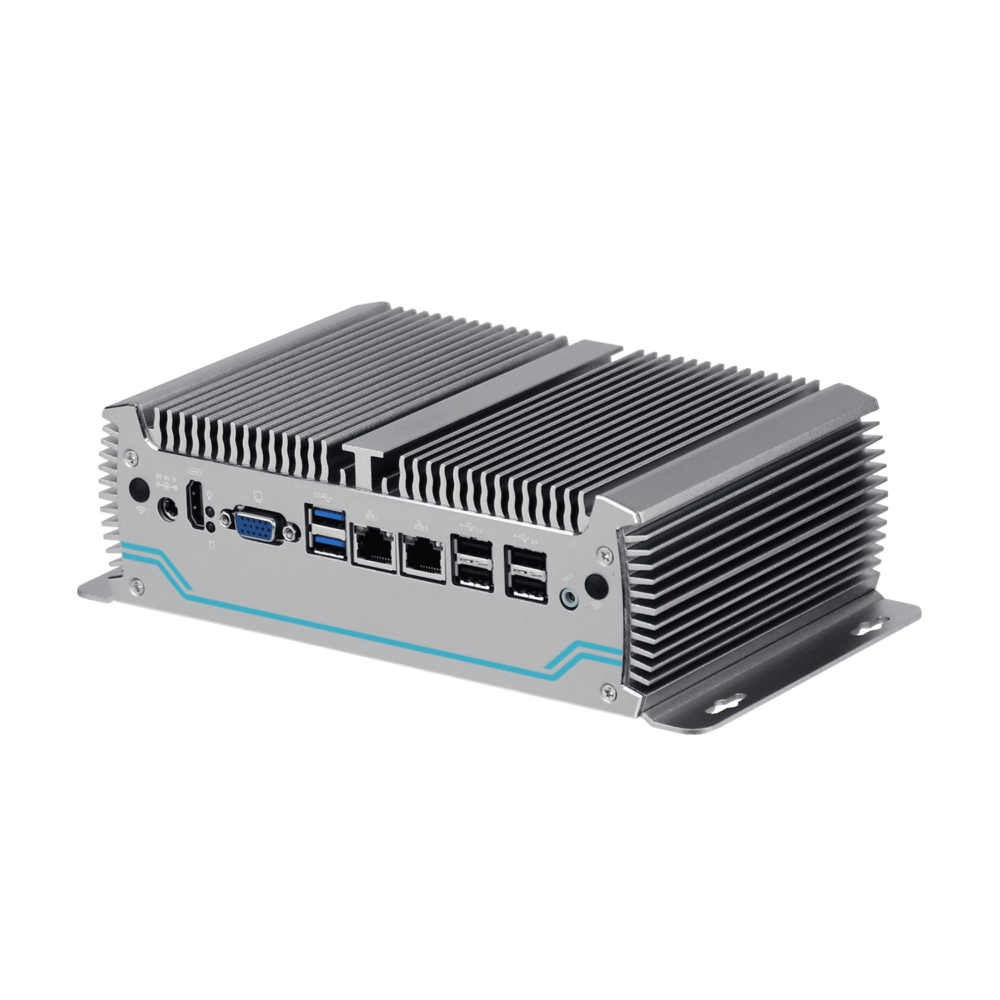

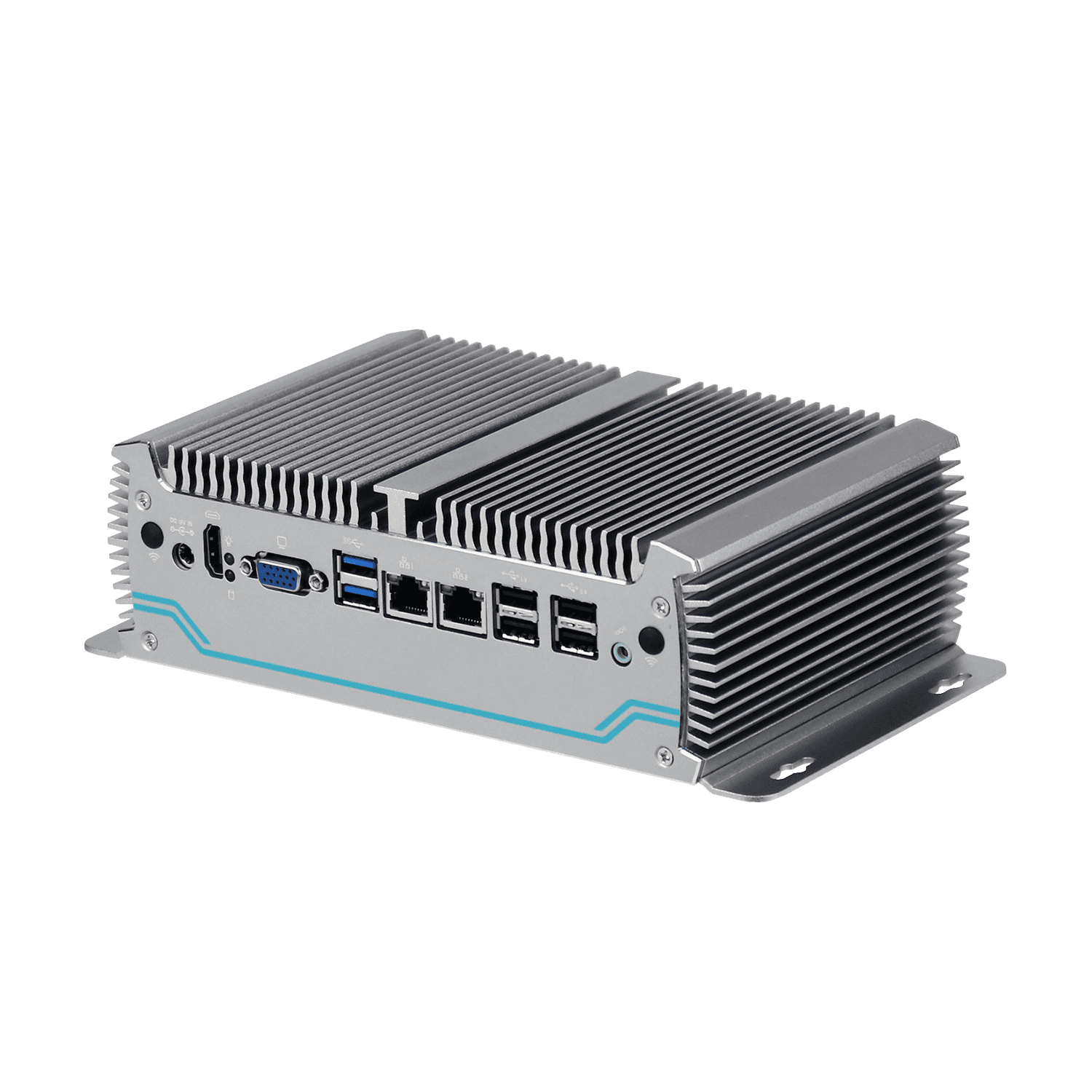

● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation

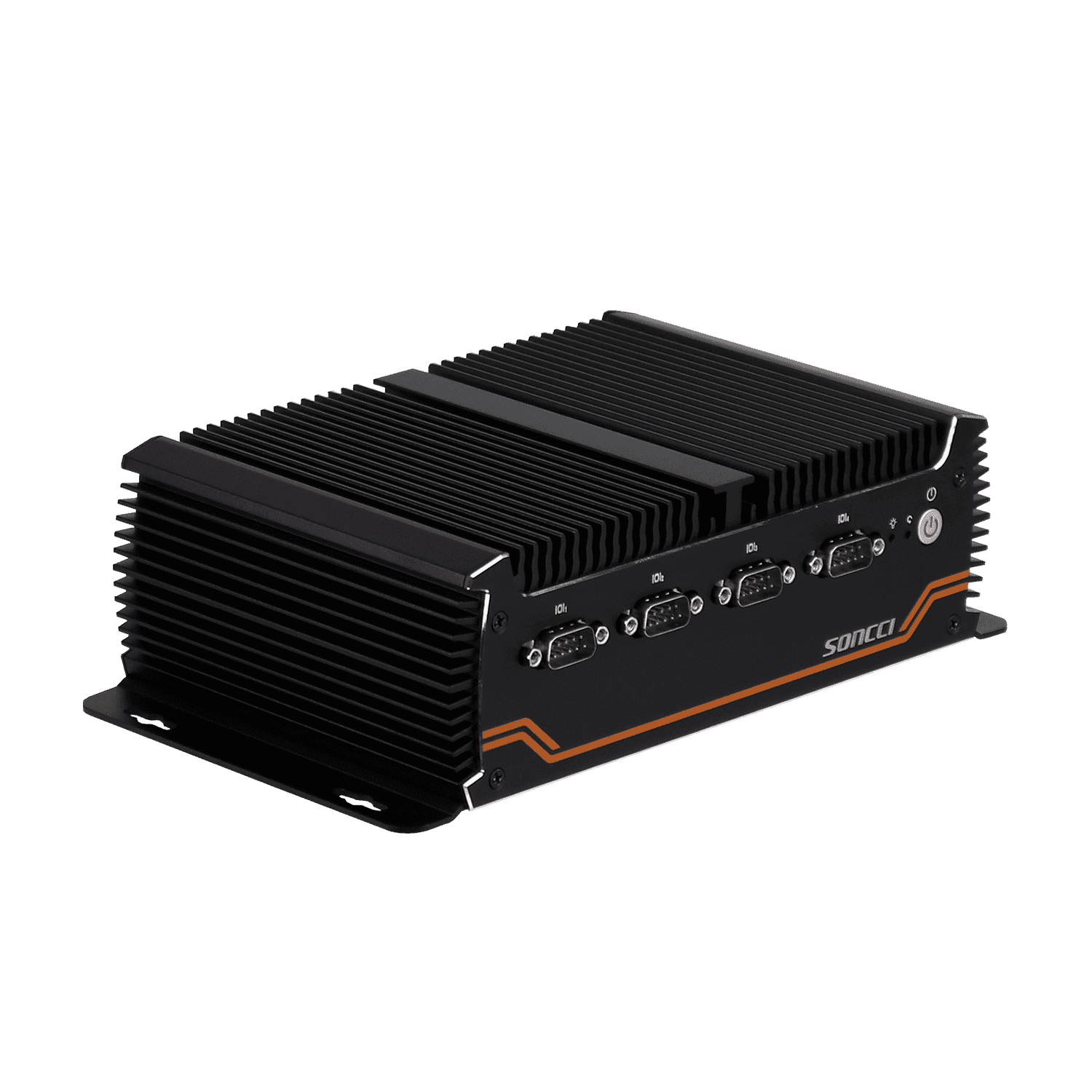

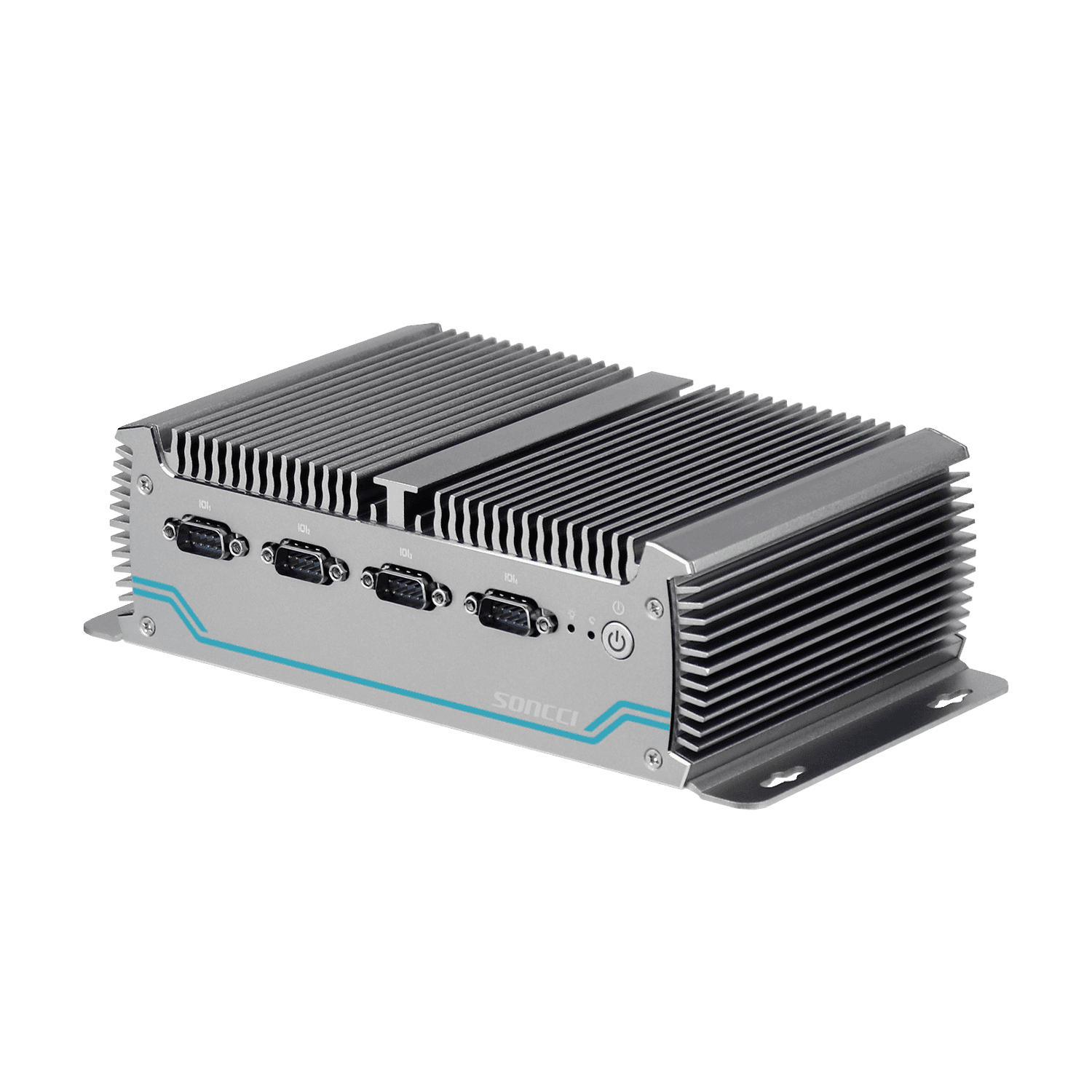

● Black/silver of the host is optional, supporting embedded, wall-mounted, and desktop installation
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description

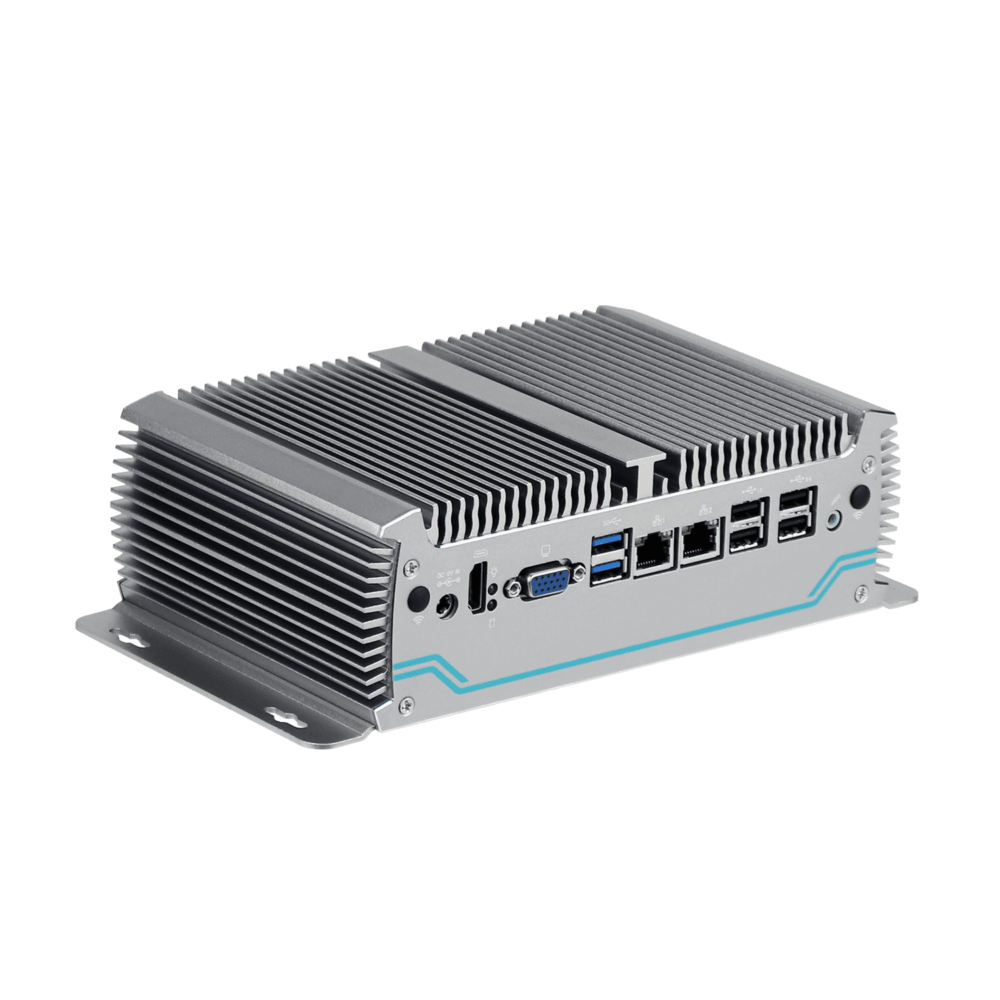

The SCI-S4080 wall-mounted Box PC is powered by intel Core processors, supports DDR3 memory, and provides a variety of options in 2.5-inch SATA and mSATA storage. It is equipped with a wealth of interfaces, including LAN, COM RS232/485, USB, HDMI+VGA dual display, etc., expandable WIFI/Bluetooth/4G module, supporting Windows and Linux systems.
wall-mounted Box PC aluminum alloy shell of the whole machine has strong strength, the aluminum fin design quickly dissipates the heat of the host, and the internal cable-free fanless and fully enclosed structure effectively prevents dust from entering, ensuring the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible to install, which can be applied to industrial control, network communication, self-service terminals, security machine vision, mini servers, smart cities and other fields.
Additional information
| Weight | 2.4 kg |
|---|---|
| Dimensions | 305 × 305 × 135 mm |
| Model | SCI-S4080 |
| Processor | Intel Core i3-5005U, Intel Core i5-4300U, Intel Core i7-4600U |
| Memory | 4G, 8G, 16G |
| Hard disk | 64G SSD, 128G SSD, 256G SSD, 512G SSD |
| Network chips | Realtek RTL8111 Gigabit LAN |
| Audio chips | integration |
| Power supply | Input AC 220V, DC 12V power adapter |
| Wireless communications | 1xMINI-PCIE (optional expansion WIFI/Bluetooth/4G module) |
| Operating System | Linux, Windows |
| BIOS | It supports power-on, timed boot, network wake-up, and diskless boot |
| Watchdog | Watchdog supports hardware reset (256 levels, 0~255 seconds) |

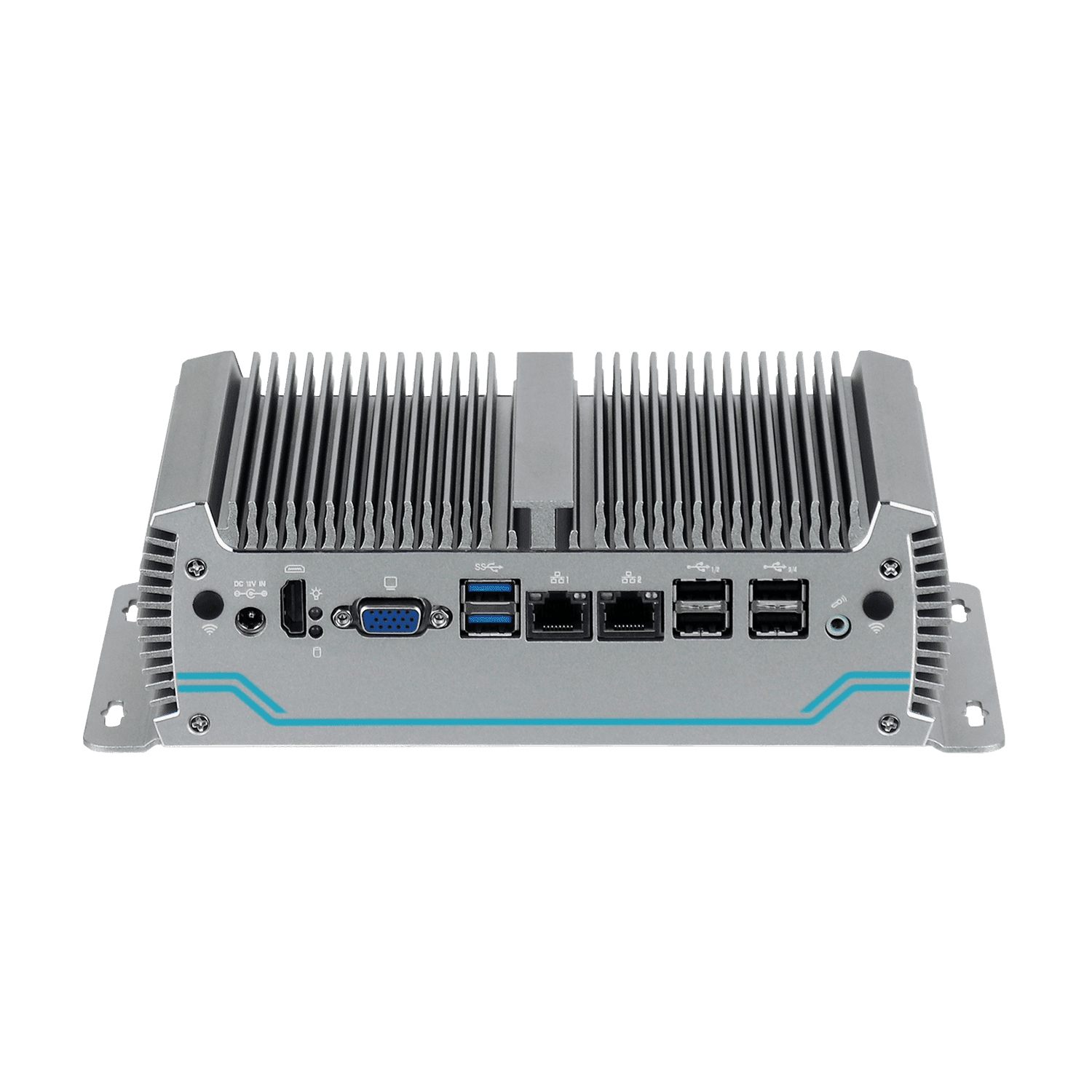

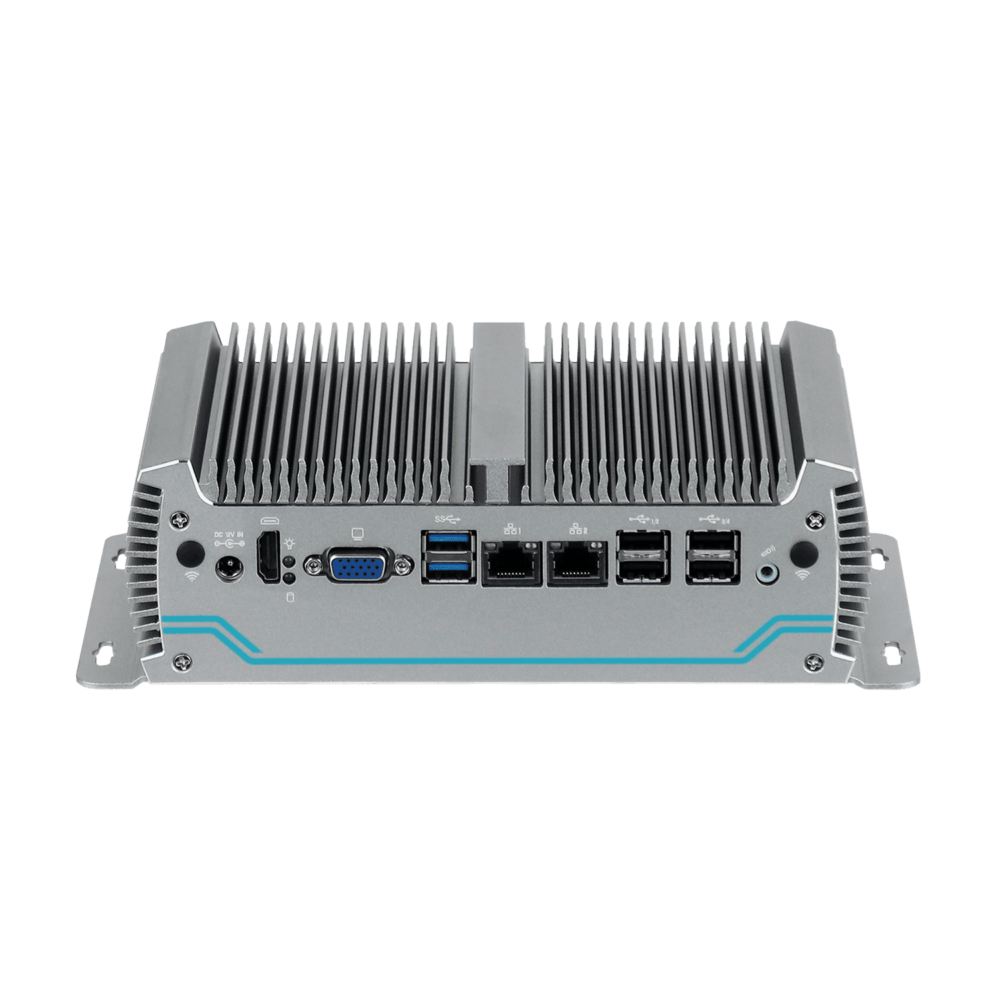

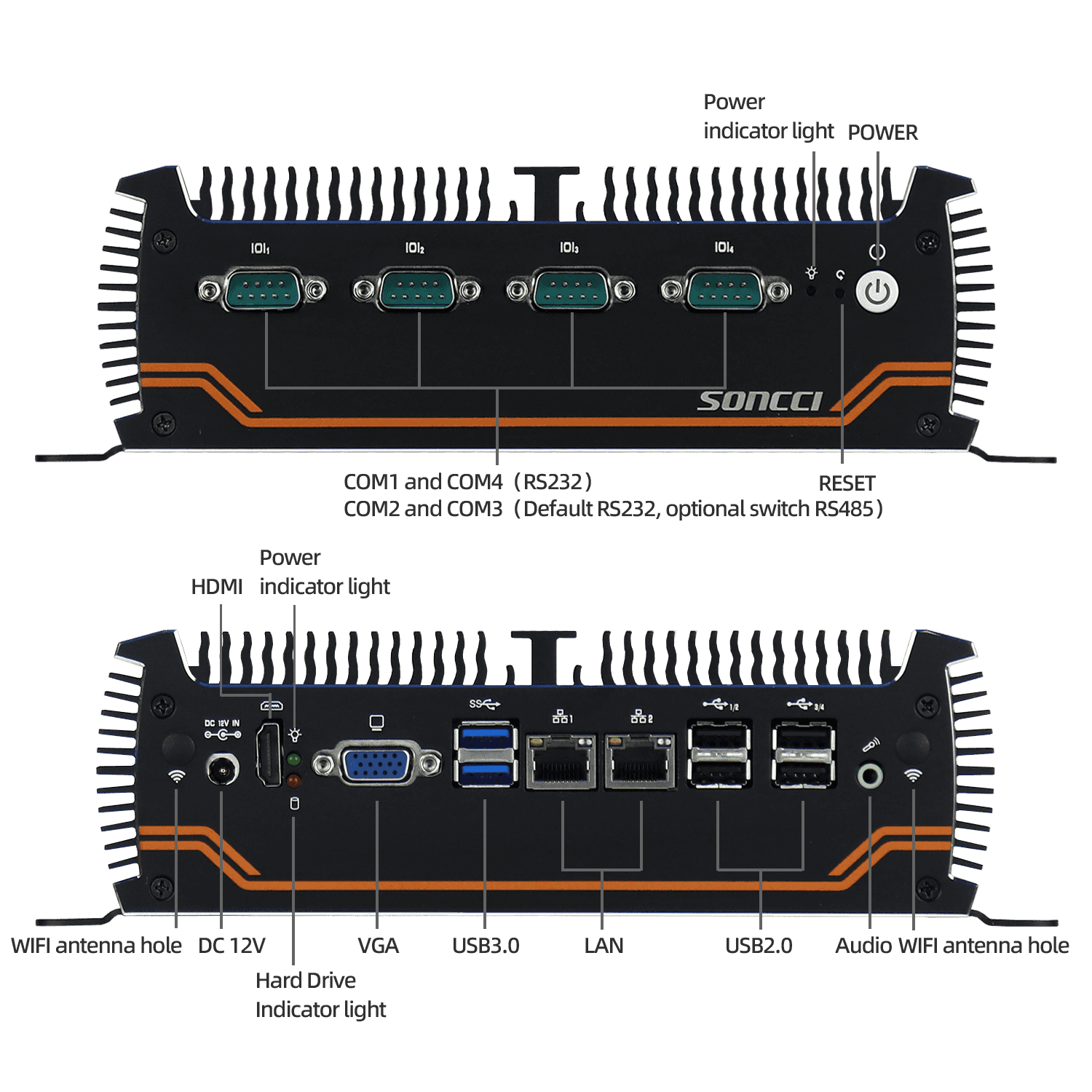

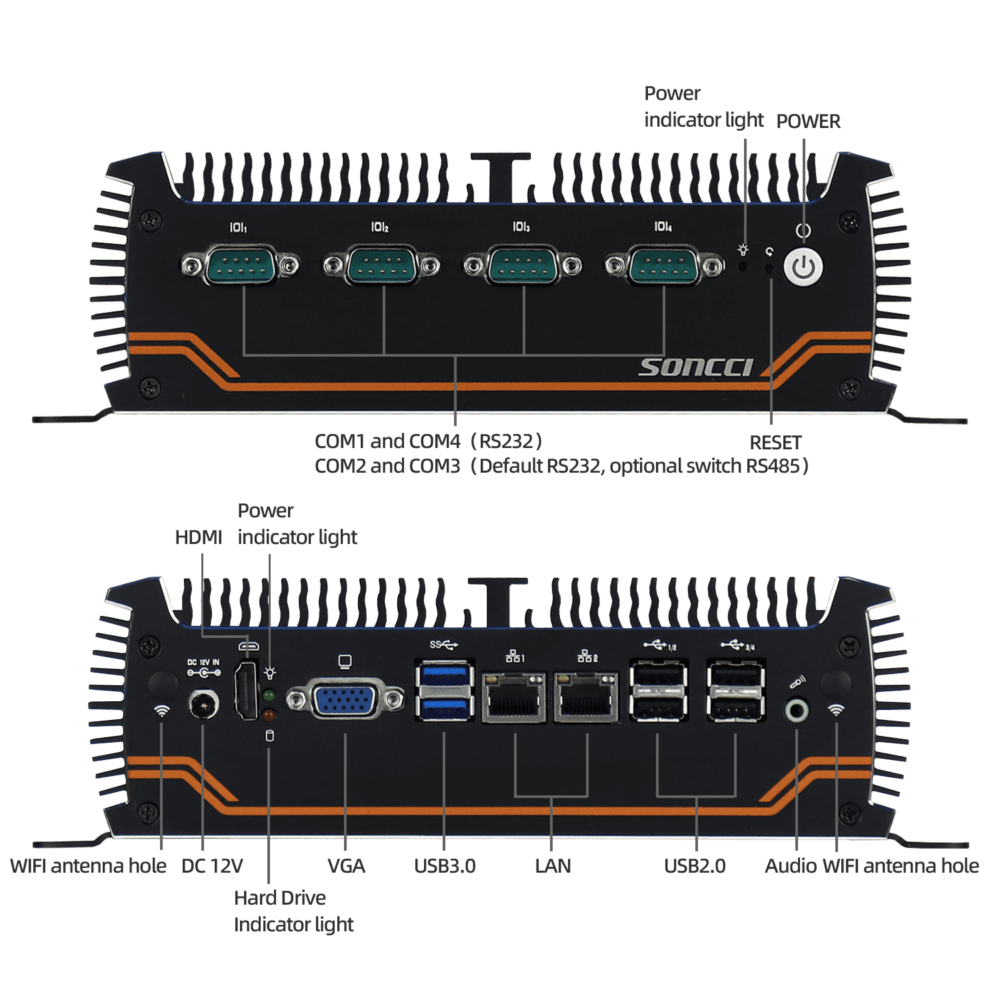

| Interface | 1 x Audio, 1 x DC, 1 x HDD LED, 1 x HDMI, 1 x Power, 1 x Power LED, 1 x Reset, 1 x VGA, 2 x LAN, 4 x COM, 6 x USB |
| Extended interfaces | 1xMini-PCIE, 1xSIM internal card slot |

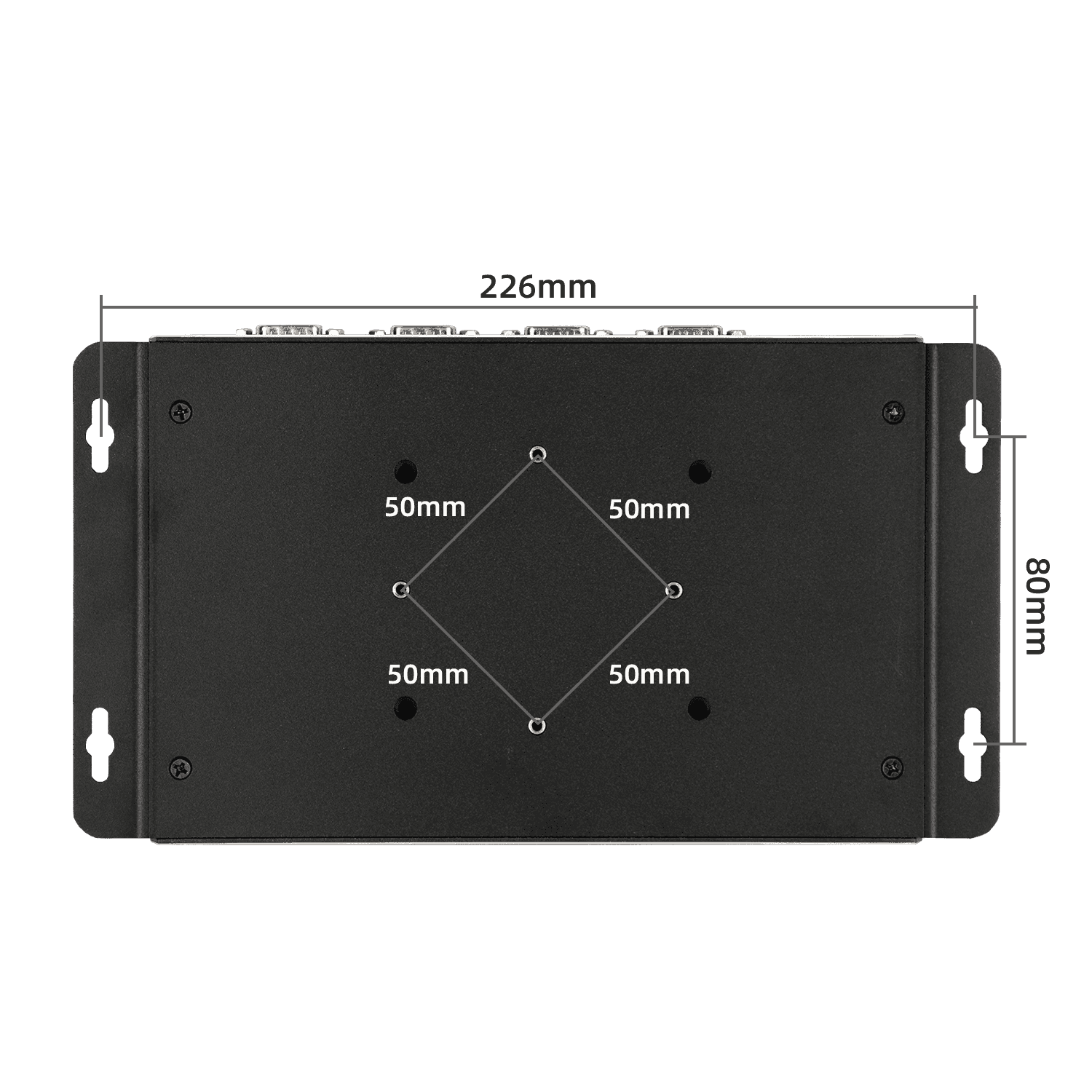

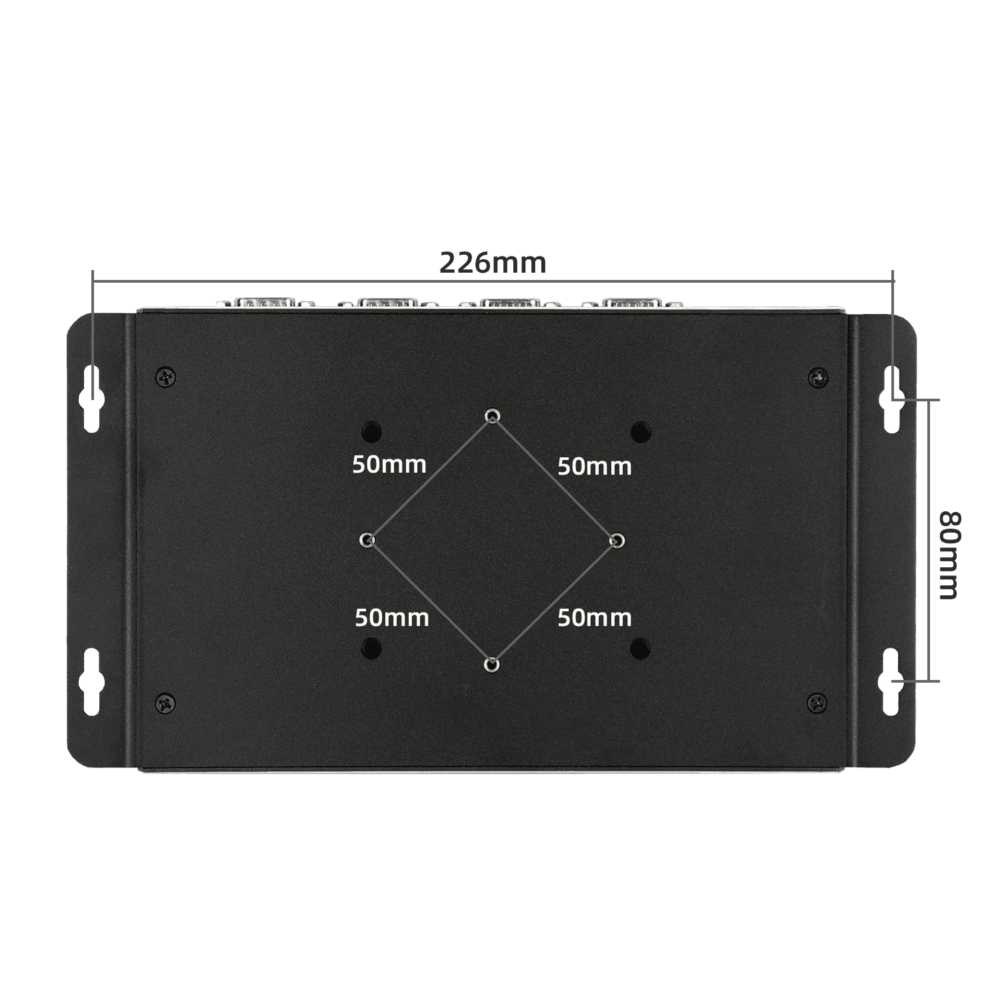

| Installation | Desktop, Embedded, Wall-mounted |

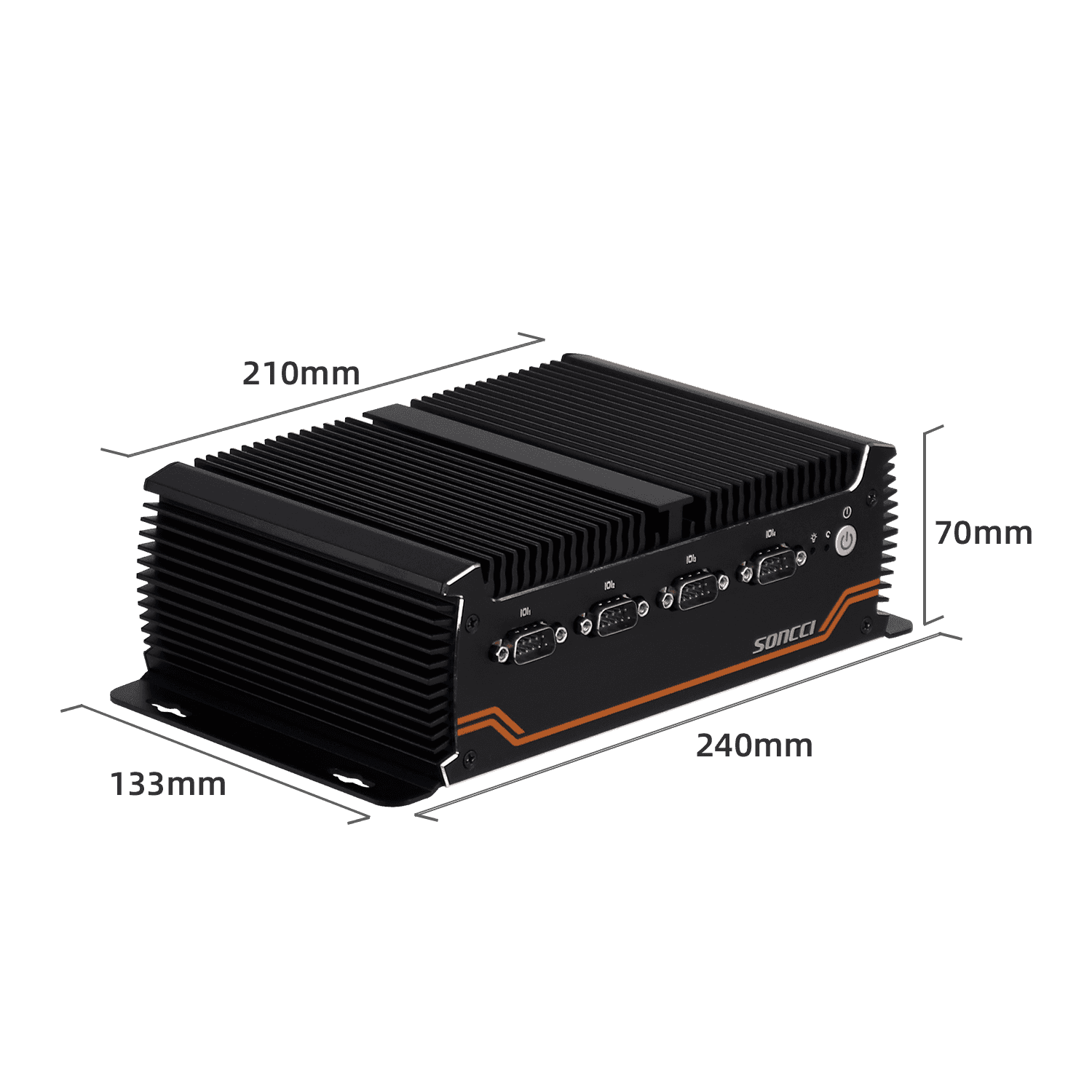

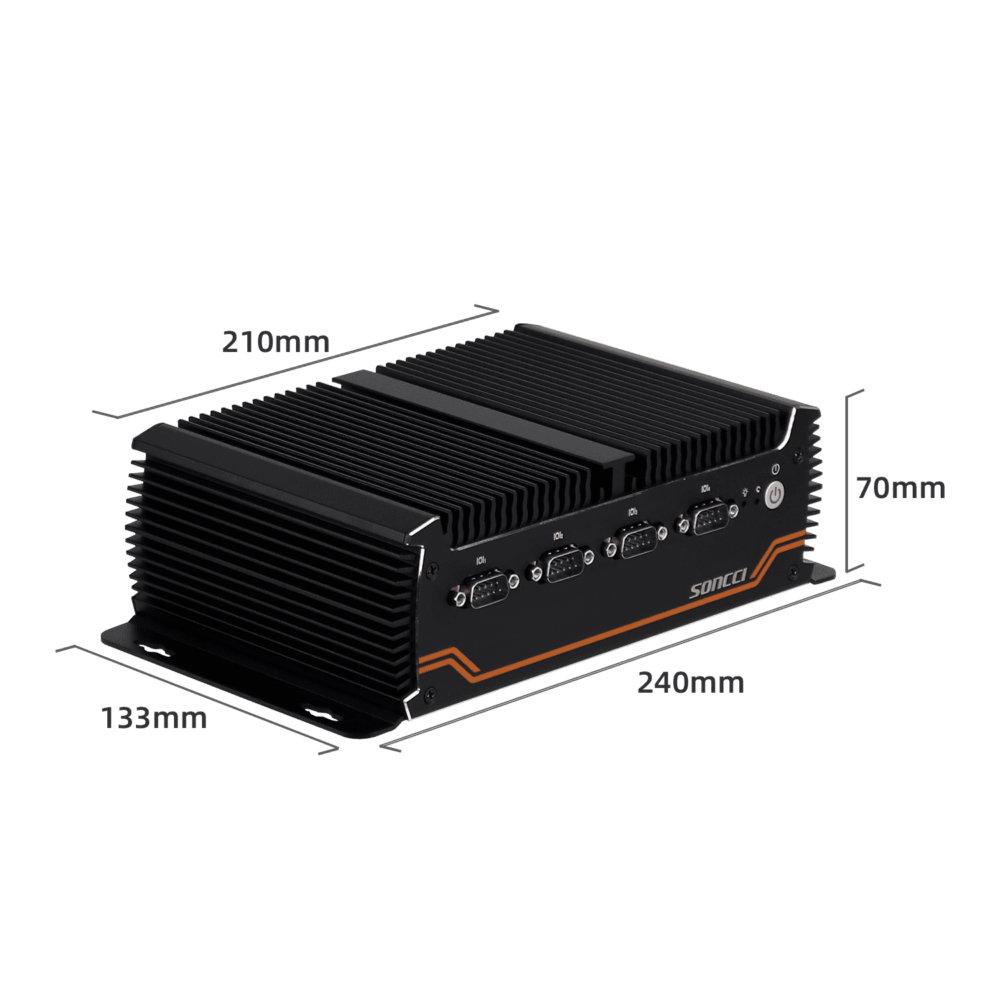

| Product size | 240 x 133 x 70mm |
| Product Weight | 1.6KG |
| Shell material | Aluminum alloy |
| Heat dissipation | Aluminum fin fanless |

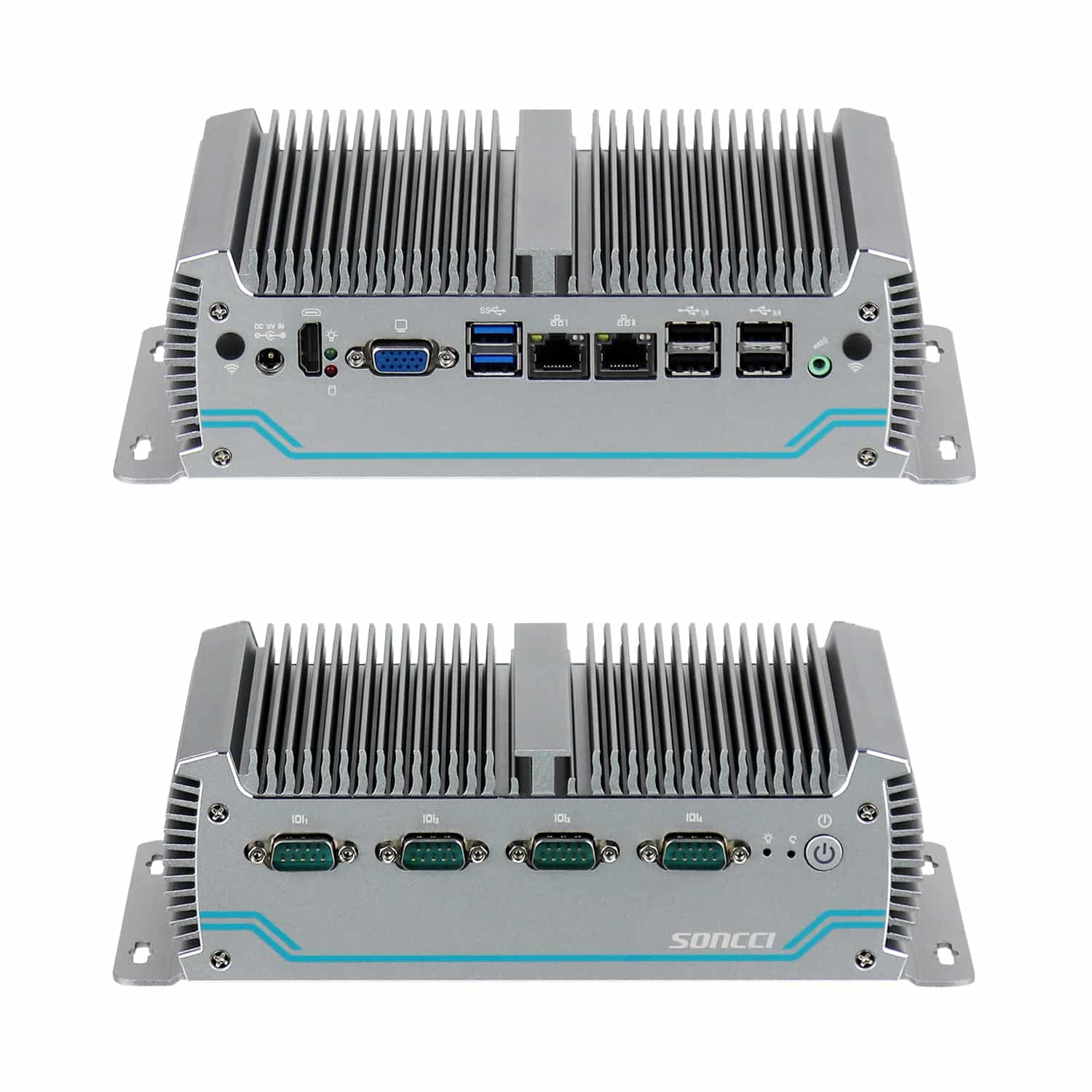

| Color | Silver, Black |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -10°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 5%~95% (no condensation) |
