N100 compact mini Box PC
$88.00 – $264.00
● Support intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
● Support 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard disk, mSATA, M.2 solid state drive
● 2 Gigabit Ethernet ports, support network wake-up, diskless boot, SIM built-in card slot, optional WIFI/Bluetooth/4G module

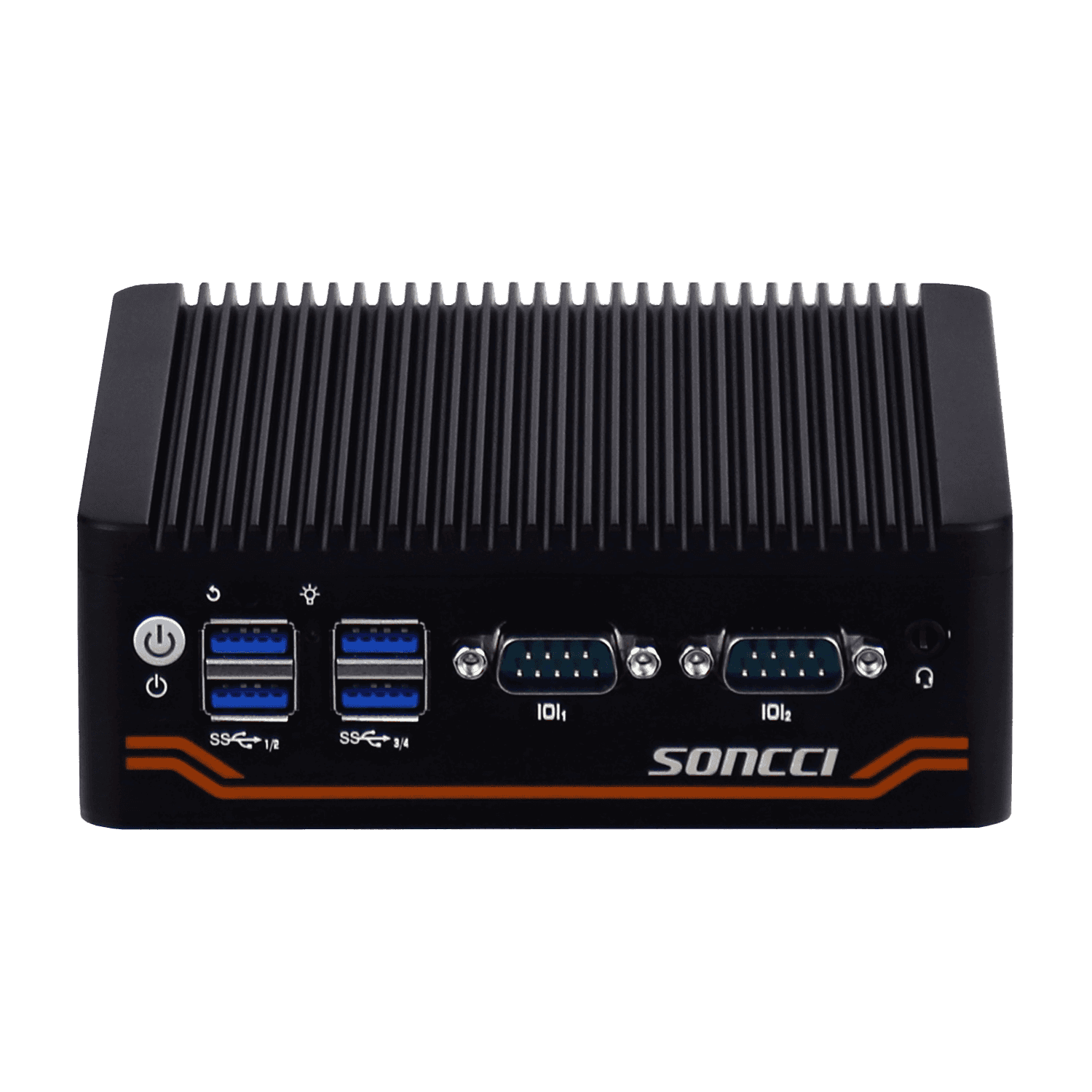

● 2 RS232 DB9 COM serial interfaces, and both support RS485 switching, HDMI+VGA dual display output
● BIOS supports Watchdog hardware reset, power-on and power-on function

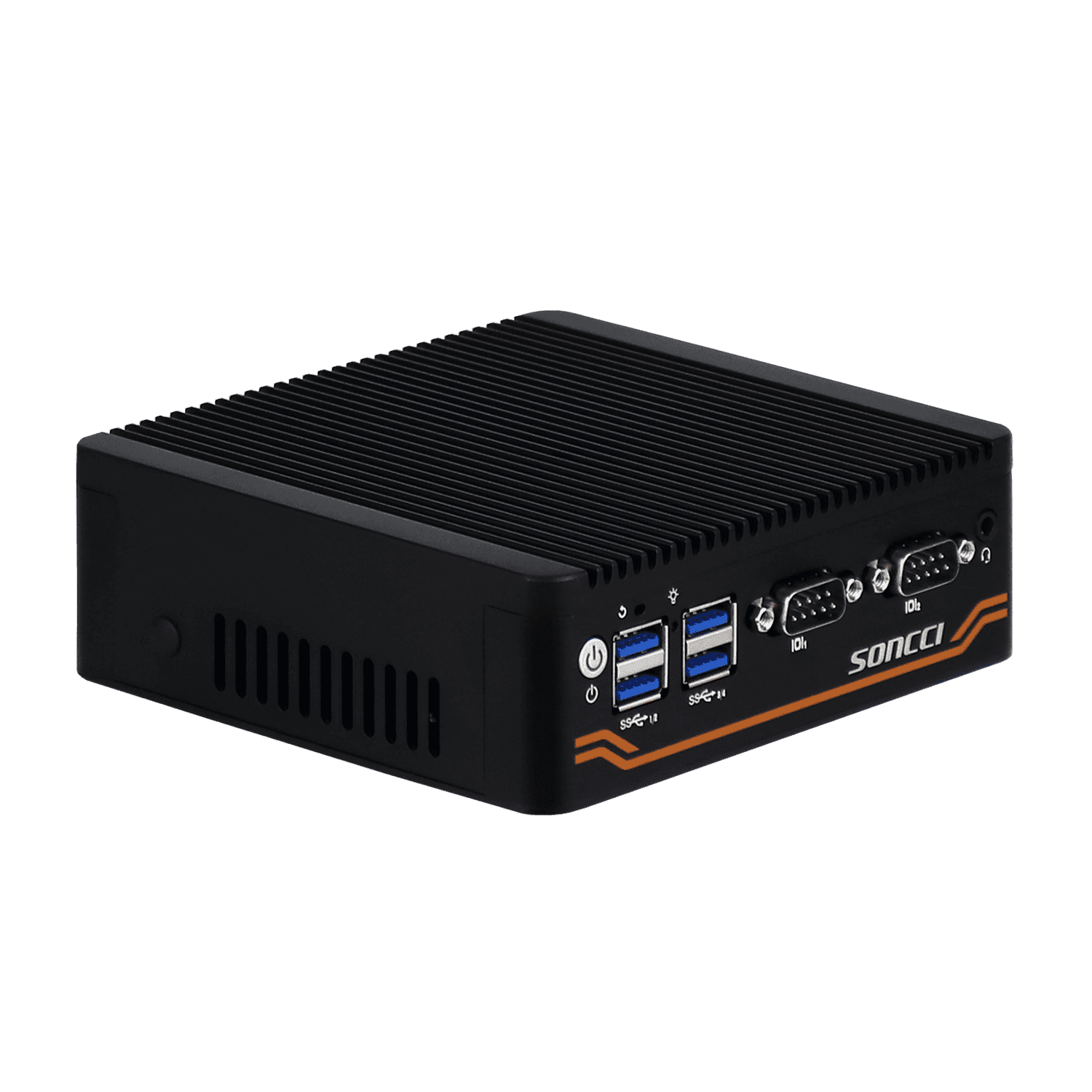

● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation

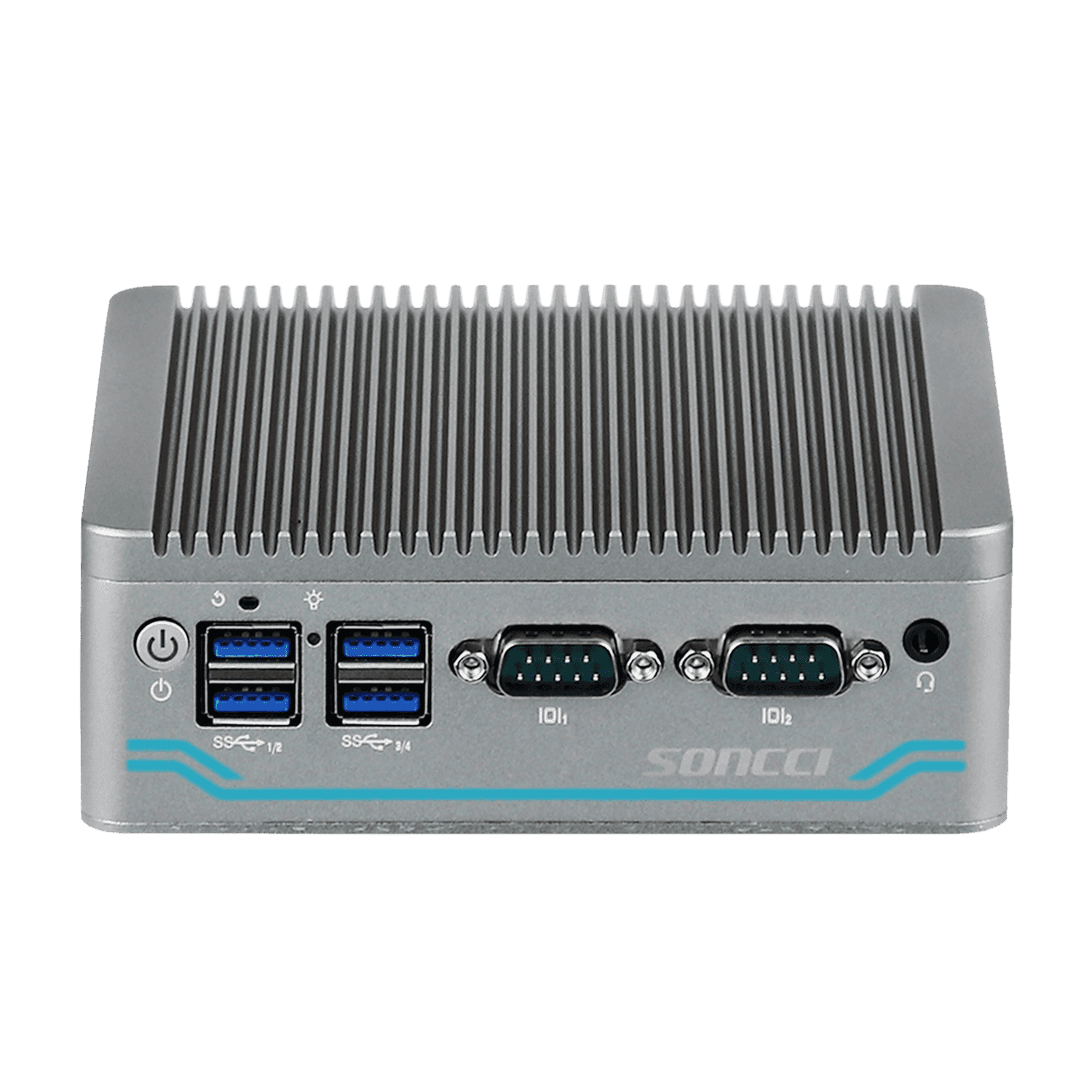

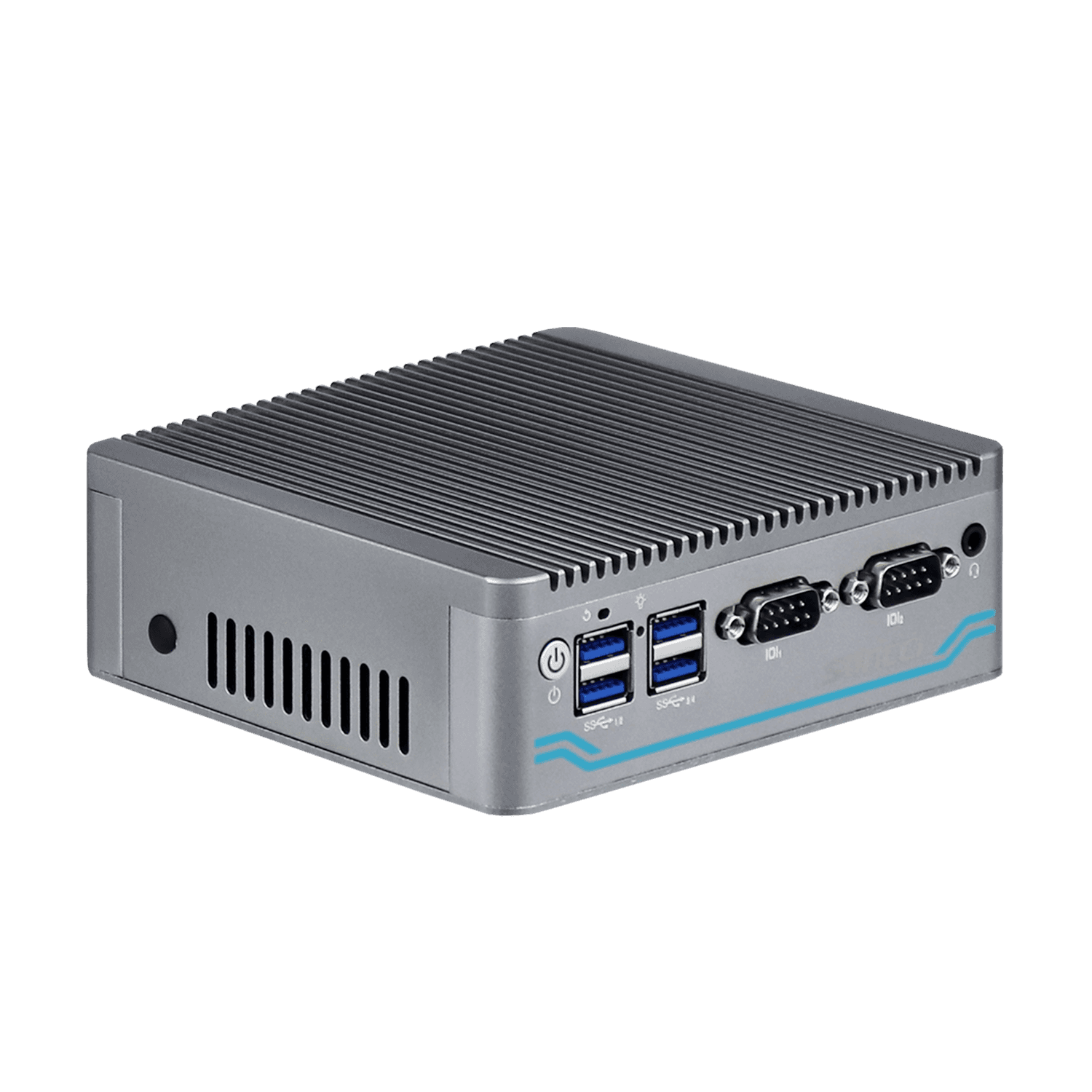

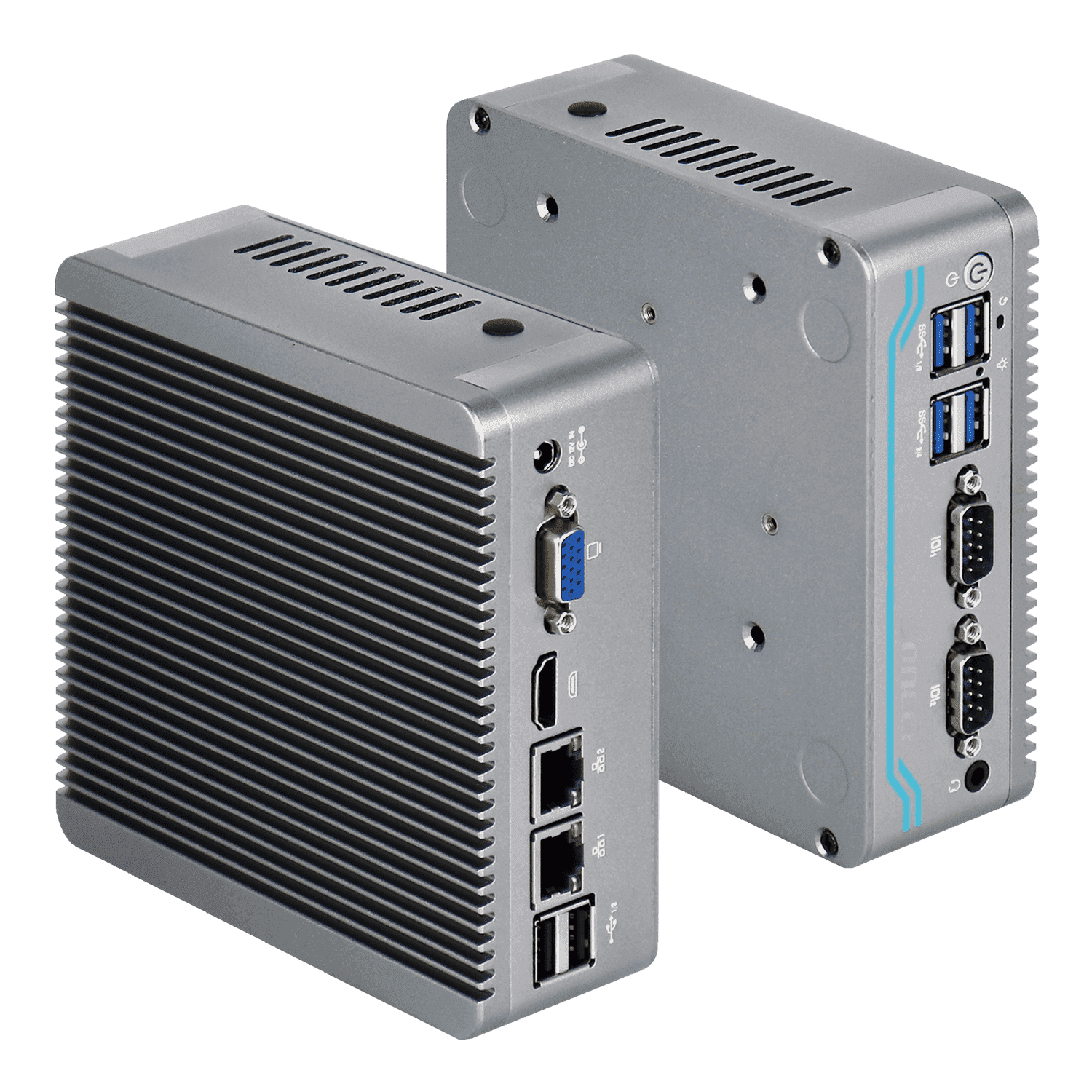

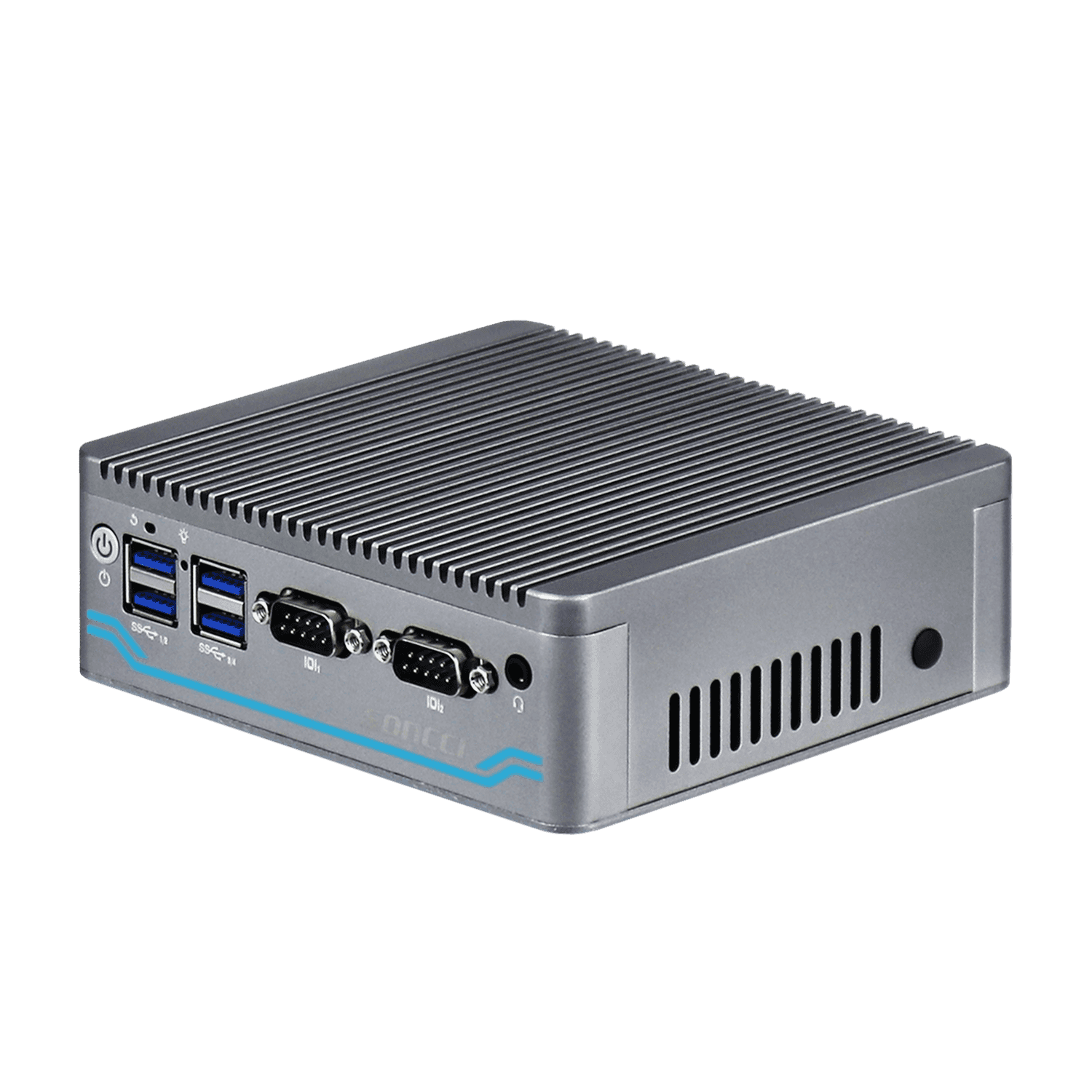

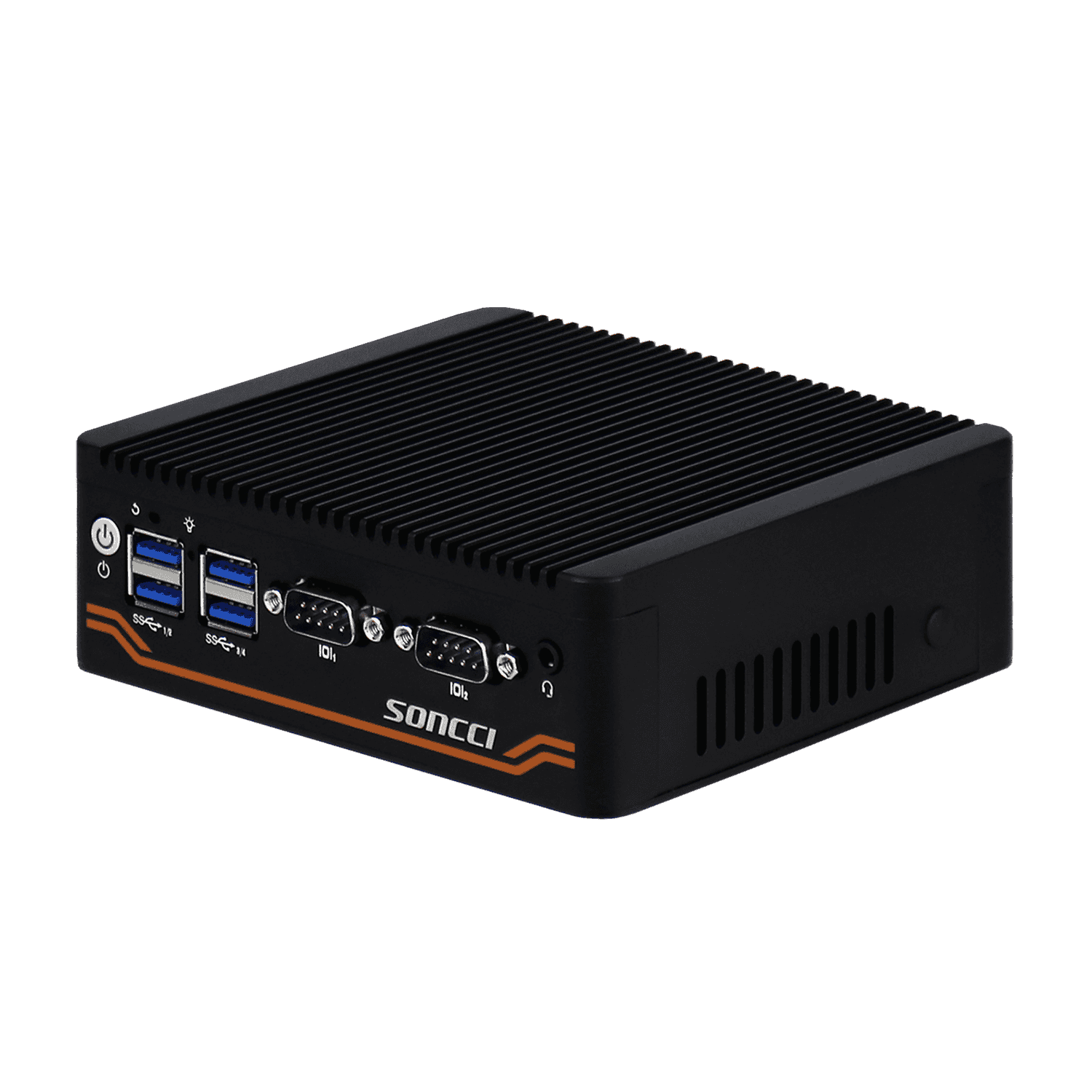

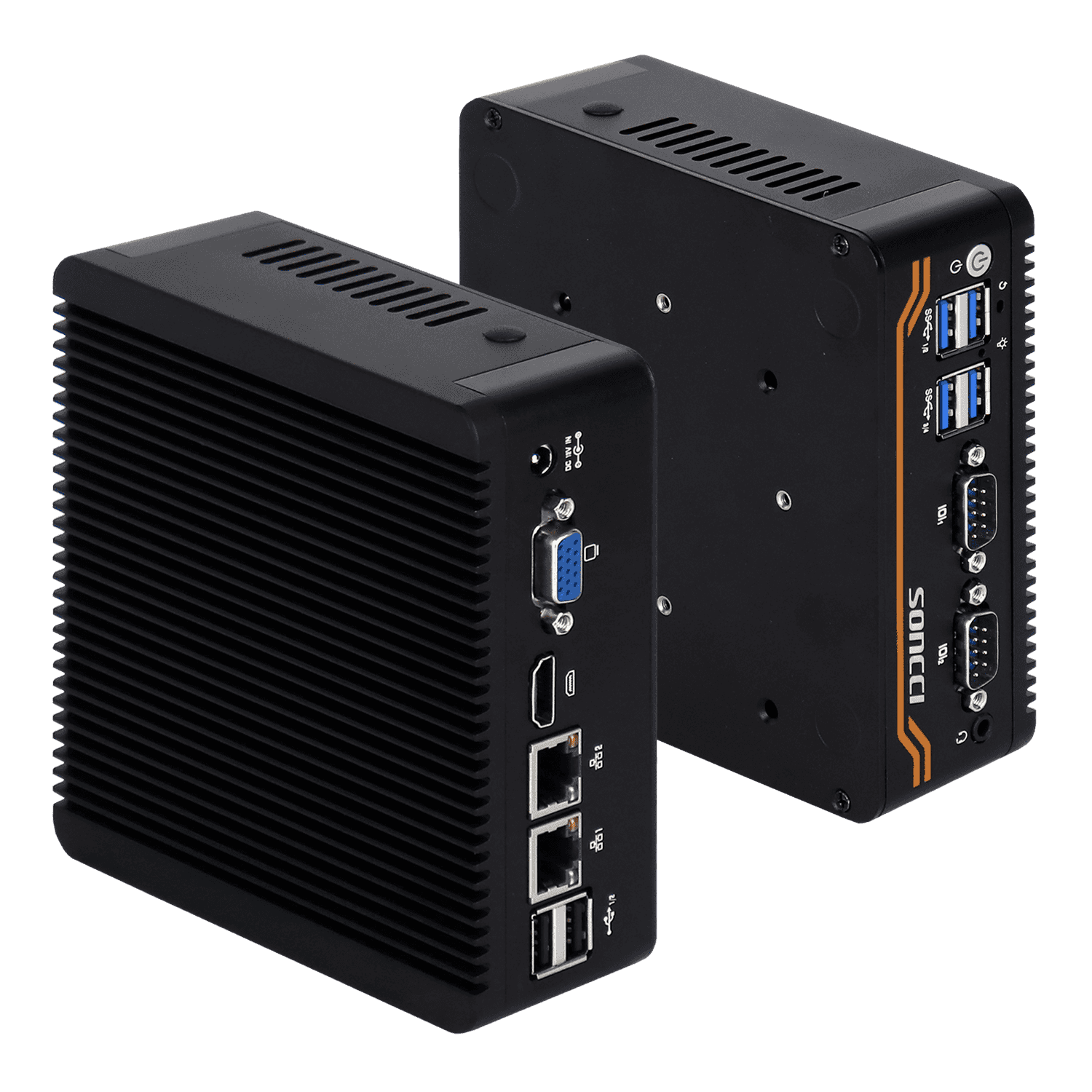

● Mini and small is only the size of the palm of your hand, the host is black/silver optional, and supports embedded, wall-mounted, and desktop installation
- Overview
- Specs
- Shipping & Payment
- Reviews (0)
- Support
Description
The SCI-S4050 fanless embedded mini Box PC is powered by intel Celeron/Core processors, supports DDR3/4 memory, and provides a variety of options in 2.5-inch SATA, mSATA, and M.2 storage. It is equipped with a wealth of interfaces, including LAN, COM RS232/485, USB, HDMI+VGA dual display, etc., expandable WIFI/Bluetooth/4G module, supporting Windows and Linux systems.
mini Box PC aluminum alloy shell of the whole machine has strong strength, the aluminum fin design quickly dissipates the heat of the host, and the internal cable-free fanless and fully enclosed structure effectively prevents dust from entering, ensuring the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible for installation, which can be applied to industrial control, medical health, cloud terminals, security machine vision, mini servers, smart cities and other fields.
Additional information
| Weight | 1.3 kg |
|---|---|
| Dimensions | 205 × 175 × 120 mm |
| Model | SCI-S4050 |
| Processor | Intel Celeron J1900, Intel Celeron J4125, Intel Celeron N2830, Intel Core i3-5005U, Intel Core i5-4300U, Intel Core i7-4600U, Intel N100 |
| Memory | 4G, 8G, 16G |
| Hard disk | 64G SSD, 128G SSD, 256G SSD, 512G SSD |
| Network chips | Realtek RTL8111 Gigabit LAN |
| Audio chips | integration |
| Power supply | Input AC 220V, DC 12V power adapter |
| Wireless communications | 1xMINI-PCIE (optional expansion WIFI/Bluetooth/4G module) |
| Operating System | Linux, Windows |
| BIOS | It supports power-on, timed boot, network wake-up, and diskless boot |
| Watchdog | Watchdog supports hardware reset (256 levels, 0~255 seconds) |

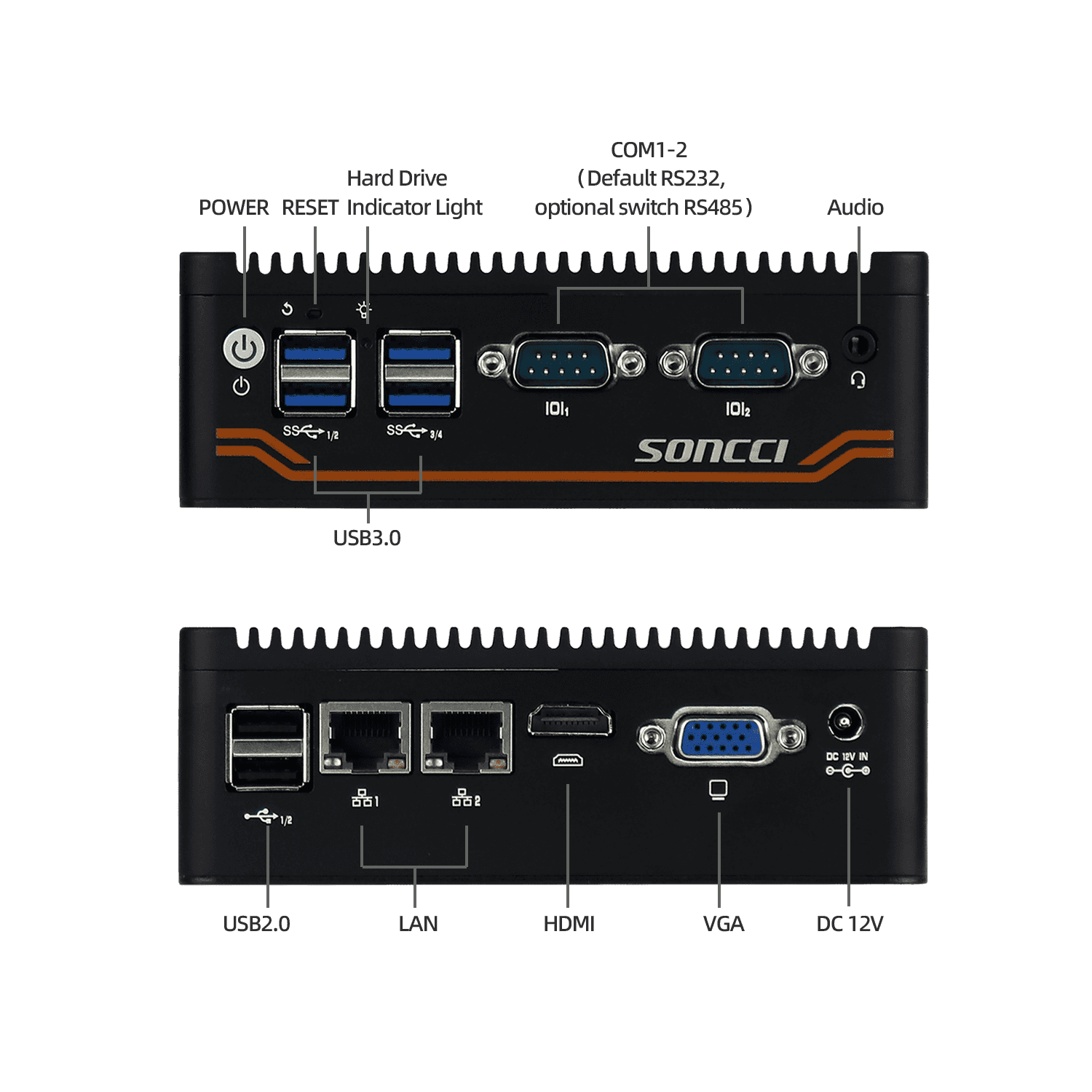

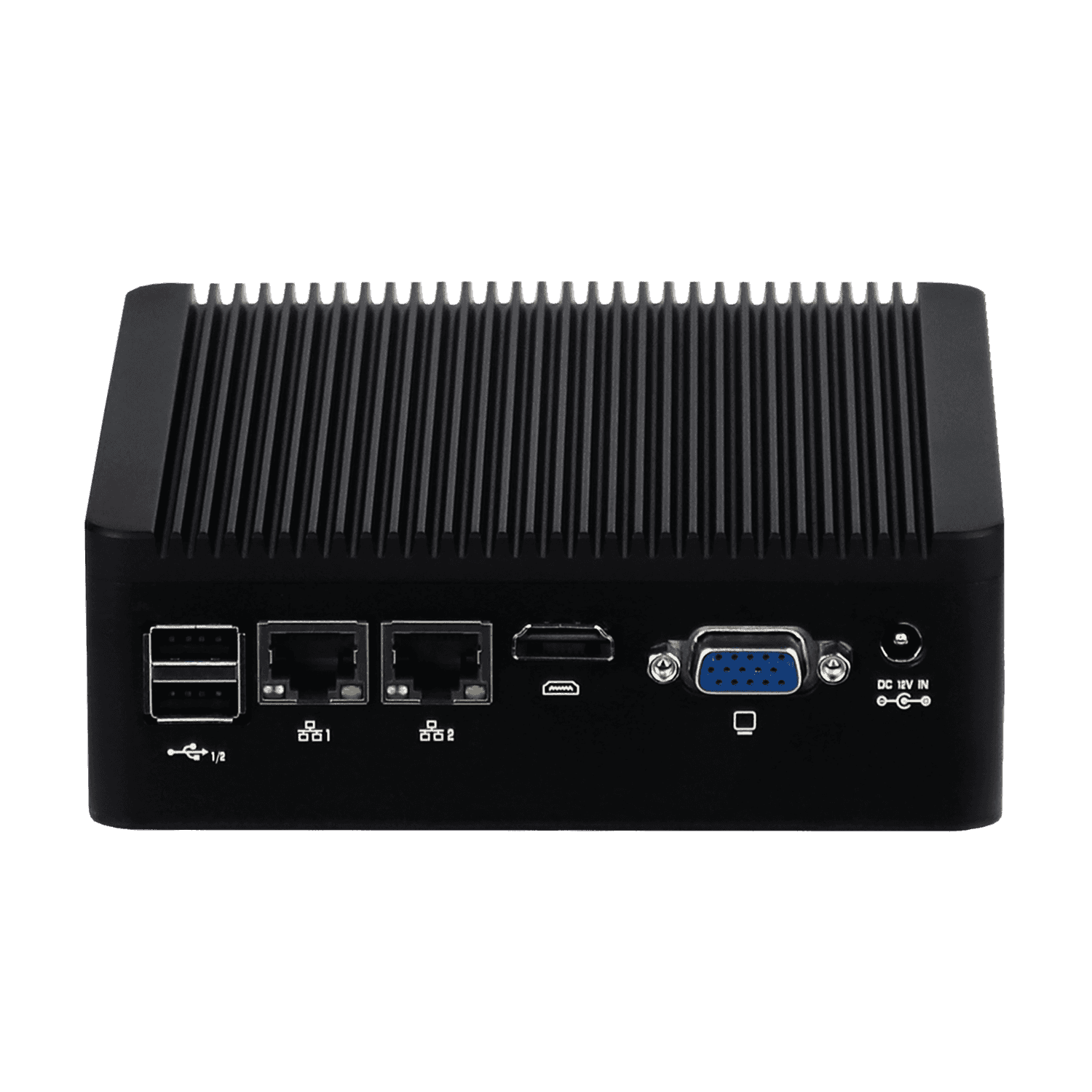

| Interface | 1 x Audio, 1 x DC, 1 x HDD LED, 1 x HDMI, 1 x Power, 1 x Reset, 1 x VGA, 2 x COM, 2 x LAN, 6 x USB |
| Extended interfaces | 1xMini-PCIE, 1xSIM internal card slot |
| Installation | Desktop, Embedded, Wall-mounted |

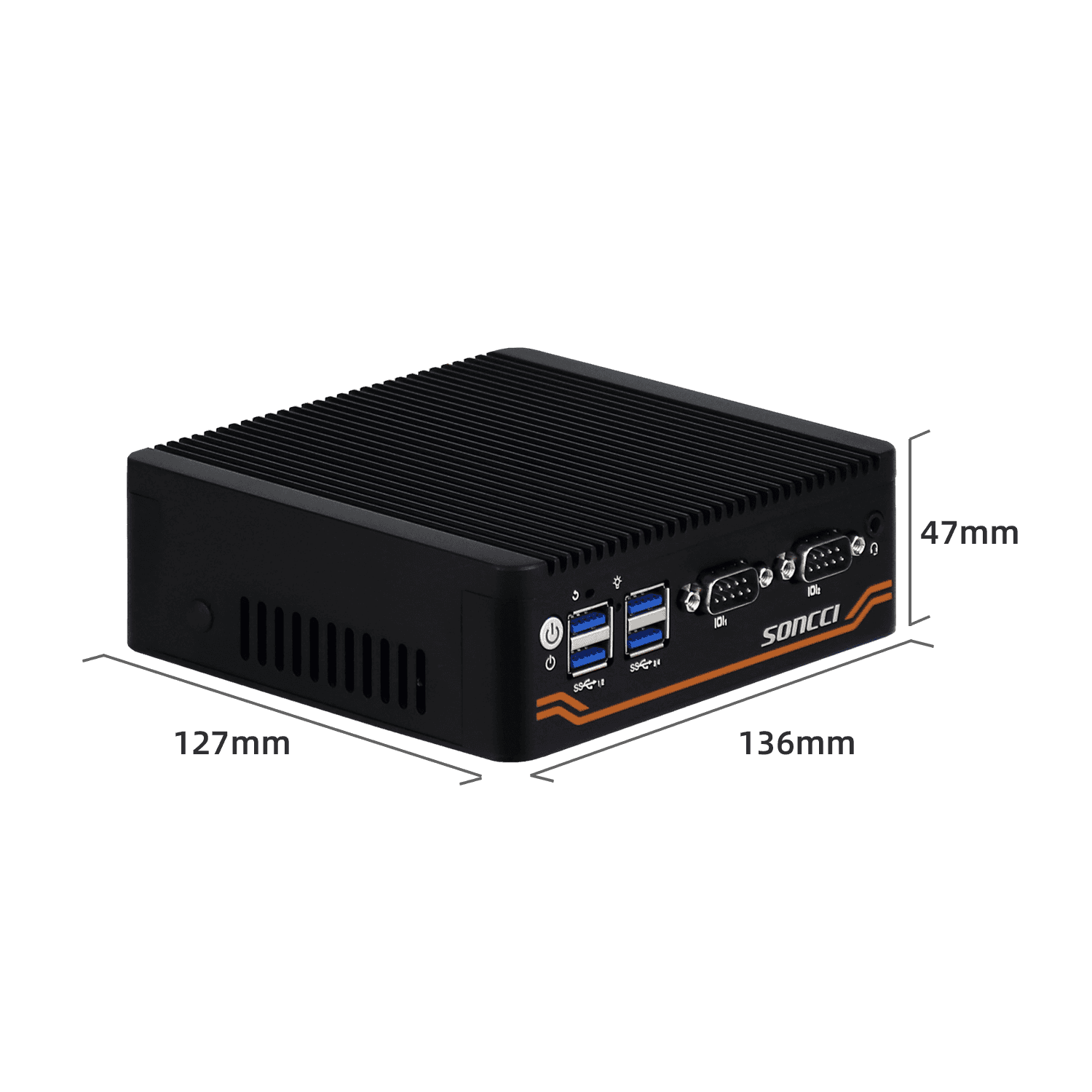

| Product size | 136 x 127 x 47mm |
| Product Weight | 0.7KG |
| Shell material | Aluminum alloy |
| Heat dissipation | Aluminum fin fanless |
| Color | Silver, Black |
| Interference resistance | EMI/EMC interference detection standards |
| ESD static electricity | The contact discharge ± 8KV, the air discharge ± 15KV |
| Anti vibration | 5~500Hz, 2Grms random vibration |
| Impact resistant | Working Status: 10G@11ms, Non-Working Status: 20G@11ms |
| Work environment | -10°C to 60°C |
| Storage environment | -20°C to 70°C |
| Relative humidity | 5%~95% (no condensation) |
